Description

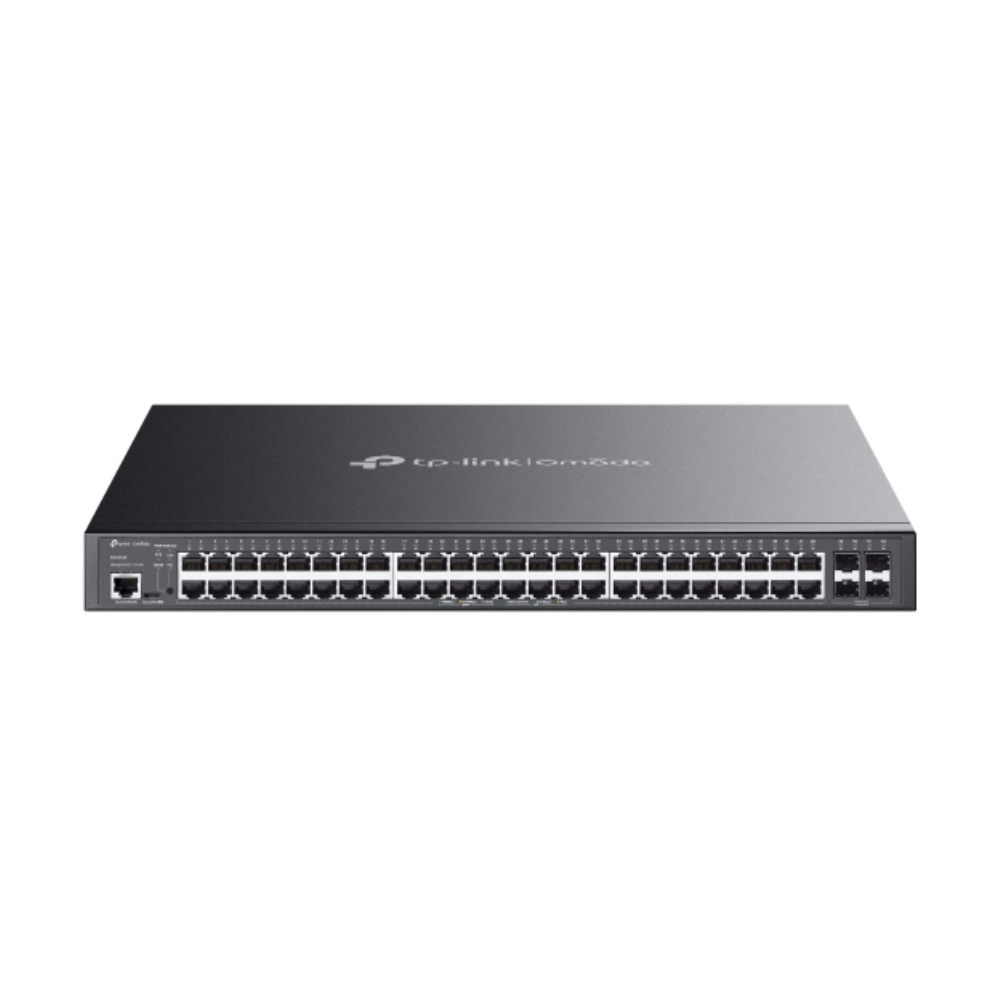

TP-Link TL-SG3452P — 52-Port Gigabit L2+ Managed PoE+ Switch
The TP-Link TL-SG3452P JetStream is a rack-mountable, enterprise-grade managed switch built for demanding network environments. With 48 PoE+ ports, a 384W power budget, and full integration into the Omada Software Defined Networking (SDN) platform, it delivers centralised cloud management, intelligent monitoring, and robust security — all in a single 1U chassis.
Key Features
-
48× PoE+ Ports (802.3at/af): Power IP cameras, access points, VoIP phones, and other PoE devices — up to 30W per port with a total budget of 384W.
-
Full Gigabit Connectivity: 48× 10/100/1000 Mbps RJ45 ports plus 4× Gigabit SFP uplink slots for high-speed fibre or copper uplinks.
-
Omada SDN Integration: Zero-Touch Provisioning (ZTP), centralised cloud management, and intelligent monitoring via the Omada Controller or cloud portal.
-
Omada App Support: Manage your network remotely from iOS or Android — ideal for multi-site deployments.
-
Static Routing: Efficiently routes internal traffic between VLANs without requiring a dedicated router.
-
Advanced QoS: 8 priority queues with 802.1p CoS/DSCP, SP, WRR, and SP+WRR scheduling — optimised for voice and video applications.
-
Comprehensive Security: IP-MAC-Port Binding, ACL, Port Security, DoS Defence, Storm Control, DHCP Snooping, 802.1X, and RADIUS Authentication.
-
Flexible Standalone Management: Web GUI, CLI (Console & Telnet/SSH), SNMP, RMON, and Dual Image support for firmware redundancy.
-
High Switching Capacity: 104 Gbps non-blocking switching fabric with a 77.4 Mpps forwarding rate.
Use Cases
-
IP CCTV & Surveillance Networks: Power and connect up to 48 IP cameras from a single switch — no separate power injectors required.
-
Enterprise & Commercial Buildings: Centralised network management across floors or departments with VLAN segmentation and QoS prioritisation.
-
Education & Healthcare Facilities: Reliable, secure connectivity for high-density wireless access point deployments.
-
Multi-Site Deployments: Omada SDN enables remote provisioning and monitoring across multiple locations from a single dashboard.
-
VoIP & Unified Communications: L2/L3/L4 QoS ensures voice traffic is prioritised for clear, uninterrupted calls.
Technical Specifications
| Category |
Specification |
| RJ45 Ports |
48× 10/100/1000 Mbps |
| SFP Uplink Slots |
4× Gigabit SFP |
| Console Ports |
1× RJ45, 1× Micro-USB |
| PoE Standard |
IEEE 802.3at/af (PoE+) |
| PoE Ports |
48 ports, up to 30W per port |
| PoE Budget |
384W total |
| Switching Capacity |
104 Gbps |
| Forwarding Rate |
77.4 Mpps |
| MAC Address Table |
16K entries |
| Jumbo Frame |
9 KB |
| QoS Queues |
8 priority queues |
| Fan Quantity |
3 |
| Power Supply |
100–240V AC, 50/60 Hz |
| Max Power Consumption |
52.53W (no PD) / 485.4W (full PoE load) |
| Dimensions (W × D × H) |
440 × 330 × 44 mm (1U Rack) |
| Weight |
6.82 kg |
| Mounting |
Rack Mountable (1U) |
| SKU / Part Number |
TL-SG3452P |
| Barcode (EAN) |
6935364006273 |
Frequently Asked Questions
How many IP cameras can the TL-SG3452P power?
Up to 48 IP cameras simultaneously via its PoE+ ports. Each port delivers up to 30W, with a total power budget of 384W shared across all active ports. For cameras drawing 10–15W each, you can comfortably run a full 48-camera system.
Does this switch require the Omada Controller to function?
No. The TL-SG3452P supports full standalone management via web GUI, CLI (Telnet/SSH/Console), SNMP, and RMON. The Omada Controller (hardware, software, or cloud-based) is optional but recommended for multi-site or centralised deployments.
What is Zero-Touch Provisioning (ZTP)?
ZTP allows the switch to be automatically configured when connected to an Omada Controller — no manual setup required on-site. Ideal for remote or large-scale deployments where a technician cannot be present at every location.
Is this switch compatible with non-TP-Link PoE devices?
Yes. The PoE+ ports comply with IEEE 802.3at/af standards, making them compatible with any standards-compliant PoE device including IP cameras, access points, and VoIP phones from other manufacturers.
Does the TL-SG3452P support VLANs?
Yes. It supports 802.1Q VLAN tagging, allowing you to segment your network — for example, isolating CCTV traffic from corporate data traffic — for improved security and performance.
What warranty applies in Australia?
TP-Link products sold in Australia are covered by a standard manufacturer's warranty. Please refer to the product documentation or contact us for current warranty terms applicable to your purchase.
