HIKVISION VALUE SERIES
Uninterruptible Power Security for Mission-Critical CCTV & Infrastructure
The DS-UPS600-R is a high-performance 600VA / 360W line-interactive uninterruptible power supply purpose-built by Hikvision to keep vital security equipment, NVRs, DVRs, access control systems, and network switches operating seamlessly during power outages and brownouts. Engineered for commercial and residential security installations, this unit bridges supply disruptions with a ultra-fast switchover time of 10ms or less, ensuring continuous video recording and preventing database corruption or system reboots.
Capacity & Output
600 VA / 360 Watts
Voltage Regulation
Integrated AVR
Transfer Time
≤ 10 ms Switchover
Circuit Protection
Full 4-Way Safeguard
Advanced Automatic Voltage Regulation (AVR) & Battery Management
Fluctuating grid power can degrade sensitive electronics over time. The Hikvision DS-UPS600-R incorporates built-in Automatic Voltage Regulation (AVR) to correct voltage sags and spikes across a wide input range (162 VAC to 290 VAC) without unnecessarily draining the internal 12V/7Ah lead-acid battery. Operating with microprocessor-controlled efficiency and super-fast charging capabilities (recovering 90% capacity within 4 to 6 hours), this UPS delivers clean, regulated power and auto-restarts as soon as main AC power is restored.
Comprehensive 4-Way Circuit Protection
Equipped with built-in surge protection, overload protection, discharge protection, and short-circuit protection, the unit shields connected equipment from electrical damage caused by lighting strikes or grid switching transients.
Intuitive Visual & Audible Diagnostics

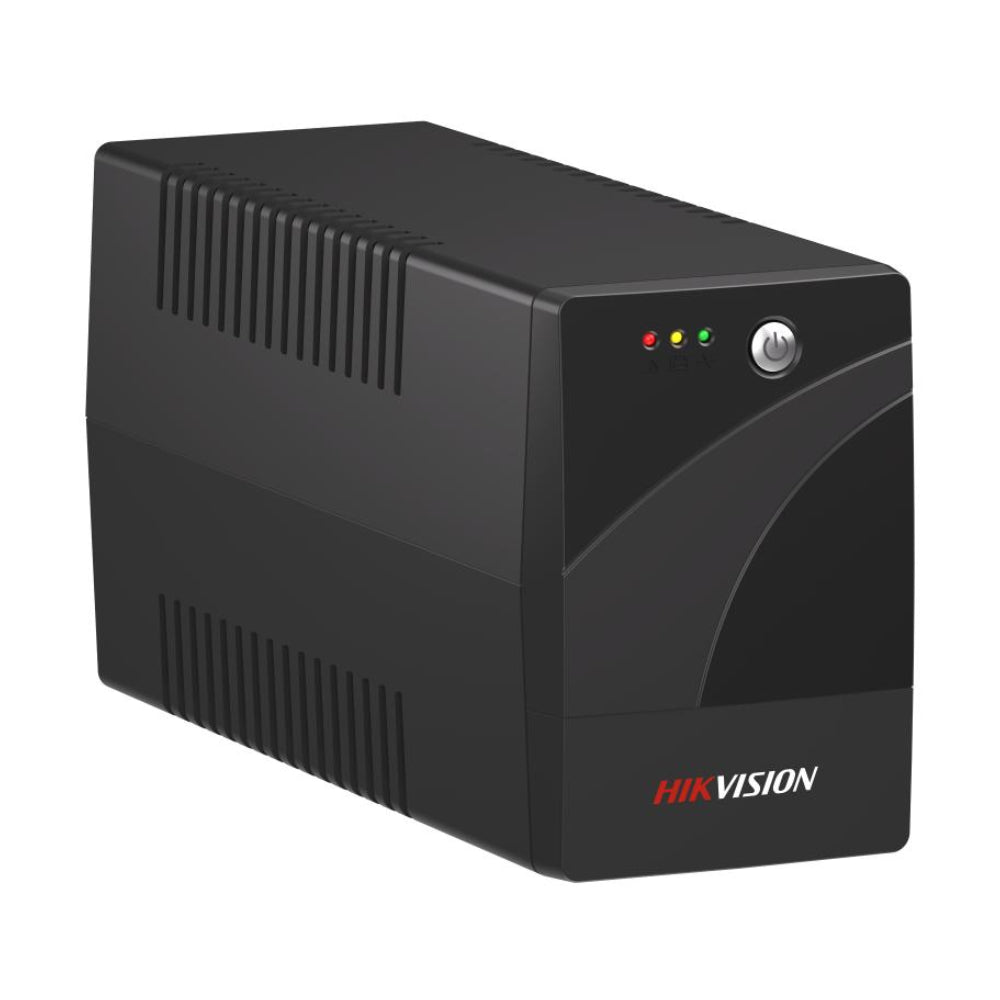

Clear multi-color LED indicators signal operational states (Green for AC mode, Yellow for battery/overload, Red for fault mode), while distinct sound alerts instantly inform operators of battery runtimes and load anomalies.
Technical Specification Matrix
| Camera / UPS Model |
DS-UPS600-R |
| Capacity |
600 VA / 360 W |
| Input Voltage Range |
162 VAC to 290 VAC (220/230/240 V nominal) |
| Input / Output Frequency |
50/60 Hz Self-adaptive (±0.5 Hz) |
| Output Voltage Regulation |
230 VAC ± 10% (Simulated Sine Wave) |
| Transfer Time |
≤ 10 ms (AC to DC / DC to AC) |
| Battery Configuration |
12 V / 7 Ah × 1 Sealed Lead-Acid (Recharge 4-6 hrs to 90%) |
| Typical Backup Runtime |
Approx. 15-20 minutes at 100W load |
| Dimensions & Weight |
276.1 mm × 101 mm × 142 mm | Approx. 4.25 kg |
Frequently Asked Questions
What equipment can I run on the Hikvision DS-UPS600-R?
This 600VA / 360W UPS is ideal for powering a standard 4 to 16-channel Hikvision NVR or DVR, 1-2 monitors, a small PoE switch, and connected IP cameras during power interruptions.
How long will the battery keep my security recorder powered during an outage?
At a standard typical load of 100W (covering an NVR and basic PoE load), the unit provides roughly 15 to 20 minutes of continuous runtime, allowing ample time for grid restoration or safe automated shutdowns.
Does the UPS automatically resume operation when mains power returns?
Yes, the DS-UPS600-R features auto-restart functionality, meaning it will automatically reboot and supply power to connected equipment as soon as AC mains electricity is restored.
What is the purpose of the built-in Automatic Voltage Regulation (AVR)?
AVR automatically boosts low voltage and steps down high voltage to stable safe levels without switching to battery power, preserving battery health for actual total blackouts.
