Hikvision AX PRO

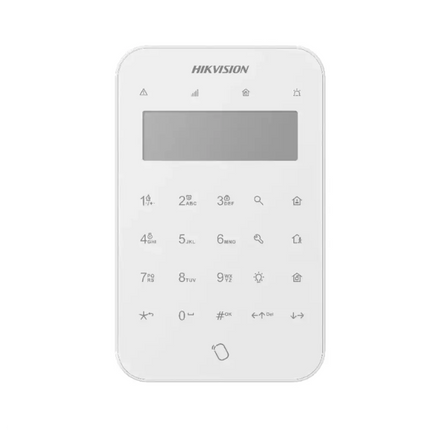

DS-PK1-LT-WB Wireless LCD Keypad & Tag Reader
The Hikvision DS-PK1-LT-WB is a wireless LCD keypad with a built-in tag reader for the AX PRO intrusion system. Its LCD screen shows clear system status and lets installers configure the system directly at the keypad, while users arm and disarm by code or by tapping a tag.
A full touch-key design with LED backlight makes everyday operation easy, and one-push fire, panic and medical alarms are always to hand.
LCD DisplaySystem status and on-screen configuration
Tag + CodeArm and disarm by tag or keypad code
One-Push AlarmsFire, panic and medical triggers
433MHz Two-WayTouch keys with LED backlight
Specifications
| Model |
DS-PK1-LT-WB |
| Type |
Wireless LCD keypad + tag reader |
| Display |
LCD screen with LED status |
| Operations |
Stay/away arm, disarm, silent alarm, output control |
| Emergency |
One-push fire, panic, medical |
| Wireless |
433MHz two-way |
| System |
Hikvision AX PRO |
What does the LCD do?It shows clear system status and lets installers configure the system directly at the keypad.
How do users arm and disarm?By entering a code on the touch keypad or by tapping a tag on the built-in reader.
Which system is it for?It is a wireless keypad for the Hikvision AX PRO hub using a 433MHz two-way link.
3-Year AU Warranty
Fast AU-Wide Shipping
AU Tech Support
The DS-PK1-LT-WB combines code and tag control with on-screen configuration for your Hikvision AX PRO system, backed by a 3-Year Australian warranty and local support.
