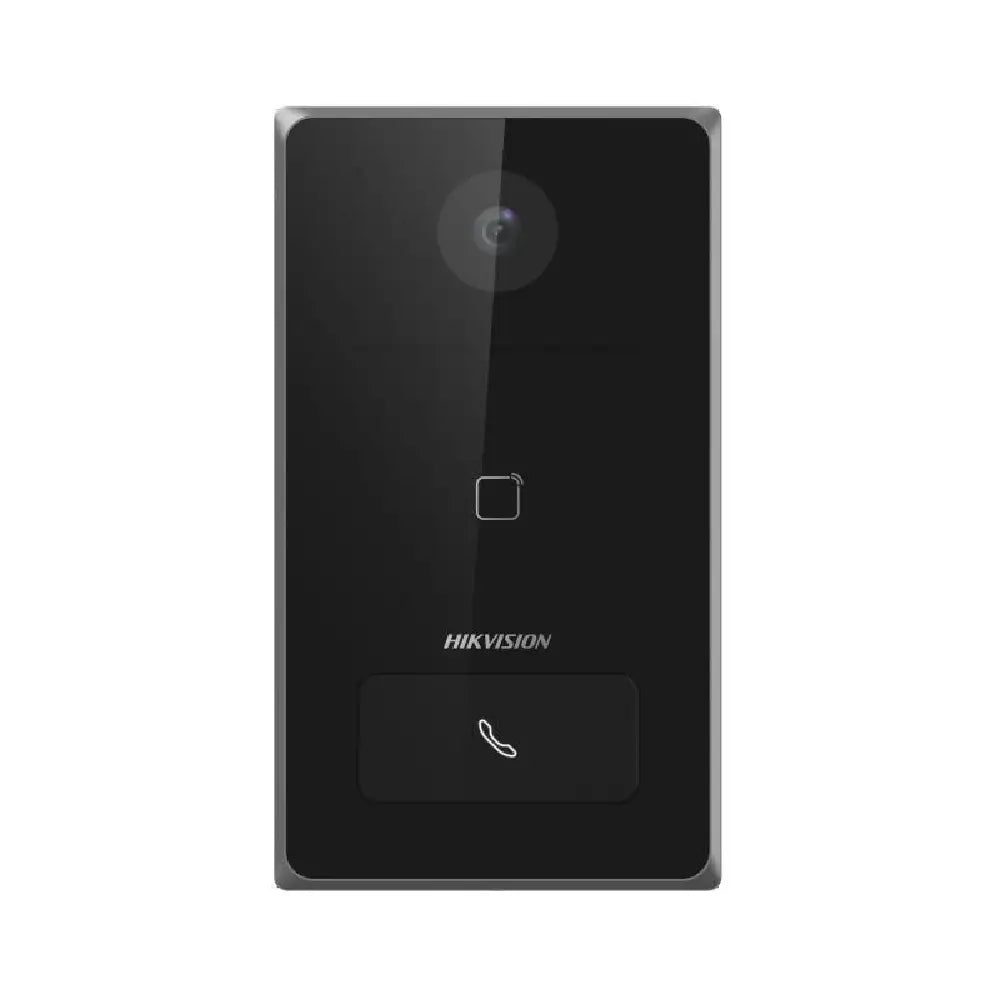

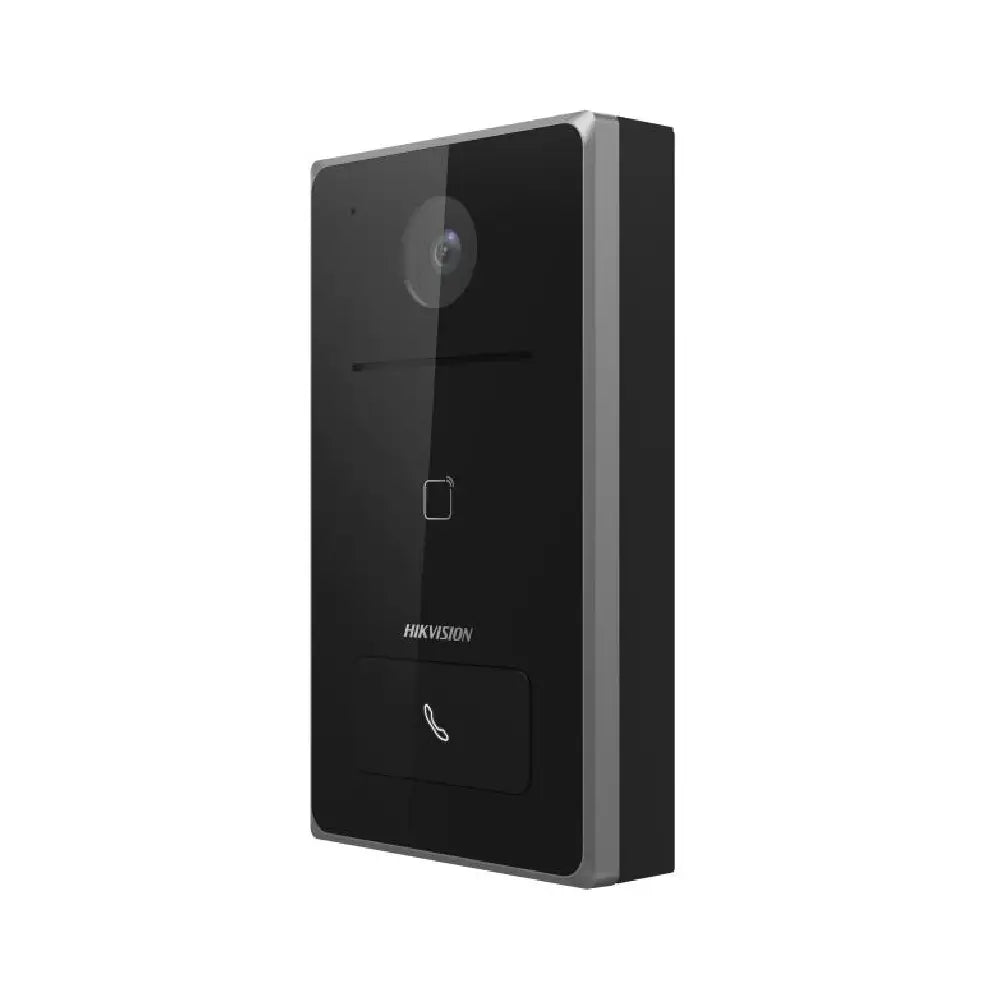

Hikvision DS-KV6133-WME1-SURFACE 2MP IP Villa Door Station

Description

Hikvision Pro Series Intercom

Professional Single-Subscriber IP Video Entry Station

The DS-KV6133-WME1 is a high-performance IP villa door station engineered to deliver commercial-grade access control and crystal-clear video communication for modern residential properties and commercial entryways. Featuring a high-definition 2 MP camera module paired with a 129° ultra-wide horizontal field of view, this outdoor station captures clear visual detail across the entire entrance threshold. Built to withstand exterior environmental challenges, its rugged IP65 enclosure ensures continuous operating reliability across demanding weather conditions.

Resolution / Key Spec
2MP HD / 129° FOV
Optics / Features
120dB WDR / 2.5m IR
Wireless / Network
2.4GHz Wi-Fi / Standard PoE
Protection / Climate
IP65 / Weatherproof

Advanced Audio-Visual Intercom & Standalone Integration

Engineered with versatility at its core, the hikvision-ds-kv6133-wme1-2mp-ip-villa-door-station-surface provides complete credentialed access control through an embedded 13.56 MHz Mifare card reader supporting up to 10,000 cards. Operating on standard IEEE802.3af PoE or a 12V DC power supply, it easily integrates into existing IP infrastructure. Advanced noise suppression and echo cancellation algorithms optimize full-duplex two-way speech, guaranteeing clear verbal authorization even in high ambient noise environments. Additionally, the unit can operate standalone by directly routing calls to the Hik-Connect mobile app without requiring an indoor monitor station.

Integrated Mifare Access Control

Equipped with an onboard 13.56 MHz Mifare reader module, this station supports up to 10,000 access cards and 2,000 user profiles for seamless keyless entry management at commercial or residential perimeters.

120 dB True WDR & Night Vision

True 120 dB Wide Dynamic Range balances intense outdoor backlighting and shadows, while built-in IR illuminators provide clear monochrome video verification up to 2.5 meters in pitch-black conditions.

Technical Specification Matrix
Camera Model DS-KV6133-WME1
Camera Resolution 2 MP (1920 × 1080p Main Stream)
Field of View (FOV) Horizontal: 129°, Vertical: 75°
Dynamic Range & Night Light 120 dB True WDR; IR Supplement Light up to 2.5 m
Audio Processing Built-in Omnidirectional Mic & Loudspeaker, Noise Suppression & Echo Cancellation
Access Capacity 13.56 MHz Mifare Reader; 10,000 Cards, 2,000 Users
Network & Interfaces 1x RJ-45 10/100 Mbps, 2.4 GHz Wi-Fi (802.11b/g/n), 1x Relay, 4x Alarm In
Protection & Power Supply IP65 Weatherproof, Standard IEEE802.3af PoE or 12 VDC
Can this door station be used without an indoor monitor unit?

Yes. The DS-KV6133-WME1 supports standalone deployment, allowing calls and real-time door unlocking commands to route directly to the Hik-Connect mobile application via Wi-Fi or Ethernet.

How is the unit powered during installation?

The unit supports dual power input options: standard Power over Ethernet (IEEE802.3af PoE) through a single network cable, or a dedicated 12 VDC power supply.

What type of keycards/tags are compatible with the built-in reader?

The onboard proximity reader module operates at 13.56 MHz frequency and is compatible with standard Mifare format cards and key fobs.

Is the door station suitable for direct outdoor installation?

Yes, the housing is rated IP65 for dust and water resistance, operating efficiently in temperature ranges from -40 °C to 53 °C (-40 °F to 127.4 °F).

Technical Datasheet Quick Start Guide
Installation Manual
Official Hikvision Stock
Commercial Warranty
Aust-Wide Delivery

Hikvision DS-KV6133-WME1-SURFACE 2MP IP Villa Door Station

Product form

SKU: DS-KV6133-WME1-SURFACE

$339.00 Incl. GST

    • PayPal
    • Apple Pay
    • Visa
    • Mastercard
    • American Express
    • Zip
    • Afterpay

    • Warranty: 24 months
    • 30 day Money Back Guarantee
    • Australian Stocks & Express Delivery
    • Back-to-base Warranty & Tech Support
    • FREE Shipping over $180
