Description

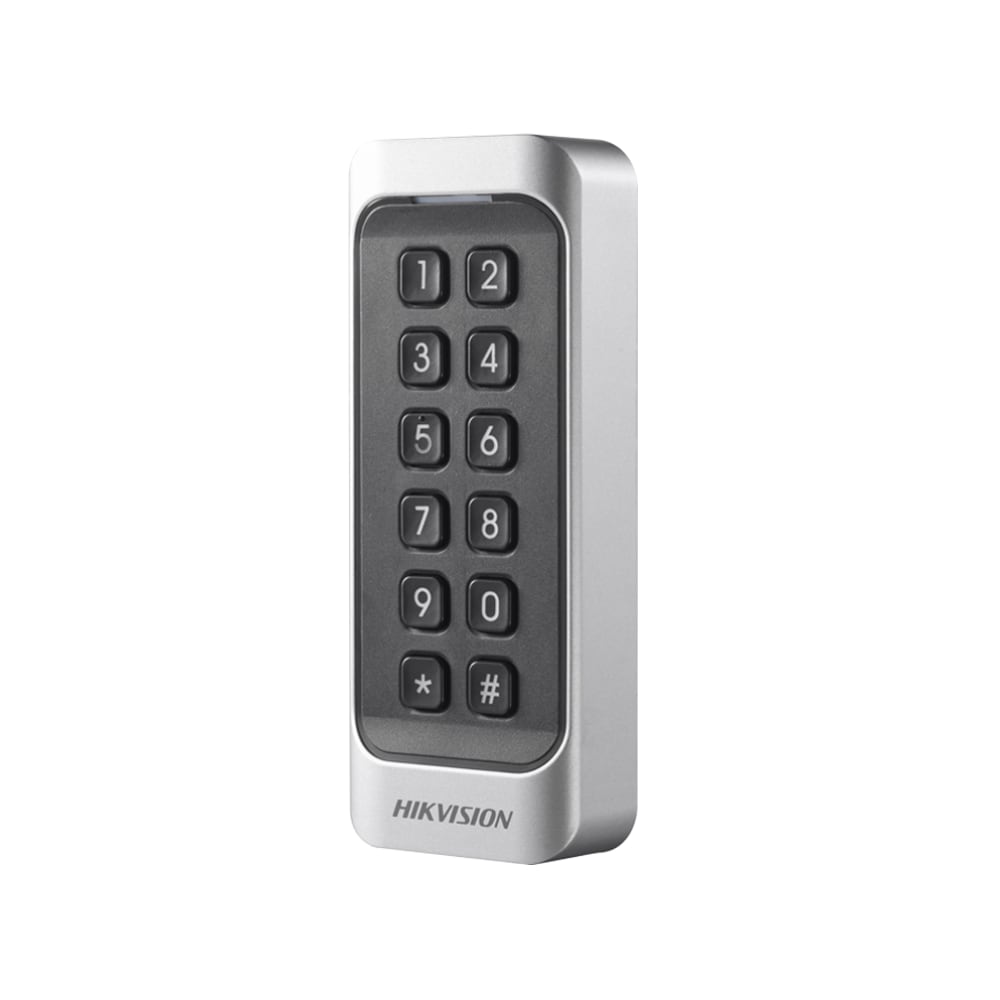

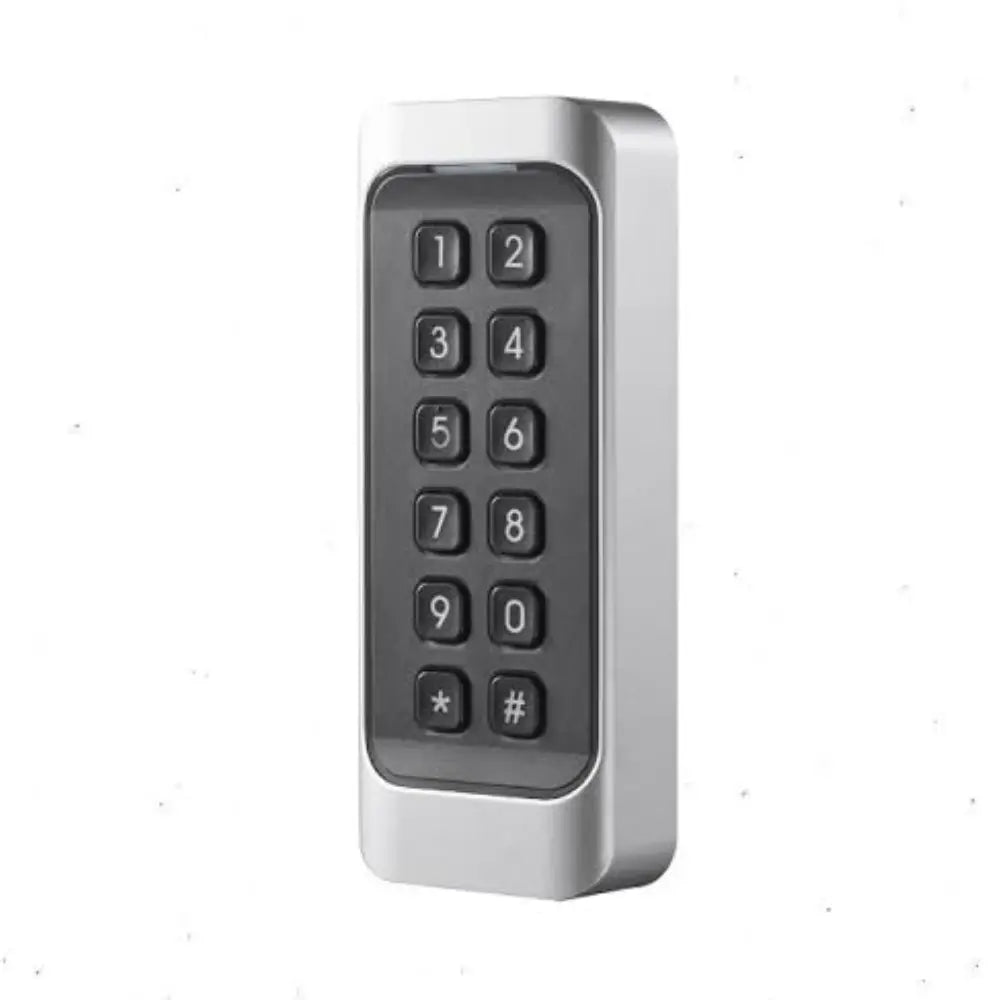

The Hikvision DS‑K1107AMK Pro-Series card reader blends intuitive card-based and PIN authentication in a slim, outdoor-ready design. Featuring a 32-bit high-speed processor and supporting multiple communication protocols — RS‑485, Wiegand (26/34-bit), and OSDP — this reader delivers flexibility and system compatibility. Built-in support for MIFARE 13.56 MHz cards, a tamper alarm, auditory feedback, remote firmware updates, and watchdog self-recovery ensures performance and resilience in demanding access control environments. Rated IP65 for dust and water protection, it’s a reliable choice for both indoor and outdoor installations.
Key Features
-
Card Type: MIFARE 13.56 MHz (ISO14443-A)
-
Communication Protocols: RS‑485, Wiegand (26/34), OSDP
-
Tamper Alarm: Yes, with status buzzer and LED feedback
-
Keypad: 12-key numeric pad (0–9, *, #)
-
Protection Rating: IP65, suitable for outdoor use
-
Operating Voltage: 12 V DC; Power Consumption: ≤ 2 W
-
Durability Features: Watchdog self-recovery, online firmware upgrade support
-
Operating Range: –20 °C to +65 °C; Humidity: 10 – 90% (non-condensing)
-
Dimensions: 115 × 44 × 22 mm
Technical Specifications
| Specification |
Details |
| Model |
DS‑K1107AMK |
| Card Type |
MIFARE 13.56 MHz (ISO14443-A) |
| Communication |
RS‑485, Wiegand (26/34), OSDP |
| Keypad |
12‑key (0–9, *, #) |
| Tamper Alarm |
Yes, buzzer and LED indicators |
| Protection |
IP65 weatherproof |
| Power |
12 V DC, ≤ 2 W |
| Operating Temp |
–20°C to +65°C |
| Dimensions |
115 × 44 × 22 mm |
More Information
Hikvision DS-K1107AMK Datasheet
