Description

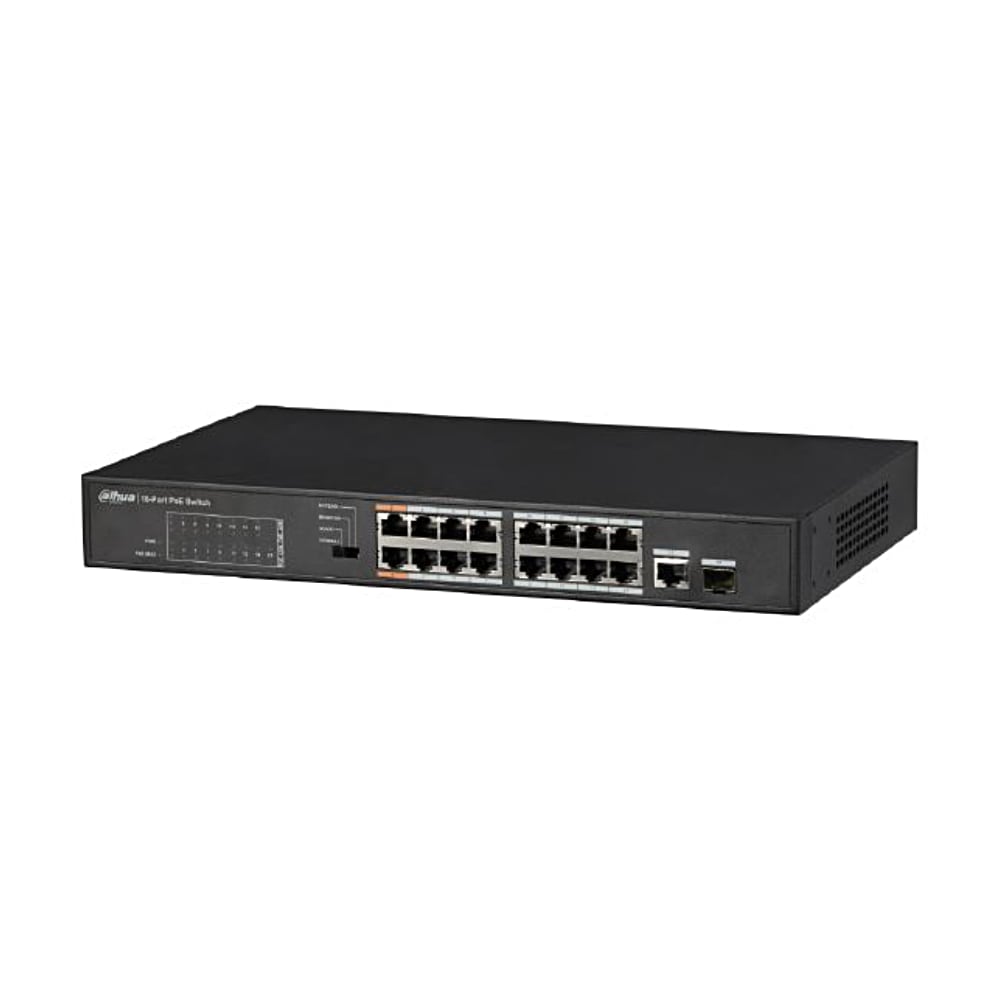

The Dahua DH-PFS3117-16ET-135 is a cost-effective and flexible 16-Port PoE+ Fast Ethernet Switch with 135W power budget, designed for IP surveillance and small-to-medium networks. It features intelligent PoE management, Hi-PoE on Ports 1–2, a gigabit uplink combo port, multiple operating modes (default, VLAN, CCTV, extender), and fanless operation for silent deployment.
Key Features
- 16 × 10/100Mbps PoE+ ports
- 1 × Gigabit RJ45/SFP combo uplink
- 135W total PoE budget
- Hi-PoE support on Ports 1 and 2 (up to 60W)
- 4 PoE operation modes: Default, VLAN (isolation), CCTV (priority), and Extender (up to 250m)
- IEEE802.3af/at/bt (Hi-PoE) compliant
- Switching capacity: 5.2 Gbps
- Forwarding rate: 3.87 Mpps
- Compact 13” metal case, fanless design
- LED indicators for PoE status, link/activity, and power
- Supports DoLynk cloud management when used with compatible devices
- Ideal for PoE IP cameras, NVRs, and small business networking
Technical Specifications
| Technical Specifications – Dahua DH-PFS3117-16ET-135 |
| Model |
DH-PFS3117-16ET-135 |
| Ports |
16 × 10/100Mbps PoE+, 1 × Gigabit Combo (RJ45/SFP) |
| PoE Output |
Port 1-2: ≤60W; Port 1–16: ≤30W |
| Total PoE Budget |
135W |
| PoE Standards |
IEEE802.3af/at/bt, Hi-PoE |
| Switching Capacity |
5.2 Gbps |
| Packet Forwarding Rate |
3.87 Mpps |
| Buffer |
2.75 Mbit |
| MAC Table |
4K entries |
| Transmission Modes |
Store-and-Forward |
| PoE Modes |
Default, VLAN (Isolation), CCTV (Priority), Extender (250m) |
| Power Supply |
AC 100–240V, 50/60Hz |
| Dimensions |
340 × 200 × 43 mm |
| Operating Temp |
0°C ~ 45°C |
| Storage Temp |
-40°C ~ 70°C |
| Mounting |
Desktop or rack mount (13") |
| Indicators |
Power (Green/Red), Link/Act (Green), PoE (Yellow) |
