Description

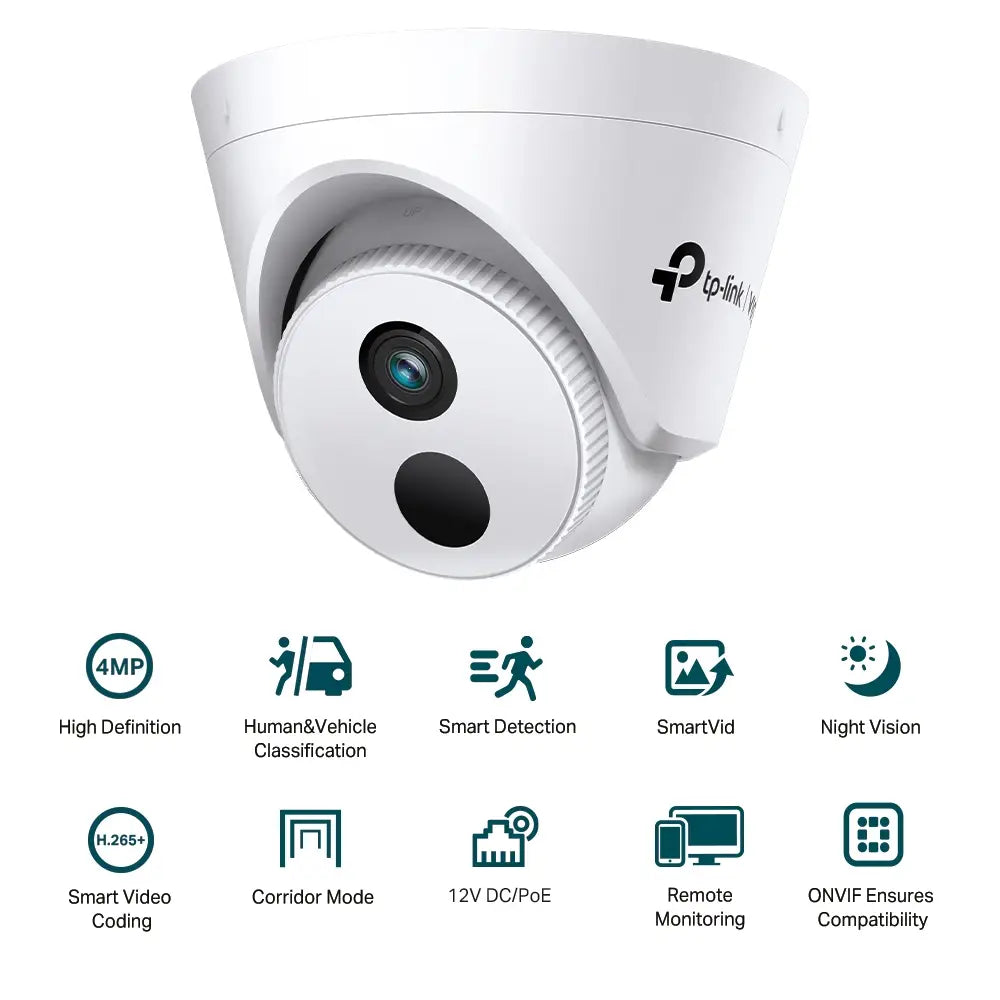

4MP IR Turret Camera with Corridor Mode and Smart Detection

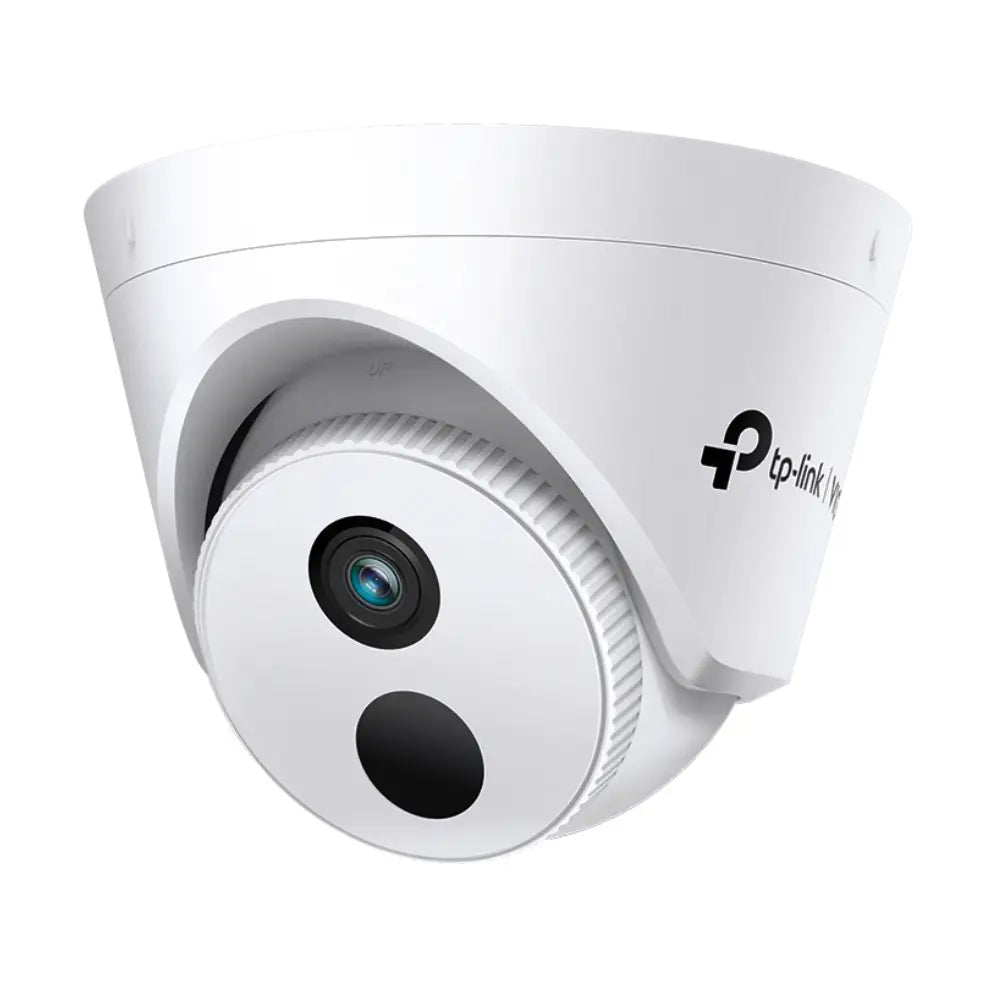

The TP-Link VIGI C440I is a 4MP Super-HD IR turret network camera with a 4mm fixed lens, smart detection, human and vehicle AI classification, and a unique Corridor Mode for monitoring long, narrow spaces. With H.265+ compression, WDR, Smart IR night vision, and dual PoE/12V DC power options, it's a versatile indoor/outdoor camera that integrates seamlessly with TP-Link VIGI NVRs, the VIGI app, and VIGI Security Manager for professional CCTV installations across Australia.
Key Features
-
4MP Super-High Definition: Captures detailed 4MP (2560×1440) footage — significantly sharper than 1080p — for reliable identification of faces, licence plates, and fine details at a distance.
-
4mm Fixed Lens: Balanced field of view suitable for monitoring room interiors, building entrances, driveways, and medium-distance areas. Also available in a 2.8mm variant for wider coverage.
-
Corridor Mode: Rotates the image aspect ratio from 16:9 to 9:16 (portrait orientation) — ideal for monitoring long, narrow spaces such as hallways, aisles, stairwells, and corridors without wasted field of view.
-
Human & Vehicle Classification: AI-powered detection distinguishes humans and vehicles from other motion sources (animals, foliage), reducing false alerts and improving notification accuracy.
-
Smart Detection: Configurable smart events including Line Crossing, Intrusion Detection, Object Removal, Object Abandonment, and Camera Tamper Detection — with instant push notifications.
-
IR Night Vision with Smart IR: Built-in infrared LEDs provide clear black-and-white night vision in complete darkness. Smart IR automatically adjusts IR intensity to prevent overexposure at close range.
-
H.265+ Compression: Reduces storage consumption and network bandwidth by up to 50% compared to H.264 without sacrificing image quality — lowering NVR storage and running costs.
-
WDR, 3D DNR & Smart IR: Advanced video enhancement technologies improve image quality in challenging lighting conditions including backlit scenes, bright sunlight, and low-light environments.
-
PoE or 12V DC Power: Flexible dual power options — connect via a single PoE Ethernet cable for clean, simple installation, or use a 12V DC power adapter where PoE is unavailable.
-
Flexible Management: Manage via the VIGI NVR UI, web browser, VIGI app (iOS & Android), or VIGI Security Manager desktop software — supporting both local and remote monitoring.
Common Use Cases
- Hallway, corridor, and stairwell monitoring using Corridor Mode for full-length coverage
- Retail aisle and supermarket monitoring with portrait-orientation coverage
- Indoor room and office security with ceiling or wall mounting
- Building entrance and reception area surveillance
- Outdoor driveway and perimeter monitoring (IP67-rated)
- Residential and small business CCTV systems with VIGI NVR integration
Technical Specifications
| Model |
VIGI C440I (4mm) |
| Resolution |
4MP (2560×1440) |
| Lens |
4mm fixed (also available in 2.8mm) |
| Camera Type |
IR Turret (indoor/outdoor) |
| Corridor Mode |
Yes (16:9 to 9:16 portrait rotation) |
| Night Vision |
Infrared (Smart IR) |
| Video Compression |
H.265+ / H.265 / H.264+ / H.264 |
| Smart Detection |
Line Crossing, Intrusion, Object Removal/Abandonment, Tamper |
| AI Classification |
Human & Vehicle |
| Video Enhancement |
WDR, 3D DNR, Smart IR |
| Weatherproofing |
IP67 |
| Power Supply |
PoE (IEEE 802.3af) or 12V DC |
| Network Interface |
RJ45 10/100Mbps |
| Management |
VIGI NVR, Web UI, VIGI App, VIGI Security Manager |
| ONVIF |
Yes |
| Warranty |
2 Years (Australia) |
| Weight |
350g |
Frequently Asked Questions
What is the difference between the C440I and the C340I?
The VIGI C440I is a turret-style camera designed for ceiling or wall mounting with a low-profile, vandal-resistant housing — ideal for indoor and sheltered outdoor locations. The VIGI C340I is a bullet-style camera with a longer housing suited for directional wall or eave mounting where a visible deterrent is preferred. Both share the same 4MP resolution and smart detection features.
What is Corridor Mode and when should I use it?
Corridor Mode rotates the camera's image from standard 16:9 landscape to 9:16 portrait orientation. This is ideal for monitoring long, narrow spaces such as hallways, stairwells, retail aisles, and corridors — providing full top-to-bottom coverage of the space without wasting field of view on ceiling and floor. It's a significant advantage over standard cameras in these environments.
Is the C440I suitable for outdoor installation?
Yes. The VIGI C440I carries an IP67 weatherproof rating, making it fully dust-tight and protected against powerful water jets. It is suitable for permanent outdoor installation in Australian conditions including rain, coastal humidity, and dust. Mount it in a sheltered position where possible to maximise longevity.
Which lens size should I choose — 2.8mm or 4mm?
The 2.8mm lens provides a wider field of view, ideal for covering large areas at close range such as small rooms, reception areas, or building entrances. The 4mm lens (this model) offers a slightly narrower, longer-range view — better suited for driveways, car parks, and medium-distance monitoring where more detail at distance is needed.
Does it work with non-TP-Link NVRs?
Yes. The VIGI C440I is ONVIF-compliant, allowing it to work with most third-party ONVIF-compatible NVRs and VMS software. For full smart detection features, human/vehicle classification, Corridor Mode, and seamless integration, use with a TP-Link VIGI NVR.
What NVR is recommended for this camera?
The TP-Link VIGI NVR1008H-8P is an ideal pairing for small installations — it provides 8 PoE+ ports to power and connect up to 8 VIGI cameras with Plug & Play auto-detection. For larger installations, the VIGI NVR2016H (16 channels) or NVR2032H (32 channels) are recommended.
