Description

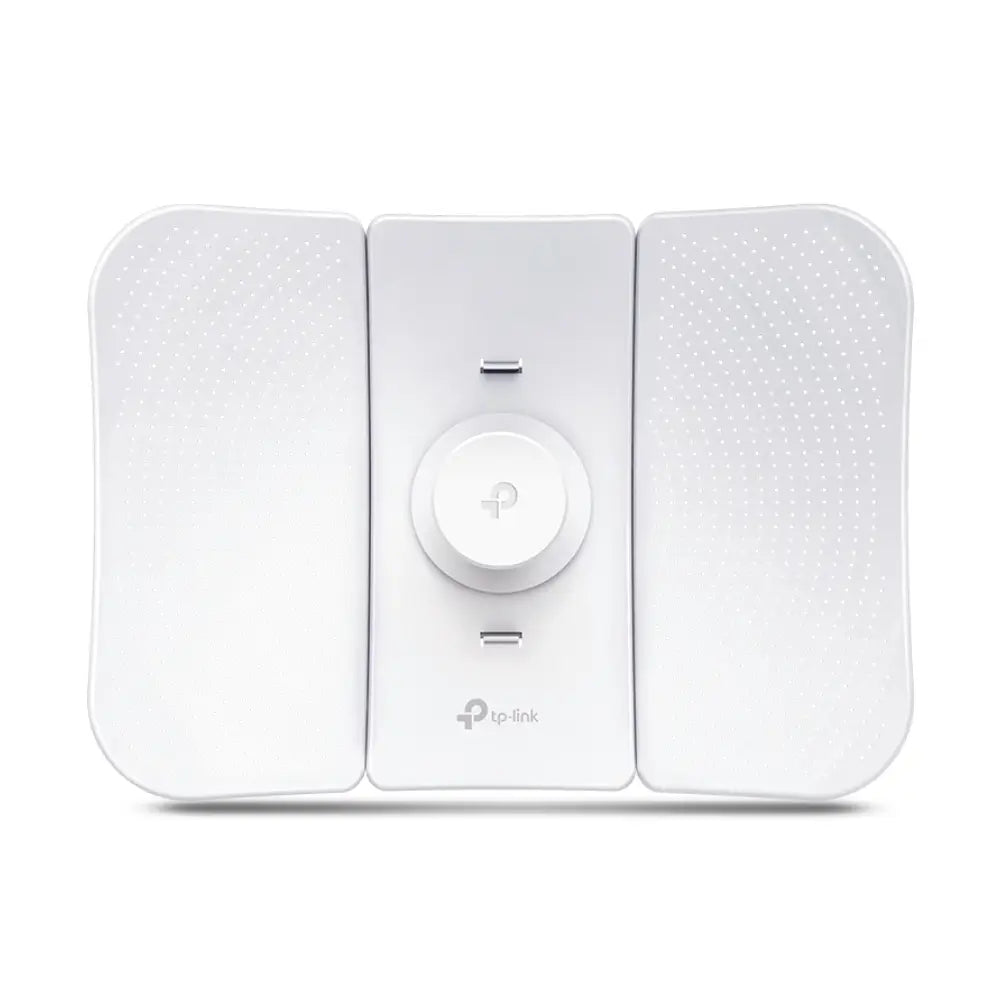

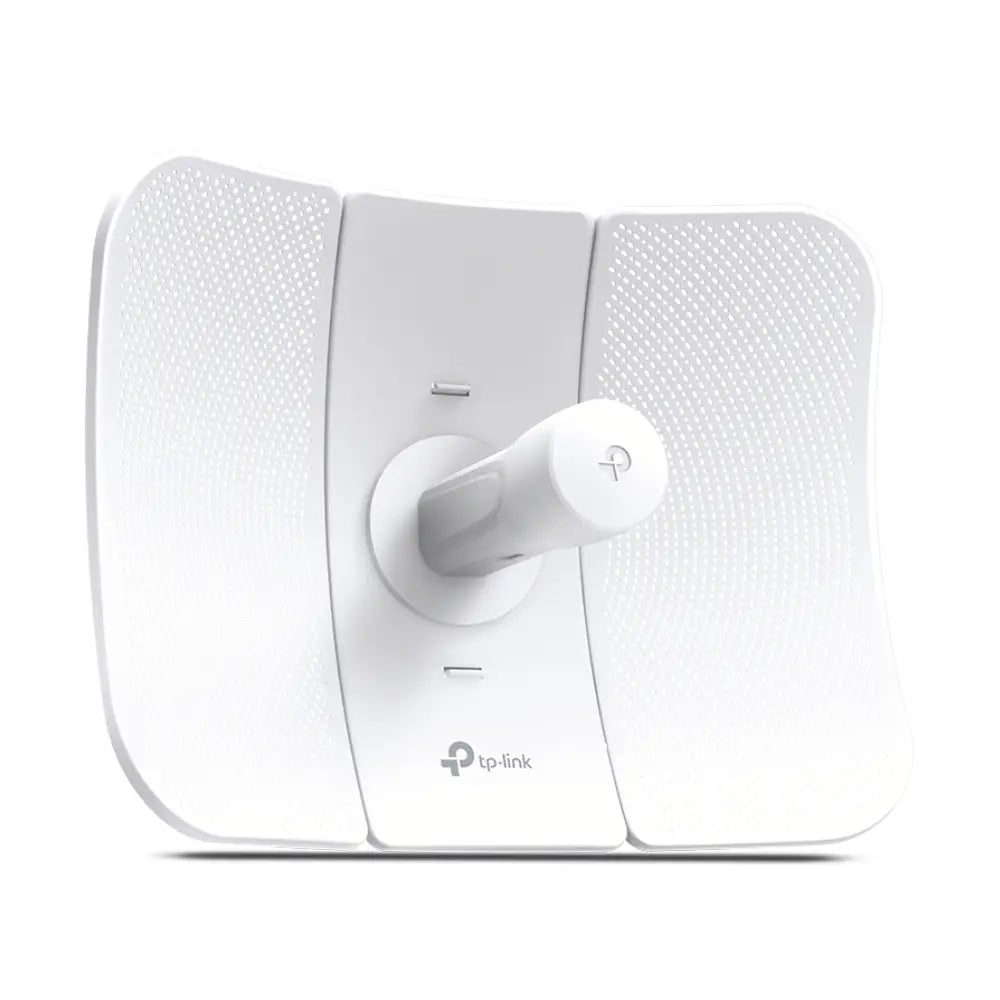

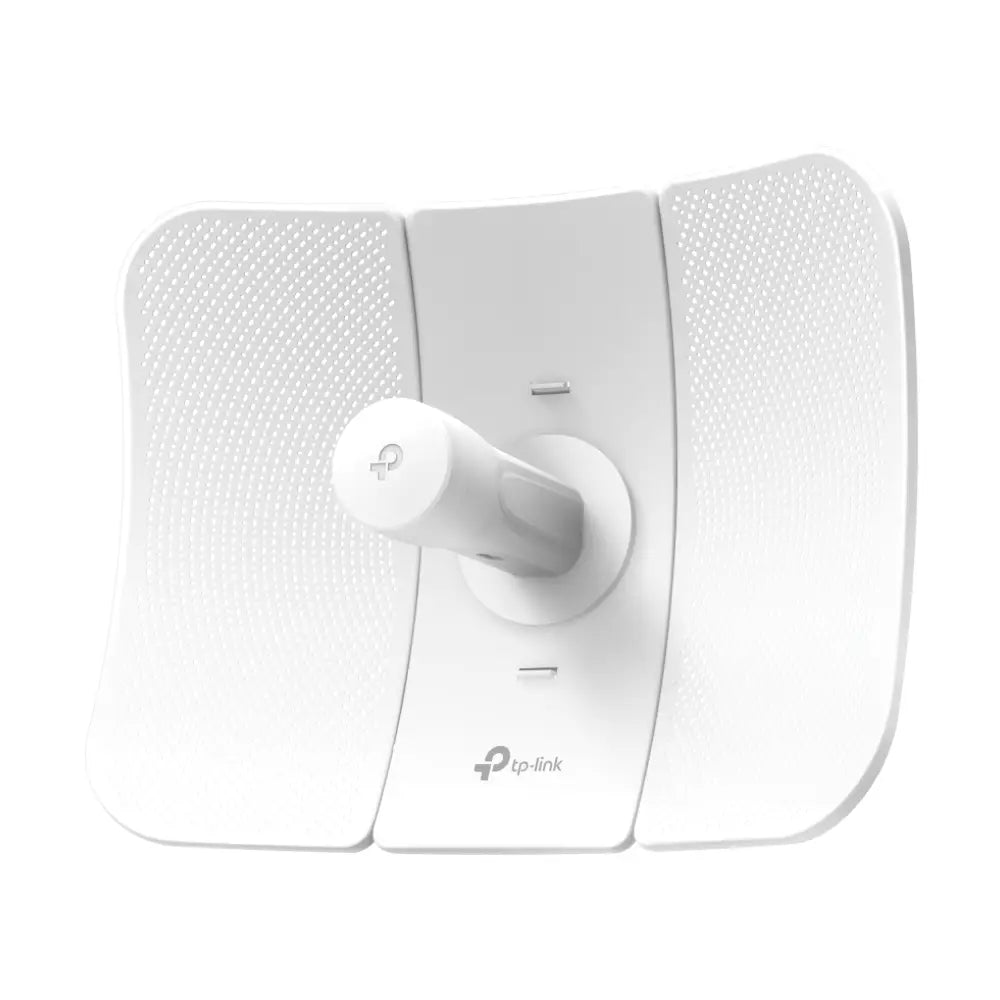

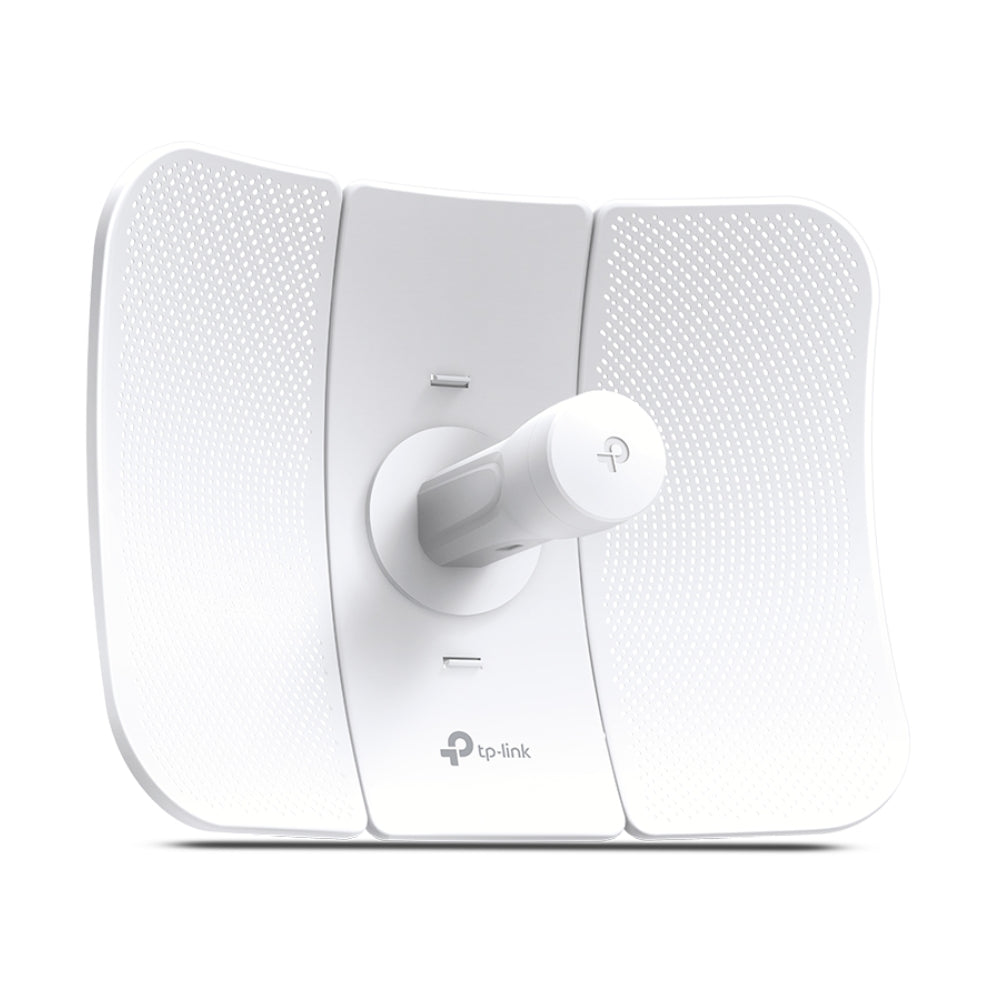

TP-Link CPE710 5GHz AC 867Mbps 23dBi Outdoor CPE
Long-Distance 5GHz Wireless Bridging with 23dBi High-Gain Antenna
The TP-Link CPE710 is a 5GHz 802.11ac outdoor Customer Premises Equipment (CPE) unit designed for long-distance point-to-point and point-to-multipoint wireless links. With a 23 dBi high-gain directional antenna, 867 Mbps AC wireless speeds, IP65 weatherproofing, 15kV ESD and 6kV lightning protection, and Pharos Control centralised management, it is purpose-built for Australian outdoor wireless deployments including building-to-building links, rural broadband distribution, and IP surveillance backhaul.
Key Features
- 23 dBi high-gain directional antenna — 9° azimuth / 7° elevation beamwidth for precise long-distance targeting
- 802.11ac 5GHz — up to 867 Mbps wireless throughput (80 MHz channel)
- 2×2 MIMO — improved signal reliability and throughput at range
- IP65 weatherproof enclosure — fully protected against dust and water jets for outdoor installation
- 15kV ESD protection and 6kV lightning protection — essential for exposed outdoor deployments
- Passive PoE powered — 16–27V DC via included PoE adapter; flexible cable run deployment
- 1 × 10/100/1000 Mbps shielded Ethernet port (LAN/PoE)

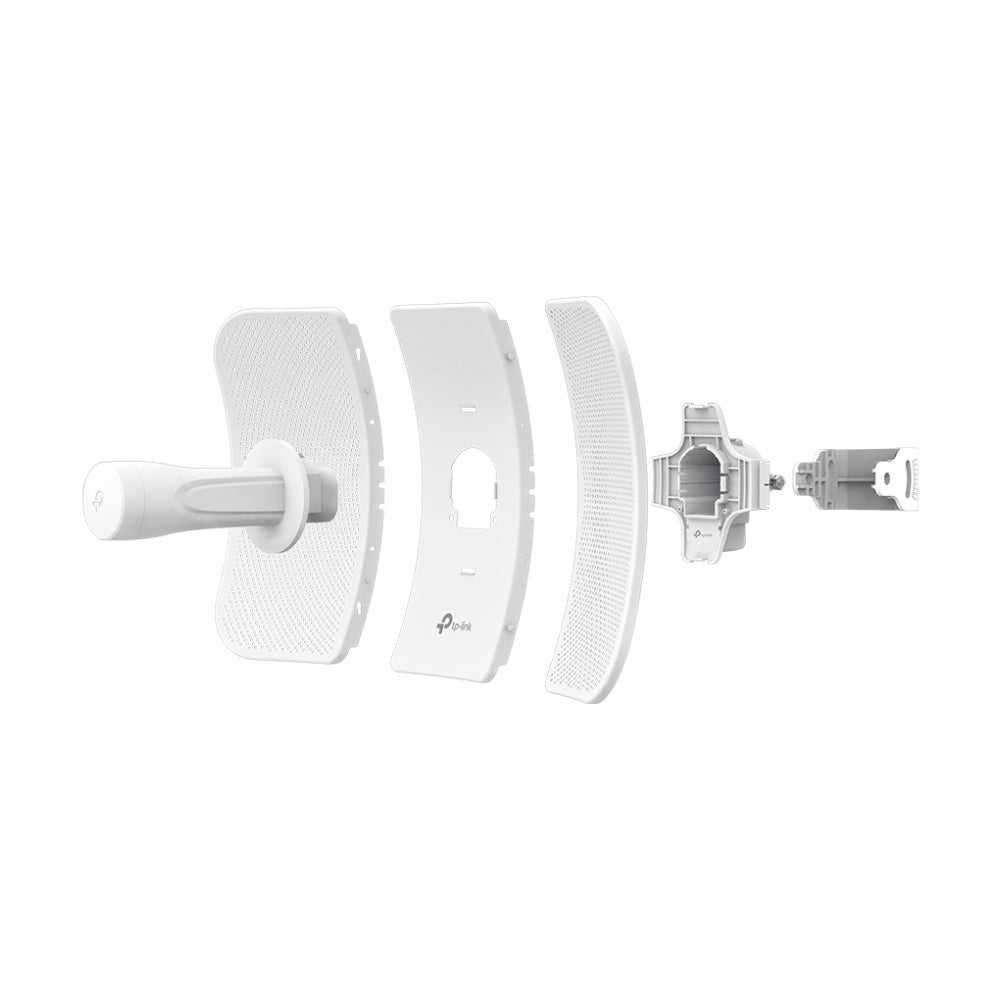

- Snap-lock assembly — fast installation with a sturdy mount that remains stable in strong winds
- Pharos Control — free centralised management software for multi-unit deployments
- Qualcomm 750 MHz CPU with 128 MB DDR2 RAM and 16 MB Flash
- Adjustable transmit power up to 27 dBm (1 dBm increments)
- Multiple operating modes — AP, Station, WDS Bridge, WDS AP, Repeater
Use Cases
-
Building-to-Building Wireless Links: Connect two buildings on the same site or across a campus with a high-throughput 5GHz point-to-point link — eliminating the need for trenching or fibre runs.
-
Rural & Remote Broadband Distribution: Distribute internet connectivity from a central point to remote structures, outbuildings, or neighbouring properties across Australian rural properties.
-
IP Surveillance Backhaul: Provide wireless backhaul for IP cameras or NVRs in locations where cabling is impractical — car parks, perimeter fences, or remote outbuildings.
-
Point-to-Multipoint Networks: Deploy multiple CPE710 units in WDS AP mode to distribute connectivity to several remote endpoints from a single base station.
-
Temporary & Construction Sites: Rapid deployment with snap-lock mounting and passive PoE makes it ideal for temporary wireless infrastructure on construction or event sites.
Specifications
| Specification |
Detail |
| Model |
CPE710 |
| Wireless Standard |
IEEE 802.11a/n/ac — 5GHz |
| Wireless Speed |
Up to 867 Mbps (80 MHz) / 400 Mbps (40 MHz) / 173.4 Mbps (20 MHz) |
| Frequency Range |
5.15 – 5.85 GHz |
| Antenna Gain |
23 dBi |
| Beamwidth |
9° (Azimuth) / 7° (Elevation) |
| MIMO |
2×2 |
| Max Transmit Power |
27 dBm (adjustable in 1 dBm steps) |
| Ethernet Port |
1 × 10/100/1000 Mbps shielded RJ45 (LAN/PoE) |
| Power Supply |
Passive PoE — 16–27V DC (PoE adapter included) |
| Weatherproofing |
IP65 |
| ESD Protection |
15kV |
| Lightning Protection |
6kV |
| CPU |
Qualcomm 750 MHz (MIPS 74Kc) |
| RAM / Flash |
128 MB DDR2 / 16 MB |
| Management |
Web UI, Pharos Control (centralised) |
| Operating Modes |
AP, Station, WDS Bridge, WDS AP, Repeater |
| Dimensions (W × D × H) |
366 × 280 × 207 mm |
| Weight |
1.7 kg |
Frequently Asked Questions
How far can the CPE710 transmit a wireless signal?
The CPE710’s 23 dBi high-gain directional antenna and 27 dBm transmit power enable long-distance links. In ideal line-of-sight conditions, point-to-point links of several kilometres are achievable. Actual range depends on terrain, obstructions, interference, and regulatory transmit power limits in your area.
Does the CPE710 use standard 802.3af/at PoE?
No. The CPE710 uses passive PoE (16–27V DC) rather than standard 802.3af/at active PoE. A passive PoE adapter is included in the box. Do not connect the CPE710 directly to a standard 802.3af/at PoE switch port without the included adapter, as voltage incompatibility may damage the unit.
Do I need two CPE710 units for a point-to-point link?
Yes. A point-to-point wireless bridge requires one CPE710 at each end of the link — one configured as an AP (or WDS AP) and one as a Station (or WDS Bridge). Both units and their passive PoE adapters are sold separately.
What is Pharos Control?
Pharos Control is TP-Link’s free centralised management software for Pharos-series outdoor CPE devices. It allows network administrators to discover, configure, monitor, and manage multiple CPE units from a single interface — useful for deployments with several units across a site or multiple sites.
Is the CPE710 suitable for Australian outdoor conditions?
Yes. The IP65-rated enclosure protects against dust ingress and water jets, making it suitable for Australian outdoor environments including coastal, tropical, and high-wind locations. The 6kV lightning protection and 15kV ESD protection provide additional resilience for exposed installations.
