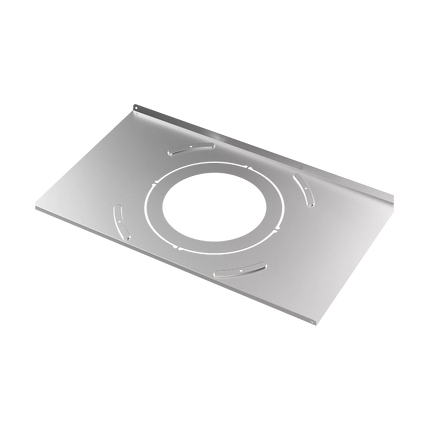

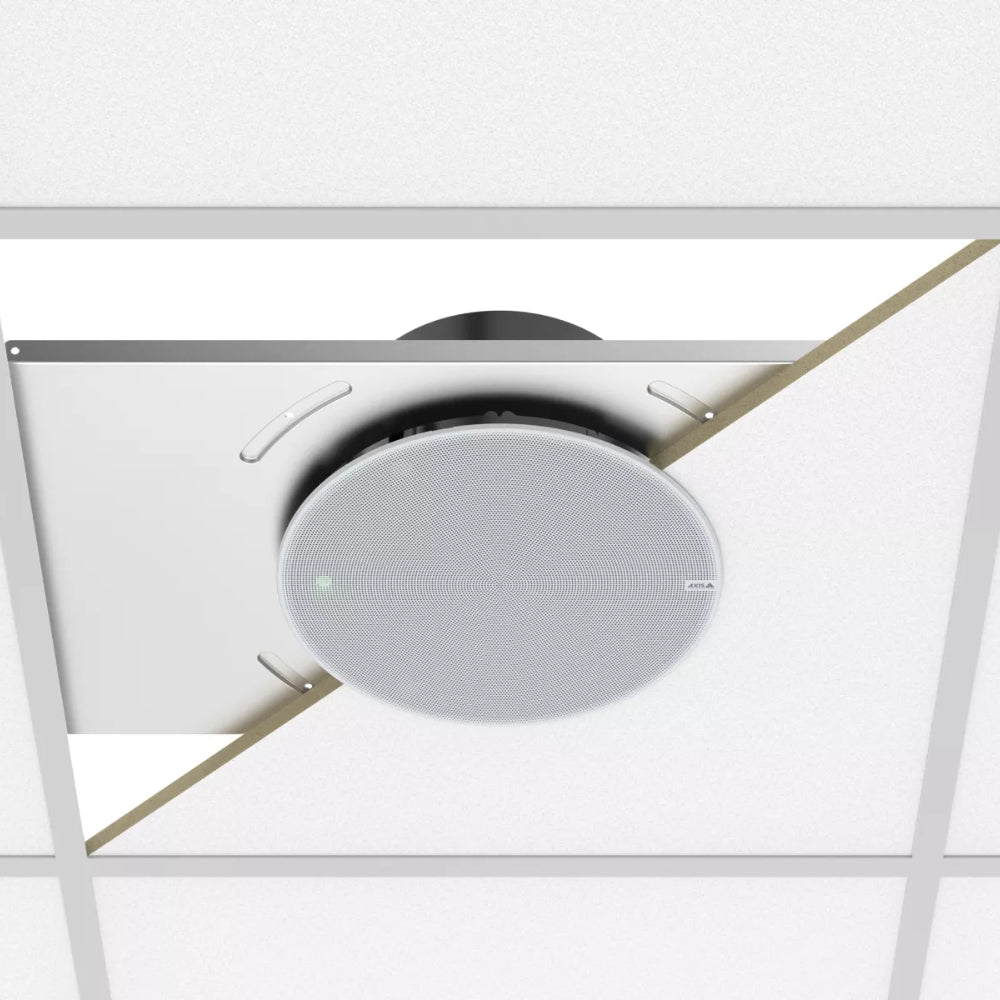

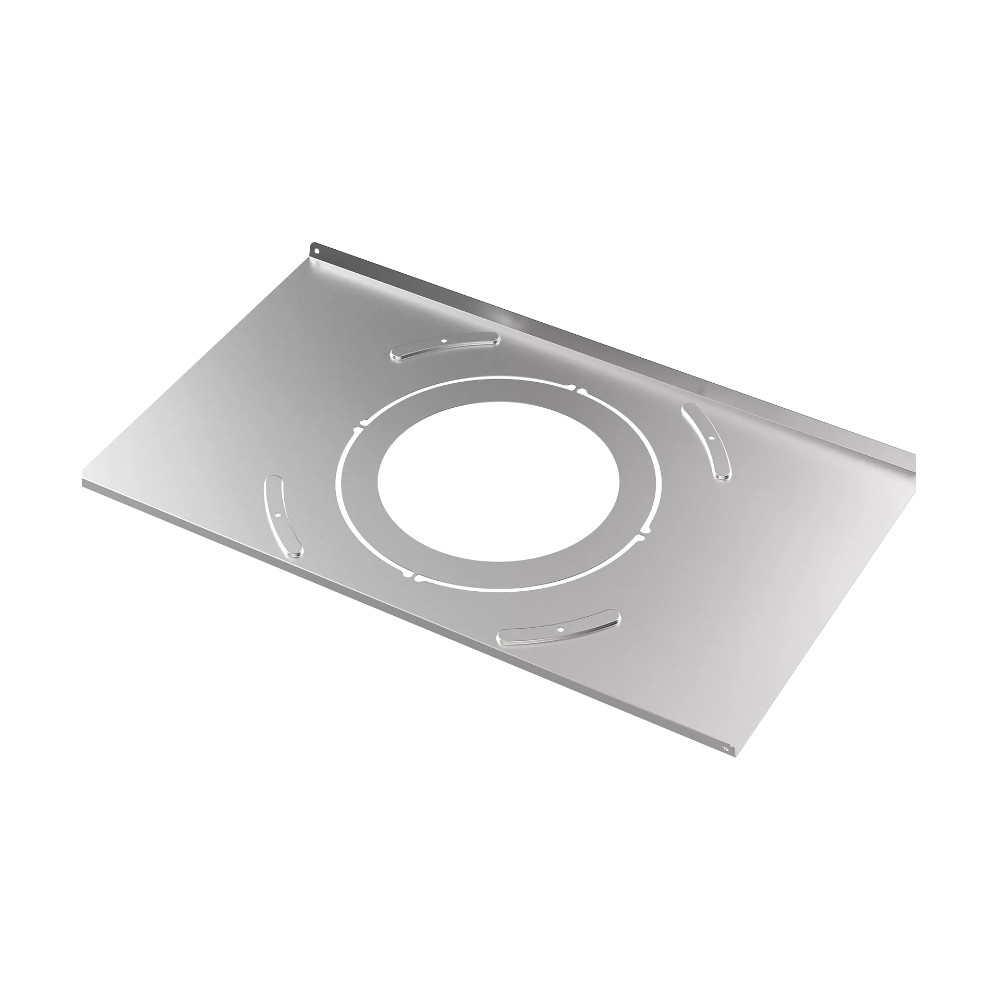

The AXIS TC1603 Tile Bridge is a professional mounting accessory designed to provide essential support for AXIS network speakers installed in suspended (drop) ceilings. By transferring the weight of the speaker from the ceiling tile to the structural T-bar grid, the TC1603 prevents unsightly sagging and ensures a secure, long-lasting installation.
Installation Tip: Recommended for all AXIS C12 Series ceiling speakers when installing into mineral wool or high-density fiberglass ceiling tiles to maintain structural integrity and professional aesthetics.
Key Benefits
-
Weight Distribution: Spans the ceiling tile to rest on the metal T-bar grid, eliminating pressure on the tile itself.
-
Safety & Compliance: Reduces the risk of speaker fall-through in commercial environments.
-
Durable Construction: Made from high-quality galvanized steel to resist corrosion and provide rigid support.
-
Perfect Compatibility: Specifically designed for the AXIS C1210-E and AXIS C1211-E Network Ceiling Speakers.
Technical Specifications
| Feature |
AXIS TC1603 Specification |
| Part Number |
02564-001 |
| Material |
Galvanized Steel |
| Compatible Devices |
AXIS C1210-E, AXIS C1211-E Ceiling Speakers |
| Weight |
Approx. 0.8 kg (1.76 lb) |
| Application |
Suspended Ceilings / Drop-Tile Grids |
Frequently Asked Questions
Do I need one bridge per speaker?
Yes. Each AXIS C12 series ceiling speaker requires its own TC1603 Tile Bridge to ensure the weight is correctly supported across the ceiling grid.
Is this required for hard-plaster ceilings?
No. This accessory is specifically designed for 600x600mm or 1200x600mm suspended ceiling tiles. For hard ceilings (plasterboard), the speaker's built-in mounting clamps are usually sufficient.
