Dahua 6MP Security Camera, Turret, IR Night Vision, 2.8mm Fixed-focal Eyeball WizSense Starlight
The Dahua DH-IPC-HDW3666EMP-S-AUS is a 6MP IR fixed-focal eyeball WizSense turret network camera from the starlight series. With a 2.8mm lens, PoE connection, and SD Card storage capacity of up to 256GB, this camera is perfect for capturing clear footage both day and night. Its advanced features, including Perimeter and SMD4.0 for motion detection, WDR for wide dynamic range, and a built-in microphone, make it a top choice for security needs. Additionally, the built-in infrared LED provides night vision coverage of up to 50 meters. The IP67 enclosure ensures high-grade water and dust resistance, making it suitable for outdoor use. With a resolution of 3072 x 2048 pixels and frame rate of 25/30 fps, this camera provides superb image clarity.
The Dahua 6MP Turret Security Camera features advanced WizSense AI technology, providing highly accurate detection of humans and vehicles. With AI Coding and Starlight technology, this camera saves storage space while delivering clear footage even in low light conditions. Its intelligent functions and easy usability make it an inclusive and reliable choice for security surveillance.
Launched by Dahua Technology, WizSense is a series of AI products and solutions that adopt independent AI chip and deep learning algorithm. It focuses on human and vehicle with high accuracy, enabling users to fast act on defined targets. Based on Dahua's advanced technologies, WizSense provides intelligent, simple and inclusive products and solutions.
Dahua WizSense 3 Series Network Camera greatly saves on bandwidth and storage space through its AI Coding technology. Driven by its advanced deep learning algorithms, the camera supports intelligent functions such as perimeter protection, smart motion detection (SMD), Quick Pick, and AI SSA (AI Scene Self-adaptation), making it easy and convenient to use. Starlight technology and its large aperture lens also allow the camera to produce clear, vivid images even in poor lighting conditions.
SMD 4.0 Dahua Smart Motion Detection technology works with intelligent algorithms to classify targets that trigger motion detection alarms. It filters out objects that are not targets, such as small and large animals, to avoid triggering false alarms. With an AI NVR, Quick Pick technology becomes available, allowing you to easily search for and pick out human and vehicle targets from SMD event videos, prioritising the highest matches.
AI SSA Dahua AI Scene Self-adaptation (AI SSA) adopts deep learning algorithms to detect environmental conditions, such as rain, fog, backlight, low light and flicker, to adjust the parameters of the image to suit the conditions, ensuring that clear images are always produced.
Smart H.265+ & Smart H.264+ With advanced scene-adaptive rate control algorithm, Dahua smart encoding technology realizes the higher encoding efficiency than H.265 and H.264, provides high-quality video, and reduces the cost of storage and transmission.
Perimeter Protection With deep learning algorithm, Dahua Perimeter Protection technology can recognize human and vehicle accurately. In restricted area (such as pedestrian area and vehicle area), the false alarms of intelligent detection based on target type (such as tripwire, intrusion) are largely reduced.
Protection (IP67, Wide Voltage) IP67: The camera passes a series of strict test on dust and soak. It has dust-proof function, and the enclosure can works normal after soaking in 1 m deep water for 30 minutes. Wide voltage: The camera allows ±30% (for some power supplies) input voltage tolerance (wide voltage range), and it is widely applied to outdoor environment with instable voltage.
Cyber Security Dahua network cameras employ a series of security technologies, including security authentication and authorization, access control protocols, trusted protection, encrypted transmission and encrypted storage. These technologies improve the camera's defense against external cyber threats and prevent malicious programs from comprising the device.
Features
6MP 1/2.7'' CMOS image sensor, excellent low luminance performance and high definition of images.
Outputs max. 6 MP (3072 x 2048) @25/30 fps.
H.265 codec, high compression rate, ultra-low bit rate.
Built-in IR LED, max. IR distance: 50 m.
ROI, SMART H.264 +/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments.
Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
Intelligent detection: Intrusion, tripwire (support the classification and accurate detection of vehicle and human).
Abnormality detection: Motion detection, privacy masking, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
Max. 256 G Micro SD card. built-in Mic.
12 VDC/PoE power supply, easy for installation.
IP67 protection.
SMD 4.0, AI SSA.
Specifications
Network Security Camera
Megapixels
6MP
Camera Style
Turret
Colour
White
Lens Type
Fixed
Technology
WizSense Series
Connection
PoE
Installation Accessories
Dahua Waterproof Junction Box White DH-PFA139
Dahua Waterproof Wall Mount Bracket DH-PFB204W
Dahua Pole Mount Bracket DH-PFA152-E
Dahua Ceiling Mount Adapter DH-PFA106
Dahua Ceiling Mount Bracket DH-PFB220C
Dahua Cat6 Ethernet Cables
Downloads
DH-IPC-HDW3666EMP-S-AUS Datasheet 20220713Dahua Eyeball Network Camera Quick Start Guide_V1.0.4Eyeball Network Camera Installation Guide_V1.0.0Dahua Network Camera Web 5.0 Operation Manual_V1.0.4Dahua Network Camera Web 3.0 Operation Manual_V2.1.4
Ubiquiti UniFi Protect G4 Instant Wireless Camera - Compact, wide-angle, two-way audio - NO PSU (Requires USB-C AC Adaptor or Hub)
Compact, wide-angle, WiFi-connected camera with two-way audio.
Features:
2K HD, 30 FPS camera
Built-in IR LEDs with an automatic IR cut filter for optimal nighttime surveillance
Built-in microphone and speakers
IPX5-rated, weatherproof casing
Wall-mountable
Managed with the UniFi Protect application: Version 1.20.0-beta.5 and later (web) / 1.5.6 and later (iOS) / 1.4.7 and later (Android)
Downloads
Datasheet
Installation Guide
Dahua TIOC 2.0, 6MP Security Camera, Active Deterrence, Full Colour Night Vision & Two-way Audio, 2.8mm Fixed-focal Lens
The Dahua 8MP TIOC 2.0, DH-IPC-HDW3849H-AS-PV-ANZ-BLK, Fixed IP Security Camera offers advanced capabilities like two-way audio, full-colour night vision, and audible warnings to deter intruders. This camera also has a 4K resolution and can be easily integrated with an NVR recorder through an Ethernet Network Cable, ensuring stable connections and consistent recordings with PoE port for power.
Launched by Dahua Technology, WizSense is a series of AI products and solutions that adopt independent AI chip and deep learning algorithm. It focuses on human and vehicle with high accuracy, enabling users to fast act on defined targets. Based on Dahua's advanced technologies, WizSense provides intelligent, simple and inclusive products and solutions.
Siren and Light Active Deterrence Dahua siren and light active deterrence network camera supports the light alarm and voice alarm when perimeter event occurs, to realise the deterrence and effective intervention. The camera is built in multiple voices for selection, and supports customised voice importing.
Smart Dual Illuminators Dahua Smart Dual Illuminators technology adopts smart algorithm to detect targets. Usually, the IR illuminator is on at night; when the target appears in the monitoring area, the warm light is on, and the camera records the full-color video and information of key events. That is, the camera links snapshot and video with full-color image. When the target is out of the monitoring area, the warm light is off and the IR illuminator is on, which reduces light pollution efficiently.
SMD 4.0 Dahua Smart Motion Detection technology works with intelligent algorithms to classify targets that trigger motion detection alarms. It filters out objects that are not targets, such as small and large animals, to avoid triggering false alarms. With an AI NVR, Quick Pick technology becomes available, allowing you to easily search for and pick out human and vehicle targets from SMD event videos, prioritizing the highest matches.
Features
6-MP 1/2.7" CMOS image sensor, low luminance, and high definition image.
Outputs max. 6 MP (3200 × 1800) @25/30 fps
H.265 codec, high compression rate, ultra-low bit rate.
Built-in warm light and IR LED; the max. IR illumination distance is 30 m and warm light distance is 30 m.
ROI, SMART H.264+/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments.
Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
Intelligent monitoring: Intrusion, tripwire (the two function support the classification and accurate detection of vehicle and human).
Abnormality detection: Motion detection, privacy masking, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 256 G Micro SD card; buit-in dual MICs; 1-ch speaker; support two-way talk.
12 VDC/PoE power supply.
IP67 protection.
Sound and light alarm (red and blue lights).
SMD 4.0.
One press arming/disarming through alarm input
Specifications
Megapixels
6 megapixel
Camera Style
Turret
Colour
White
Lens Type
Fixed
Technology
WizSense Series
Connection
PoE
Downloads
IPC-HDW3649H-AS-PV-ANZ DatasheetDahua Eyeball Network Camera nstallation Guide_V1.0.2Dahua Eyeball Network Camera Quick Start Guide_V1.0.4Dahua Network Camera Web 5.0 Operation Manual_V1.0.5Dahua Network Camera Web 3.0 Operation Manual_V2.1.5DH-IPC-HDW3649HP-AS-PV-ANZ Installation MethodsDH-IPC-HDW3649HP-AS-PV-ANZ Dimensions DH-IPC-HDW3649HP-AS-PV-ANZ A&E 20221205123112
Dahua 6MP Security Camera, Turret, Black, IR Night Vision, 2.8mm Fixed-focal Eyeball WizSense Starlight
The Dahua DH-IPC-HDW3666EMP-S-AUS-BLK is a 6MP IR fixed-focal eyeball WizSense black turret network camera from the starlight series. With a 2.8mm lens, PoE connection, and SD Card storage capacity of up to 256GB, this camera is perfect for capturing clear footage both day and night. Its advanced features, including Perimeter and SMD4.0 for motion detection, WDR for wide dynamic range, and a built-in microphone, make it a top choice for security needs. Additionally, the built-in infrared LED provides night vision coverage of up to 50 meters. The IP67 enclosure ensures high-grade water and dust resistance, making it suitable for outdoor use. With a resolution of 3072 x 2048 pixels and frame rate of 25/30 fps, this camera provides superb image clarity.
The Dahua 6MP Turret Security Camera features advanced WizSense AI technology, providing highly accurate detection of humans and vehicles. With AI Coding and Starlight technology, this camera saves storage space while delivering clear footage even in low light conditions. Its intelligent functions and easy usability make it an inclusive and reliable choice for security surveillance.
Launched by Dahua Technology, WizSense is a series of AI products and solutions that adopt independent AI chip and deep learning algorithm. It focuses on human and vehicle with high accuracy, enabling users to fast act on defined targets. Based on Dahua's advanced technologies, WizSense provides intelligent, simple and inclusive products and solutions.
Dahua WizSense 3 Series Network Camera greatly saves on bandwidth and storage space through its AI Coding technology. Driven by its advanced deep learning algorithms, the camera supports intelligent functions such as perimeter protection, smart motion detection (SMD), Quick Pick, and AI SSA (AI Scene Self-adaptation), making it easy and convenient to use. Starlight technology and its large aperture lens also allow the camera to produce clear, vivid images even in poor lighting conditions.
SMD 4.0 Dahua Smart Motion Detection technology works with intelligent algorithms to classify targets that trigger motion detection alarms. It filters out objects that are not targets, such as small and large animals, to avoid triggering false alarms. With an AI NVR, Quick Pick technology becomes available, allowing you to easily search for and pick out human and vehicle targets from SMD event videos, prioritising the highest matches.
AI SSA Dahua AI Scene Self-adaptation (AI SSA) adopts deep learning algorithms to detect environmental conditions, such as rain, fog, backlight, low light and flicker, to adjust the parameters of the image to suit the conditions, ensuring that clear images are always produced.
Smart H.265+ & Smart H.264+ With advanced scene-adaptive rate control algorithm, Dahua smart encoding technology realizes the higher encoding efficiency than H.265 and H.264, provides high-quality video, and reduces the cost of storage and transmission.
Perimeter Protection With deep learning algorithm, Dahua Perimeter Protection technology can recognize human and vehicle accurately. In restricted area (such as pedestrian area and vehicle area), the false alarms of intelligent detection based on target type (such as tripwire, intrusion) are largely reduced.
Protection (IP67, Wide Voltage) IP67: The camera passes a series of strict test on dust and soak. It has dust-proof function, and the enclosure can works normal after soaking in 1 m deep water for 30 minutes. Wide voltage: The camera allows ±30% (for some power supplies) input voltage tolerance (wide voltage range), and it is widely applied to outdoor environment with instable voltage.
Cyber Security Dahua network cameras employ a series of security technologies, including security authentication and authorization, access control protocols, trusted protection, encrypted transmission and encrypted storage. These technologies improve the camera's defense against external cyber threats and prevent malicious programs from comprising the device.
Features
6MP 1/2.7'' CMOS image sensor, excellent low luminance performance and high definition of images.
Outputs max. 6 MP (3072 x 2048) @25/30 fps.
H.265 codec, high compression rate, ultra-low bit rate.
Built-in IR LED, max. IR distance: 50 m.
ROI, SMART H.264 +/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments.
Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
Intelligent detection: Intrusion, tripwire (support the classification and accurate detection of vehicle and human).
Abnormality detection: Motion detection, privacy masking, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
Max. 256 G Micro SD card. built-in Mic.
12 VDC/PoE power supply, easy for installation.
IP67 protection.
SMD 4.0, AI SSA.
Specifications
Network Security Camera
Megapixels
6MP
Camera Style
Turret
Colour
Black
Lens Type
Fixed
Technology
WizSense Series
Connection
PoE
Installation Accessories
Dahua Waterproof Junction Box White DH-PFA139
Dahua Waterproof Wall Mount Bracket Black DH-PFB204W-B
Dahua Waterproof Wall Mount Bracket DH-PFB204W
Dahua Pole Mount Bracket DH-PFA152-E
Dahua Ceiling Mount Adapter DH-PFA106
Dahua Ceiling Mount Bracket DH-PFB220C
Dahua Cat6 Ethernet Cables
Downloads
DH-IPC-HDW3666EMP-S-AUS Datasheet 20220713Dahua Eyeball Network Camera Quick Start Guide_V1.0.4Eyeball Network Camera Installation Guide_V1.0.0Dahua Network Camera Web 5.0 Operation Manual_V1.0.4Dahua Network Camera Web 3.0 Operation Manual_V2.1.4
Ubiquiti UniFi Protect Camera G5-Bullet, Next-gen indoor/outdoor 2K HD PoE Camera
Features:
2K (4MP) video resolution Flexible 3-axis adjust mount 9 m (30 ft) IR night vision AI event detections Record audio with an integrated microphone Connect and power using PoE Weatherproof (outdoor exposed)
Technical Specifications
Mechanical
Dimensions
Without mount: Ø75.5 x 74.4 mm (Ø3 x 2.9")With mount: Ø75.5 x 150 mm (Ø3 x 5.9")
Weight
Without mount: 225 g (8 oz)With mount: 315 g (11.1 oz)
Enclosure material
Polycarbonate, aluminum alloy
Mount material
Wall mount: aluminum alloy, polycarbonatePole mount: aluminum alloy
Weatherproofing
IPX4
Resistance
IK04
Optics
Sensor
5MP CMOS
Lens
Fixed focal length
View angle
H: 84.4°, V: 45.4°, D: 99.8°
Night mode
Built-in IR LED illumination and IR cut filter
Video
Resolution
4MP 2688 x 1512 (16:9)
Max. frame rate
30 FPS
Image settings
Color, brightness, sharpness, contrast, white balance, exposure control, 2DNR, 3DNR, NR by motion, masking, text overlay
System
Processor
Dual-core Arm® Cortex®-A7 based chip
Networking interface
10/100 MbE RJ45 port
Max. power consumption
4W
Power method
PoE
Supported voltage range
37—57V DC
Button
Factory reset
Mounting
Wall, pole mount
Ambient operating temperature
-20 to 40º C (-4 to 104º F)
Ambient operating humidity
0 to 90% noncondensing
Certifications
FCC, IC, CE
Audio
Microphone
Yes (Can be disabled)
Software
Web application
UniFi Protect: Version 2.2.7 or 2.7.28 and later
Mobile app
UniFi Protect iOS™ and Android™: Version 1.10.0 and later
Downloads
Installation Guide
Image Performance
Ubiquiti UniFi G5 Turret Ultra, Ultra-compact, Tamper-resistant IK04, IP66 Weatherproof 2K HD PoE Camera, Long-range Night Vision
Ultra-compact, tamper-resistant, and weatherproof 2K HD PoE camera with long-range night vision.
Features
2K (4MP) video resolution Ultra-wide viewing angle (102.4°) 30 m (98 ft) IR night vision AI event detections Record audio with an integrated microphone Connect and power using PoE Weatherproof (outdoor exposed)
Technical Specifications
Mechanical
Dimensions
Ø90 x 71.2 mm (Ø3.5 x 2.8")
Weight
330 g (11.6 oz)
Enclosure material
Aluminum alloy, UV-stabilized polycarbonate
Weatherproofing
IP66
Resistance
IK04
Cable jacket enclosure dimensions
Ø20 x 70.6 mm (0.8 x 2.8")
Cable jacket enclosure materials
Thermoplastic elastomer, polycarbonate, silicone rubber
Cable length
30 cm (1 ft)
Cable diameter
5 mm (0.2")
Cable jacket material
Polycarbonate
Cable connector type
RJ45
Optics
Sensor
1/2.4" CMOS
Lens
Fixed focal length
View angle
H: 102.4°, V: 54.9°, D: 120.6°
Night mode
Built-in IR LED illumination and IR cut filter
Video
Resolution
4MP 2688 x 1512 (16:9)
Max. frame rate
30 FPS
Image settings
Color, brightness, sharpness, contrast, white balance, exposure control, 2DNR, 3DNR, NR by motion, masking, text overlay
System
Processor
Dual-core Arm® Cortex®-A7 based chip
Networking interface
10/100 MbE RJ45 port
Max. power consumption
4W
Power method
PoE
Supported voltage range
37–57V DC
LED
R/G/B/W
Button
Factory reset
Mounting
Surface mount
Ambient operating temperature
-30 to 50º C (-22 to 122º F)
Ambient operating humidity
0 to 90% noncondensing
Certifications
FCC, IC, CE
Audio
Microphone
Yes (Can be disabled)
Downloads
UniFi G5 Turret Ultra Installation Guide

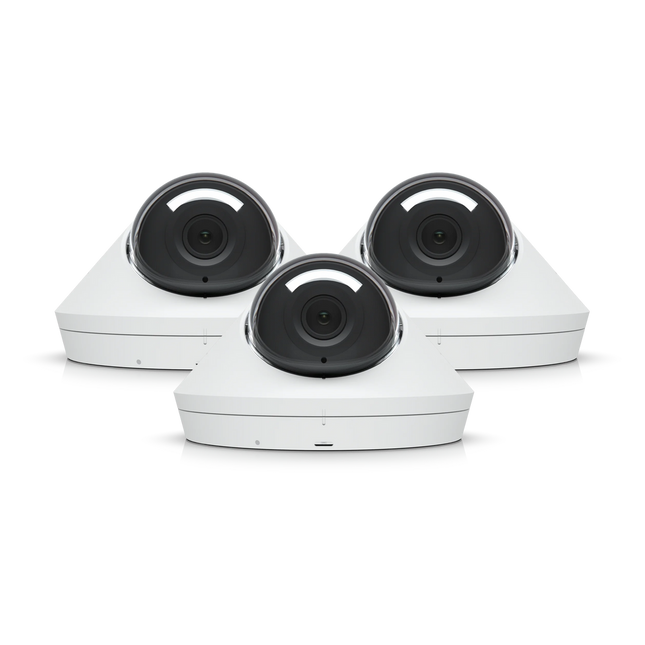

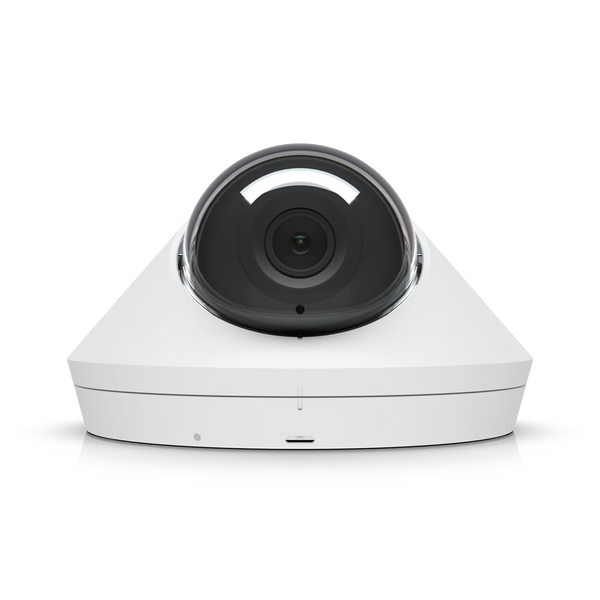

Ubiquiti UniFi Protect Cam Dome Camera G5 2K HD PoE ceiling camera NHU-UVC-G5-DOME
Next-gen 2K HD PoE ceiling camera with enhanced dynamic range and low-light performance.
2K (4MP) video resolution Ultra-wide viewing angle (102.4°) 9 m (30 ft) IR night vision AI event detections Integrated 2-way audio Connect and power using PoE Weather-resistant (outdoor covered) Vandal resistant
Technical Specifications
Mechanical
Dimensions
Ø109.2 x 64.5 mm (Ø4.3 x 2.5")
Weight
Without mount: 370 g (13.1 oz)With mount: 390 g (13.8 oz)
Enclosure material
Aluminum alloy, polycarbonate, hard-coated dome
Mount material
Polycarbonate, stainless steel
Weatherproofing
IPX4
Resistance
IK08
Optics
Sensor
5MP CMOS
Lens
Fixed focal length
View angle
H: 102.4°, V: 54.9°, D: 120.6°
Night mode
Built-in IR LED illumination and IR cut filter
Video
Resolution
4MP 2688 x 1512 (16:9)
Max. frame rate
30 FPS
Image settings
Color, brightness, sharpness, contrast, white balance, exposure control, 2DNR, 3DNR, NR by motion, masking, text overlay
System
Processor
Dual-core Arm® Cortex®-A7 based chip
Networking interface
10/100 MbE RJ45 port
Max. power consumption
5W
Power method
PoE
Supported voltage range
37–57V DC
LED
R/G/B/W
Button
Factory reset
Mounting
Wall, ceiling mount
Ambient operating temperature
-20 to 40º C (-4 to 104º F)
Ambient operating humidity
0 to 90% noncondensing
Certifications
FCC, IC, CE
Audio
Microphone
Yes (Can be disabled)
Speaker
Yes
Software
Web application
UniFi Protect: Version 2.2.7 or 2.7.28 and later
Mobile app
UniFi Protect iOS™ and Android™: Version 1.10.0 and later
Downloads
DatasheetInstallation Guide
Dahua Security Camera 6MP WizSense Fixed Starlight Dome, 2.8mm, Perimeter, SMD 4.0, SD Card, WDR, IR50m, Built-in Mic, IP67, IK10, POE
6MP 1/2.7'' CMOS image sensor, excellent low luminance performance and high definition of images.
Outputs max. 6 MP (3072 x 2048) @25/30 fps.
H.265 codec allows high compression ratio and ultra-low bit rate.
Built-in IR LED, max. IR distance: 50 m.
ROI, SMART H.264 +/H.265+,AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments.
Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
Intelligent detection: Intrusion, tripwire (support the classification and accurate detection of vehicle and human).
Abnormality detection: Motion detection, privacy masking, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
Alarm: 1 in, 1 out; audio: 1 in, 1 out; max. 256 G Micro SD card. built-in Mic.
12 VDC/PoE power supply, easy for installation.
IP67, IK10 protection.
SMD 4.0, AI SSA.
Specifications
NETWORK CAMERA
MEGAPIXELS
6MP
CAMERA STYLE
Dome
COLOUR
White
LENS TYPE
Fixed
TECHNOLOGY
WIZSENSE SERIES
POE
POE
Downloads
DH-IPC-HDBW3666EP-AS-AUS Datasheet 20220718Dahua Dome Network Camera_Quick Start Guide_V1.0.1Dahua Dome Network Camera Installation Guide_V1.0.0Dahua Network Camera Web 5.0_Operation Manual_V1.0.4Dahua Network Camera Web 3.0_OperationManual_V2.1.4
Uniarch 6MP Starlight Fixed Turret Network Camera, Min. illumination 0.003lux, human body detection, powered by StarLight technology, 2.8mm fixed lens, 30M IR, 120dB WDR, support 256 GB Micro SD card, Built-in-Mic, IP67
Optional: Junction box TR-JB03-G-IN, Wall mount TR-WM03-D-IN
High quality image with 6MP, 1/2.7''CMOS sensor
6MP(3072*2048@20fps; 5MP(2880*1620)@25/20fps; 4MP(2560*1440)@30/25fps; 3MP(2304*1296)@30/25fps;
2MP(1920*1080)@30/25fps
Ultra 265, H.265, H.264, MJPEG
Easystar technology ensures high image quality in low illumination environment
120dB true WDR technology enables clear image in strong light scene
Support 9:16 Corridor Mode
Built-in Mic
Smart IR, up to 30m (98ft) IR distance
Supports 256 G Micro SD card
IP67 protection
Support PoE power supply
3-Axis
Specifications
Uniarch Security Camera
MEGAPIXELS
6MP
CAMERA STYLE
Turret
COLOUR
White
LENS TYPE
Fixed
TECHNOLOGY
Uniarch Starlight
POE
POE
Downloads
Uniarch IPC-T1E6-AF28K 6MP HD Fixed Turret Network Camera Datasheet V1.1Uniarch-IPC-Network Eyeball Cameras Quick Guide-V2.01Uniarch Network Camera User Manual-V1.00
Hikvision 6MP DS-2CD2366G2-I Outdoor AcuSense Gen 2 Turret Camera, H.265, WDR, 30m IR, IP67, 2.8mm (2366)
Capture crystal clear images day and night with the Hikvision 6MP Outdoor AcuSense Gen 2 Turret Camera. Its powered-by-DarkFighter technology ensures excellent low-light performance, while efficient H.265+ compression technology reduces storage needs. With deep learning-based human and vehicle target classification and a built-in microphone for audio security, this camera provides comprehensive security. Its IP67 waterproof and dust-proof rating makes it perfect for outdoor use.
Features
High quality imaging with 6 MP resolution
Excellent low-light performance with powered-by-DarkFighter technology
Efficient H.265+ compression technology
Clear imaging against strong back light due to 120 dB true WDR technology
Focus on human and vehicle targets classification based on deep learning
Built-in microphone for real-time audio security(-U)
Water and dust resistant (IP67)
Camera
Image Sensor
1/2.4" Progressive Scan CMOS
Max. Resolution
3200 × 1800
Min. Illumination
Color: 0.003 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR
Shutter Time
1/3 s to 1/100,000 s
Day & Night
IR cut filter
Angle Adjustment
Pan: 0° to 360°,tilt: 0° to 75°,rotate: 0° to 360°
Lens
Lens Type
Fixed lens, 2.8, 4, and 6 mm optional
Focal Length & FOV
2.8 mm, horizontal FOV 105°, vertical FOV 55°, diagonal FOV 127°;
4 mm, horizontal FOV 78°, vertical FOV 38°, diagonal FOV 96°;
6 mm, horizontal FOV 51°, vertical FOV 26°, diagonal FOV 59°
Lens Mount
M12
Iris Type
Fixed
Aperture
F1.6
DORI
DORI
2.8 mm: D: 76 m, O: 30 m, R: 15 m, I: 7 m;
4 mm: D: 115 m, O: 45 m, R: 23 m, I: 11 m;
6 mm: D: 164 m, O: 65 m, R: 32 m, I: 16 m
Illuminator
Supplement Light Type
IR
Supplement Light Range
Up to 30 m
Smart Supplement Light
Yes
IR Wavelength
850 nm
Video
Main Stream
50 Hz: 25 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
60 Hz: 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
Sub-Stream
50 Hz: 25 fps (1280 x 720, 640 × 480, 640 × 360)
60 Hz: 30 fps (1280 x 720, 640 × 480, 640 × 360)
Third Stream
50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360),
*Third stream is supported under certain settings.
Video Compression
Main stream: H.265+/H.265/H.264+/H.264,
Sub-stream: H.265/H.264/MJPEG,
Third stream: H.265/H.264 (*Third stream is supported under certain settings.)
Video Bit Rate
32 Kbps to 16 Mbps
H.264 Type
Baseline Profile,Main Profile,High Profile
H.265 Type
Main Profile
Bit Rate Control
CBR,VBR
Scalable Video Coding (SVC)
H.264 and H.265 encoding
Region Of Interest (ROI)
1 fixed region(s) for main stream and sub-stream
Audio
Audio Type
-U: Mono sound
Audio Compression
-U: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Audio Bit Rate
-U: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
Audio Sampling Rate
-U: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
Environment Noise Filtering
-U: Yes
Network
Protocols
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP, WebSocket, WebSockets, SRTP, SFTP
Simultaneous Live View
Up to 6 channels
API
Open Network Video Interface (Profile S, Profile G, Profile T),ISAPI,SDK, ISUP
User/Host
Up to 32 users
3 user levels: administrator, operator, and user
Security
Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.1/1.2/1.3, host authentication (MAC address)
Network Storage
NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR),
Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
Client
iVMS-4200, Hik-Connect, Hik-Central
Web Browser
Plug-in required live view: IE 10, IE 11,
Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+,
Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
Image Parameters Switch
Yes
Image Settings
Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
Day/Night Switch
Day,Night,Auto,Schedule
Wide Dynamic Range (WDR)
120 dB
SNR
≥ 52 dB
Image Enhancement
BLC,HLC,3D DNR
Privacy Mask
4 programmable polygon privacy masks
Interface
Ethernet Interface
1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board Storage
Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
Built-In Microphone
-U: Yes
Reset Key
Yes
Event
Basic Event
Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
Smart Event
Line crossing detection, intrusion detection, region entrance detection, region exiting detection (support alarm triggered by specified target types (human and vehicle)), scene change detection
Linkage
Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger recording,trigger capture
Deep Learning Function
Face Capture
Yes
General
Power
12 VDC ± 25%, 0.45 A, max. 5.4 W,Ø5.5 mm coaxial power plug,reverse polarity protection,
PoE: IEEE 802.3af, Class 3, max. 6.5 W
Material
Metal except for trim ring
Dimension
Ø138.3 mm × 111.4 mm (Ø5.4" × 4.4")
Package Dimension
170 mm × 170 mm × 150 mm (6.7" × 6.7" × 5.9")
Weight
Approx. 740 g (1.6 lb.)
With Package Weight
Approx. 1070 g (2.4 lb.)
Storage Conditions
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup And Operating Conditions
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Language
33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
General Function
Heartbeat,mirror,flash log,password reset via email,pixel counter,anti-flicker
Approval
EMC
CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014,
RCM: AS/NZS CISPR 32: 2015,
KC: KN32: 2015, KN35: 2015
Safety
UL: UL 62368-1,
CB: IEC 62368-1: 2014+A11,
CE-LVD: EN 62368-1: 2014/A11: 2017
Environment
CE-RoHS: 2011/65/EU,
WEEE: 2012/19/EU,
Reach: Regulation (EC) No 1907/2006
Protection
IP67: IEC 60529-2013
Download
DS-2CD2366G2-I Datasheet
Hikvision DS-2CD2366G2-IU 6MP AcuSense Turret, IP67, IR, Built-in Mic, Fixed, 2.8mm (2366)
Experience high-quality imaging with the Hikvision DS-2CD2366G2-IU 6MP AcuSense Turret. Powered by DarkFighter technology, it offers excellent low-light performance. Its 120 dB true WDR technology ensures clear imaging against strong backlight. With deep learning-based classification, it focuses on human and vehicle targets. Enjoy real-time audio security with the built-in microphone and IP67 water and dust resistance.
Features
High quality imaging with 6 MP resolution
Excellent low-light performance with powered-by-DarkFighter technology
Efficient H.265+ compression technology
Clear imaging against strong back light due to 120 dB true WDR technology
Focus on human and vehicle targets classification based on deep learning
Built-in microphone for real-time audio security(-U)
Water and dust resistant (IP67)
Downloads
DS-2CD2366G2-IU DatasheetDS-2CD2366G2-IU Quick GuideDS-2CD2366G2-IU Manual
Hikvision 6MP AcuSense Mini Bullet Fixed DS-2CD2066G2-IU, 30m IR, Built-in Mic, (2066) network camera comes with 2.8mm, 4mm and 6mm.
Experience high-quality imaging with the Hikvision 6MP AcuSense Mini Bullet Fixed DS-2CD2066G2-IU. Powered by DarkFighter technology, this network camera boasts excellent low-light performance. Featuring deep learning-based classification, active strobe light and audio alarm, and built-in two-way audio, this camera provides real-time security with efficient H.265+ compression and IP67 water and dust resistance.
Features
High quality imaging with 6 MP resolution
Excellent low-light performance with powered-by-DarkFighter technology
Efficient H.265+ compression technology
Clear imaging against strong back light due to 120 dB true WDR technology
Focus on human and vehicle targets classification based on deep learning
Active strobe light and audio alarm to warn intruders off
Provide real-time security via built-in two-way audio
Water and dust resistant (IP67)
Downloads
DS-2CD2066G2-IU Datasheet
DS-2CD2066G2-IU Quick Start Guide
DS-2CD2066G2-IU User Manual
Dahua Security Camera 6MP WizSense Motorised Starlight Bullet, 2.7–13.5 mm, Perimeter, SMD4.0, SD Card, WDR, IR60m, Built-in Mic, IP67, POE
6MP 1/2.7'' CMOS image sensor, excellent low luminance performance and high definition of images.
Outputs max. 6 MP (3072 x 2048) @25/30 fps.
H.265 codec, high compression rate, ultra-low bit rate.
Built-in IR LED, max. IR distance: 60 m.
ROI, SMART H.264 +/H.265+, flexible coding, applicable to various bandwidth and storage environments.
Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
Intelligent detection: Intrusion, tripwire (support the classification and accurate detection of vehicle and human).
Abnormality detection: Motion detection, privacy masking, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
Alarm: 1 in, 1 out; audio: 1 in, 1 out; max. 256 G Micro SD card. built-in Mic.
12 VDC/PoE power supply, easy for installation.
IP67 protection.
SMD 4.0, AI SSA.
Specifications
NETWORK CAMERA
MEGAPIXELS
6MP
CAMERA STYLE
Bullet
COLOUR
White
LENS TYPE
Motorised
TECHNOLOGY
WIZSENSE SERIES
POE
POE
Downloads
DH-IPC-HFW3666TP-ZAS-AUS Datasheet 20220718Bullet Network Camera Installation Guide_V1.0.0Dahua Network Camera Web 5.0_Operation Manual_V1.0.4Dahua Network Camera Web 3.0_OperationManual_V2.1.4Dahua Bullet Network Camera_Quick Start Guide_V1.0.3
Hikvision DS-2CD2367G2H-LISU/SL 6 MP Smart Hybrid Light with ColorVu Fixed Turret Network Camera
Capture crystal clear images with the Hikvision 6 megapixel Smart Hybrid Light with ColorVu Fixed Turret Network Camera. Featuring advanced technology, including long range Smart Hybrid Light and 130 dB WDR, this camera provides high-quality imaging in any situation. With deep learning-based human and vehicle classification, real-time security via two-way audio, and built-in strobe light and audio alarm, you'll have peace of mind knowing your property is protected. Plus, with IP67 water and dust resistance, on-board storage up to 512 GB, and audio and alarm interface, this camera is designed for reliable security.
Features
High quality imaging with 6 MP resolution
Smart Hybrid Light: advanced technology with long range
Clear imaging against strong back light due to 130 dB WDR technology
Efficient H.265+ compression technology
Focus on human and vehicle classification based on deep learning
Provide real-time security via built-in two-way audio
Active strobe light and audio alarm to warn intruders off
Support on-board storage up to 512 GB (SD card slot)
Water and dust resistant (IP67)
Audio and alarm interface available
Accessories
Wall Mount Brackets
Downloads
DS-2CD2367G2H-LISU/SL DS-2CD2367G2H-LISU/SL DatasheetDS-2CD2367G2H-LISU/SL User’s Manual DS-2CD2367G2H-LISU/SL Quick Start Guide
HiLook IPC-T269H-MU/SL(2.8mm) 6MP All-in-One Fixed Turret Network Camera
High quality imaging with 6 MP resolution
Efficient H.265+ compression technology
Clear imaging against strong back light due to 120 dB true WDR technology
Human and vehicle targets classification based on deep learning
Active red and blue strobe light and audio alarm to warn intruders off
Provide real-time security via built-in two-way audio
24/7 colorful imaging
Smart Dual -light Supplement,auto switch IR to White light supplement when event triggered
Water and dust resistant (IP67)
Camera
Image Sensor: 1/2.4" Progressive Scan CMOS
Max. Resolution: 3200 × 1800
Min. Illumination: Color: 0.003 Lux @ (F1.6, AGC ON),0 Lux with white light B/W: 0 Lux with IR
Shutter Time: 1/3 s to 1/100,000 s
Day & Night: IR cut filter
Angle Adjustment: Pan: 0° to 360°,tilt: 0° to 75°,rotate: 0° to 360°
Lens
Lens Type: Fixed lens, 2.8, 4, and 6 mm optional
Iris Type: Fixed
Focal Length & FOV: 2.8 mm, horizontal FOV 105°, vertical FOV 55°, diagonal FOV 127°; 4 mm, horizontal FOV 78°, vertical FOV:38°, diagonal FOV 96°; 6 mm, horizontal FOV 51°, vertical FOV 26°, diagonal FOV 59°
Aperture: F1.6
Lens Mount: M12
Illuminator
Supplement Light Type: White light & IR
Supplement Light Range: IR Range: Up to 30m ; White light Range: Up to 30m
Smart Supplement Light: Yes
Day/Night Switch: Day,Night,Auto,Schedule
Image Enhancement: BLC,HLC,3D DNR
Image Settings: Mirror, saturation, brightness, contrast, sharpness, AGC, and white balance ajustable by client sfotware or web browser
Privacy Mask: 4 regions of privacy masks
Wide Dynamic Range (WDR): 120 dB
Download
Data Sheet
Dahua Security Camera 6MP WizSense Fixed Starlight Bullet, 2.8mm, Perimeter, SMD4.0, SD Card, WDR, IR50m, Built-in Mic, IP67, POE
6MP 1/2.7'' CMOS image sensor, excellent low luminance performance and high definition of images.
Outputs max. 6 MP (3072 x 2048) @25/30 fps.
H.265 codec, high compression rate, ultra-low bit rate.
Built-in IR LED, max. IR distance: 50 m.
ROI, SMART H.264 +/H.265+, AI H.264/H.265. flexible coding, applicable to various bandwidth and storage environments.
Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
Intelligent detection: Intrusion, tripwire (support the classification and accurate detection of vehicle and human).
Abnormality detection: Motion detection, privacy masking, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
Alarm: 1 in, 1 out; audio: 1 in, 1 out; max. 256 G Micro SD card. built-in Mic.
12 VDC/PoE power supply, easy for installation.
IP67 protection.
SMD 4.0, AI SSA.
Specifications
NETWORK CAMERA
MEGAPIXELS
6MP
CAMERA STYLE
Bullet
COLOUR
White
LENS TYPE
Fixed
TECHNOLOGY
WIZSENSE SERIES
POE
POE
Downloads
DH-IPC-HFW3666EP-AS-AUS Datasheet 20220718Dahua HD IR Bullet Network Camera_QSG_V1.0.1Dahua Network Camera Web 5.0_Operation Manual_V1.0.4Dahua Network Camera Web 3.0_OperationManual_V2.1.4Dahua Bullet Network Camera_Quick Start Guide_V1.0.3
HiLook T262H-MU 6MP AI Turret Camera, Fixed 2.8mm, IR 30m, Mic, F1.6 Aperture
The HiLook T262H-MU 6MP AI Turret Camera offers high quality imaging with 6 MP resolution, dual IR lights for enhanced night vision, and a built-in microphone for real-time audio security. Its intelligent detection feature accurately identifies humans and vehicles, and its IP67 rating makes it suitable for outdoor use. With efficient H.265+ compression technology, it provides top-notch security while saving on storage space.
Features
High quality imaging with 6 MP resolution
Support Human and Vehicle Intelligent Detection
Dual IR lights to enhance night vision
Built-in microphone for real-time audio security
Water and dust resistant (IP67)
Efficient H.265+ compression technology
Downloads
IPC-T262H-MU Datasheet
Hikvision DS-2CD2T67G2H-LISU/SL Smart Hybrid ColorVu, 6MP Fixed, Strobe, Audio, Bullet Network Camera, 2.8mm, IR 60m, Mic Security Camera
Get ready to take your security to the next level with the Hikvision 2CD2T67G2H-LISU-SL Smart Hybrid ColorVu Camera! With high quality 6 MP resolution and advanced Smart Hybrid Light technology, this camera delivers clear imaging even in long range and strong back light situations. Thanks to its efficient compression technology, on-board storage up to 512 GB is supported for real-time security. The active strobe light and audio alarm also make this camera the perfect choice to warn off intruders and protect your space. So why wait? Take the challenge and secure your surroundings now!
Features
High quality imaging with 6 MP resolution
Smart Hybrid Light: advanced technology with long range
Clear imaging against strong back light due to 130 dB WDR technology
Efficient H.265+ compression technology
Focus on human and vehicle classification based on deep learning
Active strobe light and audio alarm to warn intruders off
Provide real-time security via built-in two-way audio
Support on-board storage up to 512 GB (SD card slot)
Audio and alarm interface available
Water and dust resistant (IP67)
Downloads
2CD2T67G2H-LISU-SL Datasheet2CD2T67G2H-LISU-SL Quick Start Guide2CD2T67G2H-LISU-SL User Manual
Hikvision Smart Hybrid ColorVu Mini Bullet Camera, 6MP Fixed, Strobe, Audio, 2.8MM, IR 40M, Mic, DS-2CD2067G2H-LIU/SL
The Hikvision DS-2CD2067G2H-LIU/SL Smart Hybrid ColorVu Mini Bullet Camera offers high-quality imaging with 6 megapixel resolution and advanced technology for long-range surveillance. With 130 dB WDR technology, this camera provides clear imaging against strong backlights. Featuring efficient H.265+ compression technology, deep learning-based human and vehicle classification, and built-in two-way audio, this camera provides effective real-time security. Its active strobe light and audio alarm warn intruders, while IP67 water and dust resistance ensures durability.
Features
High quality imaging with 6 MP resolution
Smart Hybrid Light: advanced technology with long range
Clear imaging against strong back light due to 130 dB WDR technology
Efficient H.265+ compression technology
Focus on human and vehicle classification based on deep learning
Provide real-time security via built-in two-way audio
Active strobe light and audio alarm to warn intruders off
Support on-board storage up to 512 GB (SD card slot)
Water and dust resistant (IP67)
Downloads
DS-2CD2067G2H-LIU/SL DatasheetDS-2CD2067G2H-LIU/SL Quick Start GuideDS-2CD2067G2H-LIU/SL User Manual
Hikvision 6MP AcuSense Mini Dome Camera DS-2CD2566G2-IS, Mic, IR, 2.8mm (2566) comes with 2.8mm and 4mm.
The Hikvision 6MP AcuSense Mini Dome Camera offers high quality imaging with 6 MP resolution and excellent low-light performance thanks to powered-by-DarkFighter technology. It uses deep learning to focus on human and vehicle classification and has 120 dB WDR technology for clear imaging against strong back light. With H.265+ compression technology and audio and alarm interfaces available, this camera also boasts water and dust resistance (IP67) and vandal proofing (IK08).
Features
High quality imaging with 6 MP resolution
Excellent low-light performance with powered-by-DarkFighter technology
Focusing on human and vehicle classification based on deep learning
Clear imaging against strong back light due to 120 dB WDR technology
Efficient H.265+ compression technology
-S: audio and alarm interface available
Water and dust resistant IP67 and vandal proof IK08
Downloads
DS-2CD2566G2-IS DatasheetDS-2CD2566G2-IS Quick Start GuideDS-2CD2566G2-IS User Manual
Hikvision 6MP AcuSense Dome DS-2CD2166G2-I, IP67, IR, 2.8mm (2166)
The Hikvision 6MP AcuSense Dome DS-2CD2166G2-I provides high quality imaging with 6 MP resolution and excellent low-light performance thanks to DarkFighter technology. Its efficient H.265+ compression and 120 dB true WDR technology ensure clear images even in challenging lighting conditions. With deep learning-based classification of human and vehicle targets, and built-in microphone and alarm interface options, this dome camera offers real-time audio security and is water, dust, and vandal resistant for reliable outdoor use.
Features
High quality imaging with 6 MP resolution
Excellent low-light performance with powered-by-DarkFighter technology
Efficient H.265+ compression technology
Clear imaging against strong back light due to 120 dB true WDR technology
Focus on human and vehicle targets classification based on deep learning
Built-in microphone for real-time audio security (-SU)
Audio and alarm interface available(-SU)
Water and dust resistant (IP67) and vandal resistant (IK10)
Downloads
DS-2CD2166G2-I Datasheet
DS-2CD2166G2-I Quick Start Guide
DS-2CD2166G2-I User Manual
DS-2CD2166G2-I FAQ
Hikvision DS-2CD2367G2P-LSU/SL 6 MP Panoramic ColorVu Fixed Turret Network Camera comes with 2.8mm lens
Capture every detail with the Hikvision DS-2CD2367G2P-LSU/SL 6 megapixel Panoramic ColorVu Fixed Turret Network Camera. Its 2.8mm lens provides high quality 6 MP resolution imaging. Experience 24/7 colorful imaging and clear images even in strong backlight with 130 dB WDR technology. With advanced features like human and vehicle classification and active strobe light and audio alarm, this camera is the perfect security solution. Water and dust resistant (IP67).
Features
High quality imaging with 6 MP resolution
One image that presents all the scenes covered by the camera
24/7 colorful imaging
Efficient H.265+ compression technology
Clear imaging against strong back light due to 130 dB WDR technology
Focus on human and vehicle classification based on deep learning
Active strobe light and audio alarm to warn intruders off
Water and dust resistant (IP67)
Downloads
DS-2CD2367G2P-LSU/SL Quick Start GuideDS-2CD2367G2P-LSU/SL ManualDS-2CD2367G2P-LSU/SL Installation Guide
Hikvision DS-2CD2367G2H-LIU-2 6MP ColorVu Turret, Hybrid Light, Built-in Mic, 2.8mm Lens
Capture clear and detailed footage with the Hikvision DS-2CD2367G2H-LIU 6MP ColorVu Turret camera. Its advanced Hybrid Light technology provides long range vision, while the 130 dB WDR technology ensures clear imaging even in strong back light. With efficient H.265+ compression technology, focus on human and vehicle classification, and a built-in microphone for real-time audio security, this camera is perfect for protecting your home or business. Its water and dust resistant design (IP67) ensures durability and reliability.
Features
High quality imaging with 6 MP resolution
Smart Hybrid Light: advanced technology with long range
Clear imaging against strong back light due to 130 dB WDR technology
Efficient H.265+ compression technology
Focus on human and vehicle classification based on deep learning
-U: Built-in microphone for real-time audio security
Water and dust resistant (IP67)
Downloads
DS-2CD2367G2H-LIU DatasheetDS-2CD2367G2H-LIU Quick Start GuideDS-2CD2367G2H-LIU Manual
Uniarch 6MP Starlight Fixed Turret Network Camera Black, Min. illumination 0.003lux, human body detection, powered by StarLight technology, 2.8mm fixed lens, 30M IR, 120dB WDR, support 256 GB Micro SD card, Built-in-Mic, IP67
Optional: Junction box TR-JB03-G-IN- BLACK, Wall mount TR-WM03-D-IN- BLACK
High quality image with 6MP, 1/2.7''CMOS sensor
6MP(3072*2048@20fps; 5MP(2880*1620)@25/20fps; 4MP(2560*1440)@30/25fps; 3MP(2304*1296)@30/25fps;
2MP(1920*1080)@30/25fps
Ultra 265, H.265, H.264, MJPEG
Easystar technology ensures high image quality in low illumination environment
120dB true WDR technology enables clear image in strong light scene
Support 9:16 Corridor Mode
Built-in Mic
Smart IR, up to 30m (98ft) IR distance
Supports 256 G Micro SD card
IP67 protection
Support PoE power supply
3-Axis
Specifications
NETWORK CAMERA
MEGAPIXELS
6MP
CAMERA STYLE
Turret
COLOUR
Black
LENS TYPE
Fixed
TECHNOLOGY
Uniarch Starlight
POE
POE
Downloads
Uniarch IPC-T1E6-AF28K-B 6MP HD Fixed Turret Network Camera Datasheet V1.1
Uniarch-IPC-Network Eyeball Cameras Quick Guide-V2.01
Uniarch Network Camera User Manual-V1.00
Ubiquiti UniFi G5 Dome Ultra, Ultra-compact & IK06 Tamper-resistant 2K HD PoE Camera, Night Vision For Low-profile Indoor Security
Ultra-compact and tamper-resistant 2K HD PoE camera with night vision designed for low-profile indoor security.
Features
2K (4MP) video resolution Ultra-wide viewing angle (102.4°) 20 m (65 ft) IR night vision AI event detections Connect and power using PoE Optional Flush Mount for in-ceiling installation
Technical Specifications
Mechanical
Dimensions
Ø63.6 x 68.2 mm (Ø2.5 x 2.7")
Weight
175 g (6.2 oz)
Enclosure material
Aluminum alloy, polycarbonate
Mount material
Stainless steel
Resistance
IK06
Optics
Sensor
1/2.4" CMOS
Lens
Fixed focal length
View angle
H: 102.4°, V: 54.9°, D: 120.6°
Night mode
Built-in IR LED illumination and IR cut filter
IR distance
20 m (65 ft)
Video
Resolution
4MP 2688 x 1512 (16:9)
Max. frame rate
30 FPS
Image settings
Color, brightness, sharpness, contrast, white balance, exposure control, 2DNR, 3DNR, NR by motion, masking, text overlay
System
Processor
Dual-core Arm® Cortex®-A7 based chip
Networking interface
10/100 MbE RJ45 port
Max. power consumption
4.2W
Power method
PoE
Supported voltage range
37–57V DC
Button
Factory reset
Mounting
Surface mount
Ambient operating temperature
-20 to 40º C (-4 to 104º F)
Ambient operating humidity
10 to 90% noncondensing
Certifications
FCC, IC, CE
Software
Web application
UniFi Protect
Mobile app
UniFi Protect iOS™ and Android™
Downloads
UniFi G5 Dome Ultra Installation Guide
Dahua TiOC 6MP Motorised Security Camera, Active Deterrence, Full Colour, Two-way Audio with Alarm, Vari-focal 2.7-13.5mm, Built-in Mic & Speaker, WDR, Micro SD, IP67, PoE. Black colour is available.
Enhance your security with Dahua TiOC 6MP Motorised Security Camera. Featuring Active Deterrence, Full Colour, Two-way Audio with Alarm, and Vari-focal lens, this camera provides clear and detailed images. Built-in Mic & Speaker allows for two-way communication while WDR and IR LED ensure image clarity in any light.
Features
SKU: DH-IPC-HDW3649H-ZAS-PV-ANZ
6MP 1/2.7'' CMOS image sensor, low luminance, and high definition image
Outputs max. 6MP (3200 x 1800@25/30 fps 5MP (2960 x 1668) @20 fps and supports 4 MP (2688 x 1520)@25/30 fps
H.265 codec, high compression rate, ultra-low bit rate
Built-in warm light and IR LED
Specifications
NETWORK CAMERA
Megapixels
6MP
Camera Style
Turret
Colour
White
Lens Type
Motorised
Technology
WizSense Series
Connection
PoE
Downloads
DH-IPC-HDW3649H-ZAS-PV-ANZ DatasheetDH-IPC-HDW3649H-ZAS-PV-ANZ Installation GuideDH-IPC-HDW3649H-ZAS-PV-ANZ Quick Start GuideDH-IPC-HDW3649H-ZAS-PV-ANZ Operational ManualDH-IPC-HDW3649H-ZAS-PV-ANZ Operational Manual v2.1.5

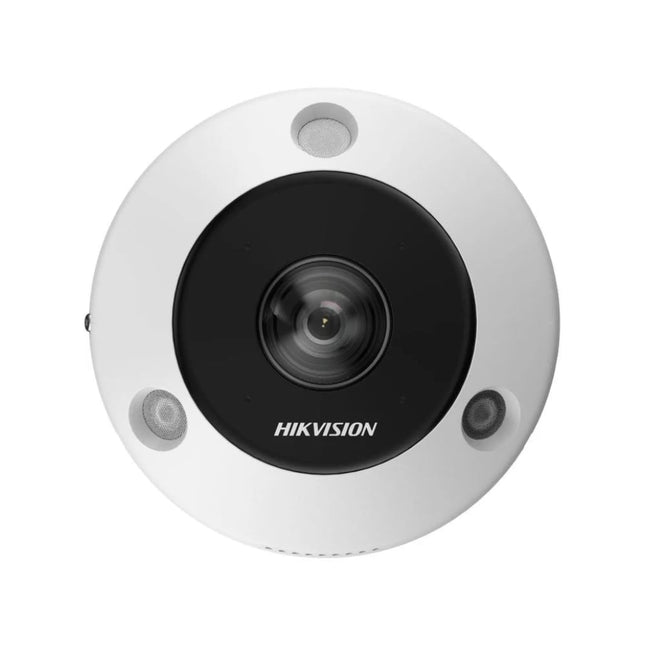

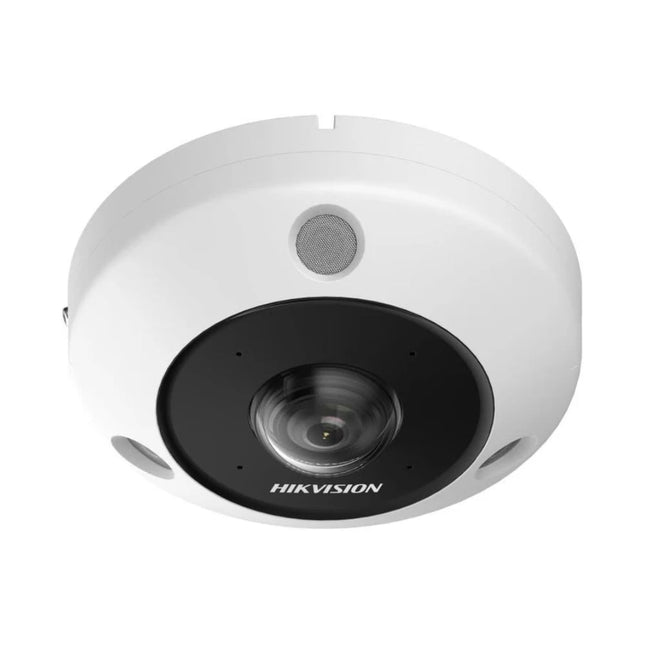

Hikvision 2CD6365G1 6MP DeepinView Fisheye Network Camera, Panoramic, 1.16mm, Mic, IR 15m
Heatmap: based on deep learning algorithms, the camera counts people and presents an intuitive map
Multi dewarping modes: the image can be dewarped to normal image for viewing intuitively
Built-in mic and speaker: the camera supports two-way audio for real-time audio security monitoring and communication
Built-in IR light: an IR range of 15 meters provides good visibility in low or even zero-light environments
High resolution 6 MP: capturing clear images even when dewarped into 4-image PTZ mode
Each image is clear and detailed
Water and dust resistant (IP67) and vandal resistant (IK10)
Downloads
DS-2CD6365G1-IVS DatasheetDS-2CD6365G1-IVS Quick Start GuideDS-2CD6365G1-IVS User Manual
Hikvision Smart Hybrid ColorVu 8MP Fixed, Strobe. Audio, Mini Bullet, 2.8mm, IR 40m, Mic Network Camera, 2CD2087G2H-LIU-SL
The Hikvision 2CD2087G2H-LIU-SL Smart Hybrid ColorVu 8MP Fixed Network Camera offers high-quality 8 MP resolution imaging with advanced technology for long-range viewing and clear imaging against strong backlight. Its efficient H.265+ compression technology and deep learning-based human and vehicle classification make it a reliable security solution. With an active strobe light and audio alarm, as well as built-in two-way audio and up to 512 GB of on-board storage capability, this camera provides real-time security. It is also water and dust resistant for added durability.
Features
High quality imaging with 8 MP resolution
Smart Hybrid Light: advanced technology with long range
Clear imaging against strong back light due to 130 dB WDR technology
Efficient H.265+ compression technology
Focus on human and vehicle classification based on deep learning
Active strobe light and audio alarm to warn intruders off
Provide real-time security via built-in two-way audio
Support on-board storage up to 512 GB (SD card slot)
Water and dust resistant (IP67)
Downloads
2CD2087G2H-LIU/SL Datasheet2CD2087G2H-LIU/SL Quick Start Guide2CD2087G2H-LIU/SL User Manual
Hikvision Hybrid ColorVu 6MP Bullet Network Camera, Motorised Varifocal, 2.8-12mm, IR 60m, DS-2CD2667G2HT-LIZS
The Hikvision DS-2CD2667G2HT-LIZS Hybrid ColorVu 6MP Bullet Network Camera offers high quality imaging with 6 MP resolution and advanced Smart Hybrid Light technology for long range visibility. With 130 dB WDR technology, it provides clear imaging against strong back light. The motorized varifocal lens and deep learning-based human and vehicle classification make for easy installation and monitoring. This camera is also water and dust resistant (IP67) and vandal resistant (IK10).
Features
High quality imaging with 6 MP resolution
Smart Hybrid Light: advanced technology with long range
Clear imaging against strong back light due to 130 dB WDR technology
Efficient H.265+ compression technology
Motorized varifocal lens for easy installation and monitoring
Focus on human and vehicle classification based on deep learning
Water and dust resistant (IP67) and vandal resistant (IK10)
Downloads
2CD2667G2HT-LIZS Datasheet2CD2667G2HT-LIZS Quick Start Guide2CD2667G2HT-LIZS User Manual
TP-Link TC41 Outdoor Pan/Tilt Security WiFi Camera
2K Resolution-With the resolution of 2304 × 1296 px , TC41 enhances your security by capturing more details compared with traditional 1080p(1920 × 1080 px).
Full-Colour Night Vision-Reveals full-colour images with built-in spotlights even at night.
360° Visual Coverage-Provides 360° horizontal & 130° vertical view range to capture everything around.
Smart Motion Tracking-TC41 tracks motion with high-speed rotation, ensuring you keep an eye on more vital areas.
Multiple Detection for Free-Smart AI identifies a person, notifying you as needed. You can also set up customizable activity zones to only receive alerts that matter.
Customizable Sound and Light Alarm-Record your own audio as an alarm and adjust the brightness for your customized use.
Local and Cloud Storage-Save recorded videos to a microSD card (up to 512 GB)† or by using Tapo Care** cloud services.
IP65 Weatherproof-Offers excellent waterproof and dustproof performance for outdoor scenarios.
Downloads
Datasheet
Hikvision 6 MP AcuSense Motorised Varifocal Bullet Network Camera, DS-2CD2666G2T-IZS
High quality imaging with 6 MP resolution
Motorized varifocal lens for easy installation and monitoring
Excellent low-light performance with powered-by-DarkFighter technology
Efficient H.265+ compression technology
Clear imaging against strong back light due to 120 dB true WDR technology
Focus on human and vehicle targets classification based on deep learning
Audio and alarm interface available
Water and dust resistant (IP67) and vandal proof (IK10)
Downloads
DS-2CD2666G2T-IZS Datasheet
DS-2CD2666G2T-IZS Quick Start Guide
DS-2CD2666G2T-IZS User Manual
Hikvision 6 MP Powered-by-DarkFighter Varifocal Dome Network Camera, DS-2CD2765G1-IZS
High quality imaging with 6 MP resolution
Excellent low-light performance via powered-by-DarkFighter technology
Efficient H.265+ compression technology
Clear imaging against strong back light due to 120 dB true WDR technology
Water and dust resistant (IP67) and vandal proof (IK10)
Motorized vari-focal lens for easy installation and monitoring
Robust structure design with full metal materials.
Downloads
DS-2CD2765G1-IZS DatasheetDS-2CD2765G1-IZS Quick Start GuideDS-2CD2765G1-IZS User Manual
Hikvision 6 MP Varifocal 2.8mm Turret Network Camera, DS-2CD2H65G1-IZS
High quality imaging with 6 MP resolution
Efficient H.265+ compression technology
Clear imaging against strong back light due to 120 dB true WDR technology
Water and dust resistant (IP66) and vandal proof (IK10)
Motorized vari-focal lens for easy installation and monitoring
Audio and alarm interface available
Robust structure design with full metal materials
Downloads
DS-2CD2H65G1-IZS User Manual
Aqara Indoor Camera E1, 2K Resolution
Smarter vision for a safer home.
The Aqara Camera E1 is an affordable, future-proof camera designed with a focus on smart home automation capabilities and ecosystem support. It includes the latest networking technologies like Wi-Fi 6 and minimises false alerts with built-in local AI-based person detection and tracking.
Key Features:
All-Round Compatibility: The Aqara Camera E1 seamlessly integrates with third-party ecosystems, including Apple HomeKit, Google Home, and Amazon Alexa. It fully supports Apple HomeKit Secure Video, ensuring private analysis and video encryption on your home hub devices (Apple TV or HomePod) and secure iCloud storage*. With an iCloud+ subscription, you can access the last 10 days of activity from one or more cameras.
Experience a Clearer, Natural Picture with Pan and Tilt Functionality: Capture every detail in stunning 2K ultra-high definition. Monitor real-time events in front of the camera at any time to ensure the safety and well-being of your children. Enjoy two-way audio communication and night vision capabilities. Plus, use the Pan and Tilt function for tracking and recording in large areas, providing a 360° viewing perspective. Everything becomes convenient and reassuring.
Enhancements in Privacy Protection: The Aqara Camera E1 offers a privacy mode that allows users to customise camera rotation, disable the camera, and hide specific areas from the frame. It introduces the ability to disable audio recording or turn off the microphone manually or through automation. E1 also supports WPA3 for enhanced security and privacy protection.
24/7 Recording**& Multiple Storage Methods: 24/7 recording offers peace of mind around the clock but requires a Micro SD card (not included). Choose between SD card or paid cloud storage (with one day of free use***) to avoid video storage issues. Enjoy multiple storage options for more flexibility.
Local Person Detection Integrated in Automations****: The E1 can recognise human shapes and perform 350-degree tracking shots. It seamlessly integrates with Aqara's multicategory ecosystem through AI person tracking. For instance, when the E1 detects someone in the hallway, it can trigger the lights to turn on*. Additionally, door and window sensors at the front door can prompt the E1 to move to a specific position for precise shooting.
User-friendly Installation and Settings: MagicPair's use of Bluetooth networking ensures a stable and efficient E1 connection, complemented by Wi-Fi 6 certification. The camera supports both horizontal and inverted installation with a 1/4-inch threaded screw attachment and screw-mounting base, all powered by a USB-C interface*****.
Customise to Your Liking: It supports up to 50 frequently used location presets, 15-second time-lapse video creation, custom ringtones, and has power-off memory to ensure you won't miss family moments after a power outage, with automatic return.
Disclaimers:
* Home hub and subscription are required.** 24/7 Recording requires Micro SD card.*** 24-hour event cloud storage is included for free. Aqara paid membership (with a free trial available) can provide up to 30 days of event cloud storage.**** Extra Aqara hub is required to achieve the automation.***** Please note: the camera requires a 2A USB-A power supply, which is not included and should be purchased separately.
Automation Capabilities:
Essential insight into everything in your home.IF Door and Window Sensor is triggered,THEN Camera E1 turns to the pre-defined position and records video.With Aqara's hubs and sensors, the E1 serves as more than just a security camera for unexpected break-ins when you're away. It's capable of recording vibrations, water leaks, and other conditions, providing you with the information needed for an effective response.(Requires: Camera E1 + Hub + Sensor)
Expose the full Camera E1 functionality to HomeKit, Alexa, and Google Home.IF a “Welcome Home” scene is triggered in Apple HomeKit,THEN Aqara home scene switches the Camera E1 to privacy mode.Thanks to Aqara Home scenes exposed to HomeKit, third-party automations can trigger the E1's Privacy Mode, Pan/Tilt, and other functionalities!(Requires: Camera E1 + Apple HomePod)
Nighttime convenience for the elderly.IF Camera E1 detects a person,THEN Set LED Strip T1 to a static tuneable white effect.This automation eliminates the need for fumbling with switches or manually turning on lights or lamps at night, enabling the elderly to comfortably drink water or visit the bathroom with ease and safety. The soft, adjustable lighting is gentle on the eyes, preserving sleep quality, while smart detection ensures energy efficiency by activating the lights only when needed.(Requires: Camera E1 + Hub + LED Strip T1)
Turn on/off full privacy mode.IF Door Lock U100 is opened with an authorised fingerprint,THEN Camera E1 switches to privacy mode.This considers user privacy as the Camera E1 stops recording when people return home.(Requires: Camera E1 + Hub + Door Lock U100)
Specifications:
Model: CH-C01E
Video Coding: H.264
Ports: USB-C
Video Resolution: 1296p
Input Power: 5V⎓2A
Viewing Angle: 101° (diagonal)
Wireless Protocols: Wi-Fi IEEE 802.11 b/g/n/ax 2.4 GHz, Bluetooth 5.2
Dimensions: 69 x 69 x 104mm
Operating Temperature: -10 °C ~ 45 °C
Operating Humidity: 0 ~ 85% RH, no condensation
Local Storage: microSD card (Not included). CLASS4 or above is supported, up to 512GB storage.
What’s in the box:
Camera E1 x 1
User Manual x 1
USB-A to USB-C Cable x 1
Plastic Base x 1
Screw Kit x 1
Aqara Camera Hub G3
AI Facial and Gesture Recognition
Built-in Zigbee 3.0 Hub
Local Infrared Control
360° Viewing Angle via Pan and Tilt
2K 1296p Resolution
Support Aqara Home, Apple Home, Google, Alexa
Aqara Camera Hub G3
A High-End, Subscription-Free Camera Hub with Local Facial and Gesture Recognition.The Camera Hub G3 is a HomeKit Secure Video camera with facial and gesture recognition that also includes our most powerful Zigbee 3.0 smart home hub that can control existing IR-enabled devices.
Key Features:
AI Facial and Gesture Recognition: Thanks to a powerful NPU-equipped processor, the Camera Hub G3 is capable of recognizing faces and gestures that can be used in notifications and home automation.
Built-in Zigbee 3.0 Hub: Connect up to 128 Aqara sensors and controllers and enjoy home automation, remote control, and third-party ecosystem support.1
Local Infrared Control: The G3 has a built-in IR controller that can make your existing infrared-compatible devices smart and support local automations. Even if the device is not in the G3 infrared code database, you can program it using the existing remote. Moreover, all the IR automations are local and will run even if there is no internet connection.
All-Round Compatibility: Supports HomeKit Secure Video, Amazon Alexa, and Google Home (including streaming to smart displays), and makes compatible devices support HomeKit, Alexa, Google Assistant, and more.
360° Viewing Angle via Pan and Tilt*: 110° wide-angle lens coupled with the Pan and Tilt motors provides up to 360° rotation angle, supports automatic cruising, and face and pet tracking.
2K 1296p Resolution**: The Camera Hub G3 incorporates a high-resolution 2304 x 1296 pixel sensor that results in better image quality with more details.
Dual-Band 2.4 / 5 GHz Wi-Fi: No more worrying about network type compatibility: the Camera Hub G3 supports both of the most popular Wi-Fi frequencies, and uses them to connect your Aqara devices to the network.
Type-C Port with Video Out: The Camera Hub G3 uses the most modern and universal connector that supports low-latency, high-definition video output via UVC protocol.
Focus on Privacy: Your privacy will be protected by a hardware shutter that can be easily distinguished by its cute sleepy face. Moreover, the camera can stop recording automatically in case it recognizes any of your family members.
IR Night Vision with Invisible LEDs: Thanks to 940 nm infrared night vision LEDs, the G3 Camera Hub doesn't have an annoying glow that could disturb your sleep during the night.
1/4 in. Threaded Screw: The G3 can be placed almost everywhere thanks to its 1/4" threaded screw, which supports myriads of third-party accessories such as stands, tripods, and mounts.
One-Button Video Call: Long press the camera button to push a video message notification that can be used in case of emergency.
1 Zigbee routers/repeaters such as Smart Wall Switch (with Neutral), Smart Plug, etc are required*The feature may be unavailable or partly available in third-party integrations such as HomeKit Secure Video.**In HomeKit Secure Video mode, the camera records in Full HD 1080p due to the current limitations of HomeKit technology.
Automations:
1. Automatic control of lights, TV, AC and other appliances as well as 24x7 Security Guard
The Camera Hub G3 will connect all of your Aqara sensors, controllers, and IR-enabled devices to control them via smart home automations. At the same time, it will guard your security by turning on the siren and notifying you in case an unknown person arrives at your home or any of your sensors are triggered while you are out. All of these incidents will be recorded to your local or cloud storage.(Camera Hub G3 + Aqara Controllers + Aqara Sensors + IR-Enabled Devices)
2. Facial and gesture recognition in automations
When you come home, the camera will recognize your face, disarm the alarm, adjust the AC according to your preference, stop cruising and switch to gesture recognition mode, so that you will be able to trigger scenes using any of the pre-configured gestures.(Camera Hub G3)
3. Advanced event timeline and notifications
Configure the positions of your Aqara sensors in the Aqara Home app, so that when you are away from home, G3 will turn to the sensor that was triggered in order to record all the events and notify you. Moreover, all these events can be automatically marked on the video timeline.(Camera Hub G3 + Aqara Sensors)
Specifications
Product Name: Camera Hub G3
Color: White
Model: CH-H03
Wireless Protocols: Zigbee 3.0 IEEE 802.15.4, Wi-Fi IEEE 802.11 b/g/n/a/ac 2.4/5 GHz
Dimensions: 123.4×85.1×67.8 mm (4.86×3.35×2.67 in.)
Operating Temperature: -10°C ~ 40°C (14°F ~ 104°F)
Operating Humidity: 0 ~ 95% RH, no condensation
What is in the Box: Camera Hub G3 × 1, User Manual × 1, Power Adapter × 1, Power Cable × 1
Ports: USB-C
Input Power: 5V⎓2A
Total Power Consumption: 10W (MAX)
Local Storage: microSD card (not included). CLASS 4 or above is supported, up to 128 GB storage.
Video Resolution: 2K 2304×1296p
Viewing Angle: 110°
Pan/Tilt Angle: Horizontal 340°, vertical 45° (upward 30°, downward 15°)
Hikvision 6MP AcuSense Mini Fixed Bullet DS-2CD2066G2-I, 30m IR (2066) security comes with 2.8mm, 4mm and 6mm
Enhance your security with Hikvision 6MP AcuSense Mini Fixed Bullet DS-2CD2066G2-I. Its 6 MP resolution provides high quality imaging, while the powered-by-DarkFighter technology ensures excellent low-light performance. With efficient H.265+ compression technology and 120 dB true WDR technology, this camera delivers clear imaging against strong back light. It also features built-in microphone for real-time audio security, and is water and dust resistant (IP67). Choose from 2.8mm, 4mm, and 6mm lens options to focus on human and vehicle targets classification based on deep learning.
Features
High quality imaging with 6 MP resolution
Excellent low-light performance with powered-by-DarkFighter technology
Efficient H.265+ compression technology
Clear imaging against strong back light due to 120 dB true WDR technology
Focus on human and vehicle targets classification based on deep learning
Built-in microphone for real-time audio security(-U)
Water and dust resistant (IP67)
Downloads
DS-2CD2066G2-I DatasheetDS-2CD2066G2-I Quick Start GuideDS-2CD2066G2-I User Manual
Hikvision DS-2CD2066G2-IU/SL 6MP AcuSense Mini Bullet 2.8mm Fixed , 30m IR, Built-in Mic, Strobe Light, Audio Alarm (2066) Network Security Camera
The Hikvision DS-2CD2066G2-IU/SL security camera offers high quality 6 MP imaging with excellent low-light performance. Featuring advanced technology such as powered-by-DarkFighter and 120 dB true WDR, this camera captures clear images even in challenging lighting conditions. With deep learning-based target classification and built-in two-way audio, it provides real-time security. Its IP67 rating makes it resistant to water and dust.
Features
High quality imaging with 6 MP resolution
Excellent low-light performance with powered-by-DarkFighter technology
Efficient H.265+ compression technology
Clear imaging against strong back light due to 120 dB true WDR technology
Focus on human and vehicle targets classification based on deep learning
Active strobe light and audio alarm to warn intruders off
Provide real-time security via built-in two-way audio
Water and dust resistant (IP67)
Downloads
DS-2CD2066G2-IU/SL DatasheetDS-2CD2066G2-IU/SL Quick Start Guide DS-2CD2066G2-IU/SL User Manual
Hikvision 6MP AcuSense Motorised Varifocal Turret DS-2CD2H66G2T-IZS, IR, 2.8-12mm, Pigtail (2H66)
The Hikvision 6MP AcuSense Motorised Varifocal Turret offers high-quality 6 MP resolution, powered-by-DarkFighter technology for excellent low-light performance, and H.265+ compression technology for efficient storage. With deep learning capabilities, this camera can accurately classify human and vehicle targets. Its durable, weather-resistant design makes it ideal for any environment.
Features
High quality imaging with 6 MP resolution
Motorized varifocal lens for easy installation and monitoring
Excellent low-light performance via powered-by-DarkFighter technology
Efficient H.265+ compression technology
Clear imaging against strong back light due to 120 dB true WDR technology
Focus on human and vehicle targets classification based on deep learning
Audio and alarm interface available
Water and dust resistant (IP67) and vandal proof (IK10)
Downloads
DS-2CD2H66G2T-IZS DatasheetDS-2CD2H66G2T-IZS Quick Start GuideDS-2CD2H66G2T-IZS User Manual
HIKVISION 6MP AcuSense Dome DS-2CD2766G2T-IZS-2.8-12mm-BNC, 2.8-12mm, IR, Pigtail, with BNC (2766)
The Hikvision 6MP AcuSense Motorised Varifocal Dome DS-2CD2766G2T-IZS-2.8-12mm-BNC offers high quality imaging with 6 MP resolution and efficient H.265+ compression technology. Its motorized varifocal lens and DarkFighter technology provide excellent low-light performance. With a 120 dB true WDR technology, it can effectively capture images in strong back light conditions and classify human and vehicle targets based on deep learning. This vandal proof camera is also water and dust resistant (IP67).
Features
High quality imaging with 6 MP resolution
Motorized varifocal lens for easy installation and monitoring
Excellent low-light performance with powered-by-DarkFighter technology
Efficient H.265+ compression technology
Clear imaging against strong back light due to 120 dB true WDR technology
Focus on human and vehicle targets classification based on deep learning
Audio and alarm interface available
Water and dust resistant (IP67) and vandal proof (IK10)
Downloads
DS-2CD2766G2T-IZS(BNC) DatasheetDS-2CD2766G2T-IZS(BNC) Quick Start GuideDS-2CD2766G2T-IZS(BNC) User Manual
Hikvision 6MP AcuSense Mini Dome DS-2CD2566G2-I, IR (2566) Network Camera with 2.8mm and 4mm lens.
The Hikvision 6MP AcuSense Mini Dome DS-2CD2566G2-I, IR (2566) Network Camera delivers high resolution imaging and exceptional low-light performance with DarkFighter technology. With deep learning, it focuses on human and vehicle classification. Its 120 dB WDR technology provides clear imaging in strong backlight, and its efficient H.265+ compression reduces storage requirements. Additional features include audio and alarm interface, as well as water and dust resistance and vandal proof capabilities.
Features
High quality imaging with 6 MP resolution
Excellent low-light performance with powered-by-DarkFighter technology
Focusing on human and vehicle classification based on deep learning
Clear imaging against strong back light due to 120 dB WDR technology
Efficient H.265+ compression technology
-S: audio and alarm interface available
Water and dust resistant IP67 and vandal proof IK08
Downloads
DS-2CD2566G2-I DatasheetDS-2CD2566G2-I Quick Start GuideDS-2CD2566G2-I User Manual
Hikvision 6MP AcuSense Dome DS-2CD2166G2-ISU-2, IP67, IR, Built-in Mic, I/O, (2166) security camera comes with 2.8mm and 4mm
Capture crisp, clear images with the Hikvision 6MP AcuSense Dome security camera. Featuring powered-by-DarkFighter technology and 120 dB true WDR, it excels in low-light and backlit environments. With deep learning-based human and vehicle classification, it offers efficient surveillance. Its IP67 and IK10 ratings make it suitable for outdoor and high-risk environments.
Features
High quality imaging with 6 MP resolution
Excellent low-light performance with powered-by-DarkFighter technology
Efficient H.265+ compression technology
Clear imaging against strong back light due to 120 dB true WDR technology
Focus on human and vehicle targets classification based on deep learning
Built-in microphone for real-time audio security (-SU)
Audio and alarm interface available(-SU)
Water and dust resistant (IP67) and vandal resistant (IK10)
Downloads
DS-2CD2166G2-ISU DatasheetDS-2CD2166G2-ISU Quick Start GuideDS-2CD2166G2-ISU User Manual
Hikvision 6MP AcuSense Bullet DS-2CD2T66G2-4I, IP67, IR, 80m (2T66) Network Camera with 2.8mm, 4mm and 6mm.
High quality imaging with 6 MP resolution
Excellent low-light performance with powered-by-DarkFighter technology
Efficient H.265+ compression technology
Clear imaging against strong back light due to 120 dB true WDR technology
Focus on human and vehicle targets classification based on deep learning
Water and dust resistant (IP67)
Hikvision 6MP AcuSense Bullet DS-2CD2T66G2-2I, IP67, IR, 60m, 2.8mm (2T66) come with 2.8mm, 4mm and 6mm lens.
Capture clear and detailed images with the Hikvision 6MP AcuSense Bullet camera. Equipped with a 2.8mm lens and powered-by-DarkFighter technology, it provides excellent low-light performance. Its advanced features such as 120 dB true WDR and deep learning-based target classification make it the perfect choice for high quality and efficient surveillance. With an IP67 rating, it is also resistant to water and dust.
Features
High quality imaging with 6 MP resolution
Excellent low-light performance with powered-by-DarkFighter technology
Efficient H.265+ compression technology
Clear imaging against strong back light due to 120 dB true WDR technology
Focus on human and vehicle targets classification based on deep learning
Water and dust resistant (IP67)
Downloads
DS-2CD2T66G2-2I Datasheet
DS-2CD2T66G2-2I Quick Start Guide
DS-2CD2T66G2-2I User Manual
Hikvision DS-2CD2367G2-LU 6MP ColorVu Turret, White Light, AcuSense, Mic, (2367) Fixed Network Security comes with 2.8mm and 4mm lens
Experience high quality imaging day and night with Hikvision DS-2CD2367G2-LU 6MP ColorVu Turret Camera. With 24/7 colorful imaging and advanced features such as efficient H.265+ compression, 130 dB WDR technology, and deep learning-based human and vehicle target classification, this camera offers clear and reliable security. Plus, the built-in microphone allows for real-time audio monitoring.
Features
High quality imaging with 6 MP resolution
24/7 colorful imaging
Efficient H.265+ compression technology
Clear imaging against strong backlight due to 130 dB WDR technology
Focus on human and vehicle targets classification based on deep learning
-U: Built-in microphone for real-time audio security
Water and dust resistant (IP67)
Downloads
DS-2CD2367G2-LU Datasheet
HiLook IPC-B261H-MU(2.8mm) 6 MP AI Fixed Bullet Network Camera
High quality imaging with 6 MP resolution
Efficient H.265+ compression technology
Clear imaging against strong backlight due to 120 dB WDR technology
Focusing on human and vehicle classification based on deep learning
-U: Built-in microphone for real-time audio security
Water and dust resistant (IP67)
Camera
Image Sensor: 1/2.8" Progressive Scan CMOS
Max. Resolution: 3200 × 1800
Min. Illumination: Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR
Shutter Time: 1/3 s to 1/100,000 s
Day & Night: IR cut filter
Angle Adjustment: Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°
Lens
Lens Type: Fixed focal lens, 2.8 mm
Focal Length & FOV: 2.8 mm, horizontal FOV 107°, vertical FOV 57°, diagonal FOV 128°
Lens Mount: M12
Iris Type: Fixed
Aperture: F1.6
DORI
DORI: 2.8 mm: D: 73 m, O: 29 m, R: 15 m, I: 7 m
Illuminator
Supplement Light Type: IR
Supplement Light Range: Up to 40 m
Smart Supplement Light: Yes
IR Wavelength: 850 nm
Video
Main Stream: 50 Hz: 20 fps (3200 × 1800), 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
Sub-Stream: 50 Hz: 25 fps (1280 × 720, 960×540, 640 × 480, 640 × 360)
Third Stream: 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
*Third stream is supported under certain settings.
Video Compression
Main stream: H.265/H.264/H.264+/H.265+
Sub-stream: H.265/H.264/MJPEG
Third stream: H.265/H.264
*Third stream is supported under certain settings.
Video Bit Rate: 32 Kbps to 16 Mbps
H.264 Type: Baseline Profile/Main Profile/High Profile
H.265 Type: Main Profile
Bit Rate Control: CBR/VBR
Scalable Video Coding (SVC): H.264 and H.265 encoding
Region Of Interest (ROI): 1 fixed region for main stream and sub-stream
Image Parameters Switch: Yes
Image Settings: Rotate, mirror, privacy mask, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
Day/Night Switch: Day, Night, Auto, Schedule
Wide Dynamic Range (WDR): 120 dB
SNR: ≥ 52 dB
Image Enhancement: BLC, HLC, 3D DNR
Interface
Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board Storage: Built-in memory card slot, support microSD card, up to 256 GB
Built-In Microphone: -U: Yes
Reset Key: Yes
Download
Data Sheet
HiLook IPC-D261H-MU(2.8mm) 6 MP AI Vandal Fixed Dome Network Camera
High quality imaging with 6 MP resolution
Clear imaging against strong backlight due to 120 dB true WDR technology
Efficient H.265+ compression technology
Focus on human and vehicle targets classification based on deep learning
Built-in microphone for real-time audio security
Water and dust resistant (IP67) and vandal-resistant (IK10)
Camera
Image Sensor: 1/2.8" Progressive Scan CMOS
Max. Resolution: 3200 × 1800
Min. Illumination: Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR
Shutter Time: 1/3 s to 1/100,000 s
Day & Night: IR cut filter
Angle Adjustment: Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355°
Lens
Lens Type: Fixed focal length, 2.8 mm
Focal Length & FOV: 2.8 mm, horizontal FOV 107°, vertical FOV 57°, diagonal FOV 128°
Lens Mount: M12
Iris Type: Fixed
Aperture: F1.6
DORI
DORI: 2.8 mm: D: 73 m, O: 29 m, R: 15 m, I: 7 m
Illuminator
Supplement Light Type: IR
Supplement Light Range: Up to 30 m
Smart Supplement Light: Yes
IR Wavelength: 850 nm
Video
Main Stream: 50 Hz: 20 fps (3200 × 1800), 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
Sub-Stream: 50 Hz: 25 fps (1280 × 720, 960×540, 640 × 480, 640 × 360)
Third Stream: 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
*Third stream is supported under certain settings.
Video Compression: Main stream: H.265/H.264/H.264+/H.265+
Sub-stream: H.265/H.264/MJPEG
Third stream: H.265/H.264
*Third stream is supported under certain settings.
Video Bit Rate: 32 Kbps to 16 Mbps
H.264 Type: Baseline Profile/Main Profile/High Profile
H.265 Type: Main Profile
Bit Rate Control: CBR/VBR
Scalable Video Coding (SVC): H.264 and H.265 encoding
Region Of Interest (ROI): 1 fixed region for main stream and sub-stream
Image Parameters Switch: Yes
Image Settings: Rotate, mirror, privacy mask, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
Day/Night Switch: Day, Night, Auto, Schedule
Wide Dynamic Range (WDR): 120 dB
SNR: ≥ 52 dB
Image Enhancement: BLC, HLC, 3D DNR
Interface
Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board Storage: Built-in memory card slot, support microSD/SDHC/SDXC card, up to 256 GB
Built-In Microphone: Yes
Reset Key: Yes
Download
Data Sheet
Hikvision 6 MP AcuSense Motorised Varifocal Dome Network Camera DS-2CD2766G2-IZS
High quality imaging with 6 MP resolution
Motorized varifocal lens for easy installation and monitoring
Excellent low-light performance with powered-by-DarkFighter technology
Efficient H.265+ compression technology
Clear imaging against strong back light due to 120 dB true WDR technology
Focus on human and vehicle targets classification based on deep learning
Audio and alarm interface available
Water and dust resistant (IP66) and vandal proof (IK10)
Downloads
Datasheet
