Description

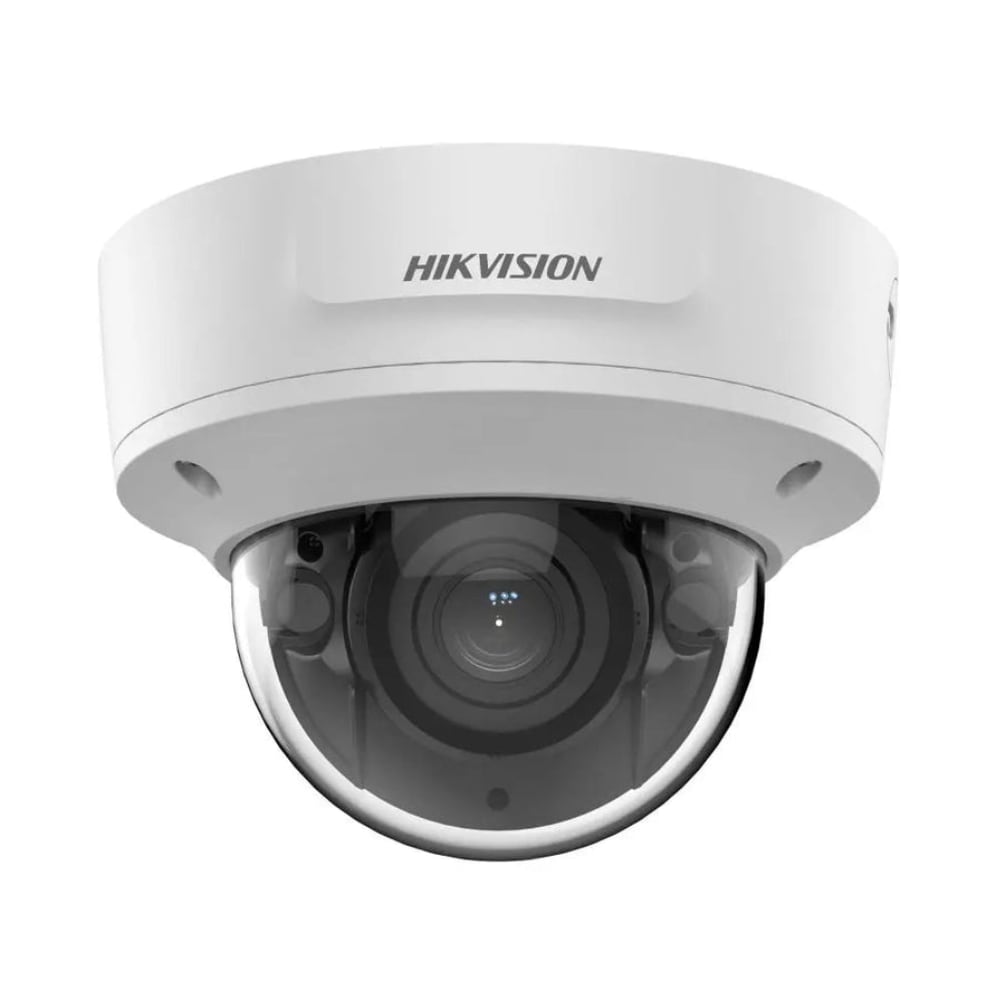

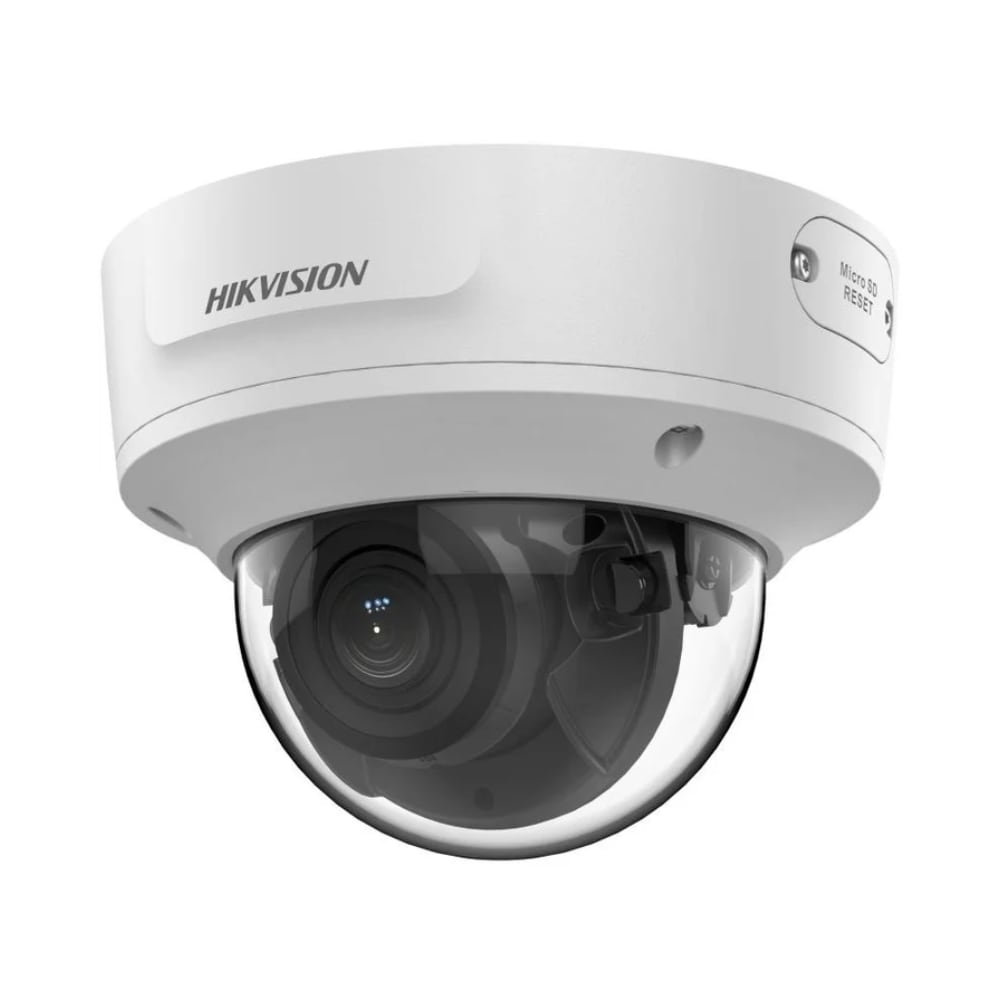

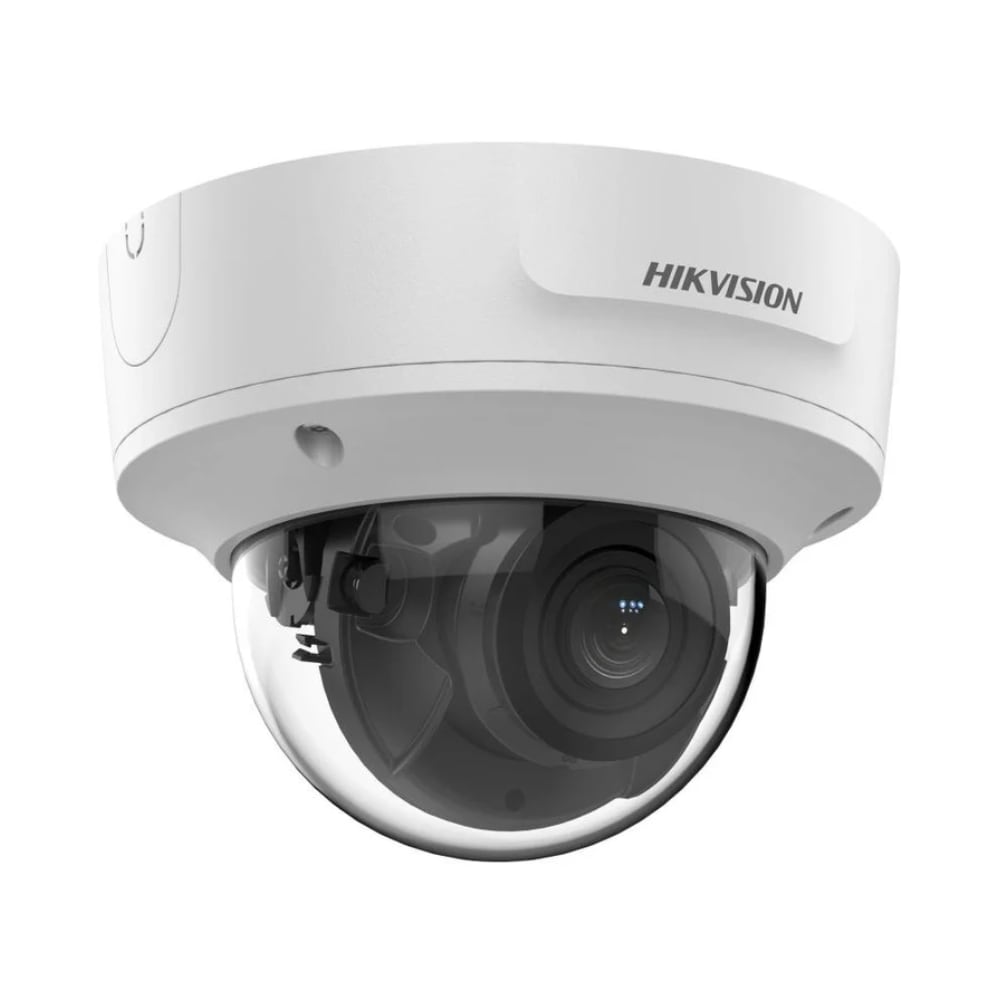

Hikvision DS-2CD2766G2T-IZS – 6MP AcuSense Dome Camera with Motorised Varifocal Lens (2.8–12mm) and BNC Pigtail
The Hikvision DS-2CD2766G2T-IZS is a professional-grade 6MP AcuSense dome network camera with a motorised 2.8–12mm varifocal lens, offering flexible zoom control and sharp surveillance detail. Designed with a BNC pigtail for easy analogue testing, this camera also features Smart IR up to 60m, IK10 vandal resistance, and IP67 weatherproofing.
Equipped with AcuSense deep learning technology, it intelligently detects and filters human and vehicle targets, reducing false alarms and improving monitoring efficiency. This is an ideal camera for car parks, entryways, building perimeters, and commercial security.
Features
-
Image Sensor: 1/2.4” Progressive Scan CMOS
-
Resolution: 6MP (3072 × 2048) @ 20fps
-
Lens: 2.8–12mm Motorised Varifocal – Auto Focus
-
IR Night Vision: Up to 60 metres with Smart IR
-
AcuSense: Human and vehicle classification, line crossing, and intrusion detection
-
Audio: Built-in microphone for one-way audio recording
-
Vandal Protection: IK10-rated dome housing
-
Weather Rating: IP67-rated for outdoor use
-
Storage: microSD/SDHC/SDXC slot (up to 512GB)
-
Compression: H.265+, H.265, H.264+, H.264
-
Power Supply: 12V DC ±25%, PoE (802.3af)
-
Operating Temp: -30°C to +60°C
-
BNC Output: BNC test video output via pigtail connector
Specifications
| Specifications – Hikvision DS-2CD2766G2T-IZS |
| Dome Network Camera |
Motorised Varifocal, AcuSense |
| 1/2.4″ Progressive Scan CMOS |
High resolution 6MP |
| 3072 × 2048 |
6 Megapixels |
| 2.8–12mm Motorised Varifocal |
Auto Focus, adjustable zoom |
| Up to 60 metres |
Smart IR enabled |
| 120dB |
True Wide Dynamic Range |
| Built-in Microphone |
One-way audio |
| H.265+, H.265, H.264+, H.264 |
Efficient bandwidth saving |
| AcuSense Technology |
Human/vehicle detection, line crossing, intrusion alert |
| microSD slot (up to 512GB) |
Supports onboard recording |
| IP67 |
Outdoor-ready, weatherproof |
| IK10 |
Impact-resistant dome housing |
| Yes |
Pigtail with BNC test output |
| 12V DC ±25% / PoE (802.3af) |
Dual power input options |
| -30°C to +60°C |
Reliable in extreme environments |
Downloads
DS-2CD2766G2T-IZS(BNC) Datasheet
Hikvision BNC Camera Quick Start Guide
Hikvision BNC Camera User Manual
