Description

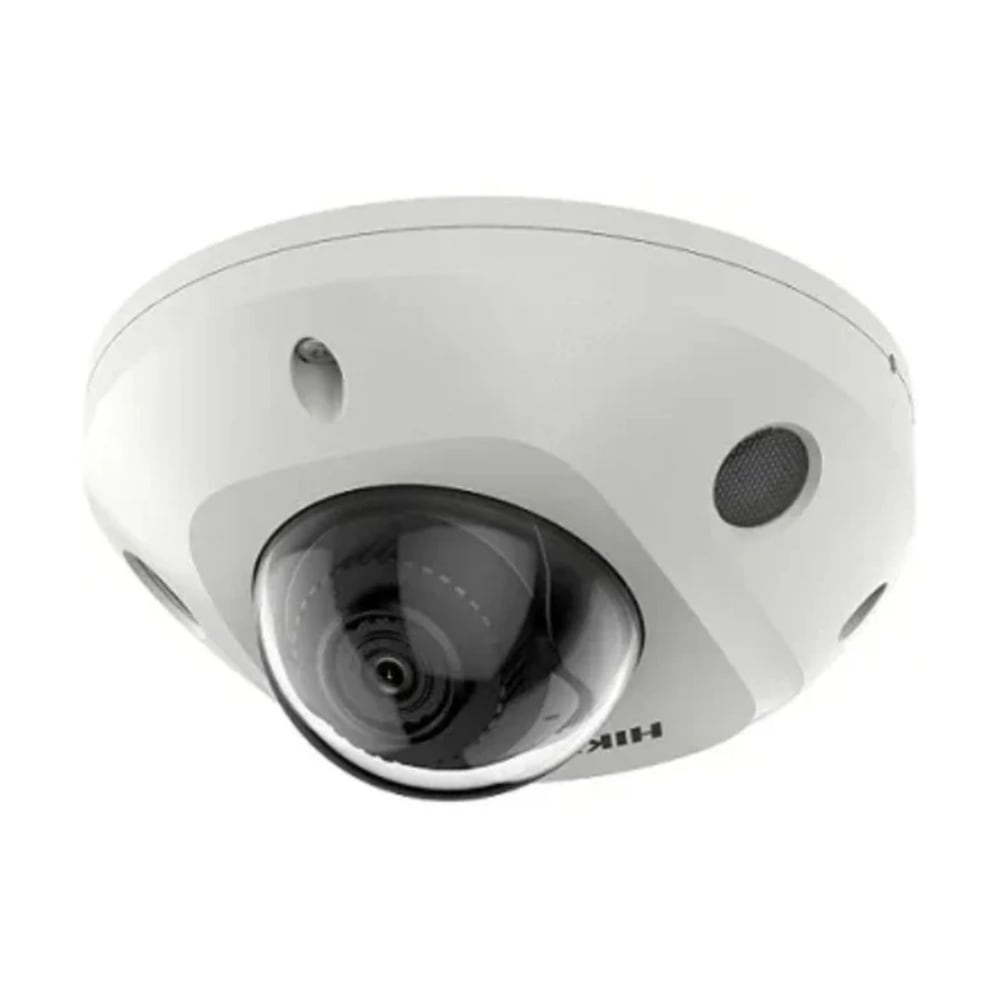

Hikvision DS-2CD2566G2-IS – Compact 6MP AcuSense Mini Dome Network Camera
The Hikvision DS-2CD2566G2-IS is a 6MP AcuSense mini dome network camera offering compact form, intelligent detection, and powerful performance. Ideal for both indoor and outdoor surveillance, it features a 2.8mm fixed lens, smart IR up to 30 metres, and built-in microphone for clear audio capture.
Built with AcuSense technology, it provides accurate human and vehicle detection, reducing false alarms and increasing security accuracy. The camera is IP67 weatherproof and IK08 vandal-resistant, making it suitable for environments such as small businesses, elevators, corridors, and entrances.
Features
-
Resolution: 6MP (3072 × 2048) @ 20fps
-
Lens: 2.8mm Fixed – Wide coverage angle
-
IR Night Vision: Up to 30m Smart IR
-
Audio: Built-in Microphone for real-time recording
-
AcuSense: Human/Vehicle classification, line crossing & intrusion detection
-
WDR: 120dB True WDR for backlight handling
-
Storage: microSD/SDHC/SDXC slot (up to 512GB)
-
Video Compression: H.265+, H.265, H.264+, H.264
-
Weatherproof Rating: IP67
-
Vandal Resistance: IK08 rated dome housing
-
Power: 12V DC ±25%, or PoE (802.3af)
-
Operating Temp: -30°C to 60°C
Specifications
| Mini Dome IP Camera |
AcuSense Series |
| 1/2.4" Progressive Scan CMOS |
High sensitivity |
| 6MP (3072 × 2048) |
Up to 20fps |
| 2.8mm Fixed |
Wide-angle view |
| Horizontal: 102.2°, Vertical: 55.6° |
Diagonal: 120.5° |
| Up to 30m |
Smart IR for night vision |
| 120dB |
Wide Dynamic Range |
| Built-in Microphone |
Real-time recording |
| AcuSense Technology |
Human/Vehicle classification, intrusion, line crossing |
| H.265+/H.265/H.264+/H.264 |
Efficient bandwidth usage |
| microSD/SDHC/SDXC |
Up to 512GB |
| IP67 |
Weatherproof |
| IK08 |
Anti-tamper design |
| 12V DC ±25% or PoE (802.3af) |
Flexible installation |
| -30°C to +60°C |
Indoor/Outdoor use |
| 110 mm × 92 mm |
Compact form factor |
Downloads
DS-2CD2566G2-IS Datasheet
Hikvision Mini Dome Quick Start Guide
Hikvision Mini Dome User Manual
