Description

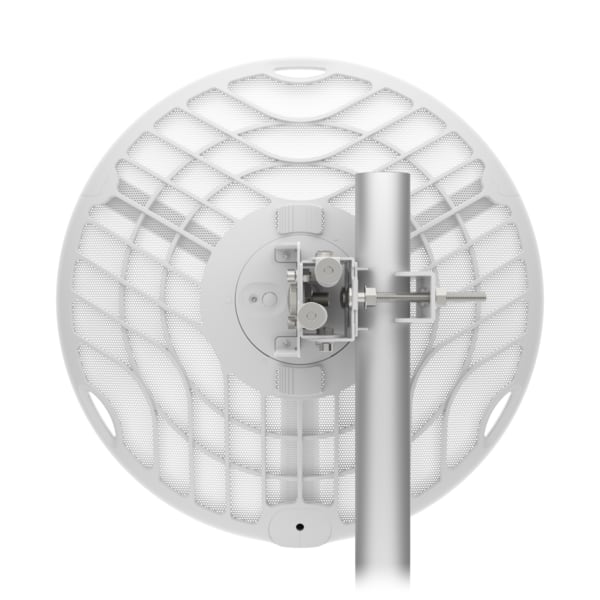

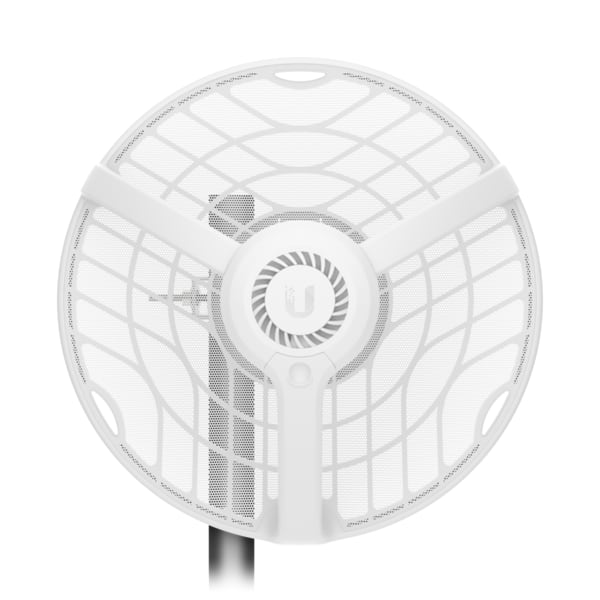

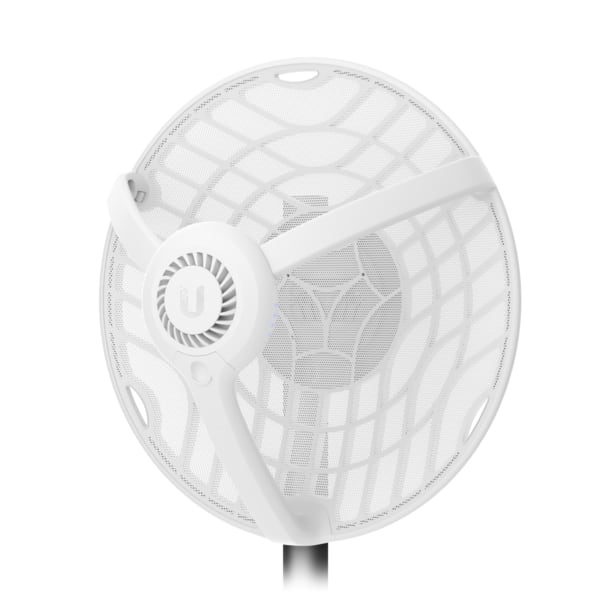

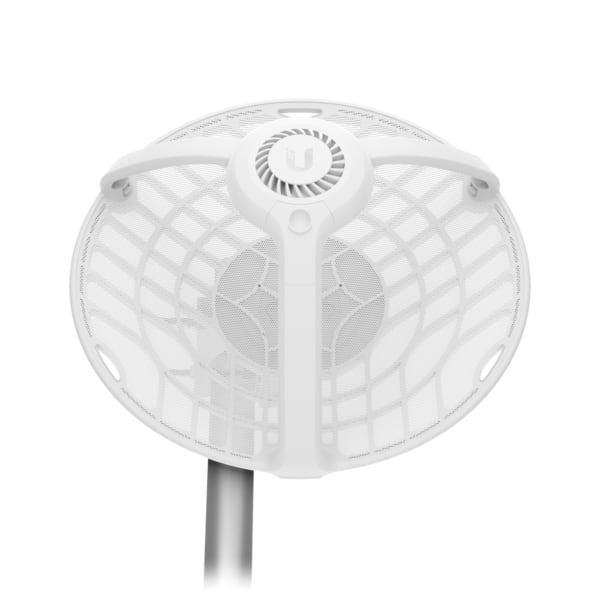

AF60 is a 60 GHz radio for low-interference and high-throughput connectivity. It's integrated with a high-gain dish antenna for long range and high performance. For the 60 GHz link, the AF60 supports two channel width options: 2 GHz and 1 GHz – automatically switching between both options depending on link performance.
Mechanical
-
Dimensions Ø413 x 360 mm (Ø16.3 x 14.2")
Weight
- Without Mount: 1.5 kg (3.3 lb)
- With Mount: 2.7 kg (6 lb)
- Enclosure Characteristics Aluminum / UV Stabilized Polycarbonate
Hardware
- Processor Quad-Core ARM Cortex A7
- Memory 256 MB DDR3
- Networking Interface 10/100/1000 Mbps RJ45 Ethernet
- RF Connections Internal
- Max. Power Consumption 18W
- Power Method Passive PoE (Pairs 4, 5+; 7, 8-)
- Power Supply 48VDC, 0.65A Gigabit PoE Adapter
- Supported Voltage Range 48VDC ± 10%
- ESD/EMP Protection Air/Contact: ± 24kV
- Operating Temperature -40 to 60° C (-40 to 140° F)
- Operating Humidity 5 to 95% Noncondensing
- Certifications FCC, IC, CE
LEDs
- Power Flashing White: Bootup in Progress
- White: Not Connected to Ubiquiti® Network Management System (UISP™)
- Blue: Connected to UISP
- Ethernet Flashing Blue: Ethernet Trafic Detected
- GPS Blue: Receiving at Least (4) GPS Satellite Signals
- 60G Blue: Active Connection
System
- Maximum Throughput 1.8 Gbps
- Maximum Range 12 km
- Encryption WPA2-PSK (AES)
- Software
- OS airOS®
- Modes PtP Only
- Services UISP, Ping Watchdog, NTP Client, System Log
- Utilities Antenna Alignment Tool, Discovery Utility, Ping, Traceroute, Speed Test
Network Bridge Mode
- Management interface Bluetooth management for easy setup over UISP™ App
WEB UI
- Minimum Software Requirements Modern Web Browser or Android/iOS Smartphone
Technology Wave
- RF
- Operating Frequency* 57 to 71 Ghz
- GPS Yes
- Channel Bandwidth 2160, 1080 Mhz
- Depends on regulatory region.
