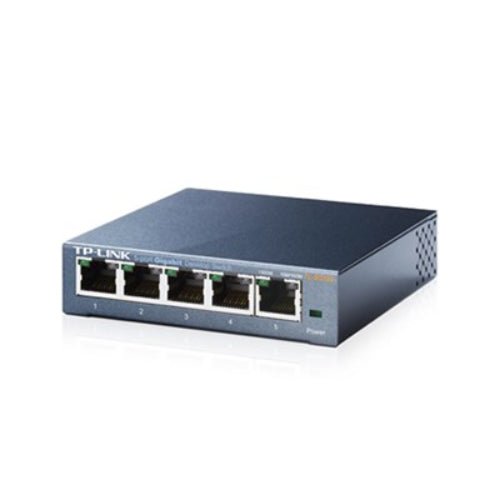

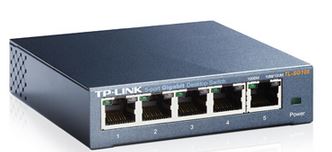

TP-Link TL-SG105 5port Switch Desktop,Gigabit,Steel Case, 5-Port 10/100/1000Mbps RJ45 Supporting Auto-MDI/MDIX, Plug and Play, Fanless

Description

TP-Link TL-SG105 5port Switch Desktop,Gigabit,Steel Case

5-Port 10/100/1000Mbps Desktop Switch
5× 10/100/1000 Mbps Auto-Negotiation RJ45 ports supporting Auto-MDI/MDIX
Plug and play, no configuration needed
Supports 802.1p/DSCP QoS and IGMP Snooping functions
Durable metal casing, desktop/wall-mounting options, and a fanless design
IEEE 802.3x flow control provides reliable data transfer
Green Ethernet technology reduces power consumption

HARDWARE FEATURES
Standards and Protocols IEEE 802.3i/802.3u/ 802.3ab/802.3x, IEEE 802.1p
Interface 5× 10/100/1000 Mbps, Auto-Negotiation, Auto-MDI/MDIX Ports
Fan Quantity Fanless
External Power Supply External Power Adapter (Output: 5 V DC / 0.6A)
LED Indicator System Power
Link/Act indicators per port built into each RJ-45 port
Dimensions ( W x D x H ) (100 x 98 x 25 mm)
Max Power Consumption 2.3 W (220 V/ 50 Hz)
Max Heat Dissipation 7.83 BTU/h

PERFORMANCE
Packet Forwarding Rate 7.4 Mpps
MAC Address Table 2K
Packet Buffer Memory 1 Mb
Jumbo Frame 16 KB

SOFTWARE FEATURES
Advanced Features Green Technology
802.3X Flow Control
802.1P/DSCP QoS (for V2 and later version)
IGMP Snooping
Transfer Method Store and Forward

OTHERS
Certification CE, FCC, RoHS
Package Contents 5-Port 10/100/1000Mbps Desktop Switch
Power Adapter
Installation Guide
Environment Operating Temperature: 0–40 °C (32–104 °F)
Storage Temperature: -40–70 °C (-40–158 °F)
Operating Humidity: 10–90% RH non-condensing
Storage Humidity: 5–90% RH non-condensing

TP-Link TL-SG105 5port Switch Desktop,Gigabit,Steel Case, 5-Port 10/100/1000Mbps RJ45 Supporting Auto-MDI/MDIX, Plug and Play, Fanless

Product form

SKU: TL-SG105

TP-Link TL-SG105 5port Switch Desktop,Gigabit,Steel Case5-Port 10/100/1000Mbps Desktop Switch5× 10/100/1000 Mbps Auto-Negotiation RJ45 ports supporting Auto-MDI/MDIXPlug and play, no configuration... Read more

$29.90 $24.00 Incl. GST

    • Warranty: 60 months
    • 30 day money back guarantee
    • Australian Stocks & Express Delivery
    • Back-to-base Warranty & Tech Support
      • PayPal
      • Apple Pay
      • Visa
      • Mastercard
      • Zip
      • Klarna
      • Afterpay

      Description

      TP-Link TL-SG105 5port Switch Desktop,Gigabit,Steel Case

      5-Port 10/100/1000Mbps Desktop Switch
      5× 10/100/1000 Mbps Auto-Negotiation RJ45 ports supporting Auto-MDI/MDIX
      Plug and play, no configuration needed
      Supports 802.1p/DSCP QoS and IGMP Snooping functions
      Durable metal casing, desktop/wall-mounting options, and a fanless design
      IEEE 802.3x flow control provides reliable data transfer
      Green Ethernet technology reduces power consumption

      HARDWARE FEATURES
      Standards and Protocols IEEE 802.3i/802.3u/ 802.3ab/802.3x, IEEE 802.1p
      Interface 5× 10/100/1000 Mbps, Auto-Negotiation, Auto-MDI/MDIX Ports
      Fan Quantity Fanless
      External Power Supply External Power Adapter (Output: 5 V DC / 0.6A)
      LED Indicator System Power
      Link/Act indicators per port built into each RJ-45 port
      Dimensions ( W x D x H ) (100 x 98 x 25 mm)
      Max Power Consumption 2.3 W (220 V/ 50 Hz)
      Max Heat Dissipation 7.83 BTU/h

      PERFORMANCE
      Packet Forwarding Rate 7.4 Mpps
      MAC Address Table 2K
      Packet Buffer Memory 1 Mb
      Jumbo Frame 16 KB

      SOFTWARE FEATURES
      Advanced Features Green Technology
      802.3X Flow Control
      802.1P/DSCP QoS (for V2 and later version)
      IGMP Snooping
      Transfer Method Store and Forward

      OTHERS
      Certification CE, FCC, RoHS
      Package Contents 5-Port 10/100/1000Mbps Desktop Switch
      Power Adapter
      Installation Guide
      Environment Operating Temperature: 0–40 °C (32–104 °F)
      Storage Temperature: -40–70 °C (-40–158 °F)
      Operating Humidity: 10–90% RH non-condensing
      Storage Humidity: 5–90% RH non-condensing
