| General |
| Model |

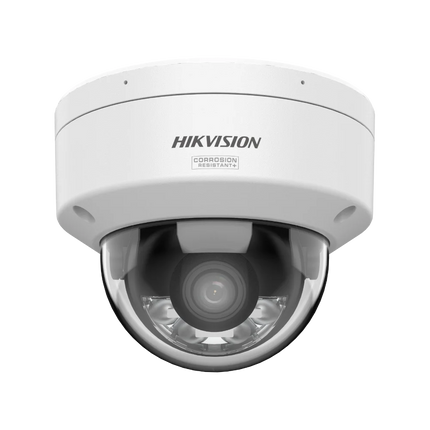

DS-2CD2187G3-LIS2UY |
| Camera Type |
Fixed Network Dome Camera |
| Colour |
White |
| Video & Imaging |
| Max Resolution |
3840 × 2160 (8MP) |
| Image Sensor |
1/1.8" Progressive Scan CMOS |
| Minimum Illumination |
0.0005 Lux @ F1.0 (Colour), 0 Lux with light |
| Shutter Speed |
1/3 s to 1/100,000 s |
| Day/Night |
Auto / Scheduled / Day / Night |
| WDR |
130 dB |
| Image Enhancement |
HikAI-ISP, 3D DNR, BLC, HLC, Defog |
| Lens |
| Lens Type |
Fixed Lens |
| Focal Length |
2.8mm |
| Aperture |
F1.0 |
| Field of View |
Approx. 108° Horizontal |
| Lighting & Night Performance |
| Technology |
ColorVu + Smart Hybrid Light |
| Supplement Light |
IR + White Light |
| IR Range |
Up to 40m |
| White Light Range |
Up to 40m |
| Light Modes |
IR Only / White Light Only / Smart Mode |
| Smart Features |
| AI Detection |
Human and Vehicle Classification |
| Perimeter Protection |
Line Crossing, Intrusion Detection |
| Smart Events |
Motion Detection, Tampering Alarm |
| Audio |
| Microphone |
Built-in Dual Microphone |
| Two-Way Audio |
Supported |
| Audio Compression |
G.711, G.722.1, G.726, MP2L2 |
| Video Compression |
| Codec |
H.265+, H.265, H.264+, H.264 |
| Bitrate |
32 Kbps to 16 Mbps |
| Network |
| Protocols |
TCP/IP, HTTP, HTTPS, FTP, DHCP, DNS, RTP, RTSP, NTP |
| ONVIF |
Yes |
| Remote Access |
Hik-Connect, Web Browser |
| Storage |
| Local Storage |
MicroSD Card (Up to 512GB) |
| Environment |
| Operating Temperature |
-30°C to +60°C |
| Humidity |
≤95% (non-condensing) |
| Protection Level |
IP67 |
| Vandal Resistance |
IK10 |
| Corrosion Protection |
NEMA 4X |
| Power |
| Power Supply |
12 VDC ±25% / PoE (802.3af) |
| Power Consumption |
Max 9.5W |
| Physical |
| Material |
Metal Housing |
| Dimensions |
Approx. 121 × 92 mm |
| Weight |
Approx. 600g |
