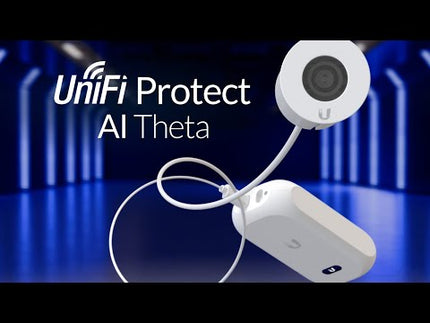

Ubiquiti Camera AI Theta, 8MP Wide Angle Lens (97.5˚ H), 12MP Fisheye 360˚ Lens, Colour LCM Display For Device Status Monitoring NHU-UVC-AI-THETA

Description

The world’s first security camera system designed for interior design professionals.

Features:
  • 8 MP wide angle lens 97.5˚(H) for wall mounted application (included)
  • 12 MP fisheye 360° lens for ceiling mounted applications (included)
  • Two-way audio*
  • Advanced AI processing engine for long-range smart detections
  • Color LCM display for device status monitoring
  • Managed with the UniFi Protect application: Version 2.7.18 and later (web) / 1.11.0 and later (mobile)
  • *UVC-AI-Theta-Audio sold separately.

Mechanical

  • Dimensions UVC-AI-Theta-Hub: 140 x 70 x 38 mm (5.5 x 2.8 x 1.5”)
  • UVC-AI-Theta-Lens/360: Ø22.8. x 43.5 mm (Ø0.9 x 1.7”)
  • Weight UVC-AI-Theta-Hub: 330 g (11.6 oz)
  • UVC-AI-Theta-Hub Mount: 35 g (1.2 oz)
  • UVC-AI-Theta-Lens/360: 15 g (0.5 oz)
  • UVC-AI-Theta-Lens/360 Flush Mount: 12 g (0.4 oz)
  • Enclosure materials UVC-AI-Theta-Hub: aluminum alloy
  • UVC-AI-Theta-Lens/360: aluminum alloy, polycarbonate
  • UVC-AI-Theta-Lens/360 Flush Mount: polycarbonate
  • Mount materials UVC-AI-Theta-Hub: aluminum alloy
  • UVC-AI-Theta-Lens/360: aluminum alloy, polycarbonate
  • UVC-AI-Theta-Lens/360 Flush Mount: polycarbonate
  • Cable jacket enclosure dimensions 28 x 13 x 7.5 mm (1.1 x 0.5 x 0.3")
  • Cable jacket enclosure material PVC
  • Cable length 1 m (3.3 ft)
  • Cable diameter 3.7 mm (0.15")
  • Cable jacket material Woven fabric
  • Cable weight 18 g (0.63 oz)
  • Cable connector type Theta proprietary
  • Optics
  • Sensor UVC-AI-Theta-Lens: 8MP CMOS sensor
  • UVC-AI-Theta-Lens-360: 12MP CMOS sensor
  • Lens Fixed focal length
  • View angle UVC-AI-Theta-Lens: H: 97.5°, V: 79.4°, D: 118.2°
  • UVC-AI-Theta-Lens-360: H: 180°, V: 180°, D: 180°
  • Video
  • Video compression H.264, MJPEG
  • Resolution UVC-AI-Theta-Lens: 3264 x 2448 (4:3)
  • UVC-AI-Theta-Lens-360: 2560 x 2560 (1:1)
  • Max. frame rate UVC-AI-Theta-Lens: 24 FPS
  • UVC-AI-Theta-Lens-360: 20 FPS
  • Image settings Color, brightness, sharpness, contrast, white balance, exposure control, 2DNR, 3DNR, NR by motion, masking, text overlay

Downloads

Datasheet
Installation Guide

Ubiquiti Camera AI Theta, 8MP Wide Angle Lens (97.5˚ H), 12MP Fisheye 360˚ Lens, Colour LCM Display For Device Status Monitoring NHU-UVC-AI-THETA

Product form

SKU: UVC-AI-THETA

The world’s first security camera system designed for interior design professionals.Features: 8 MP wide angle lens 97.5˚(H) for wall mounted... Read more

$595.70 $581.00 Incl. GST

    • Warranty: 12 months
    • 30 day money back guarantee
    • Australian Stocks & Express Delivery
    • Back-to-base Warranty & Tech Support
      • PayPal
      • Apple Pay
      • Visa
      • Mastercard
      • Zip
      • Klarna
      • Afterpay

      Description

      The world’s first security camera system designed for interior design professionals.

      Features:
      • 8 MP wide angle lens 97.5˚(H) for wall mounted application (included)
      • 12 MP fisheye 360° lens for ceiling mounted applications (included)
      • Two-way audio*
      • Advanced AI processing engine for long-range smart detections
      • Color LCM display for device status monitoring
      • Managed with the UniFi Protect application: Version 2.7.18 and later (web) / 1.11.0 and later (mobile)
      • *UVC-AI-Theta-Audio sold separately.

      Mechanical

      • Dimensions UVC-AI-Theta-Hub: 140 x 70 x 38 mm (5.5 x 2.8 x 1.5”)
      • UVC-AI-Theta-Lens/360: Ø22.8. x 43.5 mm (Ø0.9 x 1.7”)
      • Weight UVC-AI-Theta-Hub: 330 g (11.6 oz)
      • UVC-AI-Theta-Hub Mount: 35 g (1.2 oz)
      • UVC-AI-Theta-Lens/360: 15 g (0.5 oz)
      • UVC-AI-Theta-Lens/360 Flush Mount: 12 g (0.4 oz)
      • Enclosure materials UVC-AI-Theta-Hub: aluminum alloy
      • UVC-AI-Theta-Lens/360: aluminum alloy, polycarbonate
      • UVC-AI-Theta-Lens/360 Flush Mount: polycarbonate
      • Mount materials UVC-AI-Theta-Hub: aluminum alloy
      • UVC-AI-Theta-Lens/360: aluminum alloy, polycarbonate
      • UVC-AI-Theta-Lens/360 Flush Mount: polycarbonate
      • Cable jacket enclosure dimensions 28 x 13 x 7.5 mm (1.1 x 0.5 x 0.3")
      • Cable jacket enclosure material PVC
      • Cable length 1 m (3.3 ft)
      • Cable diameter 3.7 mm (0.15")
      • Cable jacket material Woven fabric
      • Cable weight 18 g (0.63 oz)
      • Cable connector type Theta proprietary
      • Optics
      • Sensor UVC-AI-Theta-Lens: 8MP CMOS sensor
      • UVC-AI-Theta-Lens-360: 12MP CMOS sensor
      • Lens Fixed focal length
      • View angle UVC-AI-Theta-Lens: H: 97.5°, V: 79.4°, D: 118.2°
      • UVC-AI-Theta-Lens-360: H: 180°, V: 180°, D: 180°
      • Video
      • Video compression H.264, MJPEG
      • Resolution UVC-AI-Theta-Lens: 3264 x 2448 (4:3)
      • UVC-AI-Theta-Lens-360: 2560 x 2560 (1:1)
      • Max. frame rate UVC-AI-Theta-Lens: 24 FPS
      • UVC-AI-Theta-Lens-360: 20 FPS
      • Image settings Color, brightness, sharpness, contrast, white balance, exposure control, 2DNR, 3DNR, NR by motion, masking, text overlay

      Downloads

      Datasheet
      Installation Guide
