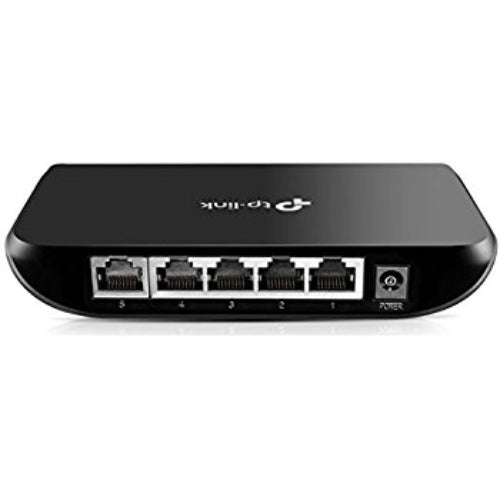

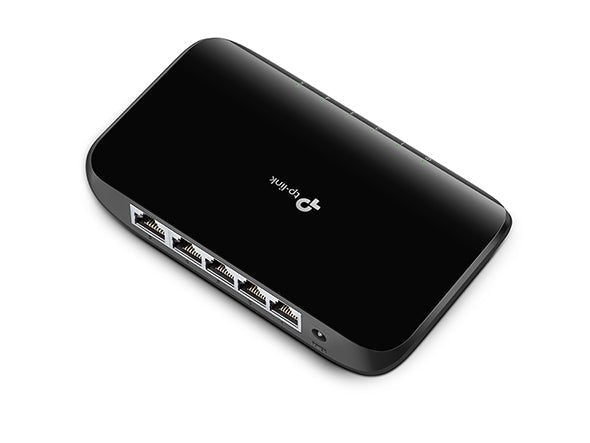

TP-Link SG1005D 5-Port Gigabit Desktop Network Switch

Description

Simple, Fast, Energy-Efficient Gigabit Switching

The TP-Link SG1005D is a no-fuss 5-port Gigabit unmanaged switch designed for homes, small offices, and light commercial installations. Plug it in and it works — no software, no configuration, no hassle. With full 1000Mbps speeds across all five ports and Green Ethernet technology that cuts power consumption by up to 85%, it's one of the most cost-effective ways to expand your wired network in Australia.

Key Features

  • 5 × Gigabit (10/100/1000Mbps) Auto-Negotiation RJ45 ports
  • Auto MDI/MDIX — works with straight-through or crossover cables
  • Green Ethernet technology reduces power consumption by up to 85%
  • IEEE 802.3x flow control for reliable, error-free data transfer
  • Plug-and-play — zero configuration required
  • Compact plastic case — desktop or wall-mount installation
  • Fanless, silent operation

Use Cases

  • Home networking — add wired ports to a lounge room, study, or media cabinet
  • Small office / SOHO — connect PCs, printers, NAS, and VoIP phones to a single switch
  • IP camera systems — provide dedicated wired connections for NVRs and IP cameras
  • AV & home theatre — link smart TVs, streaming devices, and AV receivers without WiFi dropouts
  • Wall-mount installations — tidy, fixed deployment in comms rooms or server racks

Technical Specifications

Specification Detail
Model SG1005D (TL-SG1005D)
Ports 5 × 10/100/1000Mbps RJ45
Standards IEEE 802.3i, 802.3u, 802.3ab, 802.3x
Auto-Negotiation Yes (all ports)
Auto MDI/MDIX Yes (all ports)
Flow Control IEEE 802.3x (Full Duplex), Backpressure (Half Duplex)
Switching Capacity 10 Gbps
Forwarding Rate 7.44 Mpps
MAC Address Table 2K
Jumbo Frame 2KB
Power Consumption Max 3.3W (with Green Ethernet: up to 85% savings)
Enclosure Plastic, desktop / wall-mountable
Fanless Yes (silent operation)
Operating Temp 0°C – 40°C
Storage Temp -40°C – 70°C
Operating Humidity 10% – 90% (non-condensing)
Certifications CE, FCC, RoHS
SKU TL-SG1005D
Barcode (EAN) 6935364091798

Frequently Asked Questions

Does the SG1005D require any software or configuration?
No — it is a fully unmanaged switch. Simply connect your devices with Ethernet cables and it operates automatically. There is no web interface, app, or driver required.
Can I wall-mount the SG1005D?
Yes. The unit includes wall-mount slots on the base, making it suitable for fixed installations in comms rooms, behind TVs, or on equipment racks.
Is it compatible with PoE devices?
No — the SG1005D does not supply Power over Ethernet (PoE). If you need to power IP cameras or access points via the switch, consider a TP-Link PoE switch such as the TL-SG1005P.
Will it work with my existing router?
Yes. Connect any port on the SG1005D to a spare LAN port on your router using a standard Ethernet cable. The remaining four ports are then available for your devices.
How much power does it consume?
Maximum power draw is approximately 3.3W. Green Ethernet technology dynamically adjusts power based on cable length and link status, reducing consumption by up to 85% under typical conditions.

TP-Link SG1005D 5-Port Gigabit Desktop Network Switch

Product form
5.0
Rated 5.0 out of 5 stars
1 Review

SKU: TL-SG1005D

Simple, Fast, Energy-Efficient Gigabit Switching The TP-Link SG1005D is a no-fuss 5-port Gigabit unmanaged switch designed for homes, small offices,... Read more

$21.85  $17.60 Incl. GST

    • PayPal
    • Apple Pay
    • Visa
    • Mastercard
    • American Express
    • Zip
    • Afterpay

    • Dispatch today? Order within: Jun 07, 2026 14:00:00 +1000
    • Warranty: 36 months
    • 30 day money back guarantee
    • Australian Stocks & Express Delivery
    • Back-to-base Warranty & Tech Support
    5.0
    Rated 5.0 out of 5 stars
    Based on 1 review
    Total 5 star reviews: 1 Total 4 star reviews: 0 Total 3 star reviews: 0 Total 2 star reviews: 0 Total 1 star reviews: 0
    100%would recommend this product
    Write a Review (Opens in a new window)
    1 review
    • DN
      Denzil N.
      Flag of Australia
      Verified Buyer
      I recommend this product
      Rated 5 out of 5 stars
      2 years ago
      Great service, guru helped with

      Great service, guru helped with system design and their technical team was very helpful.

      Was this helpful?

    Description

    Simple, Fast, Energy-Efficient Gigabit Switching

    The TP-Link SG1005D is a no-fuss 5-port Gigabit unmanaged switch designed for homes, small offices, and light commercial installations. Plug it in and it works — no software, no configuration, no hassle. With full 1000Mbps speeds across all five ports and Green Ethernet technology that cuts power consumption by up to 85%, it's one of the most cost-effective ways to expand your wired network in Australia.

    Key Features

    • 5 × Gigabit (10/100/1000Mbps) Auto-Negotiation RJ45 ports
    • Auto MDI/MDIX — works with straight-through or crossover cables
    • Green Ethernet technology reduces power consumption by up to 85%
    • IEEE 802.3x flow control for reliable, error-free data transfer
    • Plug-and-play — zero configuration required
    • Compact plastic case — desktop or wall-mount installation
    • Fanless, silent operation

    Use Cases

    • Home networking — add wired ports to a lounge room, study, or media cabinet
    • Small office / SOHO — connect PCs, printers, NAS, and VoIP phones to a single switch
    • IP camera systems — provide dedicated wired connections for NVRs and IP cameras
    • AV & home theatre — link smart TVs, streaming devices, and AV receivers without WiFi dropouts
    • Wall-mount installations — tidy, fixed deployment in comms rooms or server racks

    Technical Specifications

    Specification Detail
    Model SG1005D (TL-SG1005D)
    Ports 5 × 10/100/1000Mbps RJ45
    Standards IEEE 802.3i, 802.3u, 802.3ab, 802.3x
    Auto-Negotiation Yes (all ports)
    Auto MDI/MDIX Yes (all ports)
    Flow Control IEEE 802.3x (Full Duplex), Backpressure (Half Duplex)
    Switching Capacity 10 Gbps
    Forwarding Rate 7.44 Mpps
    MAC Address Table 2K
    Jumbo Frame 2KB
    Power Consumption Max 3.3W (with Green Ethernet: up to 85% savings)
    Enclosure Plastic, desktop / wall-mountable
    Fanless Yes (silent operation)
    Operating Temp 0°C – 40°C
    Storage Temp -40°C – 70°C
    Operating Humidity 10% – 90% (non-condensing)
    Certifications CE, FCC, RoHS
    SKU TL-SG1005D
    Barcode (EAN) 6935364091798

    Frequently Asked Questions

    Does the SG1005D require any software or configuration?
    No — it is a fully unmanaged switch. Simply connect your devices with Ethernet cables and it operates automatically. There is no web interface, app, or driver required.
    Can I wall-mount the SG1005D?
    Yes. The unit includes wall-mount slots on the base, making it suitable for fixed installations in comms rooms, behind TVs, or on equipment racks.
    Is it compatible with PoE devices?
    No — the SG1005D does not supply Power over Ethernet (PoE). If you need to power IP cameras or access points via the switch, consider a TP-Link PoE switch such as the TL-SG1005P.
    Will it work with my existing router?
    Yes. Connect any port on the SG1005D to a spare LAN port on your router using a standard Ethernet cable. The remaining four ports are then available for your devices.
    How much power does it consume?
    Maximum power draw is approximately 3.3W. Green Ethernet technology dynamically adjusts power based on cable length and link status, reducing consumption by up to 85% under typical conditions.
