Description

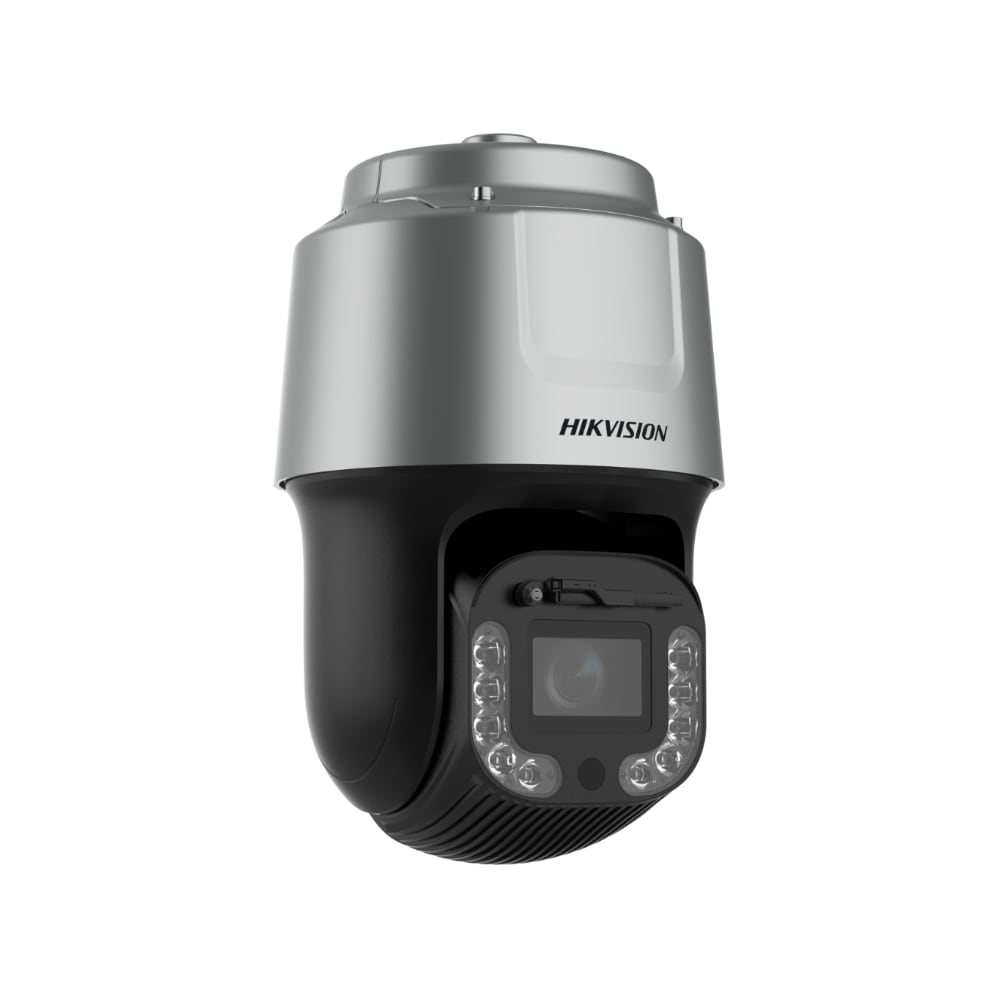

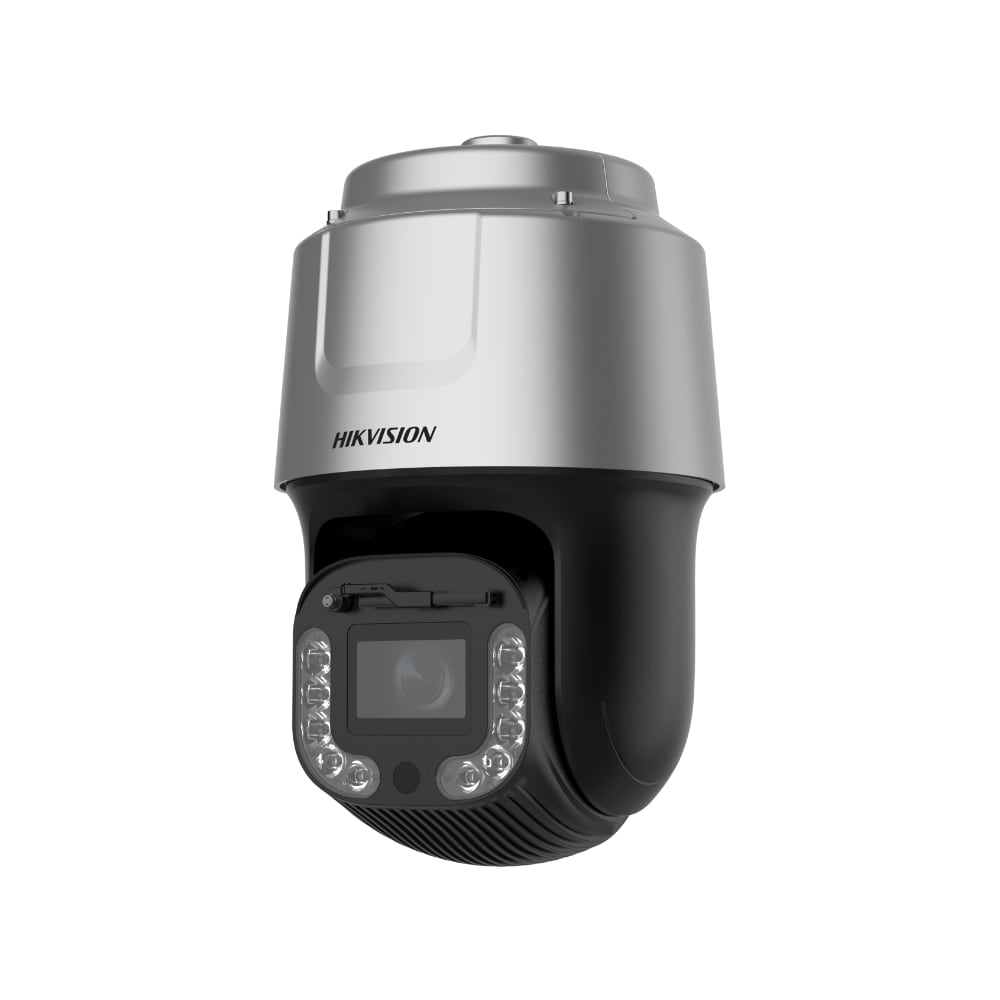

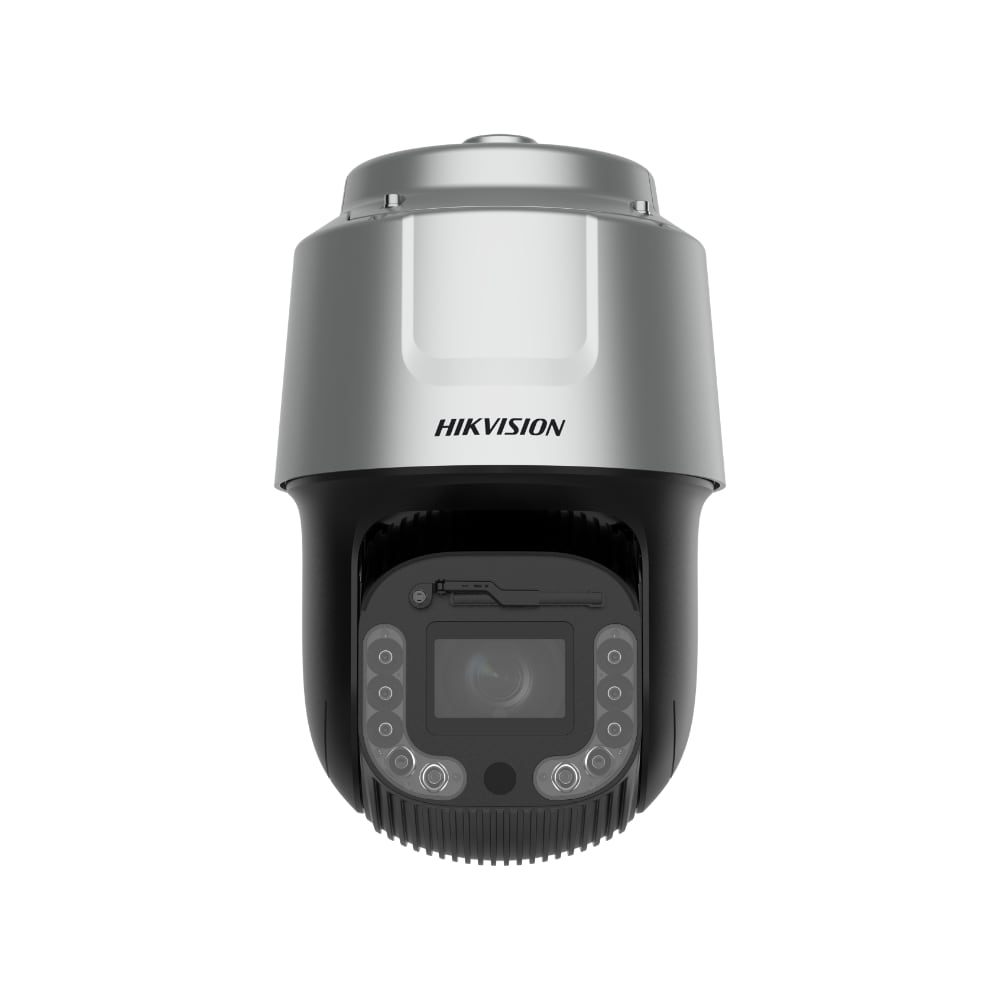

The Hikvision DS‑2DF8C842IXG1‑ELWY is a high-performance Ultra Series PTZ camera engineered for expansive outdoor surveillance and critical infrastructure deployments. Featuring a 1/1.2″ progressive scan CMOS sensor with 8 MP resolution and premier low‑light DarkFighter 2.0 technology, it delivers clear detail even in the most challenging lighting conditions.
Its 42× optical zoom (7.5 mm to 315 mm), 16× digital zoom, and an IR range of up to 500 m enable high‑definition coverage across vast areas.
Equipped with smart analytics for face capture, vehicle detection, and road traffic monitoring, this model supports advanced deep‑learning workflows.
Built for rugged outdoor use, it offers IP67 weatherproofing, IK10 vandal resistance, and supports Smart Pan‑Tilt Correction for stable tracking and movement.
Ideal for airports, ports, city surveillance, stadiums and large‑venue monitoring, the DS‑2DF8C842IXG1‑ELWY ensures high‑definition clarity, long‑range detail and intelligent alerting for enterprise‑grade security.
Key Features
- 8 MP (3840 × 2160) resolution with large 1/1.2″ progressive scan CMOS sensor.
- DarkFighter 2.0 technology for top low‑light performance.
- 42× optical zoom (7.5–315 mm) + 16× digital zoom for expansive coverage.
- Up to 500 m IR range for night coverage (in darkness).
- 140 dB wide dynamic range (WDR) for strong back‑light environments.
- Smart Pan‑Tilt Correction, pan 360°, tilt -20° to 90°, preset & patrol support.
- Face capture, vehicle detection, support for traffic and perimeter analytics.
- Rugged build: IP67 weather‑proof, IK10 vandal‑resistant (excluding glass window).
Technical Specifications
| Specification |
Details |
| Model |
DS‑2DF8C842IXG1‑ELWY |
| Image Sensor |
1/1.2″ Progressive Scan CMOS |
| Max. Resolution |
3840 × 2160 (8 MP) |
| Lens (Optical Zoom) |
42× (7.5–315 mm) |
| Zoom (Digital) |
16× Digital |
| Minimum Illumination |
0.0005 Lux (Colour) / 0 Lux with IR |
| Supplemental Light / IR Range |
IR up to 500 m |
| WDR |
140 dB |
| Pan / Tilt Range |
Pan: 360°; Tilt: –20° to 90° |
| Protection Rating |
IP67 & IK10 (excluding glass window) |
| Smart Functions |
Face capture, vehicle detection, traffic analytics |
More Information
DS-2DF8C842IXG1-ELWY Datasheet
Hikvision Speed Dome Camera Quick Start Guide
Hikvision Speed Dome Camera User Manual
