Description

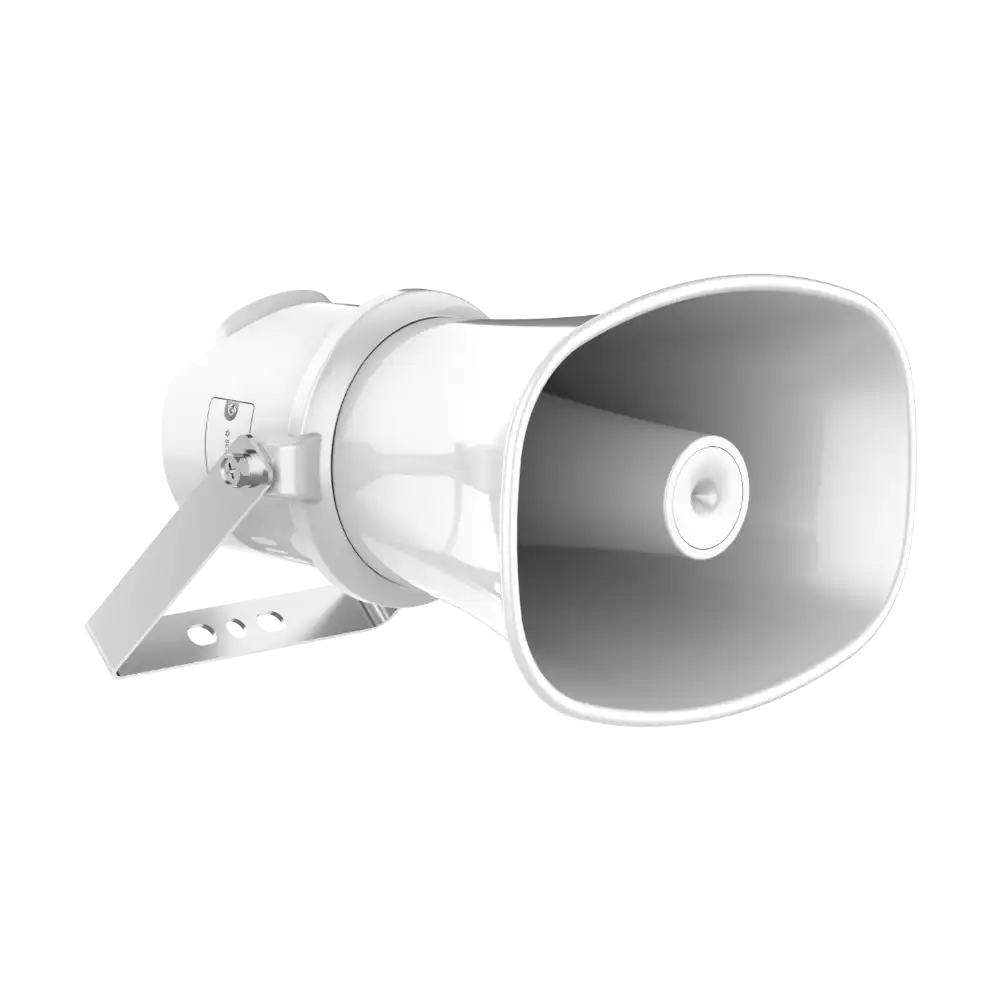

Engineered for demanding outdoor environments, the Hikvision DS‑QAZ1307G1T‑E delivers powerful audio performance with 121 dB output from a compact 7W PoE speaker. This IP67-rated device supports two-way SIP communication, text-to-speech functionality, and seamless integration with CCTV systems for coordinated emergency alerts and public announcements. Single PoE connection eliminates additional wiring, making installation straightforward for security and facility management applications.
Key Features
-
7 W high‑output horn speaker with up to 121 dBSPL acoustic pressure for long‑range audio coverage.
-
Two‑way audio support via SIP for live interaction and announcements.
-
Speech and alert broadcasting with TTS (Text‑to‑Speech) and audio file support (MP3, WAV).
-
Built‑in 4 GB eMMC storage (1 GB for audio files) for local playback and scheduled messaging.
-
PoE Power over Ethernet (802.3at) simplifies wiring and power distribution.
-
Integrated audio algorithms: AEC, AGC, ANS, DRC for clear, quality sound.
-
IP67 weatherproof metal housing for reliable outdoor performance.
-
Multi‑mode broadcast support: regular, live, scheduled, and emergency alerts.
-
Network protocols & compatibility: IPv4, HTTP/S, SIP, ONVIF, and remote management via Hik‑Connect, iVMS‑4200, or HikCentral.
-
Alarm input & audio linkage support for integrated security triggers.
Technical Specifications
| Specification |
Details |
| Model |
DS‑QAZ1307G1T‑E |
| Speaker Rated Power |
7 W |
| Impedance |
8 Ω |
| Max Acoustic Pressure |
121 dBSPL |
| Speaker Sensitivity |
110 dB @ 1 m, 1 W |
| Frequency Response |
300 Hz – 13 kHz |
| Microphones |
2 × Electret (100 Hz – 20 kHz) |
| Audio Formats |
MP3, WAV |
| Audio Algorithms |
AEC, AGC, ANS, DRC |
| Storage |
4 GB eMMC (1 GB audio files) |
| Network Protocols |
IPv4, HTTP, HTTPS, SIP, ONVIF |
| PoE Support |
Yes (802.3at) |
| Protection Rating |
IP67 Weatherproof |
| Operating Temp. |
‑30 °C to 60 °C |
| Dimensions |
~272 × 237 × 175 mm |
| Weight |
~2.1 kg |
