Description
High-performance 2MP dual-lens network camera designed for accurate people counting with built-in microphone, advanced analytics, IR, and weatherproof design.

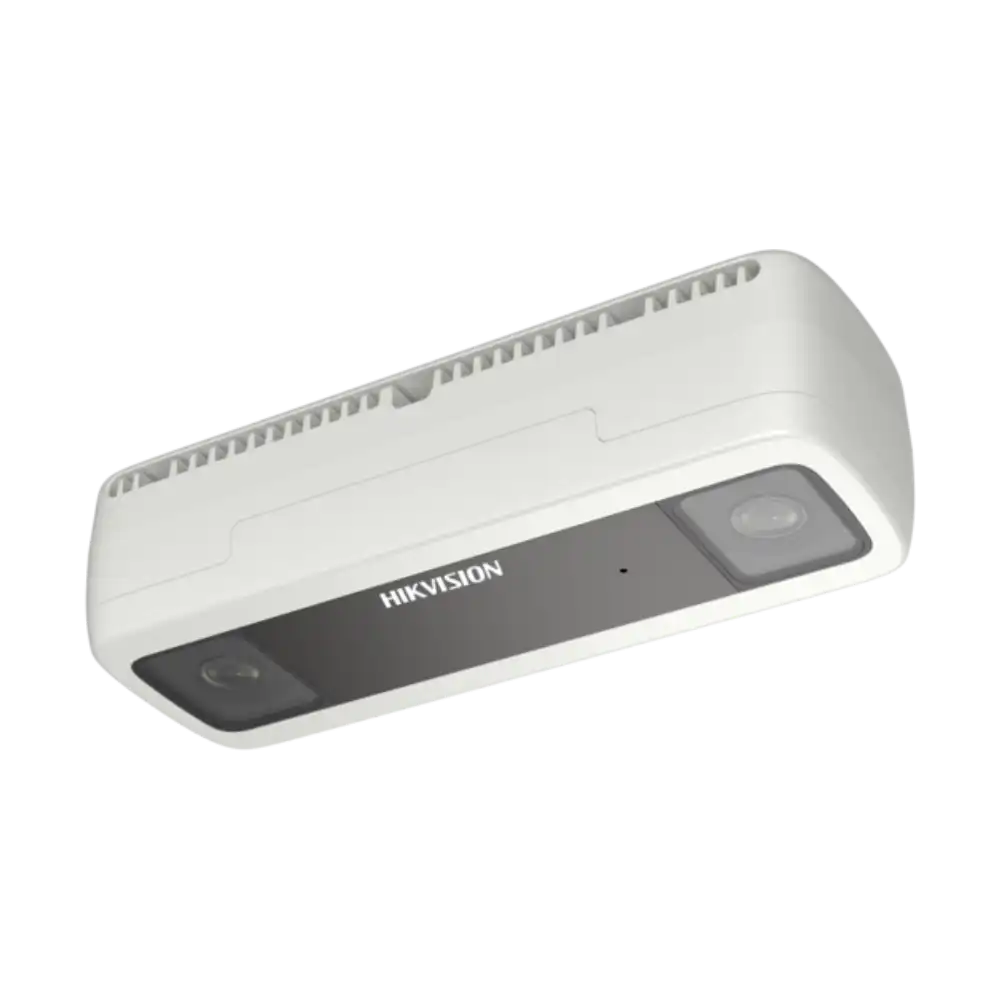

The Hikvision DS-2CD6825G0/C-IVS(B) is a cutting-edge 2MP dual-lens network camera specifically engineered for high-accuracy people counting applications. Ideal for use in retail stores, shopping centres, office buildings, airports, and entry/exit monitoring, this compact yet powerful camera helps businesses and property managers gain valuable insights into foot traffic trends and optimize resource planning.
Its dual-lens configuration enables bi-directional people counting—counting people entering and exiting simultaneously with high precision. Built-in intelligence includes real-time statistics, trend analysis, and line-crossing detection, offering actionable data for marketing, staffing, and security decisions.
Equipped with IR illumination up to 6m, 120 dB true WDR, H.265+ compression, and IP67-rated housing, it performs reliably in both indoor and outdoor environments. It also features a built-in microphone, providing audio capture for enhanced situational awareness (for the -S model).
Whether deployed at a single entrance or integrated into a multi-site system, the DS-2CD6825G0/C-IVS is your go-to choice for intelligent footfall analytics and advanced surveillance.
Key Features
- 2MP (2560×1440) resolution with 1/2.7” CMOS sensor
- Dual-lens for accurate bi-directional people counting
- Built-in microphone and optional audio/alarm I/O (-S models)
- 120dB true WDR and 3D DNR for superior image clarity
- IR night vision up to 6m
- Onboard eMMC storage up to 8GB for people data
- IP67 weatherproof housing for indoor/outdoor use
- H.265+/H.264 compression for efficient bandwidth usage
- PoE or 12VDC power options
- Supports Hik-Connect, iVMS-4200, and ONVIF profiles
Technical Specifications
| Specification |
Details |
| Image Sensor |
1/2.7" Progressive Scan CMOS |
| Max Resolution |
2560 × 1440 (2MP) |
| Lens |
2mm fixed, 104.5° HFOV |
| Day/Night |
IR Cut Filter with Auto Switch |
| IR Range |
Up to 6 metres |
| WDR |
120 dB True WDR |
| Video Compression |
H.265+/H.265/H.264+/H.264 |
| Audio |
Built-in mic (model -S), compression G.711/AAC/MP3 etc. |
| People Counting |
Bidirectional, real-time, with statistical reporting |
| Network |
RJ45, ONVIF (Profile S/G), HTTPS, FTP, SNMP |
| Storage |
Up to 8GB built-in eMMC (people count data) |
| Power Supply |
12VDC ±20% or PoE (802.3af) |
| Power Consumption |
Max. 8.5W |
| Ingress Protection |
IP67 Weatherproof |

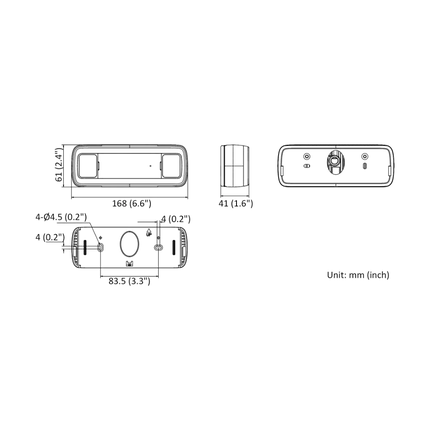

| Dimensions |
168 × 61 × 41 mm |
| Weight |
435g (camera only) |
