Description

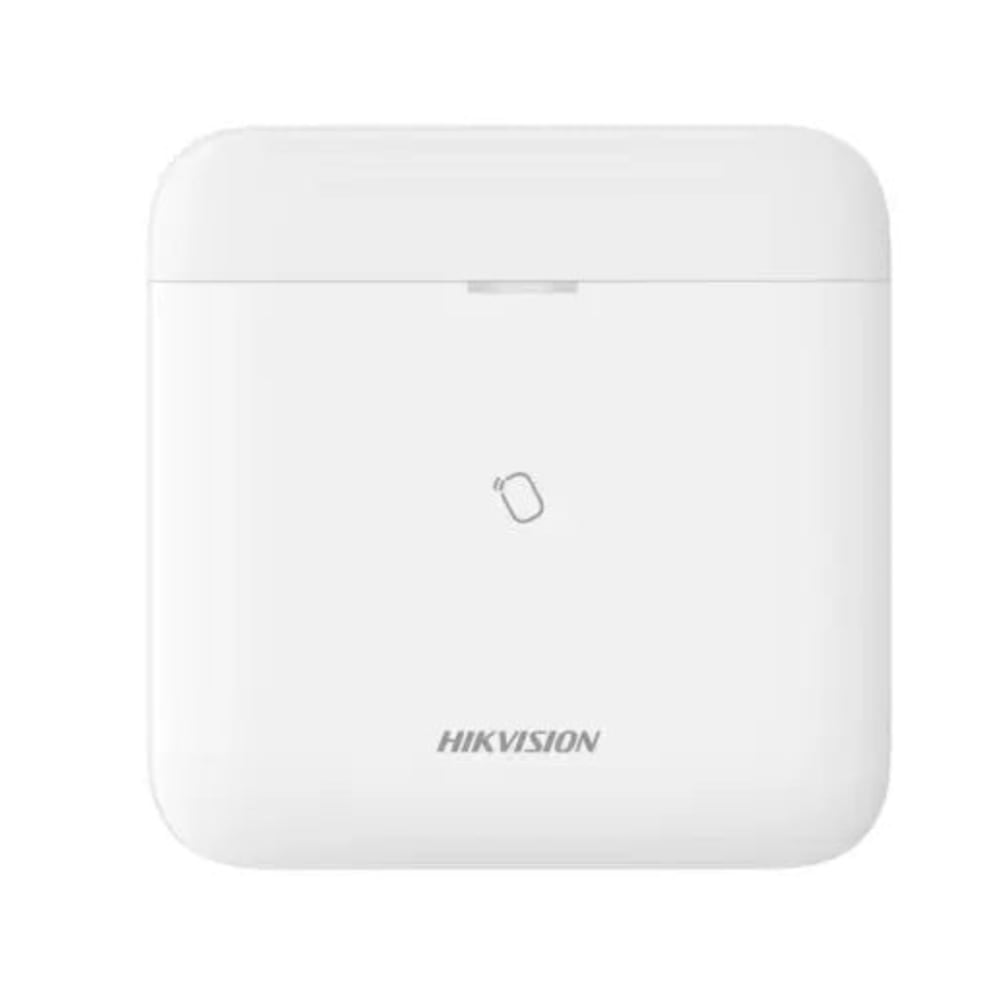

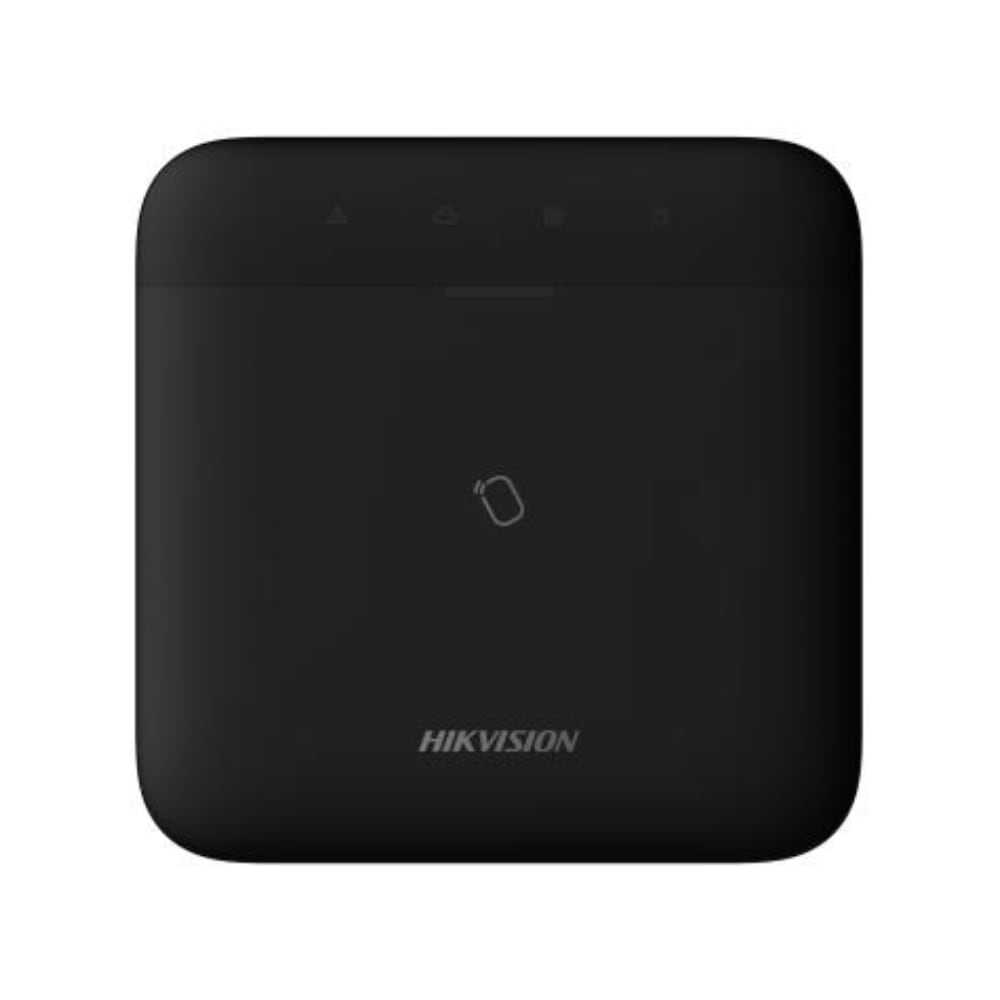

Hikvision Control Panel (DS-PWA96-M-WB)
The Hikvision Control Panel (DS-PWA96-M-WB) integrates TCP/IP, Wi-Fi, and 3/4G networks using the advanced Tri-X/Cam-X wireless protocol for reliable long-distance RF transmission. It supports up to 96 wireless zones and outputs—including 48 PIRCAMs—plus multiple keyfobs, repeaters, sounders, and tag readers. With AES-128 encrypted two-way communication, it ensures security and integrity. Manage up to 48 users with distinct roles, configure settings via web, mobile, or Convergence Cloud, and receive instant alarm notifications with live video streaming on Hik-Connect. Ideal for comprehensive, scalable security systems requiring flexible remote management.
Features
- TCP/IP, Wi-Fi, and 3/4G network
- New generation wireless protocol: Tri-X/Cam-X
- Long RF transmission distance
- Two-way communication with AES-128 encryption
- Connects up to 96 wireless zones/outputs (including 48 PIRCAMs), 48 wireless keyfobs, 4 repeaters, 6 sounders(3 internal+3 external), 8 tag readers & keypads.
- Supports up to 48 network users, including 1 installer, 1 administrator, and 46 normal users
- Voice prompt
- Configuration via Web client, mobile client, and Convergence Cloud
- Hik-Connect and Hik-ProConnect configuration depends on the user access level
- Pushes alarm notification via messages or phone calls
- Views live videos from Hik-Connect
- Alarm video clips via emails and APP
- Supports LED indicator to indicates system status
- 4520 mAh lithium backup battery
- SIA-DC09 protocol, and supports both Contact ID and SIA data format
- Supports Hik-IP Receiver and Hik-IP Receiver Pro for ARC communication
Download
DS-PWA96-M-WB Datasheet
Quick Start Guide
User Manual
Alarm Detectors and Peripherals Compatibility Table
