Description

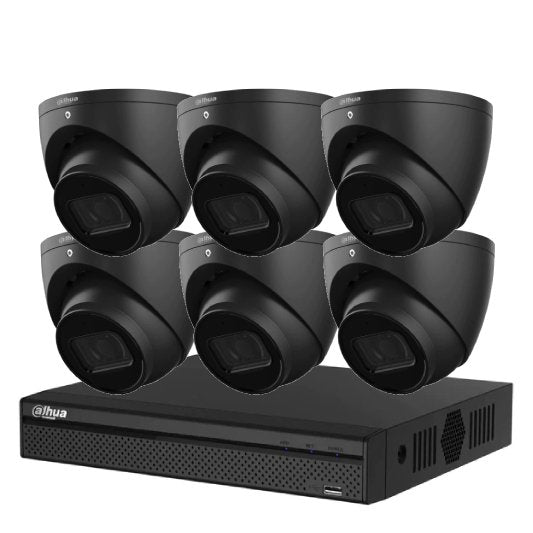

Dahua 5MP 8 Channel IP Security Camera & NVR Kit with 6 x Turret Cameras
Secure your property with the Dahua GR-DH-56C8R, a high-definition 5MP IP surveillance kit that includes six outdoor turret cameras and a powerful 8-channel PoE NVR.
Each camera delivers 5MP clarity, infrared night vision up to 30 metres, and is housed in an IP67-rated weatherproof metal body for all-weather protection. The included NVR features H.265+ compression, smart motion detection, and remote access via Dahua’s DMSS mobile app.
Ideal for residential, retail, or small business environments, this plug-and-play system ensures easy setup, crystal-clear video, and 24/7 peace of mind.
Dahua 5MP 8CH CCTV Kit comes with:
Features
- 6x 5MP IP turret cameras (2688 × 1520 resolution)
- 8-channel PoE NVR with 4TB HDD pre-installed
- Infrared night vision up to 30m
- IP67-rated weatherproof camera housings
- Smart motion detection with instant alerts
- H.265+ video compression for longer recording
- 2.8mm wide-angle lenses for wide area coverage
- Plug & play PoE setup – no extra power adapters
- Remote access via DMSS iOS/Android app
- Suitable for homes, offices, shops & warehouses
Dahua 5MP Starlight IP Black Turret 2.8mm lens, Built-in Mic, IVS, WDR (120dB), IR 30m, Micro SD, IP67, PoE
- 5MP, 1/2.7'' CMOS image sensor, low illuminance, high image definition
- Outputs max. 5MP (2592x1944) @20 fps, and supports 2688x1520 (2688x1520) @25/30 fps
- H.265 codec, high compression rate, ultra-low bit rate
- Built-in IR LED, max IR distance: 30 m
- ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments
- Rotation mode, WDR, 3D DNR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
- Intelligent detection: Intrusion, tripwire
- Abnormality detection: Motion detection, video tampering, no SD card, SD card full, SD card error, network disconnected, IP conflict, illegal access, voltage detection
- Supports max. 256 GB Micro SD card, built-in MIC
- 12V DC/PoE power supply
- IP67 protection
Dahua 8-Channel 4K WizSense AI NVR with 8 PoE Ports, 1 HDD Bay, ONVIF Support
- 8-channel AI NVR with 4K HDMI output
- 8 PoE ports for direct IP camera connections
- WizSense AI: SMD+, Face Detection, IVS
- Supports up to 16MP IP cameras
- H.265+/H.264 compression for efficient storage
- Smart search & AI event playback
- 1 × SATA slot, supports HDD up to 10TB (not included)
- Remote access via DMSS App (iOS/Android)
- ONVIF support for third-party IP cameras
- Compact, fanless design for silent operation
Specifications
| Component |
Specification |
| Cameras |
6x 5MP turret-style IP cameras |
| Resolution |
2688 × 1520 (5MP) |
| Lens |
2.8mm fixed lens (approx. 100° FoV) |
| Night Vision |
Infrared (IR) up to 30 metres |
| Weather Rating |
IP67 (weatherproof) |
| Audio |
N/A (optional microphone not included) |
| NVR |
8-channel PoE NVR with 4TB hard drive |
| Compression |
H.265+ / H.265 / H.264 |
| Mobile Access |
DMSS app (iOS/Android) |
| Remote Viewing |
Live view & playback via app/web |
| Power |
PoE (Power over Ethernet) |
Extra Requirements
You must purchase a separate HDD Hard Disk Drive / storage device for your NVR recorder. We recommend a 4TB hard drive for 10-14 days of footage and an 8TB drive for 20-30 days, depending on the amount of footage you plan to record. Additionally, you will need to purchase cables for this CCTV kit. These cameras are PoE cameras, so you will only need to use RJ45 Category 6 network cables.
Diagram for CCTV Cameras & NVR Connection
