Uniview UNV IPC3K28SE-ADF28KMC-DL-I0 8MP 180° Triguard ColorHunter Turret

Description

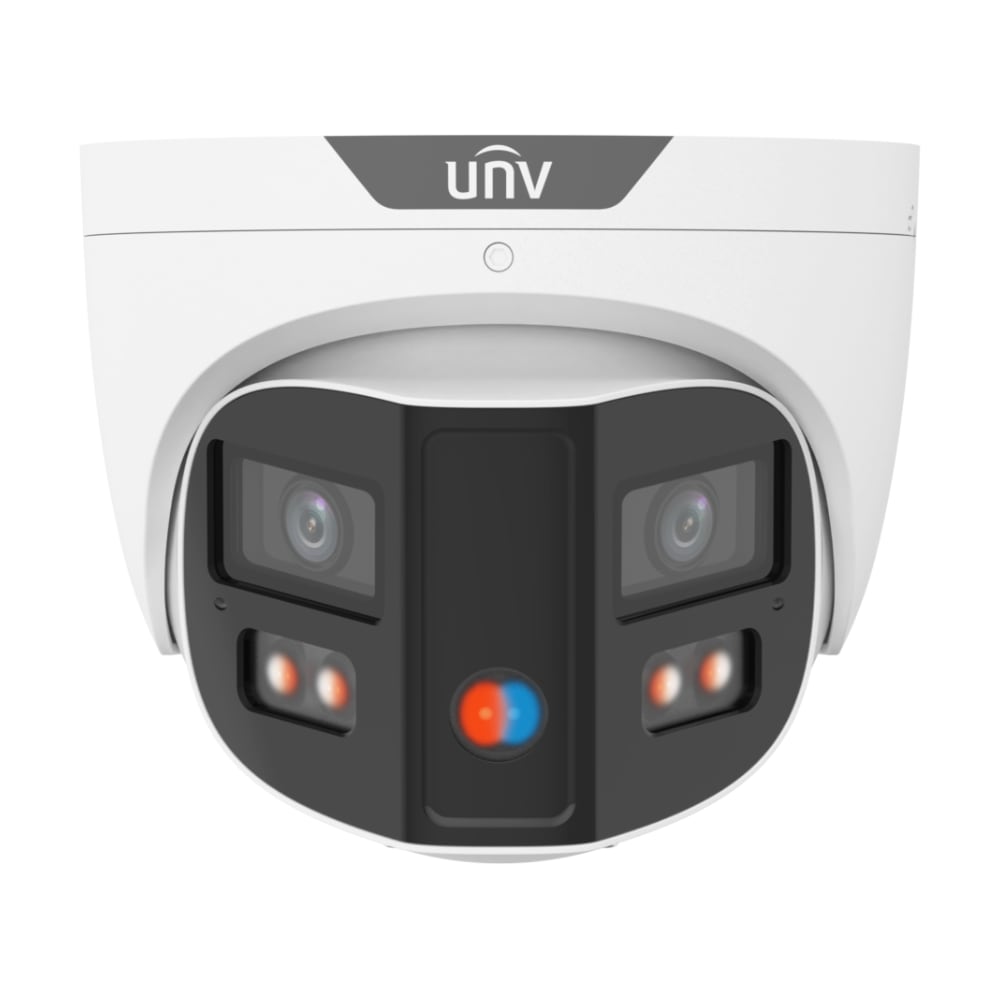

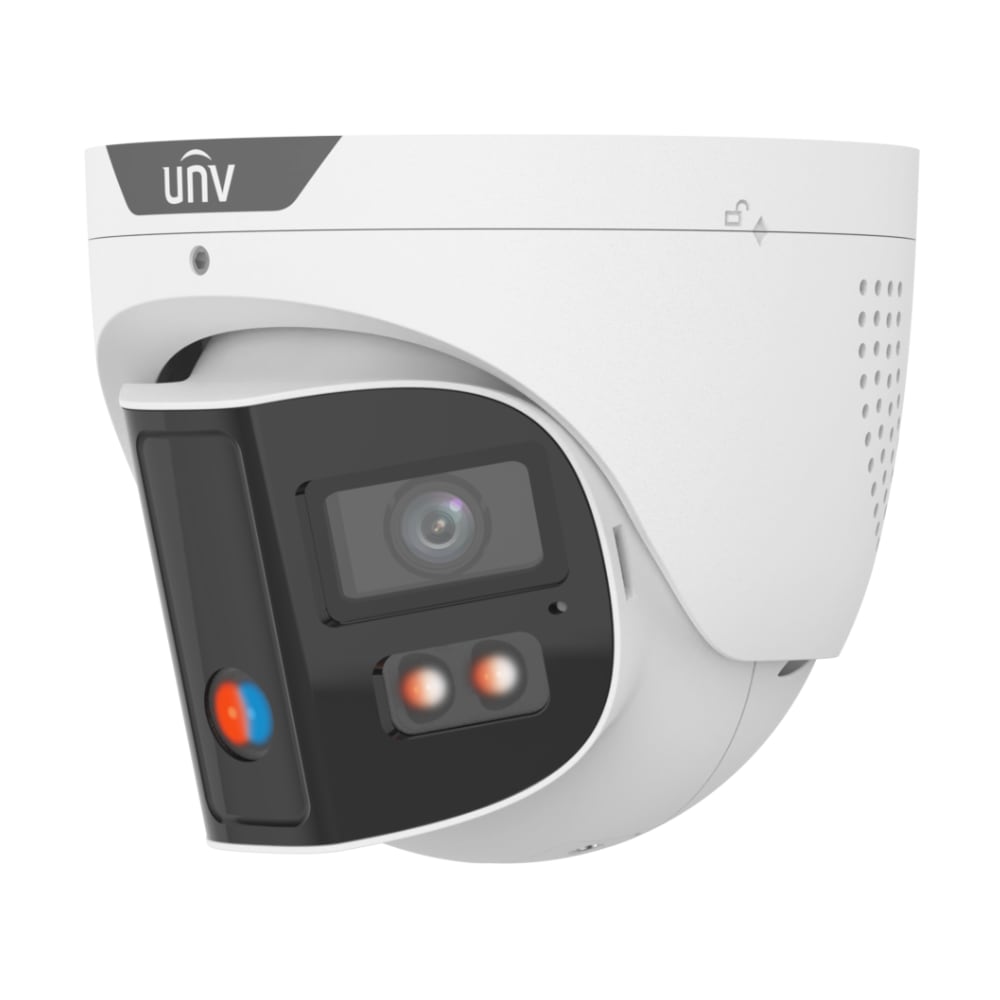

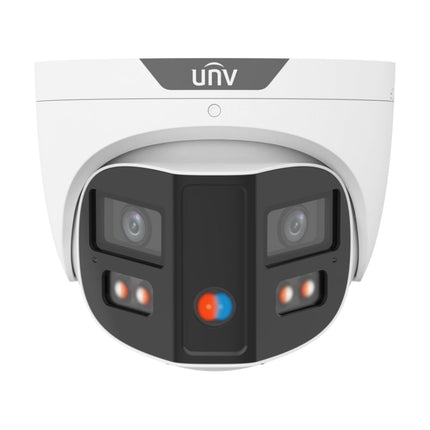

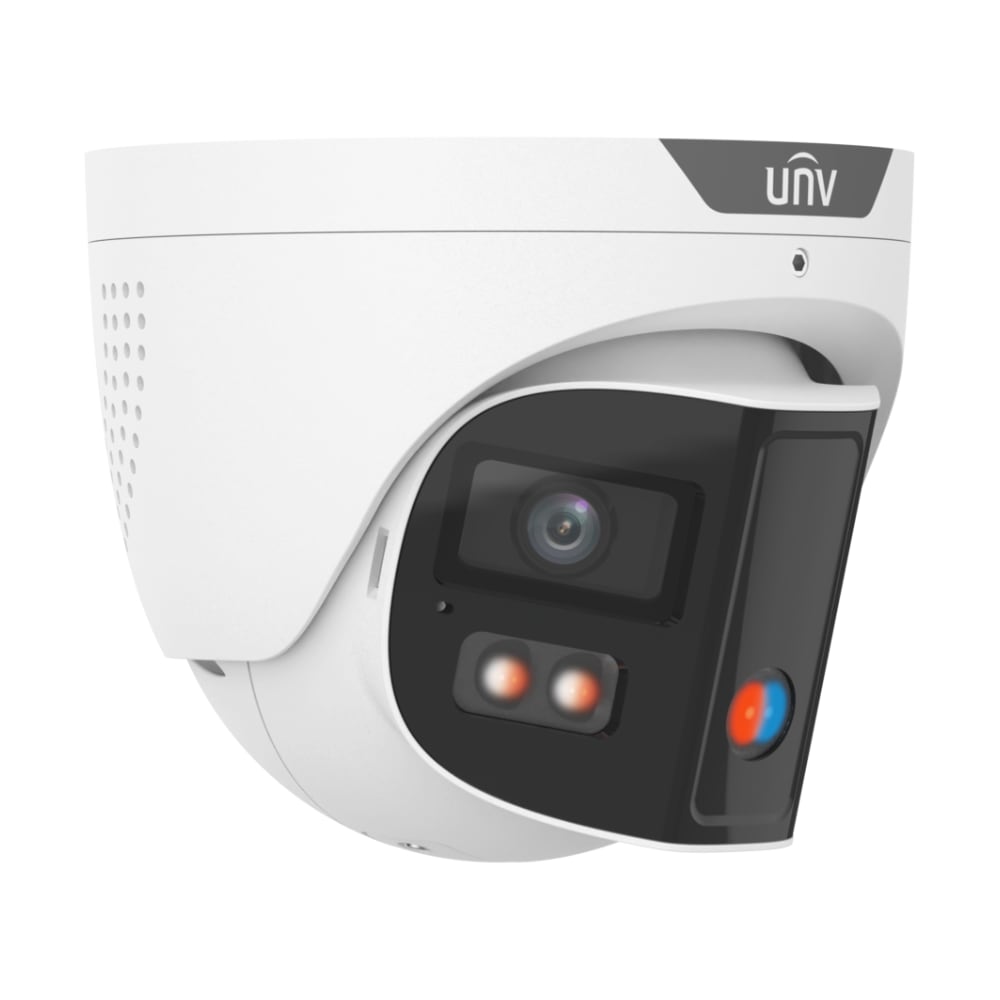

Uniview UNV IPC3K28SE-ADF28KMC-DL-I0 8MP 180° ColorHunter Turret

The IPC3K28SE-ADF28KMC-DL-I0 delivers panoramic 180° coverage with 8 MP resolution, ColorHunter full-color imaging and dual-light illumination (IR & warm light) up to 30 m. It adds red/blue warning light, AI Smart Intrusion Prevention with human/vehicle classification and color retrieval, two-way audio (dual mics + speaker), and robust IP67/IK10 construction for 24/7 security.

Key Features

  • 8 MP 1/2.5" CMOS; 4096×1860 @ 20 fps; 130 dB true WDR
  • Double-lens splicing for 180° horizontal FOV; 2.8 mm F1.0 lens
  • Dual light: IR & warm light to 30 m; red/blue warning light
  • AI SIP: human/vehicle/non-motor classification; color retrieval; crowd/people counting
  • Audio/Alarm I/O: dual microphones, built-in speaker; 1/1 alarm; two-way audio
  • Ultra 265/H.265/H.264/MJPEG; U-Code; dual streams
  • Edge storage: micro-SD up to 512 GB; ANR/NAS
  • PoE; IP67 & IK10 metal housing (−30 °C ~ 60 °C)

Technical Specifications

Specification Details
Brand / Series Uniview UNV / PrimeIII
Model (SKU) IPC3K28SE-ADF28KMC-DL-I0
Sensor / Resolution 1/2.5" CMOS / 8 MP (4096×1860) @ 20 fps
Lens / Aperture 2.8 mm fixed / F1.0
Field of View (H/V/D) 180° / 65° / 180°
Min. Illumination Color 0.0005 lux (F1.0, AGC ON); 0 lux with light
Illumination Dual light: IR 30 m; Warm light 30 m; red/blue warning
WDR / Image 130 dB true WDR; 2D/3D DNR; HLC; BLC; Digital Defog; ASM
Compression Ultra 265 / H.265 / H.264 / MJPEG; U-Code; dual streams
AI / SIP Human/vehicle/non-motor classification; color retrieval
Events Cross-line, intrusion, enter/leave; motion, ultra motion, tamper, audio
Audio / Alarm 1/1 audio I/O, dual mics + speaker; 1/1 alarm I/O; two-way audio
Edge Storage Micro-SD up to 512 GB; ANR/NAS
Network 1× RJ45 10/100 M; HTTPS/TLS 1.2; RTSP auth; ONVIF-friendly
Power / Consumption DC 12 V±25% / PoE (802.3af); Max 12.6 W
Protection / Build IP67, IK10; metal housing; −30 °C~60 °C; 4 kV surge
Dimensions / Weight Ø128.7 × 109.9 mm; 0.86 kg

What’s Included

  • IPC3K28SE-ADF28KMC-DL-I0 camera
  • Mounting hardware & quick guide

Customer Requirements

  • RJ45 Cat6 cable and PoE switch/NVR
  • Micro-SD card (optional) for edge recording
  • Compatible wall/junction bracket if required for the surface

More Information

Uniview UNV IPC3K28SE-ADF28KMC-DL-I0 Datasheet
Uniview UNV Camera Quick Start Guide
Uniview UNV Camera User Manual

Uniview UNV IPC3K28SE-ADF28KMC-DL-I0 8MP 180° Triguard ColorHunter Turret

Product form

SKU: IPC3K28SE-ADF28KMC-DL-I0

Uniview UNV IPC3K28SE-ADF28KMC-DL-I0 8MP 180° ColorHunter Turret The IPC3K28SE-ADF28KMC-DL-I0 delivers panoramic 180° coverage with 8 MP resolution, ColorHunter full-color imaging and... Read more

$455.00  $357.00 Incl. GST

    • PayPal
    • Apple Pay
    • Visa
    • Mastercard
    • American Express
    • Zip
    • Afterpay
    • Klarna
    • Shop Pay

    • Warranty: 36 months
    • 30 day money back guarantee
    • Australian Stocks & Express Delivery
    • Back-to-base Warranty & Tech Support

    Description

    Uniview UNV IPC3K28SE-ADF28KMC-DL-I0 8MP 180° ColorHunter Turret

    The IPC3K28SE-ADF28KMC-DL-I0 delivers panoramic 180° coverage with 8 MP resolution, ColorHunter full-color imaging and dual-light illumination (IR & warm light) up to 30 m. It adds red/blue warning light, AI Smart Intrusion Prevention with human/vehicle classification and color retrieval, two-way audio (dual mics + speaker), and robust IP67/IK10 construction for 24/7 security.

    Key Features

    • 8 MP 1/2.5" CMOS; 4096×1860 @ 20 fps; 130 dB true WDR
    • Double-lens splicing for 180° horizontal FOV; 2.8 mm F1.0 lens
    • Dual light: IR & warm light to 30 m; red/blue warning light
    • AI SIP: human/vehicle/non-motor classification; color retrieval; crowd/people counting
    • Audio/Alarm I/O: dual microphones, built-in speaker; 1/1 alarm; two-way audio
    • Ultra 265/H.265/H.264/MJPEG; U-Code; dual streams
    • Edge storage: micro-SD up to 512 GB; ANR/NAS
    • PoE; IP67 & IK10 metal housing (−30 °C ~ 60 °C)

    Technical Specifications

    Specification Details
    Brand / Series Uniview UNV / PrimeIII
    Model (SKU) IPC3K28SE-ADF28KMC-DL-I0
    Sensor / Resolution 1/2.5" CMOS / 8 MP (4096×1860) @ 20 fps
    Lens / Aperture 2.8 mm fixed / F1.0
    Field of View (H/V/D) 180° / 65° / 180°
    Min. Illumination Color 0.0005 lux (F1.0, AGC ON); 0 lux with light
    Illumination Dual light: IR 30 m; Warm light 30 m; red/blue warning
    WDR / Image 130 dB true WDR; 2D/3D DNR; HLC; BLC; Digital Defog; ASM
    Compression Ultra 265 / H.265 / H.264 / MJPEG; U-Code; dual streams
    AI / SIP Human/vehicle/non-motor classification; color retrieval
    Events Cross-line, intrusion, enter/leave; motion, ultra motion, tamper, audio
    Audio / Alarm 1/1 audio I/O, dual mics + speaker; 1/1 alarm I/O; two-way audio
    Edge Storage Micro-SD up to 512 GB; ANR/NAS
    Network 1× RJ45 10/100 M; HTTPS/TLS 1.2; RTSP auth; ONVIF-friendly
    Power / Consumption DC 12 V±25% / PoE (802.3af); Max 12.6 W
    Protection / Build IP67, IK10; metal housing; −30 °C~60 °C; 4 kV surge
    Dimensions / Weight Ø128.7 × 109.9 mm; 0.86 kg

    What’s Included

    • IPC3K28SE-ADF28KMC-DL-I0 camera
    • Mounting hardware & quick guide

    Customer Requirements

    • RJ45 Cat6 cable and PoE switch/NVR
    • Micro-SD card (optional) for edge recording
    • Compatible wall/junction bracket if required for the surface

    More Information

    Uniview UNV IPC3K28SE-ADF28KMC-DL-I0 Datasheet
    Uniview UNV Camera Quick Start Guide
    Uniview UNV Camera User Manual
