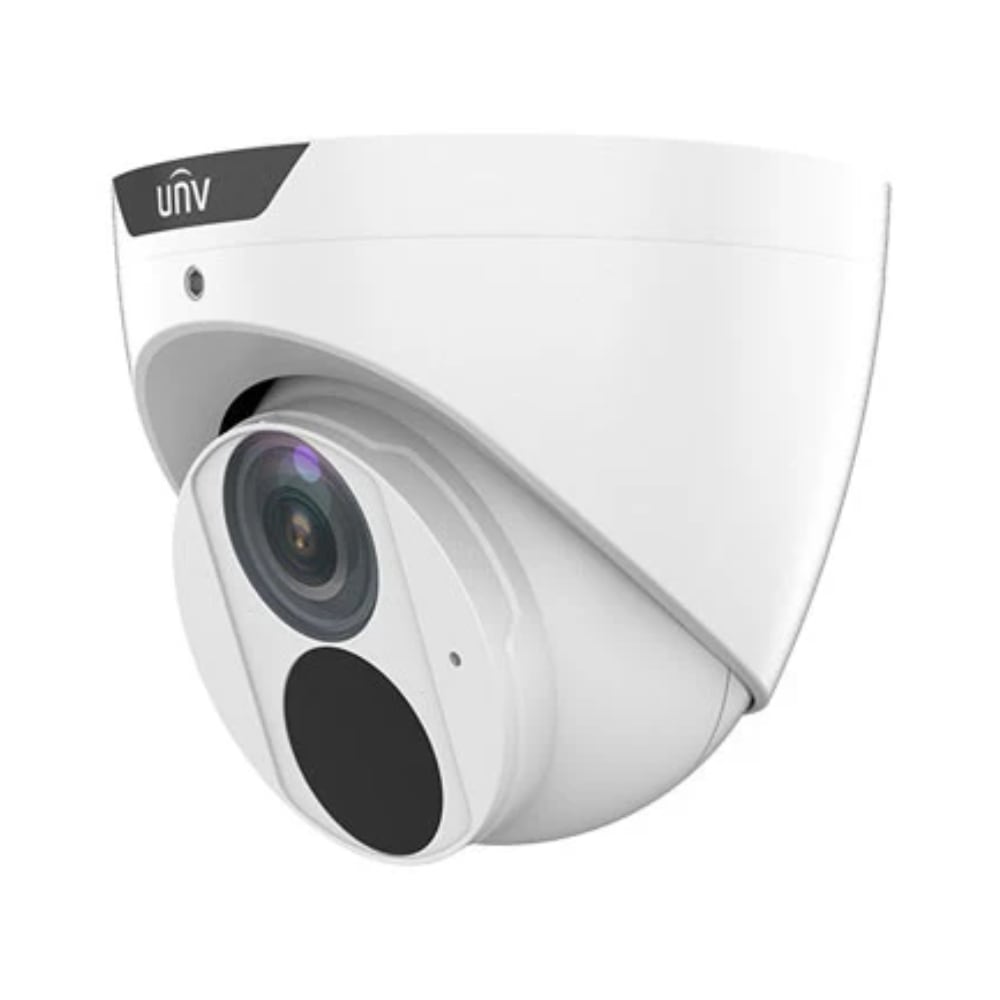

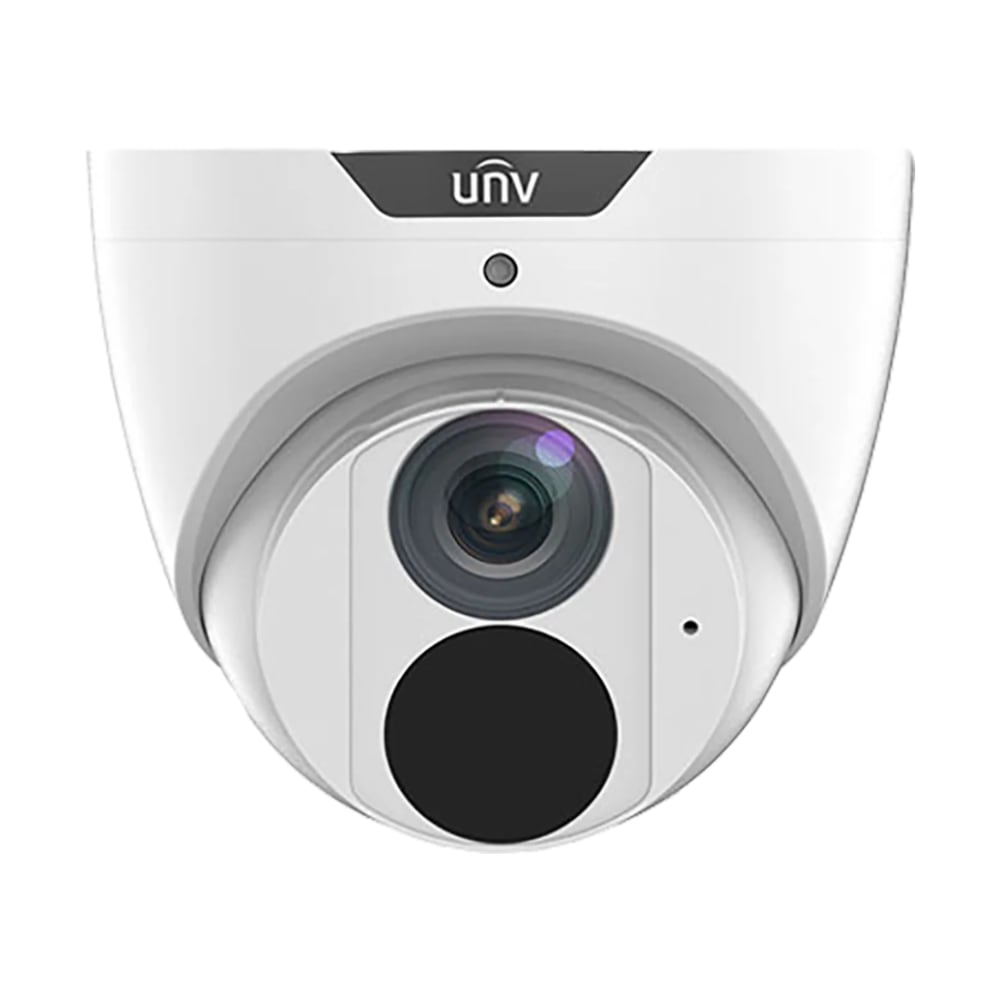

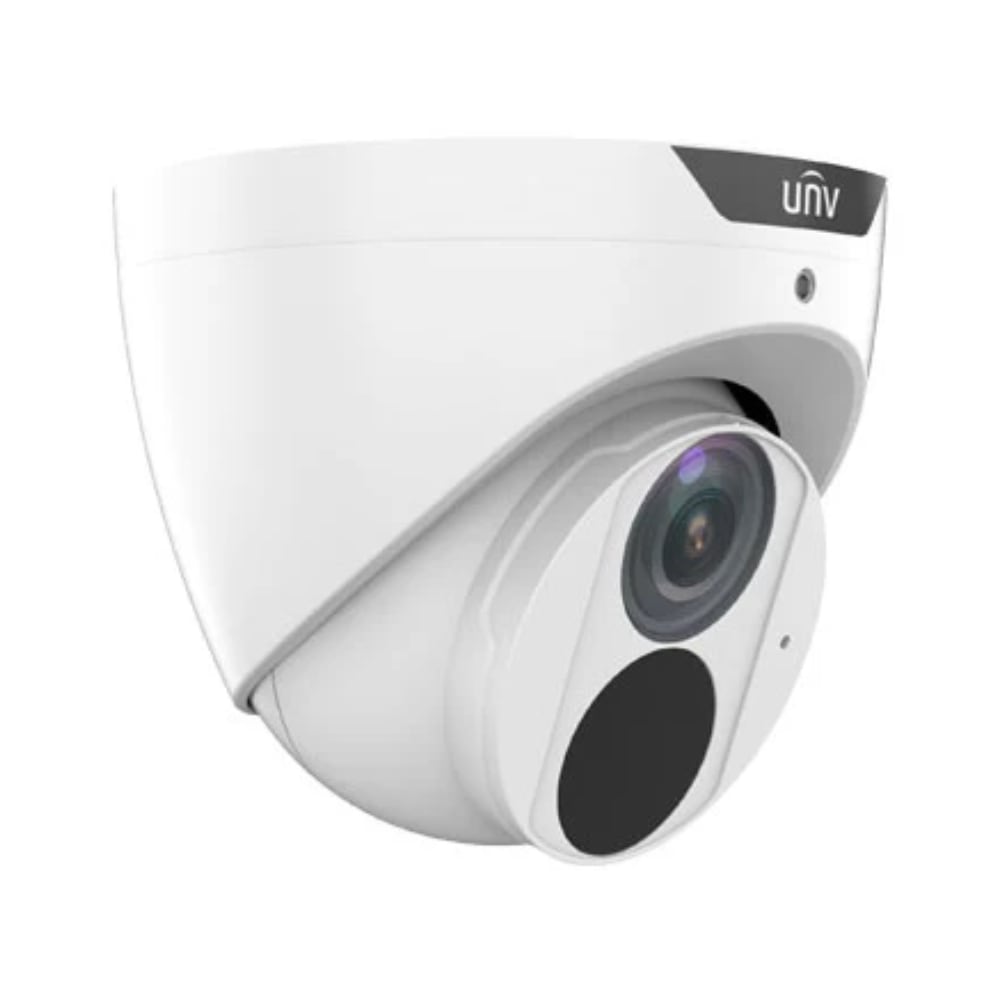

Uniview UNV IPC3616SB-ADF28KM-I0 6MP LightHunter Fixed Eyeball Camera
The Uniview UNV IPC3616SB-ADF28KM-I0 is a 6MP LightHunter fixed eyeball IP camera
that delivers clear images in low light with 120 dB WDR and Smart IR (up to ~30 m).
It supports AI events (human/vehicle filtering), has a built-in microphone, edge recording,
and simple PoE installation in an IP67 housing—ideal for homes, retail, and SMB.
Key Features
- 6MP (up to 3072×2048) LightHunter imaging; 120 dB WDR, 2D/3D DNR
- AI smart detection (human/vehicle), intrusion & line-cross filtering
- Smart IR night vision up to ~30 m; ICR day/night
- Built-in microphone; Ultra 265/H.265/H.264
- microSD slot (up to 256 GB) for edge storage
- PoE (802.3af) or 12 V DC; IP67 weather resistance
Technical Specifications
| Brand |
Uniview UNV |
| Model (SKU) |
IPC3616SB-ADF28KM-I0 |
| Sensor / Max Resolution |
6MP CMOS / up to 3072×2048 |
| Lens |
2.8 mm fixed (family variant) |
| Low-light / IR |
LightHunter; Smart IR ~30 m; ICR |
| Dynamic Range |
120 dB WDR |
| Compression |
Ultra 265 / H.265 / H.264 |
| Audio |
Built-in microphone |
| Storage |
microSD up to 256 GB; ANR/NAS |
| Power |
PoE (802.3af) or 12 V DC |
| Ingress Protection |
IP67 |
More Information
UNV IPC3616SB-ADF28KM-I0 Datasheet
UNV IPC3600 Series-Network Mini Dome Cameras Quick Guide-V1
UNV Network Cameras User Manual-V3.00
