Uniview UNV NVR501-04B-P4-IQ 4-Channel PoE AI Network Video Recorder, ONVIF Support

Description

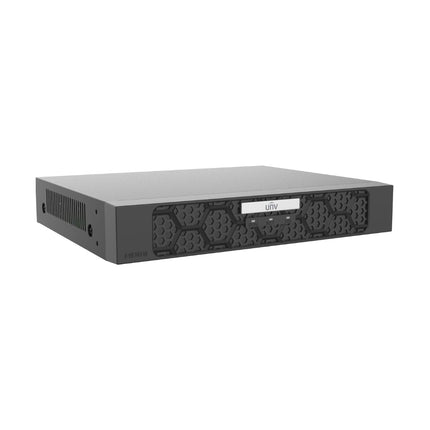

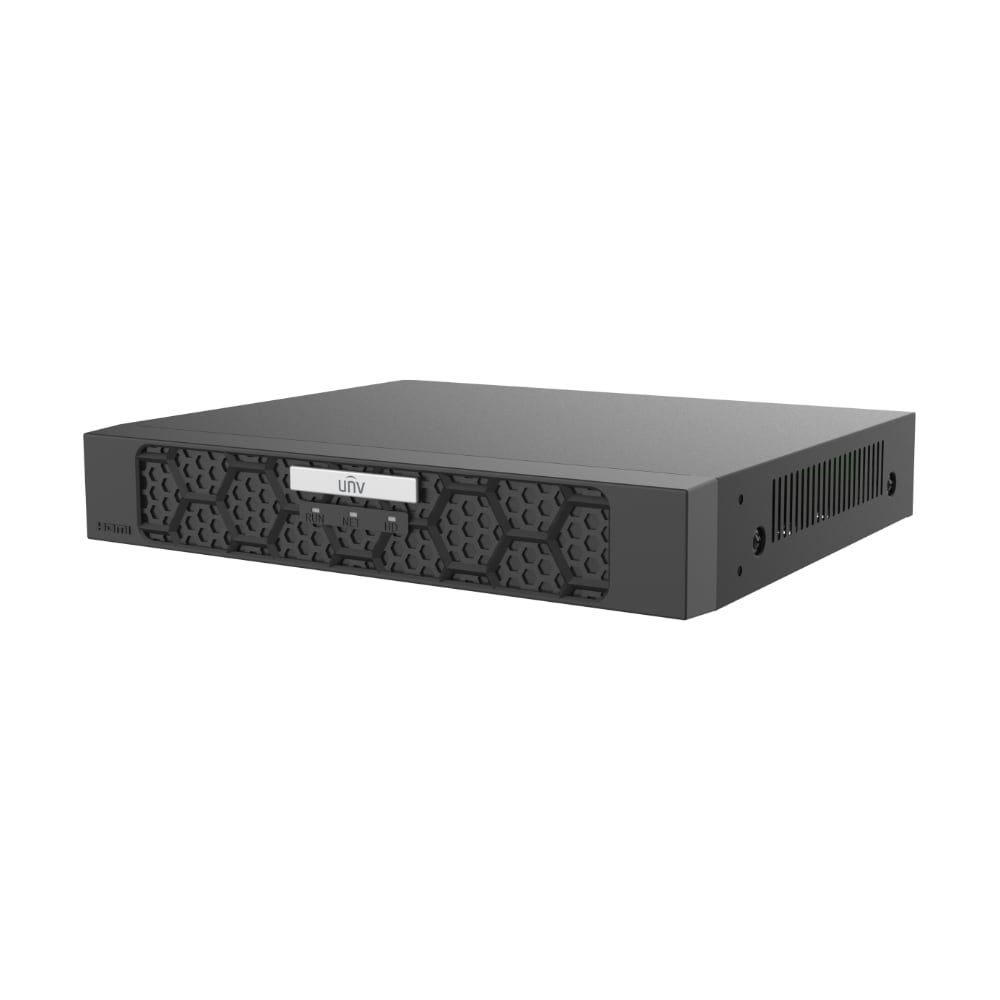

Uniview UNV NVR501-04B-P4-IQ 4-Channel PoE Network Video Recorder

The Uniview NVR501-04B-P4-IQ is a compact 4-channel network video recorder designed for small to medium-sized surveillance systems. Featuring four built-in PoE ports, Ultra 265/H.265/H.264 compression, and up to 4K HDMI output, it delivers reliable high-resolution video recording while minimizing bandwidth and storage needs. ANR (Automatic Network Replenishment) ensures video continuity during network interruptions, and ONVIF compatibility allows integration with a wide range of IP cameras.

Features

  • Channels: 4 IP video inputs
  • PoE Ports: 4 × PoE (IEEE 802.3at/af), up to 30 W per port, 50 W total
  • Video Compression: Ultra 265, H.265, H.264
  • Max Recording Resolution: Up to 16 MP
  • Video Output: 1 × HDMI (up to 4K) and 1 × VGA – simultaneous display
  • Storage: 1 × SATA HDD bay, supports up to 8 TB (some models up to 16 TB)
  • Smart Functions: Face detection, SIP, UMD, people counting (via NVR)
  • Compatibility: ONVIF Profiles S/G/T, RTSP
  • ANR Support: Yes – prevents recording loss during network outages
  • USB Ports: 1 × USB2.0 (front), 1 × USB3.0 (rear)
  • Power Consumption: ≤ 8 W (without HDD)
  • Operating Temperature: –10 °C to 50 °C
  • Certifications: CE, FCC, UL, RoHS, WEEE

Highlights

  • Plug-and-Play Installation: Four independent PoE ports allow simple camera connection without extra switches.
  • 4K Display Support: HDMI output up to 3840 × 2160 resolution for crystal-clear monitoring.
  • Bandwidth Efficiency: Ultra 265 compression reduces storage and bandwidth costs by up to 75%.
  • Advanced Analytics: Face detection, intrusion detection, and people counting without requiring analytic cameras.
  • Reliable Storage: ANR keeps recording even during network failures by caching to the camera’s SD card and syncing when the network restores.
  • Broad Compatibility: Works with Uniview cameras and other ONVIF/RTSP compliant brands.
  • Compact & Efficient: Small 1U design, low power usage, and silent operation – ideal for homes, offices, and retail stores.

Technical Specifications

Specification Details
Model NVR501-04B-P4-IQ
Video Compression Ultra 265, H.265, H.264
Channels (IP Input) 4 IP channels
PoE Ports 4× PoE (IEEE 802.3at/af), up to 30 W per port, 50 W total
Video Output 1× HDMI (up to 4K), 1× VGA – simultaneous
Max Recording Resolution 16 MP
Smart Features Face Detection, SIP, UMD, People Counting (NVR-level)
Compatibility ONVIF S/G/T, RTSP
Storage 1× SATA HDD, up to 8TB
ANR Yes – Automatic Network Replenishment
Live Display Modes 1/4 view
Playback Up to 16-channel playback
Snapshot Up to 8 MP input, 1080P snapshot
Network Bandwidth Input 80 Mbps, Output 80 Mbps
USB Ports 1× USB2.0 (front), 1× USB3.0 (rear)
Power Consumption ≤ 8 W (without HDD)
Operating Temp –10 °C to 50 °C
Certifications CE, FCC, UL, RoHS, WEEE
Dimensions 260 × 215 × 46.6 mm (1U)
Weight ≤ 1 kg (without HDD)

More Information

NVR501-04B-P4-IQ Datasheet
Uniview UNV NVR Quick Start Guide
Uniview UNV NVR501-04B-P4-IQ Dimension

Uniview UNV NVR501-04B-P4-IQ 4-Channel PoE AI Network Video Recorder, ONVIF Support

Product form

SKU: NVR501-04B-P4-IQ

Uniview UNV NVR501-04B-P4-IQ 4-Channel PoE Network Video Recorder The Uniview NVR501-04B-P4-IQ is a compact 4-channel network video recorder designed for... Read more

$292.00  $226.00 Incl. GST

    • PayPal
    • Apple Pay
    • Visa
    • Mastercard
    • American Express
    • Zip
    • Afterpay
    • Klarna
    • Shop Pay

    » Find this item cheaper? We will beat it by 5%. Chat now!

    Add Ons & Accessories

    • Warranty: 36 months
    • 30 day money back guarantee
    • Australian Stocks & Express Delivery
    • Back-to-base Warranty & Tech Support

    Description

    Uniview UNV NVR501-04B-P4-IQ 4-Channel PoE Network Video Recorder

    The Uniview NVR501-04B-P4-IQ is a compact 4-channel network video recorder designed for small to medium-sized surveillance systems. Featuring four built-in PoE ports, Ultra 265/H.265/H.264 compression, and up to 4K HDMI output, it delivers reliable high-resolution video recording while minimizing bandwidth and storage needs. ANR (Automatic Network Replenishment) ensures video continuity during network interruptions, and ONVIF compatibility allows integration with a wide range of IP cameras.

    Features

    • Channels: 4 IP video inputs
    • PoE Ports: 4 × PoE (IEEE 802.3at/af), up to 30 W per port, 50 W total
    • Video Compression: Ultra 265, H.265, H.264
    • Max Recording Resolution: Up to 16 MP
    • Video Output: 1 × HDMI (up to 4K) and 1 × VGA – simultaneous display
    • Storage: 1 × SATA HDD bay, supports up to 8 TB (some models up to 16 TB)
    • Smart Functions: Face detection, SIP, UMD, people counting (via NVR)
    • Compatibility: ONVIF Profiles S/G/T, RTSP
    • ANR Support: Yes – prevents recording loss during network outages
    • USB Ports: 1 × USB2.0 (front), 1 × USB3.0 (rear)
    • Power Consumption: ≤ 8 W (without HDD)
    • Operating Temperature: –10 °C to 50 °C
    • Certifications: CE, FCC, UL, RoHS, WEEE

    Highlights

    • Plug-and-Play Installation: Four independent PoE ports allow simple camera connection without extra switches.
    • 4K Display Support: HDMI output up to 3840 × 2160 resolution for crystal-clear monitoring.
    • Bandwidth Efficiency: Ultra 265 compression reduces storage and bandwidth costs by up to 75%.
    • Advanced Analytics: Face detection, intrusion detection, and people counting without requiring analytic cameras.
    • Reliable Storage: ANR keeps recording even during network failures by caching to the camera’s SD card and syncing when the network restores.
    • Broad Compatibility: Works with Uniview cameras and other ONVIF/RTSP compliant brands.
    • Compact & Efficient: Small 1U design, low power usage, and silent operation – ideal for homes, offices, and retail stores.

    Technical Specifications

    Specification Details
    Model NVR501-04B-P4-IQ
    Video Compression Ultra 265, H.265, H.264
    Channels (IP Input) 4 IP channels
    PoE Ports 4× PoE (IEEE 802.3at/af), up to 30 W per port, 50 W total
    Video Output 1× HDMI (up to 4K), 1× VGA – simultaneous
    Max Recording Resolution 16 MP
    Smart Features Face Detection, SIP, UMD, People Counting (NVR-level)
    Compatibility ONVIF S/G/T, RTSP
    Storage 1× SATA HDD, up to 8TB
    ANR Yes – Automatic Network Replenishment
    Live Display Modes 1/4 view
    Playback Up to 16-channel playback
    Snapshot Up to 8 MP input, 1080P snapshot
    Network Bandwidth Input 80 Mbps, Output 80 Mbps
    USB Ports 1× USB2.0 (front), 1× USB3.0 (rear)
    Power Consumption ≤ 8 W (without HDD)
    Operating Temp –10 °C to 50 °C
    Certifications CE, FCC, UL, RoHS, WEEE
    Dimensions 260 × 215 × 46.6 mm (1U)
    Weight ≤ 1 kg (without HDD)

    More Information

    NVR501-04B-P4-IQ Datasheet
    Uniview UNV NVR Quick Start Guide
    Uniview UNV NVR501-04B-P4-IQ Dimension
