Description

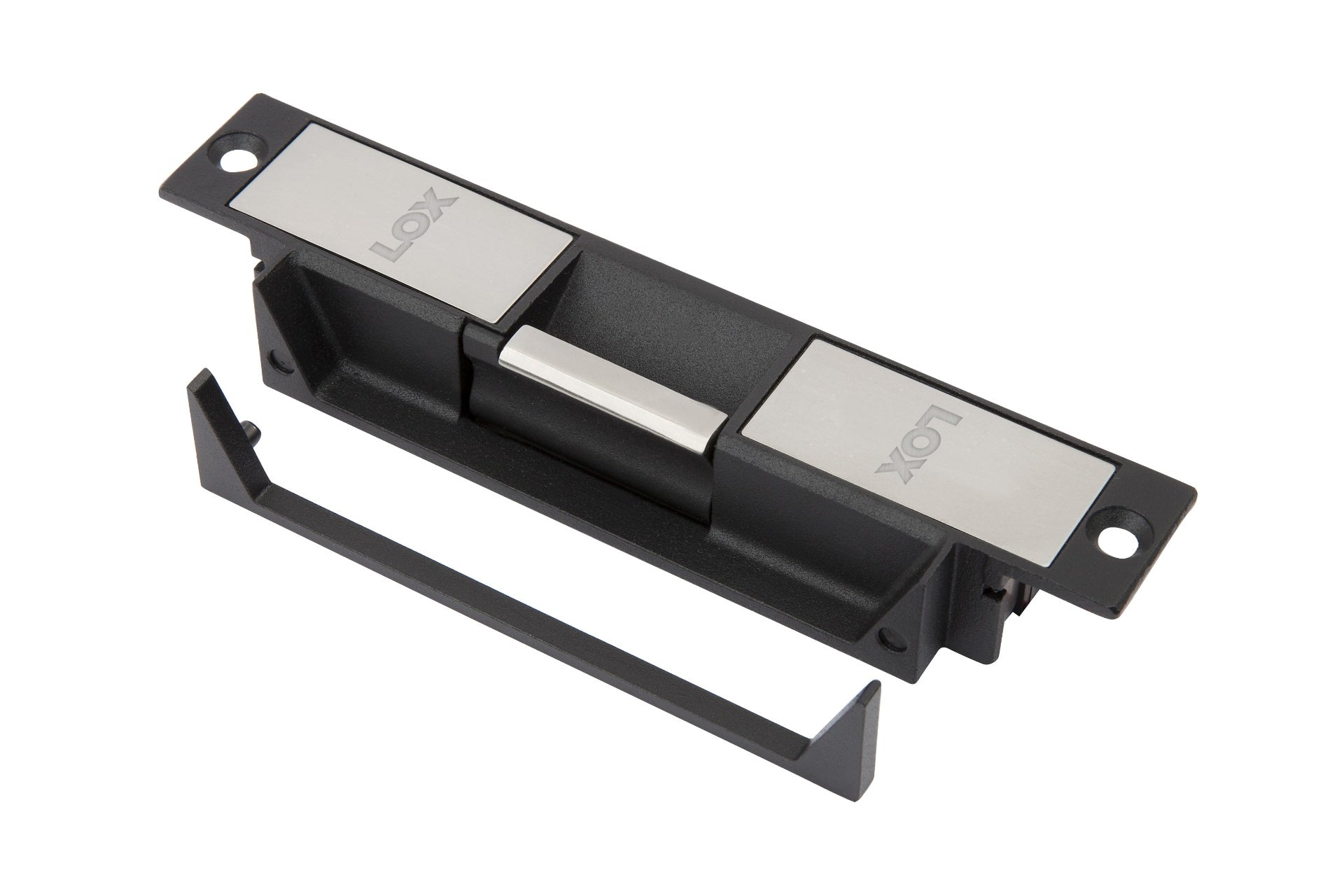

LOX ES20 High Security Electric Strike | Mortice Mount | 10–30VDC | Fire Rated
The LOX ES20 is one of Australia's most trusted commercial electric strikes, engineered for high-security mortice mount applications. Built from stainless steel with a wide multi-voltage input range, site-switchable fail modes, and up to 4-hour fire rating to Australian Standards, the ES20 is the go-to choice for security installers and facilities managers who need proven, long-lasting performance.
Key Features
-
1100kg Holding Force — one of the strongest electric strikes in its category
-
Multi-Voltage (10–30VDC) — compatible with virtually any access control or alarm power supply
-
Site-Switchable Fail Mode — change between Fail-Secure and Fail-Safe on-site with a small screwdriver, no rewiring required
-
Up to 4-Hour Fire Rating — certified to Australian Standards (AS), CE & RCM (C-Tick) approved
-
Stainless Steel Construction — corrosion-resistant and built for demanding commercial environments
-
10mm Strike Lip — reduces risk of personal injury and clothing damage compared to 15mm lip strikes; pre-drilled for extension lips in various sizes
-
No Loose Pins or Springs — simplified internals for reliable, low-maintenance operation
-
5-Year Warranty — backed by LOX’s commercial-grade quality assurance
-
Australian Profile — designed specifically for Australian door hardware profiles
Use Cases
-
Commercial Office Buildings — secure entry doors, server rooms, and restricted access areas
-
Healthcare Facilities — ward entries, pharmacy doors, and controlled access zones
-
Education — school and university access control on fire-rated doors
-
Government & Institutional — high-security doors requiring fire-rated electric locking
-
Retail & Hospitality — staff entries, back-of-house doors, and secure storage rooms
-
Strata & Residential Complexes — common area doors and lift lobby access
Technical Specifications
| Model |
LOX ES20 (Non-Monitored) |
| Mounting Type |
Mortice Mount |
| Holding Force |
Up to 1100kg |
| Operating Voltage |
10–30VDC (Multi-Voltage) |
| Current Draw |
250mA @ 12VDC / 125mA @ 24VDC |
| Fail Mode |
Fail-Secure / Fail-Safe (site switchable) |
| Strike Lip |
10mm standard (pre-drilled for extension lips) |
| Fire Rating |
Up to 4 hours (to Australian Standards) |
| Approvals |
CE, RCM (C-Tick) |
| Operating Temperature |
−20°C to +60°C |
| Material |
Stainless Steel |
| Monitoring |
Non-Monitored |
| Warranty |
5 Years |
| SKU |
ES20 |
| Brand |
LOX |
Downloads
Frequently Asked Questions
Is the LOX ES20 fire rated?
Yes. The ES20 is fire rated to up to 4 hours in accordance with Australian Standards, and carries CE and RCM (C-Tick) approvals, making it suitable for installation on fire-rated doors in commercial and institutional buildings.
What is the difference between Fail-Secure and Fail-Safe?
Fail-Secure keeps the door locked when power is lost — best for security-critical areas. Fail-Safe releases the door when power is lost — required for fire egress compliance. The ES20 can be switched between both modes on-site with a screwdriver, no rewiring needed.
Why does the ES20 have a 10mm strike lip instead of 15mm?
The 10mm lip reduces the risk of personal injury and clothing snagging compared to standard 15mm lip strikes. The ES20 is also pre-drilled to accept extension lips in various sizes if a longer lip is required for your door hardware.
Is the ES20 compatible with my existing access control system?
Very likely yes. The ES20 accepts any DC voltage between 10V and 30V, drawing 250mA at 12VDC or 125mA at 24VDC, making it compatible with the vast majority of access control panels and power supplies used in Australia.
