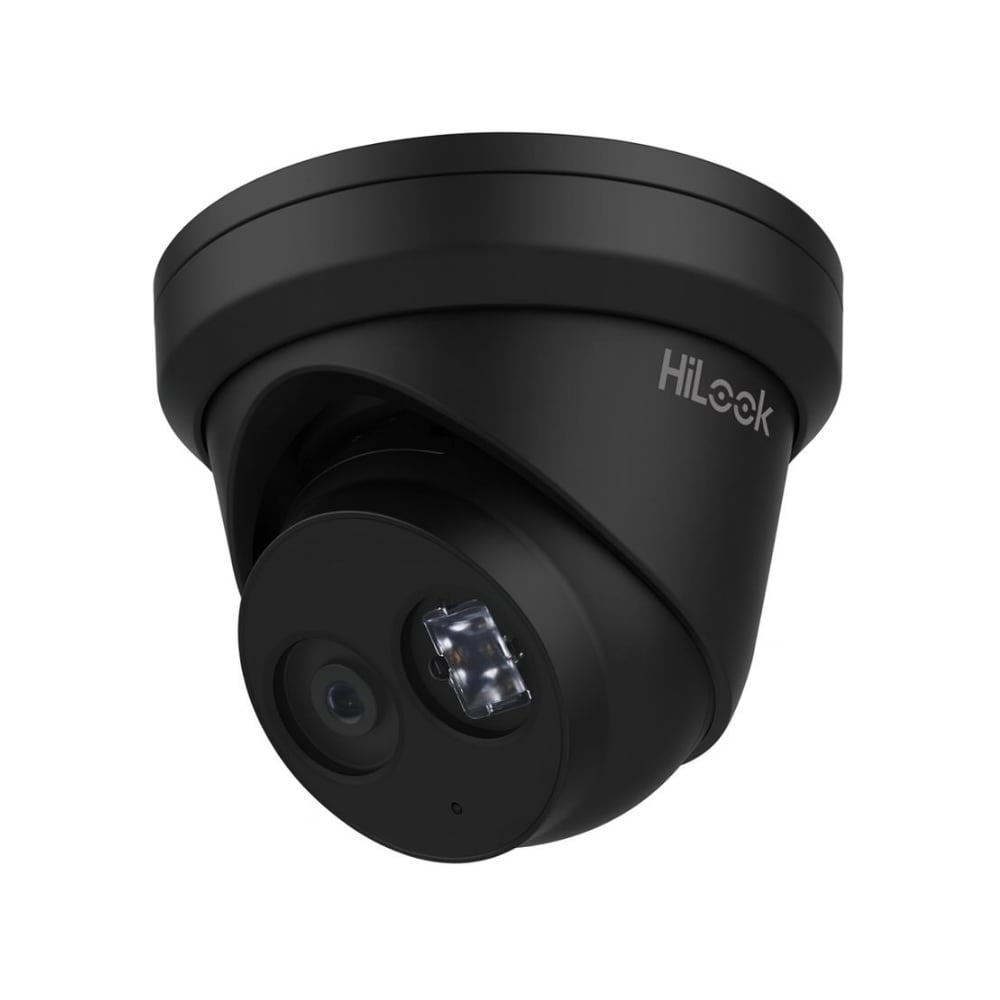

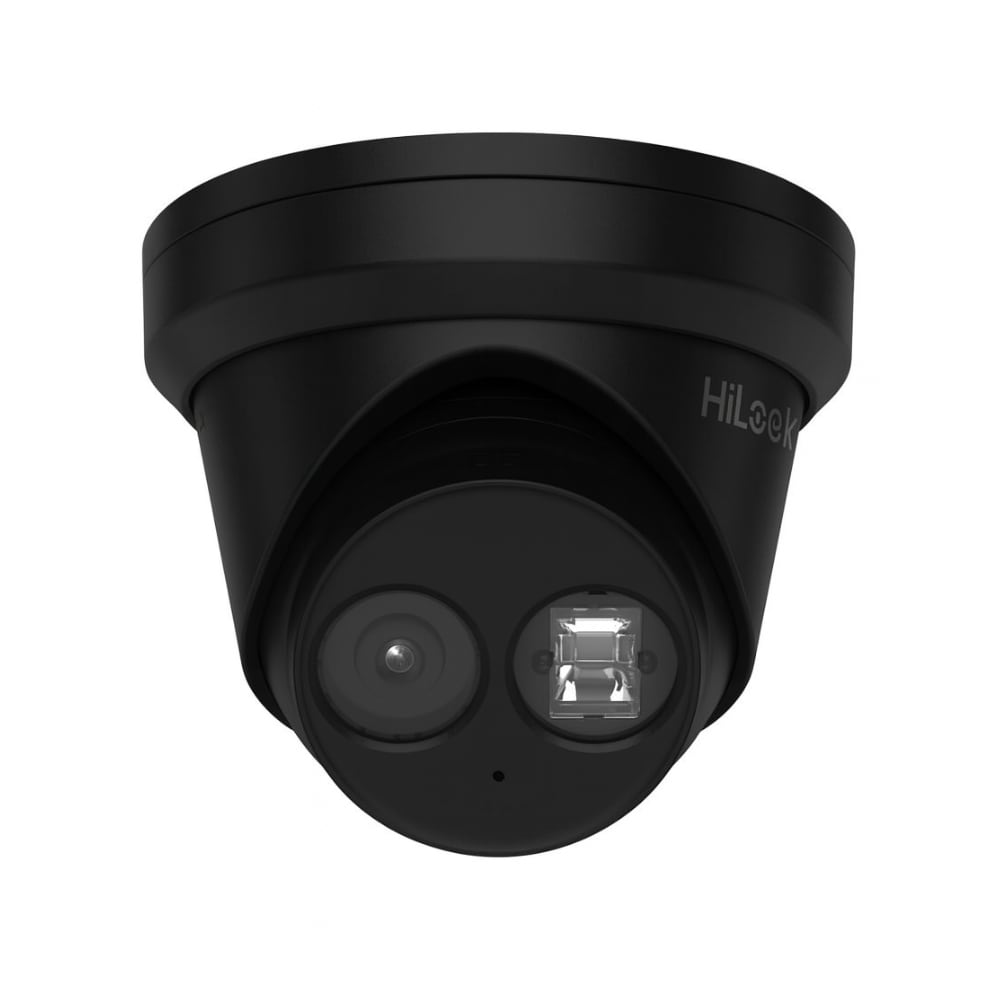

HiLook IPC-T261H-MU(2.8mm) 6 MP AI Fixed Turret Network Camera

Description

HiLook IPC-T261H-MU(2.8mm) 6 MP AI Fixed Turret Network Camera

  • High quality imaging with 6 MP resolution
  • Efficient H.265+ compression technology
  • Clear imaging against strong backlight due to 120 dB WDR technology
  • Focusing on human and vehicle classification based on deep learning
  • -U: Built-in microphone for real-time audio security
  • Water and dust resistant (IP67)

Camera

  • Image Sensor: 1/2.8" Progressive Scan CMOS
  • Min. Illumination: Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR
  • Shutter Speed: 1/3 s to 1/100,000 s
  • Slow Shutter: Yes
  • P/N: P/N
  • Wide Dynamic Range: 120 dB
  • Day & Night: IR cut filter
  • Angle Adjustment: Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360°
  • Max. Resolution: 3200 × 1800

Lens

  • Lens Type: Fixed focal lens, 2.8 and 4 mm optional
  • Focal Length & FOV: 2.8 mm, horizontal FOV 107°, vertical FOV 57°, diagonal FOV 128°, 4 mm, horizontal FOV 87°, vertical FOV 46°, diagonal FOV 105°
  • Iris Type: Fixed
  • Aperture: F1.6
  • Lens Mount: M12

DORI

  • DORI: 2.8 mm: D: 73 m, O: 29 m, R: 15 m, I: 7 m, 4 mm: D: 90 m, O: 35 m, R: 18 m, I: 9 m

Illuminator

  • Supplement Light Type: IR
  • Smart Supplement Light: Yes
  • IR Wavelength: 850 nm
  • IR Range: Up to 30 m
  • Supplement Light Range: Up to 30 m

Audio

  • Audio Compression: -U: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC
  • Audio Bit Rate: -U: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/16 Kbps to 64 Kbps (AAC)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)
  • Audio Sampling Rate: -U: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
  • Environment Noise Filtering: -U: Yes


  • Image Parameters Switch: Yes
  • Image Settings: Rotate, mirror, privacy mask, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
  • Day/Night Switch: Day, Night, Auto, Schedule
  • Image Enhancement: BLC, HLC, 3D DNR
  • SNR: ≥ 52 dB
  • Wide Dynamic Range (WDR): 120 dB

Interface

  • Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port
  • On-Board Storage: Built-in memory card slot, support microSD/SDHC/SDXC card, up to 256 GB
  • Built-In Microphone: -U: yes
  • Hardware Reset: Yes

Download

Data Sheet

HiLook IPC-T261H-MU(2.8mm) 6 MP AI Fixed Turret Network Camera

Product form

SKU: IPC-T261H-MU(2.8mm)

HiLook IPC-T261H-MU(2.8mm) 6 MP AI Fixed Turret Network Camera High quality imaging with 6 MP resolution Efficient H.265+ compression technology... Read more

$151.00 $110.00 Incl. GST

    • Warranty: 36 months
    • 30 day money back guarantee
    • Australian Stocks & Express Delivery
    • Back-to-base Warranty & Tech Support
      • PayPal
      • Apple Pay
      • Visa
      • Mastercard
      • Zip
      • Klarna
      • Afterpay

      Description

      HiLook IPC-T261H-MU(2.8mm) 6 MP AI Fixed Turret Network Camera

      • High quality imaging with 6 MP resolution
      • Efficient H.265+ compression technology
      • Clear imaging against strong backlight due to 120 dB WDR technology
      • Focusing on human and vehicle classification based on deep learning
      • -U: Built-in microphone for real-time audio security
      • Water and dust resistant (IP67)

      Camera

      • Image Sensor: 1/2.8" Progressive Scan CMOS
      • Min. Illumination: Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR
      • Shutter Speed: 1/3 s to 1/100,000 s
      • Slow Shutter: Yes
      • P/N: P/N
      • Wide Dynamic Range: 120 dB
      • Day & Night: IR cut filter
      • Angle Adjustment: Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360°
      • Max. Resolution: 3200 × 1800

      Lens

      • Lens Type: Fixed focal lens, 2.8 and 4 mm optional
      • Focal Length & FOV: 2.8 mm, horizontal FOV 107°, vertical FOV 57°, diagonal FOV 128°, 4 mm, horizontal FOV 87°, vertical FOV 46°, diagonal FOV 105°
      • Iris Type: Fixed
      • Aperture: F1.6
      • Lens Mount: M12

      DORI

      • DORI: 2.8 mm: D: 73 m, O: 29 m, R: 15 m, I: 7 m, 4 mm: D: 90 m, O: 35 m, R: 18 m, I: 9 m

      Illuminator

      • Supplement Light Type: IR
      • Smart Supplement Light: Yes
      • IR Wavelength: 850 nm
      • IR Range: Up to 30 m
      • Supplement Light Range: Up to 30 m

      Audio

      • Audio Compression: -U: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC
      • Audio Bit Rate: -U: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/16 Kbps to 64 Kbps (AAC)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)
      • Audio Sampling Rate: -U: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
      • Environment Noise Filtering: -U: Yes


      • Image Parameters Switch: Yes
      • Image Settings: Rotate, mirror, privacy mask, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
      • Day/Night Switch: Day, Night, Auto, Schedule
      • Image Enhancement: BLC, HLC, 3D DNR
      • SNR: ≥ 52 dB
      • Wide Dynamic Range (WDR): 120 dB

      Interface

      • Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port
      • On-Board Storage: Built-in memory card slot, support microSD/SDHC/SDXC card, up to 256 GB
      • Built-In Microphone: -U: yes
      • Hardware Reset: Yes

      Download

      Data Sheet
