Description

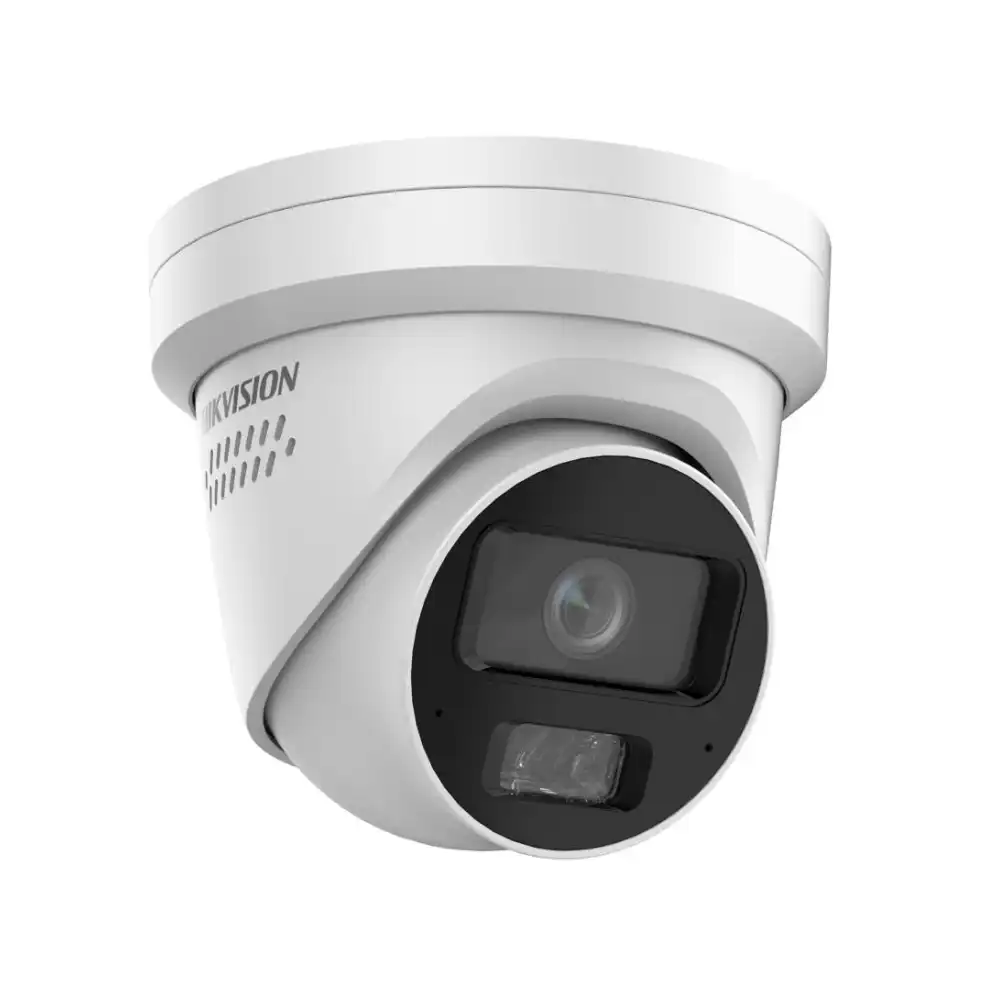

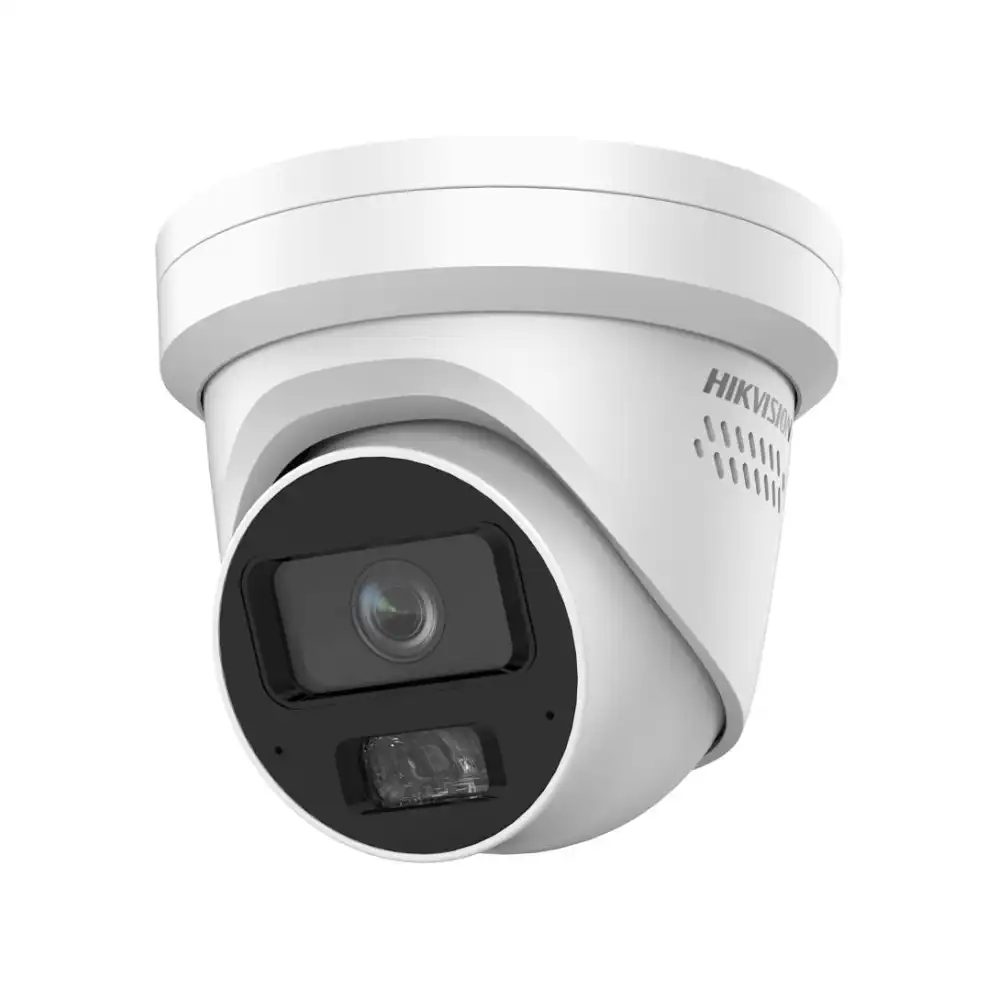

The Hikvision iDS‑2CD7347G0/P‑XS is a 4 MP DeepinView IP camera with a fixed 4 mm lens, advanced hybrid illumination (IR + white light) up to 40 m, and built‑in AI analytics. Designed for reliable outdoor surveillance with excellent low‑light performance and enhanced target detection.
Key Features
-
4 MP high‑resolution imaging for detailed surveillance video.
-
1/1.8″ Progressive Scan CMOS sensor with excellent low‑light sensitivity.
-
4 mm fixed lens with wide field of view (~94.7° horizontal).
-
Hybrid illumination (IR + white light) for clear imaging in darkness up to ~40 m.
-
Smart supplement light to enhance image quality with dynamic lighting.
-
DeepinView AI analytics for human/vehicle metadata & smart event detection.
-
Wide Dynamic Range (WDR) and IR cut filter for balanced lighting performance.
-
IP67 weatherproof housing for outdoor durability.
-
HEOP 2.0 open platform support with 1.5 TOPS computing power.
Technical Specification
| Specification |
Details |
| Model |
iDS‑2CD7347G0/P‑XS |
| Image Sensor |
1/1.8″ Progressive Scan CMOS |
| Resolution |
2688 × 1520 (4 MP) |
| Lens |
4 mm fixed lens – H: ~94.7°, V: ~49.4°, D: ~112.6° |
| Minimum Illumination |
0.0003 Lux (color) / 0.0001 Lux (B/W) / 0 Lux with light |
| Illumination Type |
Hybrid (IR + White Light), Up to ~40 m |
| Smart Supplement Light |
Yes |
| Day/Night |
IR cut filter (blue glass to reduce ghosting) |
| AI Platform |
HEOP 2.0 Open Platform, 1.5 TOPS |
| Smart Analytics |
Human/Vehicle detection & metadata |
| Video Streams |
Main, Sub, Third (Multiple resolutions) |
| Video Compression |
H.265+/H.265/H.264+/H.264 |
| Protection |
IP67 weatherproof |
| Operating Temp. |
‑30 °C to +60 °C |
