Streamline your commercial security and data installations with the Hikvision Essential Networking Bundle. This commercial-grade trade kit pairs Hikvision’s high-performance 305-metre Cat6 UTP cable with their premium, high-thickness 30μ gold-plated RJ45 modular plugs. Purpose-built for system integrators, this bundle ensures flawless compatibility, elite Power over Ethernet (PoE) delivery, and uncompromised gigabit data integrity across your entire IP surveillance ecosystem.
Why Choose This Matched Bundle?
Avoid the structural signal drops, termination failures, and voltage fluctuations caused by mixing mismatched cable brands and low-grade connectors. By utilizing a fully single-brand Hikvision infrastructure path, you guarantee optimal physical connection sizing and certified channel performance for high-bitrate security networks.

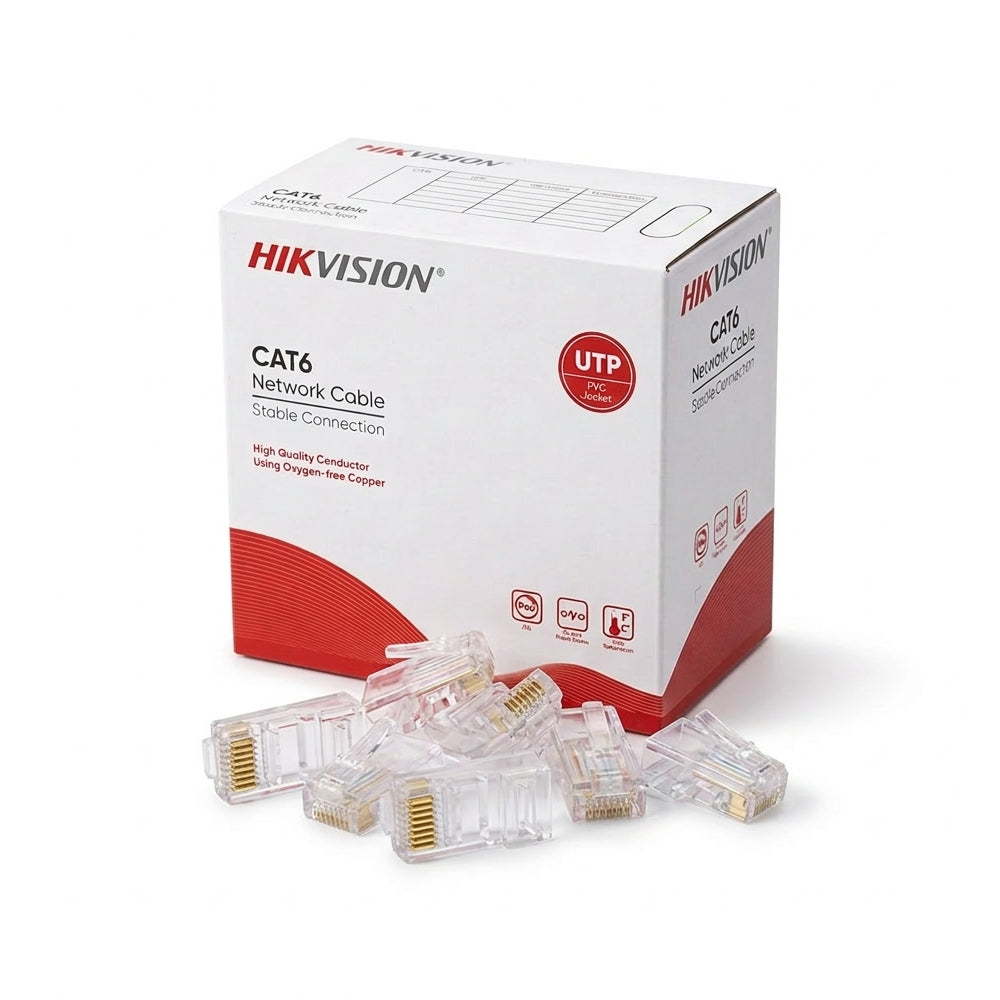

What's Included:
-
1 x Hikvision DS-1LN6UZC0 – 305m Cat6 UTP Cable Solid Bare Copper (Blue)
-
1 x Hikvision DS-1M6UA-30U-100 – 100-Pack Cat6 Unshielded RJ45 Plugs (30μ Gold-Plated)
Key Infrastructure Benefits
-
PoE Optimized Performance: The DS-1LN6UZC0 solid copper cable is thoroughly channel-tested up to 100 metres under 57V/1A DC power loads, ensuring safe, continuous deployment for PoE, PoE+, and high-draw PTZ cameras.
-
Premium 30μ Gold-Plated Contacts: The upgraded DS-1M6UA-30U-100 plugs feature an ultra-thick 30 micro-inch gold layer. This provides maximum durability against environmental corrosion and high physical insertion wear compared to standard 15μ variations.
-
Durable Construction & High Tensile Strength: The cable's structural jacket is engineered to withstand difficult conduit pulls without jacket tearing, while the flame-retardant UL94V-2 plugs provide rock-solid mechanical retention.
-
Certified Standards Compliance: Fully verified and compliant with strict international ANSI/TIA-568.2-D and ISO/IEC11801 infrastructure standards.
Technical Specifications
| Feature |
Bundle Specification Details |
| Cable Model |
DS-1LN6UZC0 (305 Metre Roll) |
| Connector Model |
DS-1M6UA-30U-100 (100 Plugs Included) |
| Cable Type |
Category 6 (Cat6) Unshielded Twisted Pair (UTP) |
| Conductor Material |
Solid Bare Copper (0.50 mm ± 0.005 mm) |
| Contact Plating (Plugs) |
30 Micro-Inch (30μ) Heavy Gold Plated |
| Transmission Rate |
Gigabit Ethernet Ready (1000Base-T) |
| Thermal Threshold |
Stable performance maintained even at 50°C ambient temperature |
More Information
Frequently Asked Questions
Is the copper cable pure copper or CCA?
The Hikvision DS-1LN6UZC0 included in this bundle is made of 100% Solid Bare Copper. It is completely safe and certified for Power over Ethernet (PoE) runs, unlike cheaper Copper Clad Aluminium (CCA) alternatives.
Why are the 30U plugs better for this installation cable?
The 30-micron (30μ) gold plating is significantly thicker than standard residential plugs. This provides premium environmental resistance to humidity and oxidisation, ensuring your CCTV field connections maintain stable link speeds for years.
Are the plugs pass-through or standard load-bar type?
The DS-1M6UA-30U-100 plugs are standard non-pass-through, unshielded 8P8C high-integrity connectors designed to perfectly receive the 0.50mm internal copper cores of the accompanying cable.
