Description

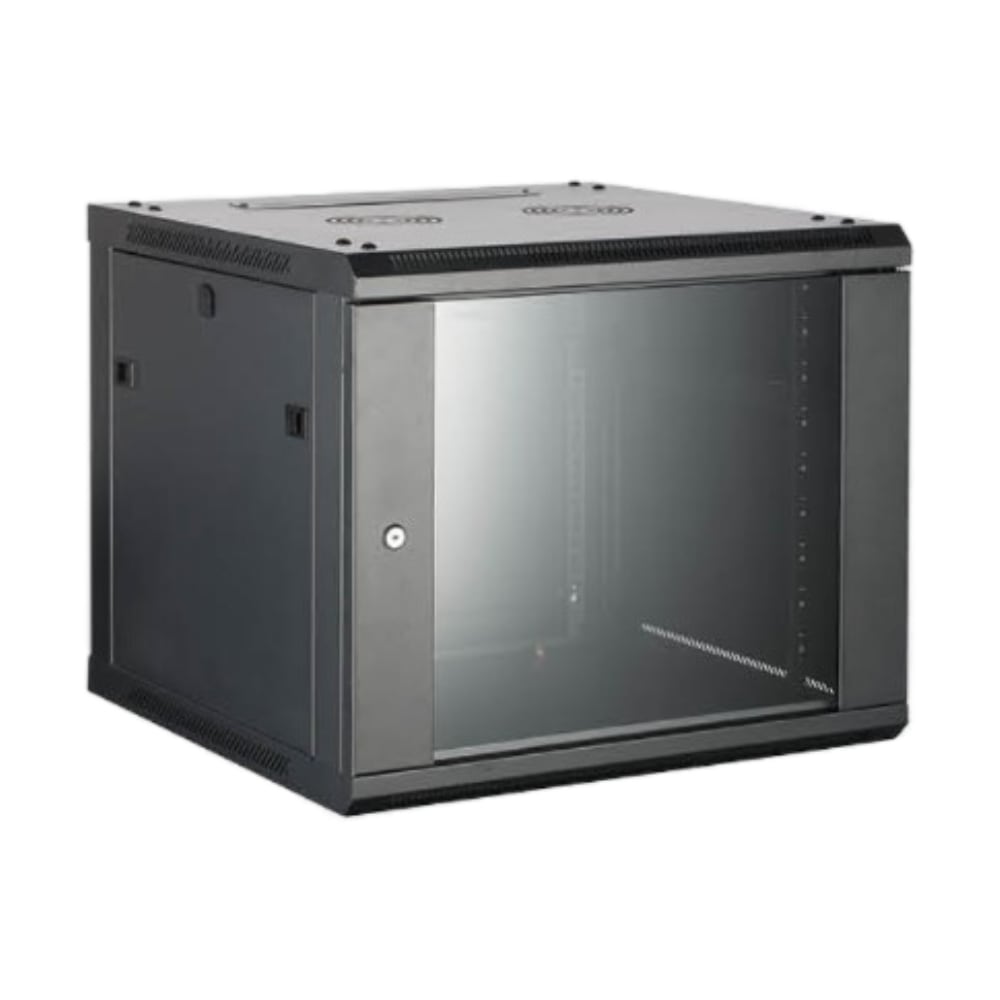

Hikvision Rack Cabinet, 4U/ 6U/ 9U/ 12U, 450mm Deep, Wall-Mount, 4mm Glass, 78% Access (S-XS6404-S/B)
The Hikvision Rack Cabinet is a wall-mounted solution available in 4U, 6U, 9U, and 12U sizes with a consistent 450mm depth. It features a sturdy construction using SPCC steel of varying thicknesses and a 4mm glass front door that offers 78% access for easy equipment visibility and maintenance. Each size has precise dimensions to fit diverse installation needs, supporting a static load capacity of 40kg. Designed for professional environments, this cabinet ensures secure housing of networking and surveillance equipment with reliable mounting brackets and robust panels.
Specifications
- Installation Method: Wall-mounted
- Internal Space: Choose 4U/ 6U/ 9U/ 12U
- Net Weight (Kg): 14.5/ 14.5/ 18.7/ 21
- Static Load Capacity: 40KG
- Dimensions (W*D*H) for 4U Cabinet: 600*450*281mm
(SKU: DS-XS6404-S/B)
-
Dimensions (W*D*H) for 6U Cabinet: 600*450*370mm
(SKU: DS-XS6406-S/B)
-
Dimensions (W*D*H) for 9U Cabinet: 600*450*500mm
(SKU: DS-XS6409-S/B)
-
Dimensions (W*D*H) for 12U Cabinet: 600*450*635mm
(SKU: DS-XS6412-S/B)
Parameters
- Opening Percentage (Front Door): 78%
- Opening Percentage (Rear Door): 0
- Front Door: 4mm Glass door, 1mm SPCC
- Front And Rear Frame: 1.2mm SPCC
- Side Panel: 1.0mm SPCC
- Beam: 1.2mm SPCC
- Top Cover: 1.0mm SPCC
- Bottom Panel: 1.0mm SPCC
- Vertical Rail: 1.5mm SPCC
- Rear Panel: 1.0mm SPCC
- Mounting Bracket: 1.2mm SPCC
Others
- ShelfOptional: DS-XSPB04-S/B
- FAN: Optional
- PDU: Optional
More Information
Hikvision Rack Cabiniet 4U/ 6U/ 9U/ 12U Datasheet
