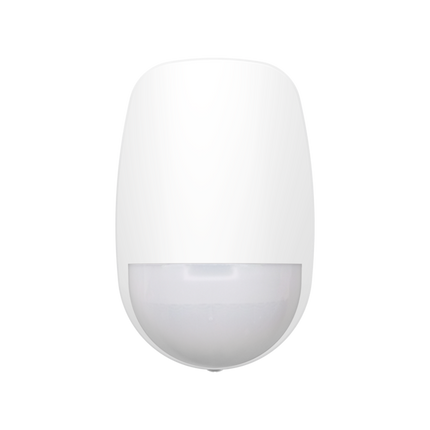

The Hikvision DS-PDD12P-EG2-WB is a high-performance wireless dual-technology detector designed for the AX PRO wireless intrusion system. By combining Passive Infrared (PIR) and 24GHz Microwave sensors, this detector offers unparalleled stability and false alarm immunity, even in challenging indoor environments where temperature fluctuations or air movement might trigger standard sensors.
Key Features & Benefits
-
Dual-Tech Precision: Uses both PIR and Microwave detection to confirm an intrusion, significantly reducing false alarms caused by environmental factors.
-
Pet Immunity: Intelligent detection logic allows for pet immunity up to 30kg, making it perfect for homes with dogs or cats.
-
Total Coverage: Offers a 12-meter detection range with an 85.9° angle and includes creep-zone protection to eliminate blind spots directly beneath the sensor.
-
Long Battery Life: Powered by 2x CR123A batteries, providing up to 5 years of standby operation.
-
Secure Transmission: Features Tri-X Wireless Technology with two-way communication, frequency hopping against jamming, and AES-128 encryption.
Technical Specifications
| Model |
DS-PDD12P-EG2-WB (433MHz) |
| Detection Technology |
PIR + 24GHz Microwave |
| Detection Range |
12m, 85.9° Angle |
| Pet Immunity |
Up to 30kg |
| Wireless Protocol |
Tri-X Wireless (Two-Way) |
| Transmission Range |
Up to 1.2km (Open Space) |
| Battery Type |
2x CR123A (Included) |
| Dimensions |
65.5mm × 103mm × 48.5mm |
Why Choose Dual-Tech?
Standard PIR sensors detect changes in heat energy. In rooms with large glass windows, air conditioning vents, or heaters, these changes can lead to false triggers. The DS-PDD12P-EG2-WB requires both the PIR and the Microwave sensor to be triggered simultaneously to activate an alarm, providing a much higher level of reliability for your security system.
More Information
Datasheet
Note: This sensor is specifically designed for use with the Hikvision AX PRO Hub. It is fully configurable via the Hik-Connect app for easy installation and remote management.
