Description

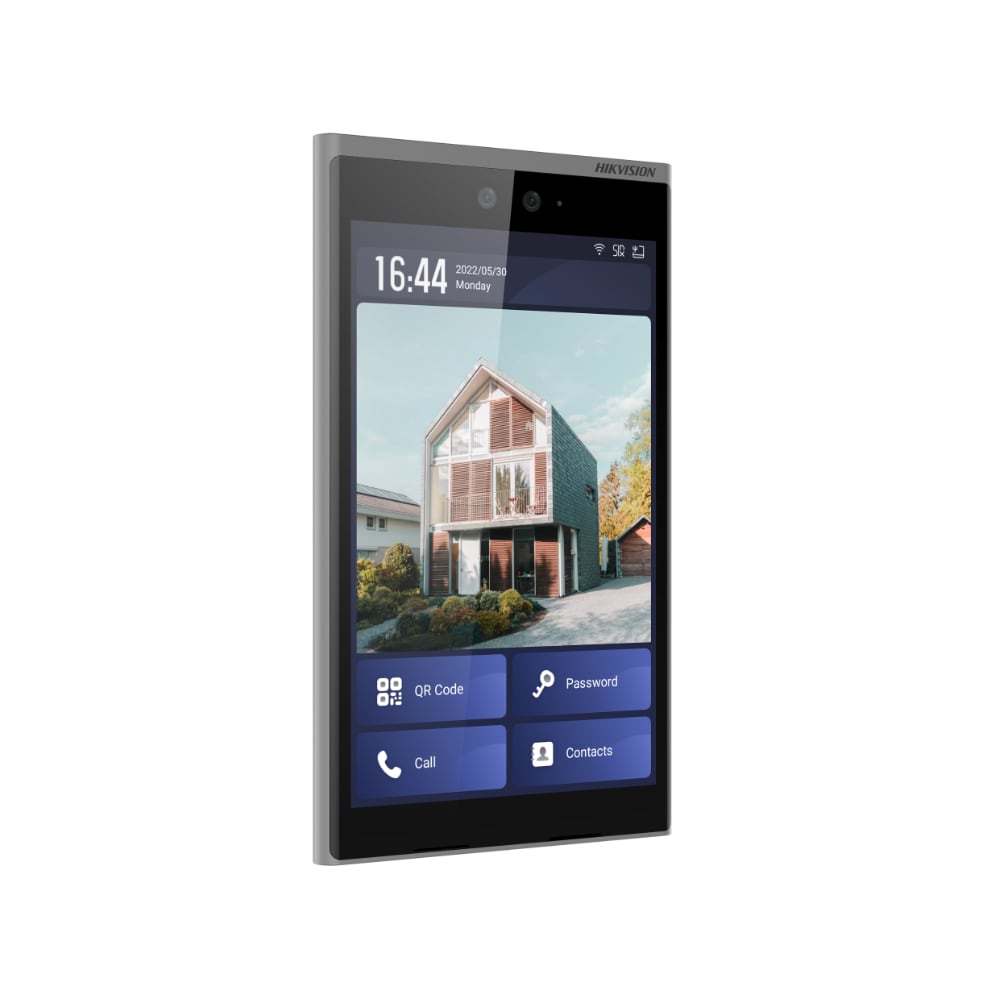

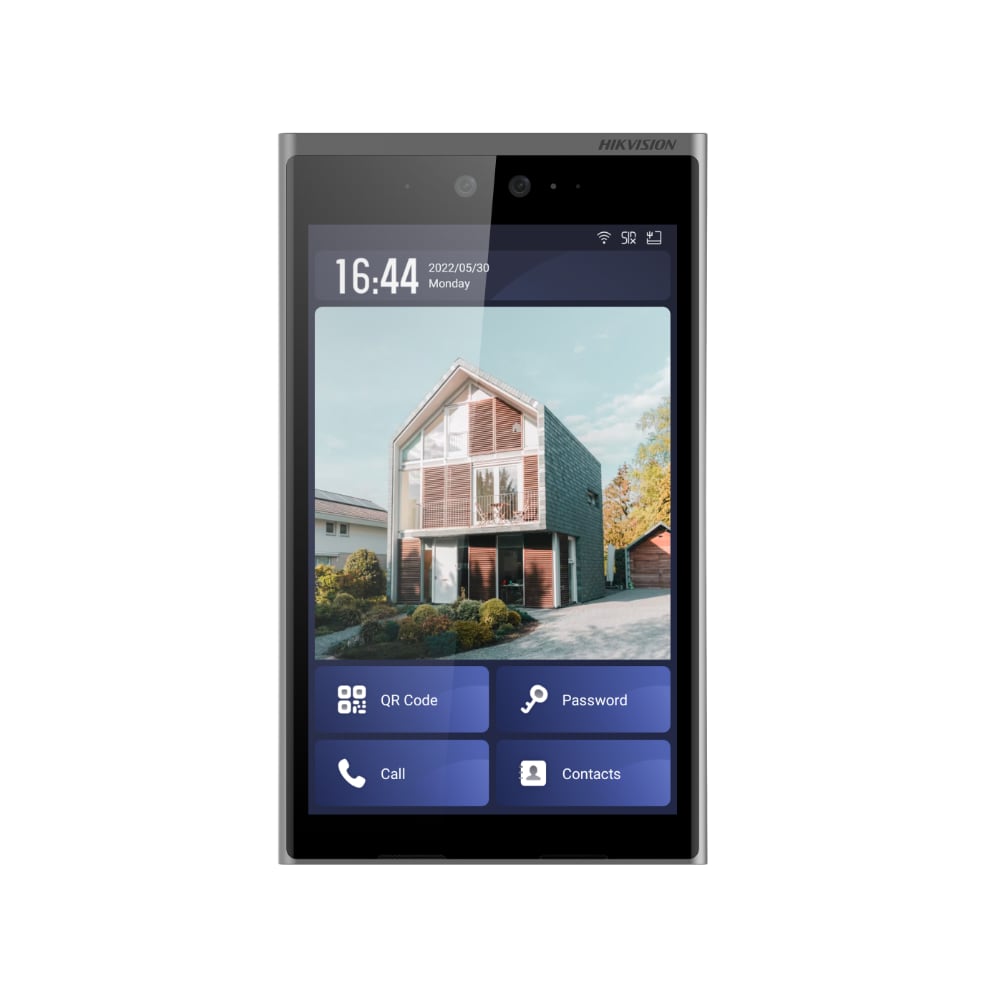

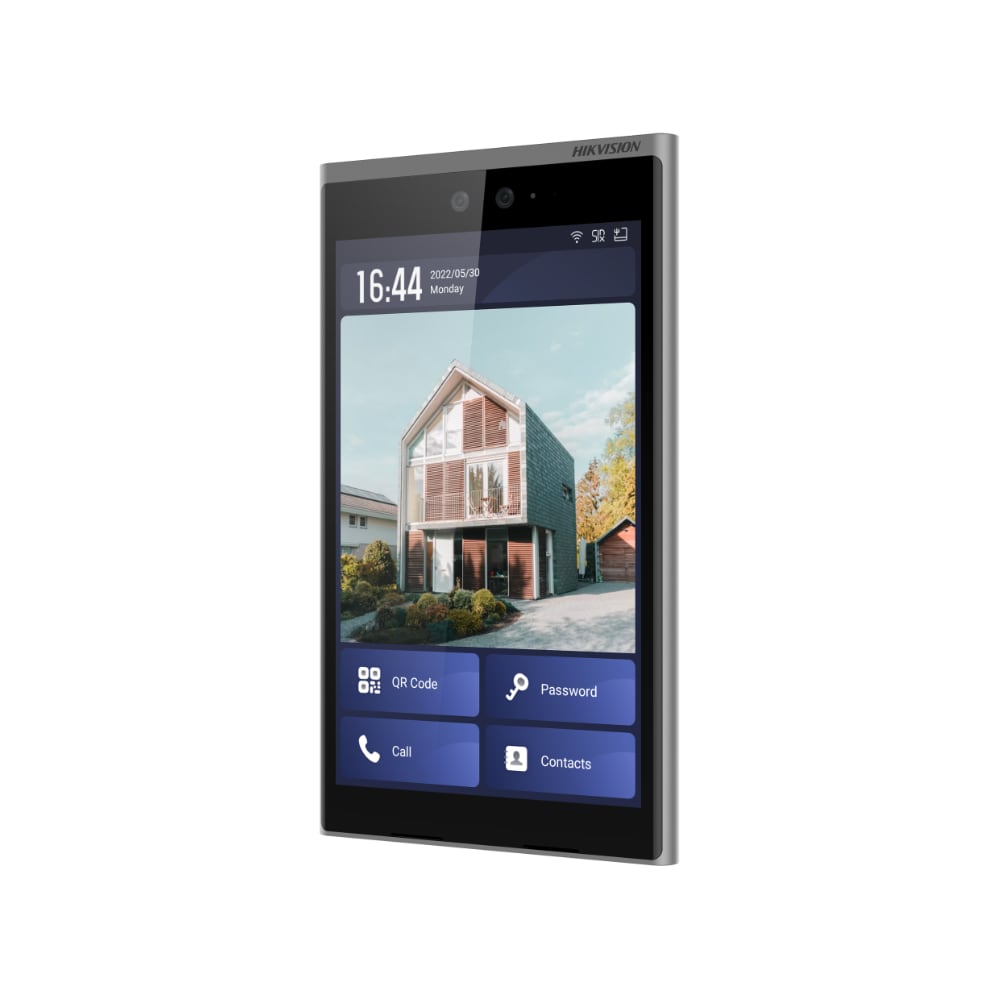

The Hikvision DS-KD9633‑WBE6 from the Ultra Series is an advanced IP video intercom door station designed for secure, seamless entry management. Featuring a 2.5D curved 10.1″ IPS touch screen and running on Android 7.1, it delivers an intuitive user experience with rich graphical menus and responsive controls.
Powered by dual 2 MP wide-angle cameras with digital WDR and IR light for up to 3 meters, it ensures reliable daytime and low-light face recognition. It supports multiple authentication methods, including face, fingerprint, RFID card, PIN, QR code, and Bluetooth, offering flexibility and enhanced security. With IP65 and IK07 ratings, it’s rugged enough for outdoor use.
Design-friendly with a sleek anodised aluminium frame, the DS-KD9633‑WBE6 connects via LAN (Gigabit), supports Wiegand, RS-485, and integrates with Hikvision’s ecosystem via HikCentral. It supports managing up to 10,000 face profiles, 20,000 users, and 100,000 cards, making it well-suited for residential complexes, apartments, offices, and enterprise buildings.
Key Features
-
Operating System: Android 7.1, 4 GB ROM, 2 GB RAM
-
Display: 10.1″ IPS touch screen, 1280×800, 410 cd/m², 2.5D curved design
-
Cameras: Dual 2 MP, 1080p, 88° × 44° FOV, Digital WDR (120 dB), IR up to 3 m
-
Authentication: Face, fingerprint, RFID card, PIN, QR code, Bluetooth
-
Audio: Dual omnidirectional microphones, built-in loudspeaker, G.711U/A, echo/noise suppression
-
Capacity: 10,000 face profiles, 20,000 users, 100,000 cards, 500 linked indoor stations, 16 sub-stations
-
Connectivity: Gigabit Ethernet, Wiegand, RS-485, USB, alarm inputs/outputs, exit buttons
-
Protection: IP65 (weather-resistant), IK07 (impact-resistant)
-
Mounting: Surface and flush supported
-
Power: 12 V DC, ≤ 18 W
-
Operating Conditions: –30 °C to 60 °C, 10–90% RH
-
Dimensions & Weight: 271 × 159.2 × 26.5 mm, ~1.265 kg
Technical Specifications
| Hikvision DS-KD9633-WBE6 Specification |
| Product Type |
IP Video Intercom with Face Recognition |
| Display |
10.1″ IPS Touch Screen (1280 × 800), 2.5D curved |
| Operating System |
Android 7.1 |
| Cameras |
Dual 2 MP (1920 × 1080), Wide Angle, WDR, IR up to 3 m |
| Authentication Methods |
Face, Fingerprint, RFID Card, PIN, QR Code, Bluetooth |
| Face Recognition Distance |
0.3 – 3 meters |
| Storage & Capacity |
10,000 faces, 20,000 users, 100,000 cards |
| Audio |
Built-in Mic & Speaker, Echo/Noise Suppression |
| Communication |
Gigabit Ethernet, Wiegand, RS-485, Alarm In/Out |
| Protection Rating |
IP65 (Waterproof), IK07 (Vandal-Resistant) |
| Power Supply |
12V DC, Max 18W |
| Installation |
Surface or Flush Mount |
| Operating Temperature |
-30°C to +60°C |
| Dimensions |
271 × 159.2 × 26.5 mm |
| Weight |
1.265 kg |
More Information
Hikvision DS-KD9633-WBE6 Datasheet
Hikvision Quick Start Guide
Hikvision User Manual
