Description

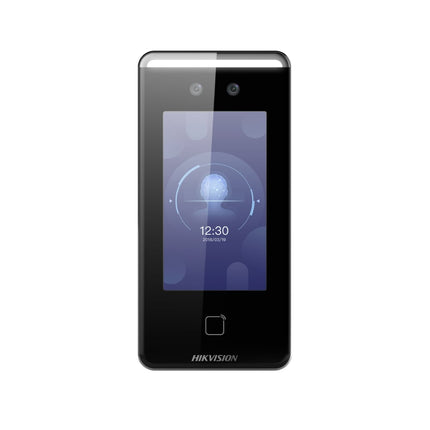

The Hikvision DS‑K1T341CMW from the Value Series is a smart face recognition access terminal designed for reliable and efficient entry control. Equipped with a 4.3‑inch capacitive touch screen and 2 MP wide-angle dual-lens camera, it delivers lightning-fast recognition in under 0.2 seconds per user.
Powered by deep learning algorithms, this terminal supports up to 3,000 face profiles, 3,000 M1 cards, and records up to 150,000 access events. It offers multi-factor authentication (face, card) and even mask-wearing detection, making it ideal for modern, secure environments.
Integrate with existing systems using Wiegand, RS‑485, and Wi-Fi connections. For enhanced safety, it supports two‑way audio with client software or door station integration. With IP65-rated durability, it’s built for daily use in demanding access control scenarios.
Key Features
-
Recognition Speed: < 0.2 s per user
-
Screen: 4.3″ capacitive touch display
-
Camera: 2 MP dual-lens, 720p video, 87° diagonal FOV
-
Capacity: 3,000 faces, 3,000 M1 card slots, 150K events
-
Authentication: Face, card (M1), mask detection
-
Connectivity: PoE, Wi‑Fi (2.4 GHz), RJ-45; Wiegand, RS‑485, USB, inputs for lock, exit button, door, tamper
-
Audio: Noise suppression, echo cancellation, two-way audio
-
Security: Built-in access controller, IP65 weather rating
-
Environment: Operating temp –30 °C to 60 °C, power 12–24 VDC @ ≤ 10 W
-
Advanced Features: Hik‑Connect integration, QR code recognition, face anti‑spoofing
Technical Specifications
| Specification |
Details |
| Display |
4.3″ Capacitive Touch Screen |
| Camera |
2 MP Dual-Lens, 720p, 87° FOV |
| Face Capacity |
3,000 Faces |
| Card Capacity |
3,000 M1 Cards |
| Event Log |
150,000 Records |
| Recognition Time |
Less than 0.2 seconds per person |
| Mask Detection |
Supported |
| Authentication |
Face, M1 Card |
| Audio |
Two-Way Audio with Noise Suppression |
| Connectivity |
Wi-Fi, PoE, RS-485, Wiegand, USB, RJ-45 |
| Power Supply |
12–24 VDC, Max. 10W |
| Operating Temperature |
-30°C to 60°C |
| Ingress Protection |
IP65 Rated |
| Installation |
Wall-Mounted |
More Information
Hikvision DS-K1T341CMW Datasheet
Hikvision Quick Start Guide
Hikvision User Manual
