Description

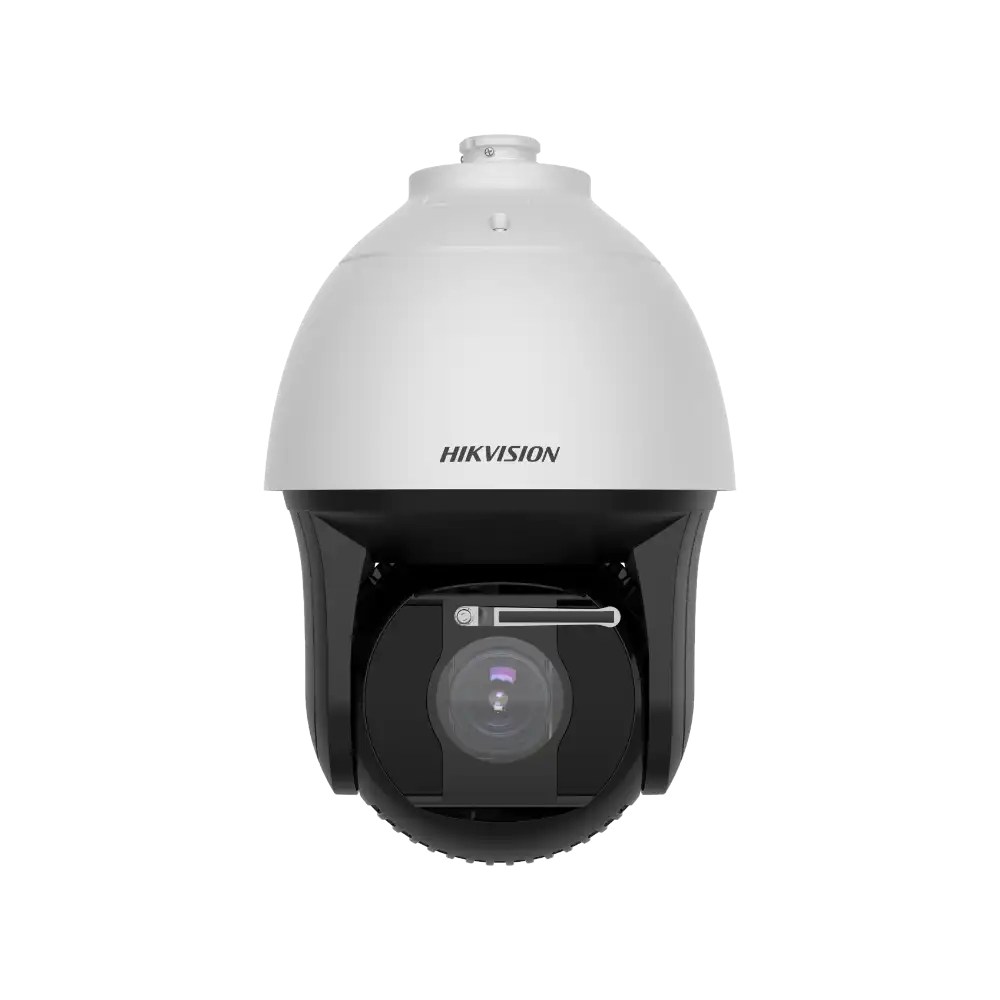

The Hikvision DS‑2DF8442IXG1‑ELWY is a flagship Ultra Series PTZ speed dome camera offering high‑definition 4 MP imaging, an ultra‑long 42× optical zoom (6 – 250 mm) with 16× digital zoom, and DarkFighter 2.0 low‑light performance for crisp clarity day or night. It delivers up to 400 m IR illumination, smart analytics such as face capture and vehicle detection, and rugged outdoor protection — ideal for perimeter defence, industrial sites, ports and large‑area surveillance.
Key Features
-
4 MP resolution for detailed video and monitoring coverage.
-
42× optical zoom + 16× digital zoom (6.0 – 250 mm) for expansive distance observation and target detail.
-
DarkFighter 2.0 technology enhances imaging performance in very low light.
-
Up to 400 m IR illumination for long‑range night surveillance.
-
150 dB Adaptive WDR to handle high contrast scenes.
-
Smart analytics, including face capture and vehicle detection/traffic analytics.
-
360° continuous pan & –20° to +90° tilt with auto‑flip for full coverage.
-
IP67 weatherproof & IK10 vandal‑resistant housing built for challenging outdoor environments.
-
Built‑in wiper and enhanced “Y” options available for coastal/harsh sites.
Technical Specifications
| Specification |
Details |
| Model |
DS‑2DF8442IXG1‑ELWY |
| Image Sensor |
1/1.8″ Progressive Scan CMOS |
| Max. Resolution |
2688 × 1520 (4 MP) |
| Optical Zoom |
42× (6.0 – 250 mm) |
| Digital Zoom |
16× |
| Minimum Illumination |
Color: 0.0003 Lux @ F1.2; B/W: 0.0001 Lux; 0 Lux with IR |
| WDR |
150 dB Adaptive WDR |
| IR Range |
Up to ~400 m (smart IR) |
| Pan / Tilt Range |
Pan: 360° continuous; Tilt: –20° to +90° (auto‑flip) |
| Smart Analytics |
Face capture, vehicle detection & traffic analytics |
| Protection |
IP67 weather‑proof, IK10 vandal‑resistant |
| Optional Features |
Built‑in wiper and “Y” enhanced variant available |
More Information
DS-2DF8442IXG1-ELWY Datasheet
