Description

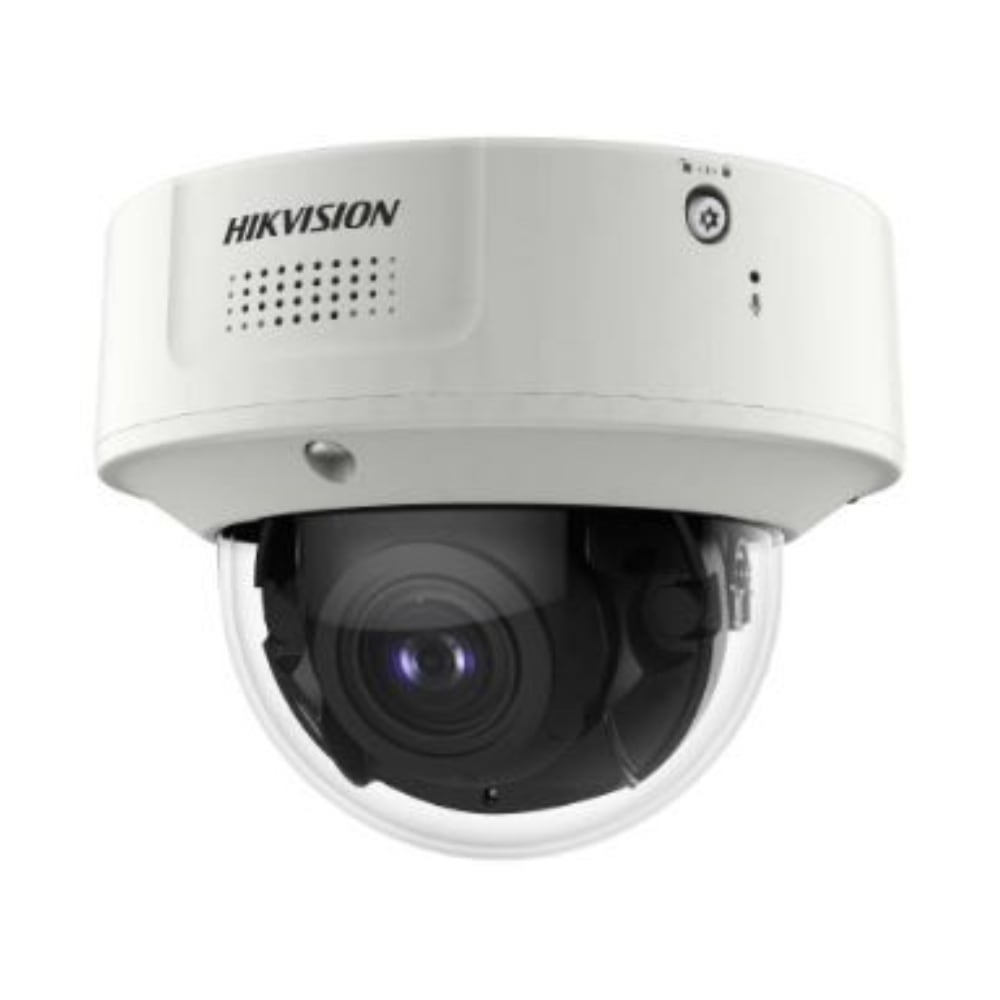

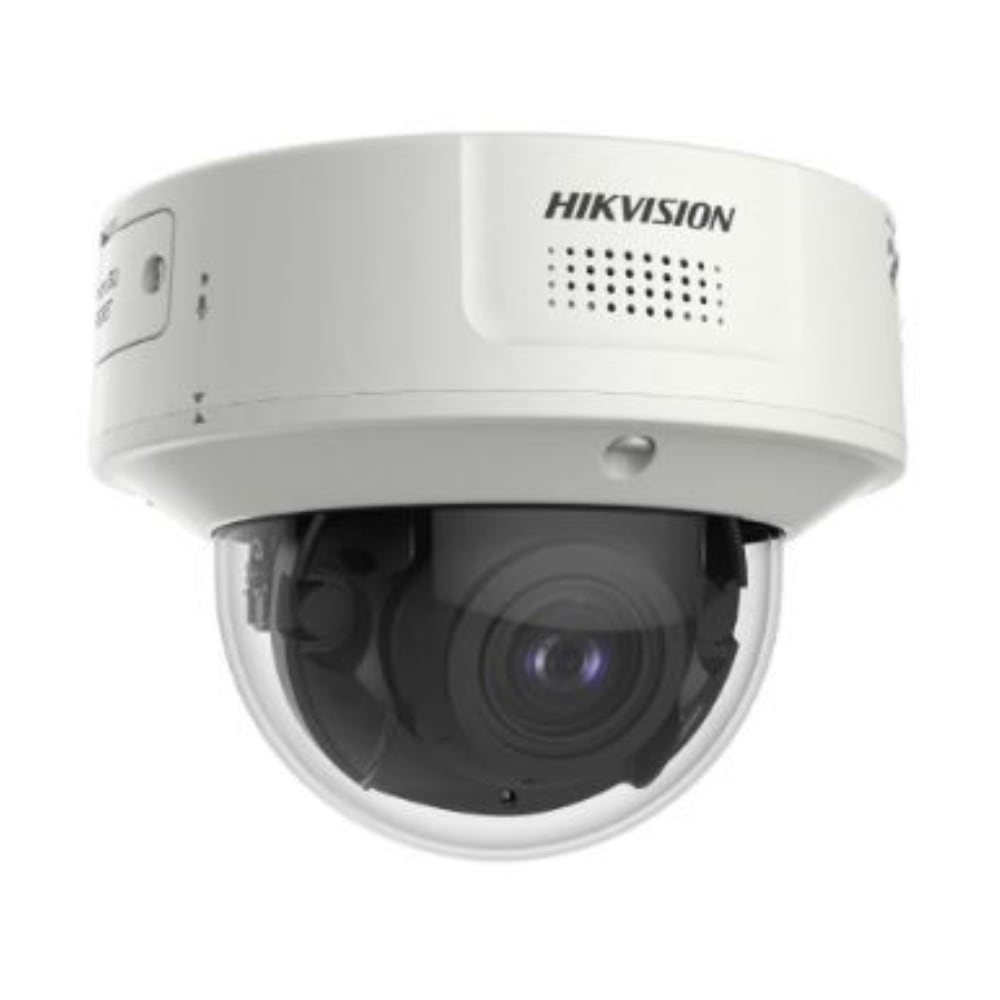

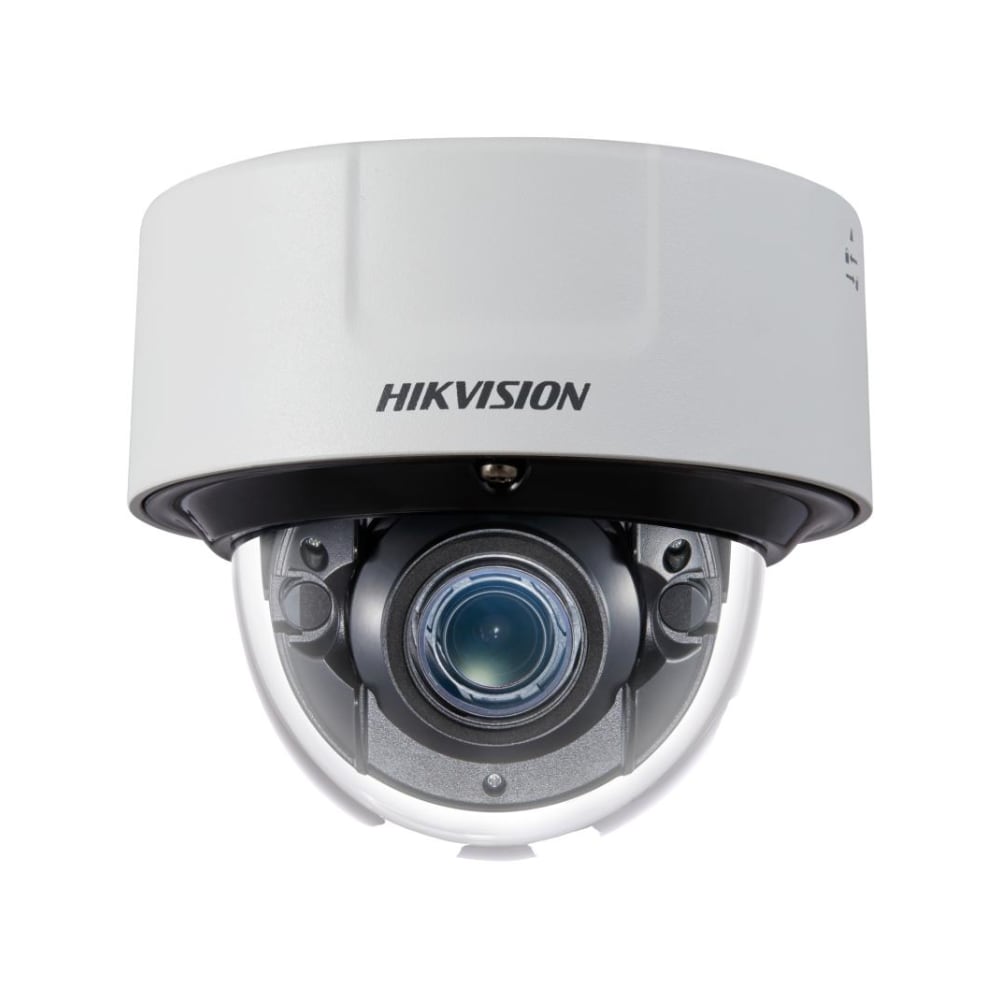

Hikvision DS-2CD7146G0-IZS 4MP DeepinView Indoor Dome Camera with 2.8–12mm Varifocal Lens & IR 40m
The Hikvision DS-2CD7146G0-IZS from the DeepinView series is a premium-grade 4MP indoor dome IP cameradesigned for intelligent analytics and reliable high-definition surveillance. It features a 2.8–12mm motorised varifocal lens for versatile coverage and 40m IR range for night vision in low-light environments.
This model supports advanced features including face detection, behavior analysis, and queue management, making it ideal for retail, corporate, and public indoor environments. With a built-in microphone, H.265+ compression, and support for edge storage, it ensures performance and efficiency.
Features
-
Resolution: 4MP (2688 × 1520)
-
Lens: 2.8–12mm Motorised Varifocal
-
IR Night Vision: Up to 40m
-
Analytics: Face detection, intrusion, queue management
-
Audio: Built-in microphone
-
Edge Storage: microSD/SDHC/SDXC (up to 256GB)
-
Compression: H.265+/H.265/H.264+/H.264
-
Build: Dome housing with tamper alarm
-
Power Supply: 12V DC / PoE
-
Use Case: Indoor applications – retail, office, public spaces
Specifications
| Indoor Dome IP Camera |
DeepinView Series |
| 1/2.8" Progressive Scan CMOS |
High-quality 4MP sensor |
| 2688 × 1520 @30fps |
4MP Full HD |
| 2.8–12mm Motorised Varifocal |
Auto focus and zoom |
| Horizontal: 98.5°–28.4° |
Wide to narrow angle |
| Up to 40m |
Smart IR with EXIR 2.0 |
| H.265+/H.265/H.264+/H.264 |
Optimised bandwidth use |
| Face detection, Queue management, Heat mapping |
Deep learning analytics |
| Built-in Microphone |
One-way audio capture |
| microSD/SDHC/SDXC up to 256GB |
Edge recording supported |
| 1 in / 1 out |
External event integration |
| 12V DC ±25%, PoE (802.3af) |
Flexible power options |
| -10°C to +50°C |
Indoor operating range |
| IK10 |
Robust metal housing |
Downloads
DS-2CD7146G0-IZS Datasheet
Hikvision Camera Quick Start Guide
Hikvision Camera User Manual
