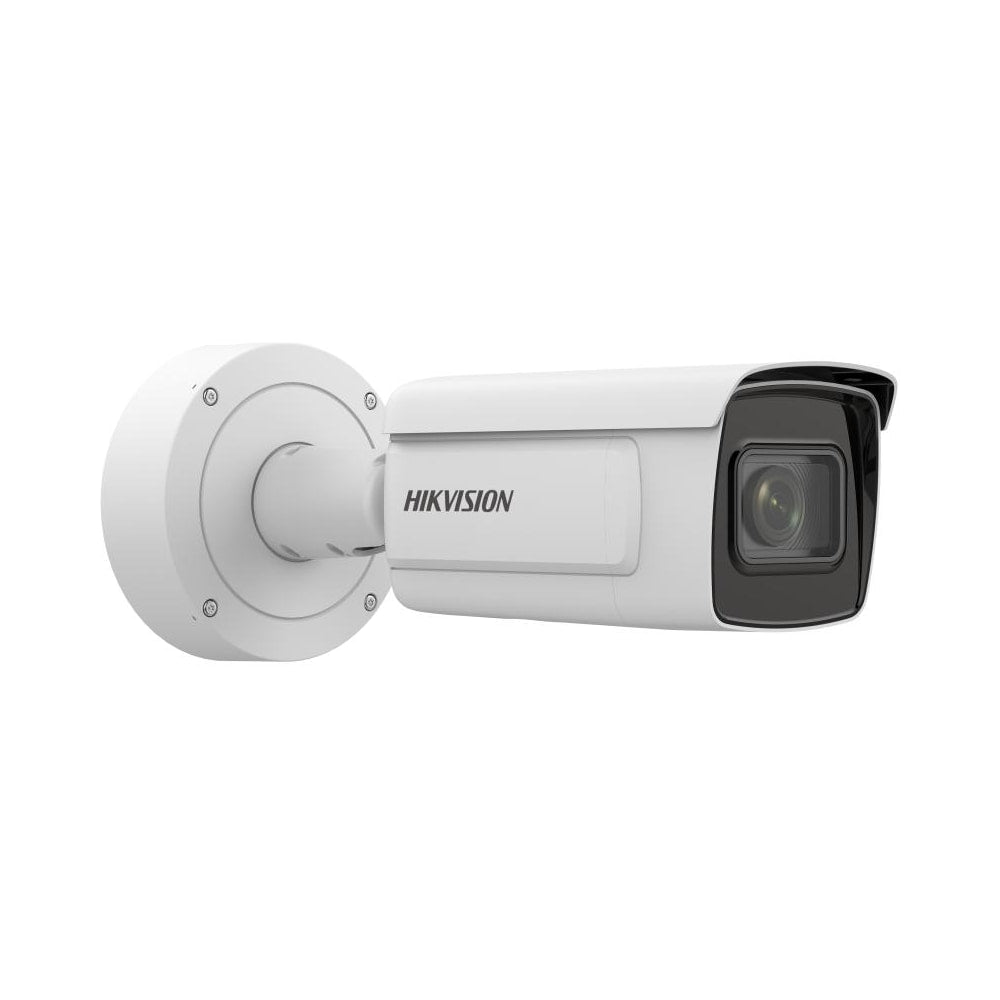

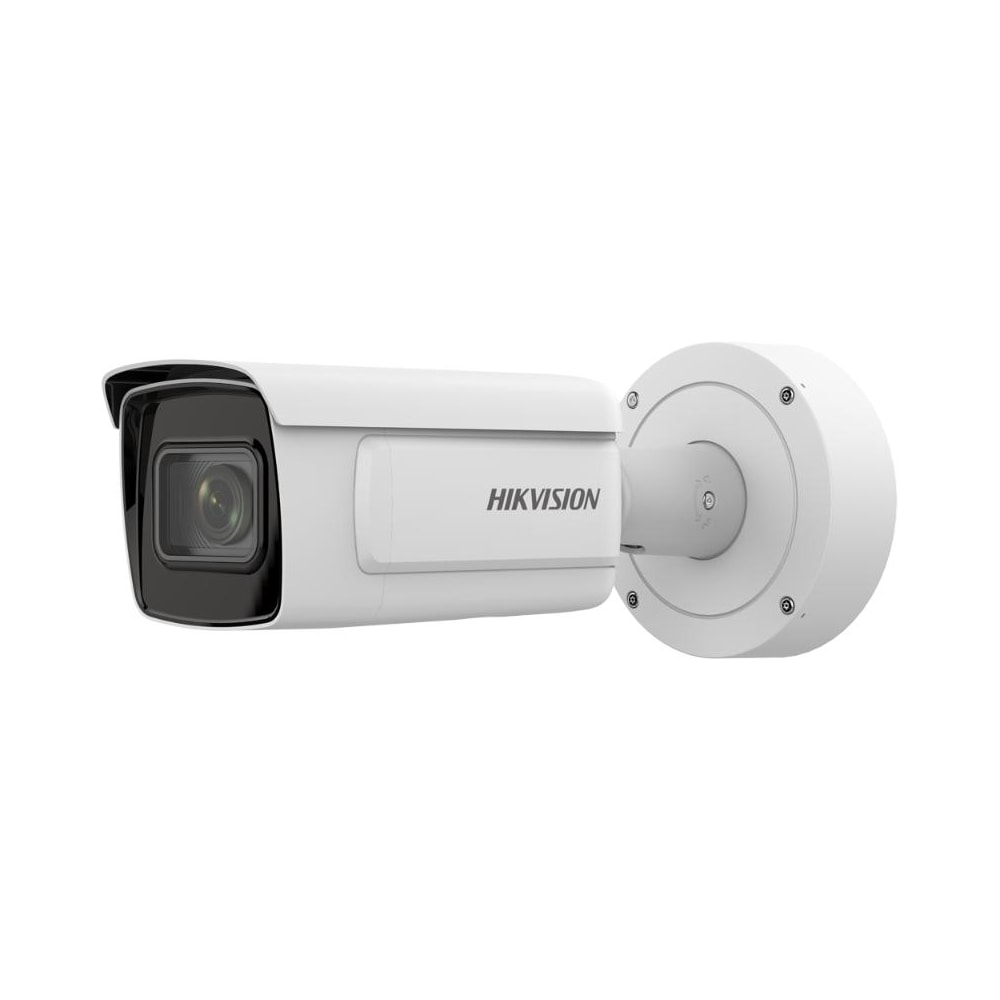

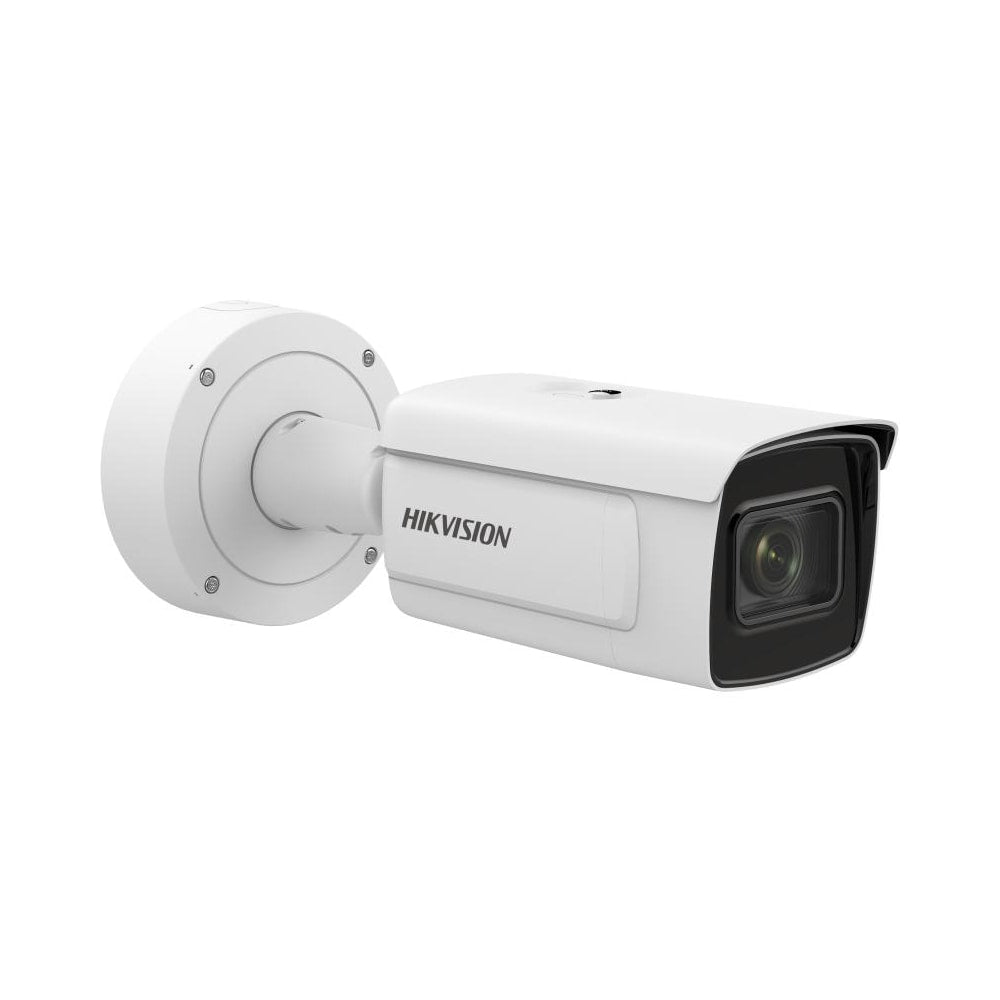

Hikvision iDS-2CD7A46G0/P-IZHS – 4MP AI DeepinView Bullet Camera with 100m IR and Smart Detection
The Hikvision iDS-2CD7A46G0/P-IZHS from the DeepinView Series is an advanced AI-powered 4MP bullet network camera designed for critical surveillance applications. With a motorised varifocal lens (2.8–12mm) and infrared range up to 100 metres, it delivers exceptional image clarity both day and night.
This camera excels in intelligent video analytics, including face detection, vehicle classification, license plate recognition support, and AI-powered false alarm reduction. It’s ideal for large premises, parking areas, entrances, and perimeters.
With an IP67-rated and IK10 vandal-resistant housing, it withstands harsh environments while providing flexible installation via PoE or 12V DC.
Notes: Compatible with 12VDC power and capable of functioning independently with the use of a solar panel.
Key Features:
-
High-Quality Imaging: Delivers 4 MP resolution for clear and detailed images.
-
Low-Light Performance: Utilizes DarkFighter technology to maintain excellent imaging in low-light conditions.
-
Wide Dynamic Range (WDR): Employs 140 dB WDR technology to provide clear imaging even against strong backlight.
-
License Plate Recognition: Embedded deep learning algorithms enable accurate license plate capture and recognition, supporting blocklist and allowlist configurations for customized alarm triggering.
-
Efficient Compression: Supports H.265+ compression technology to save bandwidth and storage without compromising image quality.
-
Multiple Streams: Offers five streams to accommodate a variety of applications.
-
Durability: Designed to be water and dust resistant (IP67) and vandal-proof (IK10), ensuring reliable performance in challenging environments.
Advanced Functions:
-
Perimeter Protection: Embedded deep learning algorithms detect and classify targets for perimeter protection, monitoring actions such as line crossing, intrusion, region entrance, and region exiting, while minimizing false alarms caused by environmental factors.
-
Road Traffic and Vehicle Detection: The camera's deep learning algorithms achieve high-accuracy license plate capture and recognition, supporting blocklist and allowlist configurations for customized alarm triggering.
-
Parking Management: Embedded algorithms detect parking space status and provide vacant space alarms, supporting both distant and close view modes. In close view mode, the camera also performs license plate recognition.
Specifications:
| Specifications – Hikvision iDS-2CD7A46G0/P-IZHS |
| Bullet IP Camera |
DeepinView AI Series |
| 1/1.8″ Progressive Scan CMOS |
High-performance image capture |
| 2688 × 1520 (4MP) |
30fps real-time |
| 2.8–12mm Motorised Varifocal |
Auto focus with zoom |
| 112.1° – 30.8° Horizontal |
Wide to narrow coverage |
| Up to 100m |
Smart IR illumination |
| H.265+/H.265/H.264+/H.264 |
Efficient bandwidth usage |
| Built-in Microphone |
One-way audio recording |
| Face Detection, Line Crossing, Intrusion |
AI-powered analytics |
| Face Capture, Vehicle Detection, License Plate Metadata |
Deep learning integration |
| microSD/SDHC/SDXC up to 256GB |
Edge recording supported |
| IP67 |
Outdoor weatherproof |
| IK10 |
High-impact resistance |
| 12V DC ±25% / PoE (802.3af) |
Flexible power options |
| -30°C to +60°C |
All-weather operation |
