WizSense + AcuPick · 5-Series · 64-Channel · 8-HDD RAID · 2U

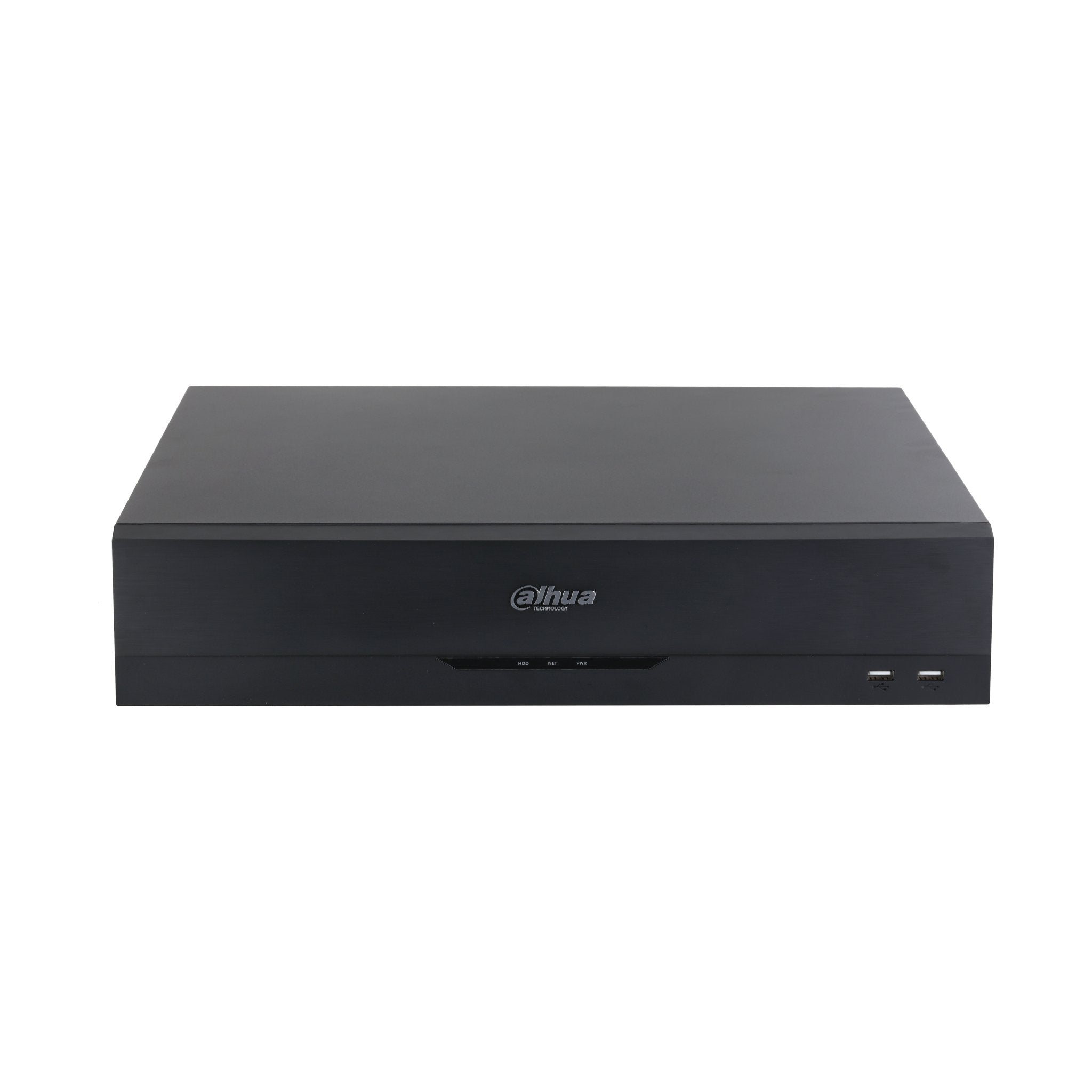

The Dahua DHI-NVR5864-AI/ANZ is a 64-channel 5-Series WizSense AI NVR with AcuPick, eight SATA bays, RAID 0/1/5/6/10 support, dual Gigabit NICs, dual HDMI + dual VGA outputs, and a 2U rack chassis built for long-retention enterprise installs. Record up to 32 MP per channel, run AcuPick across up to 32 channels, drive a 64-channel split on the main monitor, and scale storage to roughly 128 TB on-board with hardware RAID protection.
This is the official Australia / NZ-market SKU (the AI/ANZ suffix). It's a headend NVR with no built-in PoE — cameras connect through an external PoE switch or your existing managed network. Internal 100–240 VAC universal PSU and a local 3-year warranty backed by CCTV Guru in Sydney. Designed for casinos, transport hubs, hospitals, government and any site that needs RAID-protected storage with 90+ days of retention on 64 cameras. AcuPick, N+M cluster, iSCSI and ONVIF 23.12 are enabled by Dahua's V5 firmware (current factory ship as of 2025).
8 HDD bays · RAID 0/1/5/6/10 · ~128 TB on-board
Storage
8 SATA · ~128 TB on-board
Hardware RAID
RAID 0 · 1 · 5 · 6 · 10
Eight surveillance-grade bays
Drop in up to eight WD Purple, Seagate SkyHawk or equivalent surveillance HDDs (each up to 16 TB) — months of 64-channel recording without touching network storage. Hot-swap behind the front door for quick maintenance.
RAID 5 / RAID 6 for redundancy
Survive single-drive (RAID 5) or dual-drive (RAID 6) failures with zero footage loss. Rebuilds run in the background while recording continues — ideal for casinos, government and compliance-driven installs.
RAID 10 for performance + safety
Mirror-of-stripes configuration combines RAID 0's throughput with RAID 1's redundancy — useful when the NVR is also a fast playback workstation for the control room.
eSATA + iSCSI expansion
External SATA archive port plus iSCSI network-storage support — scale beyond 128 TB without rebuilding the recorder. Run hot-tier on the eight on-board RAID bays, archive-tier on iSCSI / eSATA.
AcuPick on up to 32 channels — enterprise-scale search
AcuPick Channels
Up to 32 ch · 1 event / channel / sec
Search Method
Image + attribute · front + back AI
Search by reference image
Click any person or vehicle in recorded video, hit AcuPick, and the NVR scans the active 32 channels for matches across hours, days or weeks — clothing colour, body shape, vehicle make / model / colour / direction included.
Front- + back-end intelligence
Camera-side AI extracts target attributes during recording; NVR-side AI runs the comparison. Higher accuracy than recorder-only search and orders of magnitude faster than human review.
Investigations finish in minutes
Find a suspect across the AcuPick-active channels and weeks of RAID-protected footage in a single search. Particularly valuable for police investigations, insurance disputes, and post-incident review.
ANPR + SMD Plus on all 64
While AcuPick covers up to 32 channels, ANPR by camera, SMD Plus by camera and perimeter protection by camera all scale across every connected camera up to 64 — site-wide intelligence with no channel left behind.
5-Series WizSense AI — depth at scale
Industrial AI Chip
Same chip as flagship 5-Series siblings
Face Database
20 databases · 20,000 images
Face Recognition (16-ch image stream)
16 channels of camera-side face detection feeding NVR-side recognition at 16 face snapshots/sec — ideal for entry / exit and high-footfall installs. Twenty face databases, 20,000 images, full attribute filtering.
Perimeter Protection (4 ch by NVR)
4 NVR-side channels of tripwire and intrusion analytics (10 IVS rules each), plus all-channel perimeter via camera-side processing — every camera benefits from human/vehicle classification.
SMD Plus (8 ch by NVR)
8 NVR-side SMD Plus channels plus all-channel camera-side SMD — deep-learning second-pass classification on every camera, cutting false alarms across the entire site.
ANPR by camera (all channels)
Pair with Dahua ANPR cameras for full 64-channel licence-plate recognition feeding a 20,000-plate database with blocklist / allowlist control. Carpark, fleet yard, gate management, even multi-site ANPR.
Video Metadata search
8 channels of camera-side metadata extraction — top colour, bottom colour, hat, bag, umbrella, gender, age, vehicle make / model / colour / plate, helmet wear and more.
N+M cluster failover
Pair multiple 5-Series NVRs in an N+M cluster — backup recorders automatically take over if a primary fails, ensuring zero footage loss for sites where downtime isn't an option.
See AcuPick in action
Dahua AcuPick — Video search technology demonstration
AcuPick — how to configure and search on a Dahua NVR
64-channel recording · dual HDMI · 384 Mbps bandwidth
Up to 32 MP per channel
True 8K-class input — supports Dahua's highest-resolution cameras, plus 24 MP, 16 MP, 12 MP, 8 MP (4K), 5 MP and 4 MP IP cameras from any ONVIF brand. All 64 channels share the 384 Mbps recording bandwidth.
2× HDMI + 2× VGA outputs
Two independent HDMI heads (each up to 4K) with two mirrored VGAs — drive a multi-monitor control room with independent layouts on each screen. Heterogeneous video routing on HDMI1/HDMI2.
64-channel split on main screen
Main monitor supports 1 / 4 / 8 / 9 / 16 / 25 / 36 / 64-split layouts (sub monitor up to 16). Watch the entire site at a glance — every camera on one screen.
32-channel 1080p decoding
Decode 32 1080p tiles simultaneously for the live wall, or mix and match — 8 × 8 MP, 4 × 16 MP, 2 × 32 MP, or 24 × 1080p with AI on.
Smart H.265+ for half the storage
AI-tuned H.265+ encoding cuts bitrate on static background pixels while preserving detail on moving targets — roughly half the storage and bandwidth of standard H.264. Critical at 64-channel scale.
Long-retention recording
64 cameras × 4 MP H.265+ motion-record for 90 days fits comfortably in 100–120 TB. Run RAID 6 across 8 × 16 TB drives and you've got ~96 TB usable with two-disk redundancy.

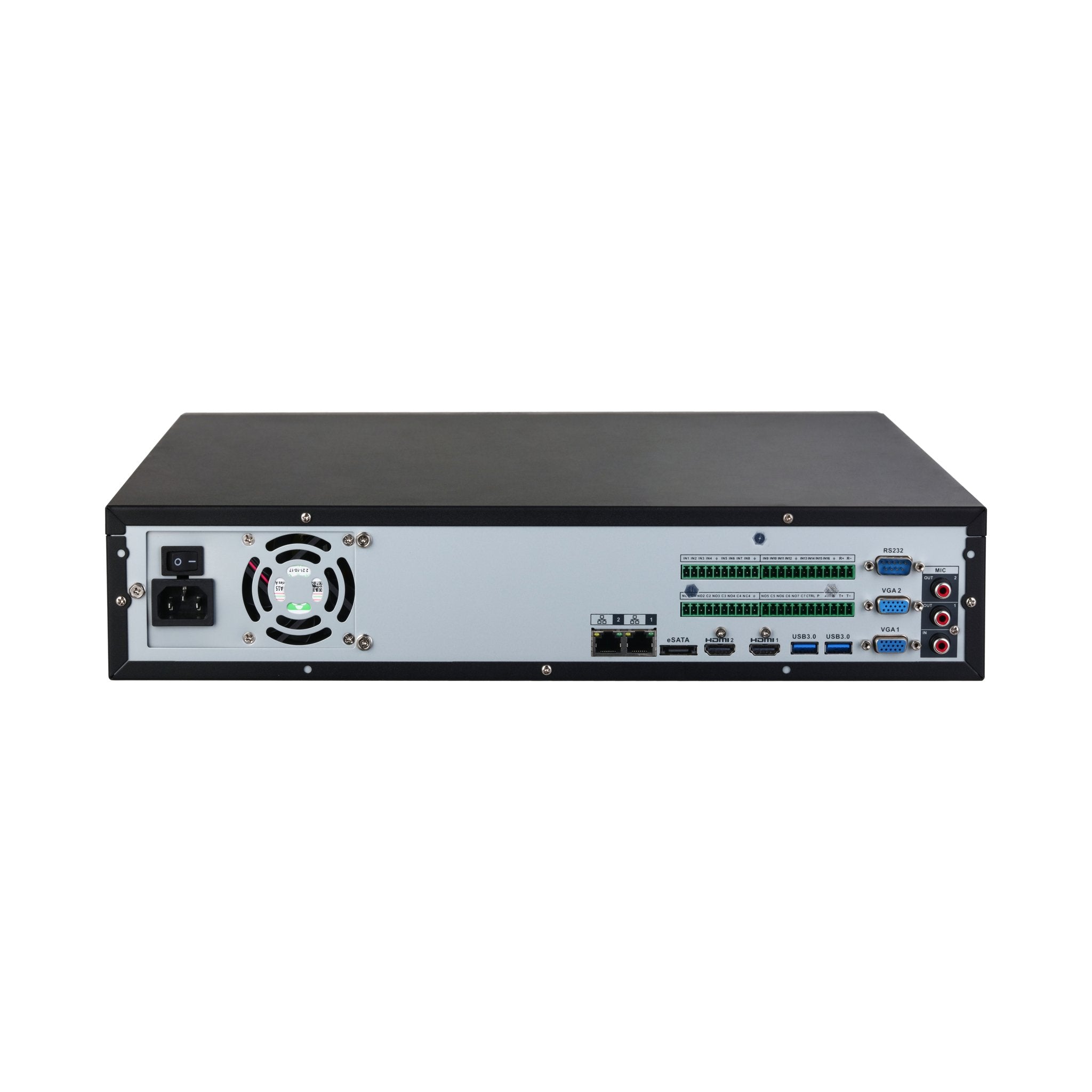

Enterprise I/O — dual NIC, 16 alarm-in, 8 alarm-out (12 V)
Dual Gigabit NICs
Two independent RJ-45 Gigabit ports with multi-address, load-balance and fault-tolerance bonding modes — segregate camera VLAN from management VLAN, or run an active-passive failover link.
16 alarm-in / 8 alarm-out
Physical terminal block for 16 alarm inputs and 8 alarm outputs (vs 6 on the 5464) — one of the outputs is a 12 V 1 A direct power feed for sirens, strobes or gate solenoids.
RS-232 + 2 × RS-485
One RS-232 plus two RS-485 lines (half-duplex + full-duplex) — integrate with POS systems, gate controllers, access control panels, PTZ joysticks or third-party VMS that need legacy serial.
4 × USB (2 × 2.0 + 2 × 3.0)
Two front USB 2.0 plus two rear USB 3.0 ports — plug in backup drives, USB mice, keyboards or service tools without juggling cables behind the rack.
ONVIF 23.12 (T / S / G)
Latest ONVIF profile support on V5 firmware — drops into any current VMS, plus native integration for Panasonic, Sony, Axis, Pelco, Arecont, Canon and Samsung as well as Dahua.
DMSS + DSS Pro VMS
Free DMSS mobile app for live view, playback and push notifications. For multi-site enterprise deployments, integrate with Dahua DSS Pro for centralised control of multiple 5864 NVRs across sites.
NVR5864 vs the family — how it compares
The 5864 (this model) is the storage flagship of the 5-Series AI/ANZ NVR range — double the HDD count of the 5464, hardware RAID 0/1/5/6/10, and a 2U chassis with extra alarm outputs and serial ports. Choose this when retention, redundancy or compliance-grade storage matters more than the smaller 1.5U footprint. For 64 channels in a smaller 1.5U chassis with 4 HDDs, step down to the 5464.
5-Series 64-Channel Comparison
| Specification |
NVR5864-AI/ANZ (this model) |
NVR5464-AI/ANZ |
| IP channels (licence) |
64 |
64 |
| AcuPick channels |
Up to 32 |
Up to 32 |
| Main-screen split |
Up to 64 |
Up to 64 |
| Max camera resolution |
32 MP |
32 MP |
| Bandwidth (AI off / on) |
384 / 200 Mbps |
384 / 200 Mbps |
| HDD bays |
8 SATA · ~128 TB |
4 SATA · ~64 TB |
| Hardware RAID |
RAID 0 / 1 / 5 / 6 / 10 |
Disk groups only |
| Form factor |
2U · 6.4 kg |
1.5U · 4.74 kg |
| Alarm outputs |
8 (incl. 12 V) |
6 (incl. 12 V) |
| RS-485 ports |
2 (half + full duplex) |
1 (half-duplex) |
| USB ports |
4 (2 × 2.0 + 2 × 3.0) |
3 (1 × 2.0 + 2 × 3.0) |
| Built-in PoE |
None (external switch) |
None (external switch) |
| eSATA · iSCSI |
Yes / Yes |
Yes / Yes |
| Network ports |
2 × Gigabit (bondable) |
2 × Gigabit (bondable) |
| Video outputs |
2 × HDMI + 2 × VGA |
2 × HDMI + 2 × VGA |
| ONVIF (V5 firmware) |
23.12 (T / S / G) |
23.12 (T / S / G) |
| N+M cluster · Warranty |
Yes / 3 years |
Yes / 3 years |
Full Specifications
| Model |
DHI-NVR5864-AI/ANZ |
| Series |
WizSense · NVR5000-AI/ANZ (Australia / NZ market) |
| Form factor |
2U · 8-HDD · rack or desktop · NO built-in PoE |
| IP channels |
64 · up to 32 MP per channel |
| Supported resolutions |
32 MP · 24 MP · 16 MP · 12 MP · 8 MP · 5 MP · 4 MP · 1080p · 720p · D1 · CIF · QCIF |
| Bandwidth (AI off) |
384 Mbps incoming / 384 Mbps record / 384 Mbps outgoing |
| Bandwidth (AI on) |
200 Mbps incoming / 200 Mbps record / 200 Mbps outgoing |
| Decoding (AI off) |
2 × 32 MP @ 20 fps · 2 × 24 MP @ 20 fps · 4 × 16 MP @ 30 fps · 5 × 12 MP @ 30 fps · 8 × 8 MP @ 30 fps · 12 × 5 MP @ 30 fps · 16 × 4 MP @ 30 fps · 32 × 1080p @ 30 fps |
| Decoding (AI on) |
1 × 32 MP @ 20 fps · 1 × 24 MP @ 20 fps · 2 × 16 MP @ 30 fps · 4 × 12 MP @ 30 fps · 4 × 8 MP @ 30 fps · 8 × 5 MP @ 30 fps · 12 × 4 MP @ 30 fps · 24 × 1080p @ 30 fps |
| Video compression |
Smart H.265+ · H.265 · Smart H.264+ · H.264 · MJPEG |
| Audio compression |
G.711a · G.711u · PCM · G.726 |
| AI engine |
WizSense (industrial AI chip, deep-learning) · AcuPick supported |
| AcuPick |
Up to 32 channels · 1 combined event per channel/sec (V5 firmware) |
| Face Detection (NVR) |
2 channels · up to 12 face snapshots/sec each |
| Face Recognition (NVR) |
16 ch (FD by camera + FR by recorder, 16 fps) · or 2 ch (FD+FR by recorder, 12 fps) |
| Face Database |
20 databases · 20,000 images · 2.5 GB · gender / age / glasses / expression / mask / beard attributes |
| Perimeter Protection |
4 channels by NVR · 16 channels by camera · 10 IVS rules per channel |
| SMD Plus |
8 channels by NVR · 16 channels by camera |
| Video Metadata |
8 channels (camera-side) · human / motor / non-motor vehicle attributes |
| ANPR (by camera) |
8 channels · 20,000-plate database · blocklist / allowlist |
| AI by Camera (passthrough) |
Face detection · Face recognition · Video metadata · Perimeter protection · SMD Plus · Stereo analysis · Crowd distribution · People counting · ANPR · Vehicle density · Heat map |
| N+M cluster · iSCSI · eSATA |
Yes / Yes / Yes |
| HDD bays |
8 × SATA · up to 16 TB per drive (~128 TB max) |
| RAID modes |
RAID 0 · RAID 1 · RAID 5 · RAID 6 · RAID 10 |
| Video output |
2 × HDMI (4K · 3840×2160) + 2 × VGA (1080p) · heterogeneous HDMI1/HDMI2 · simultaneous VGA1+HDMI1 / VGA2+HDMI2 |
| Multi-screen display |
Main screen: 1 / 4 / 8 / 9 / 16 / 25 / 36 / 64 · Sub screen: 1 / 4 / 8 / 9 / 16 |
| Audio I/O |
1 × RCA in · 2 × RCA out |
| Alarm I/O |
16 × alarm in · 8 × alarm out (1 × 12 V 1 A power output) |
| USB |
4 ports: 2 × front USB 2.0 + 2 × rear USB 3.0 |
| Network ports |
2 × RJ-45 Gigabit Ethernet (10 / 100 / 1000 Mbps) · multi-address / load-balance / fault-tolerance bonding |
| PoE |
None (use external PoE switch) |
| RS-232 / RS-485 |
1 RS-232 · 2 RS-485 (1 half-duplex + 1 full-duplex) |
| eSATA |
1 port (external archive) |
| Network protocols |
HTTP / HTTPS · TCP/IP · IPv4/IPv6 · RTSP · UDP · SNMP · NTP · DHCP · DNS · SMTP · UPnP · IP Filter · PPPoE · FTP · DDNS · Alarm Server · Multicast · P2P · Auto Registration |
| ONVIF |
23.12 on V5 firmware (Profile T / S / G) · CGI · SDK |
| Third-party camera support |
ONVIF · Panasonic · Sony · Axis · Arecont · Pelco · Canon · Samsung · Hanwha |
| Mobile app |
DMSS (iOS / Android) |
| Record modes |
General · motion detection · intelligent · alarm · POS |
| Backup |
USB device · network |
| Power supply |
100 – 240 VAC · 50 – 60 Hz (internal universal-voltage PSU) |
| Power consumption |
≤ 13 W NVR-side (without HDD) |
| Operating temperature |
−10 °C to +55 °C |
| Operating humidity |
10% – 93% RH |
| Dimensions |
439.9 × 457.9 × 89 mm (2U) |
| Net weight |
6.4 kg |
| Installation |
Rack or desktop |
| Recommended firmware |
DH_NVR5XXX-EI_MultiLang V5.001.0000000.0.R.251220 (or later) — required for AcuPick, N+M cluster, iSCSI and ONVIF 23.12 |
| Certifications |
FCC Part 15 Subpart B Class A · CE-EMC · CE-LVD · Security Baseline 2.3 |
| Warranty |
3 years (CCTV Guru Australia) |
Downloads & documentation
Download official Dahua documents for setup, specifications, and recorder details.
Frequently asked questions
What's the real benefit of RAID over disk groups?
Disk groups (on the 5464) protect against single-drive failures by warning you and isolating the bad drive — but you lose the recordings on that drive. RAID 5 and RAID 6 mathematically distribute parity across all drives, so a single (RAID 5) or even dual (RAID 6) drive failure causes zero footage loss. Compliance-driven sites (banks, casinos, healthcare, government) often require RAID for this reason.
Should I run RAID 5, RAID 6 or RAID 10?
RAID 5 (single-disk redundancy) gives 7 × 16 TB ≈ 112 TB usable across 8 × 16 TB drives — the typical default for surveillance. RAID 6 (dual-disk redundancy) gives ~96 TB usable but survives two simultaneous failures — recommended for critical sites. RAID 10 (mirror-of-stripes) gives ~64 TB usable but extremely fast playback — useful when the NVR drives the control-room wall directly.
Does this NVR really support AcuPick?
Yes. Dahua's V5 firmware (binary DH_NVR5XXX-EI_MultiLang_V5.001.0000000.0.R.251220 or later) enables AcuPick on the AI/ANZ unit alongside N+M cluster, iSCSI and ONVIF 23.12. The firmware is published on Dahua AU's official product page for this model and ships from CCTV Guru with V5 installed. Older 2023-vintage datasheets predate this firmware, which is why some online documentation doesn't mention AcuPick.
Why is AcuPick capped at 32 channels when the NVR supports 64?
AcuPick is heavy on AI-chip resources — running attribute extraction and image-search against 64 channels simultaneously isn't possible on the current 5-Series silicon. You choose which 32 of the 64 channels run AcuPick (the rest still record, and still get ANPR / SMD Plus / perimeter via camera-side AI).
Why doesn't it have built-in PoE?
The 5864 is a headend NVR for sites with managed PoE switches. Sixty-four cameras through fixed PoE ports would need a 3–4U chassis with much higher power draw. Most 64-camera installs already have a switching layer, and dedicated PoE switches give you better cable layout, VLANs and redundancy than fixed-port PoE.
How much storage do I need for 64 cameras at 90 days retention?
For 64 × 4 MP cameras at H.265+ on motion-record, expect ~100–120 TB for 90 days. Eight 16 TB surveillance-grade drives (WD Purple Pro, Seagate SkyHawk AI) in RAID 5 gives ~112 TB usable — exactly the right size. RAID 6 across the same 8 drives gives ~96 TB usable with two-disk redundancy.
Is the DHI-NVR5864-AI/ANZ NDAA Section 889 compliant?
No. Dahua products are not currently NDAA Section 889 compliant. If NDAA compliance is required (federal, government or defence installs), choose a Uniview, Hanwha, Axis, Bosch or IDIS NVR instead — CCTV Guru can recommend an equivalent.

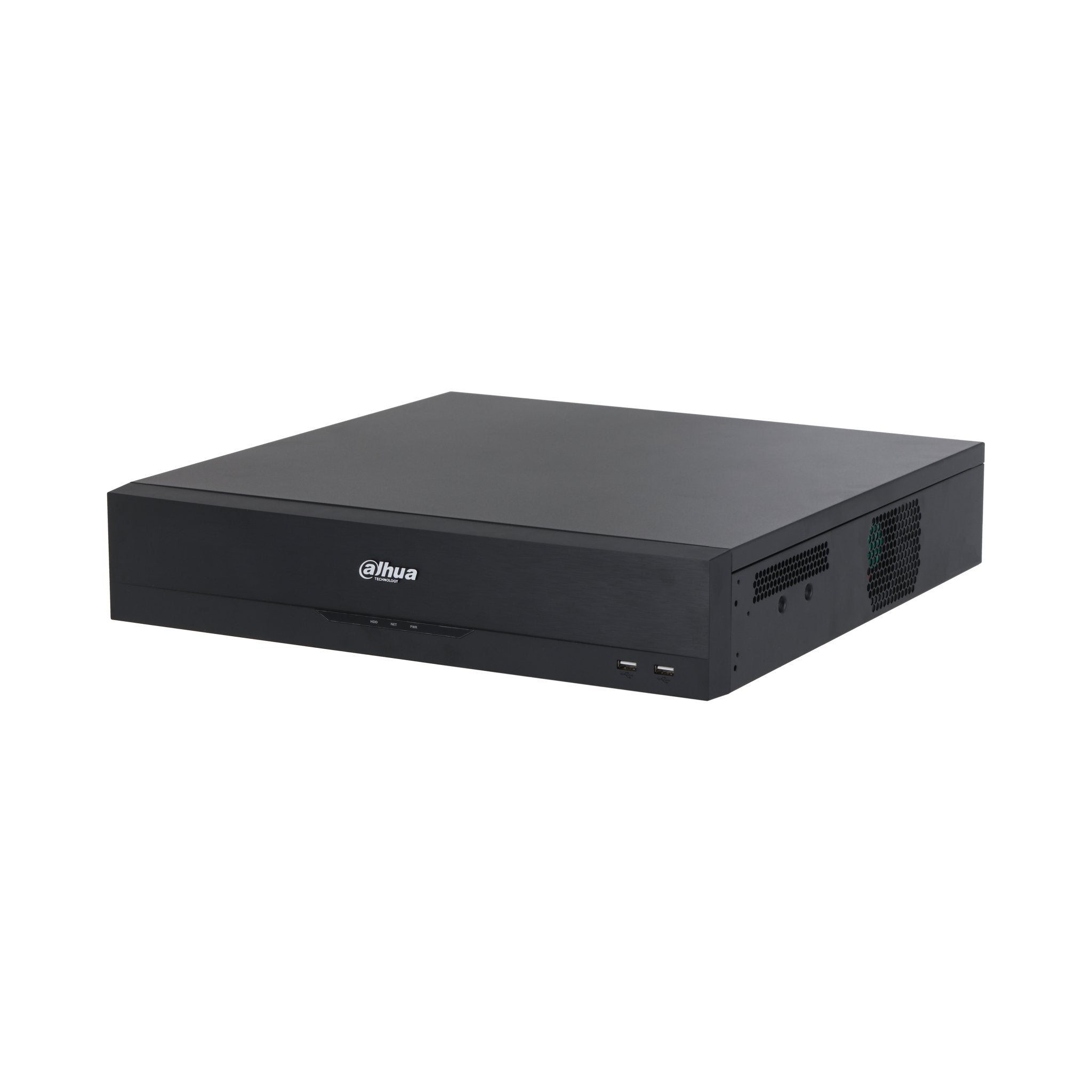

Can it be rack-mounted?
Yes — 2U / 440 mm wide fits a standard 19-inch rack with ears (rack ears sold separately). At 6.4 kg empty (without HDDs), plan for ~13–15 kg fully loaded with eight drives.
