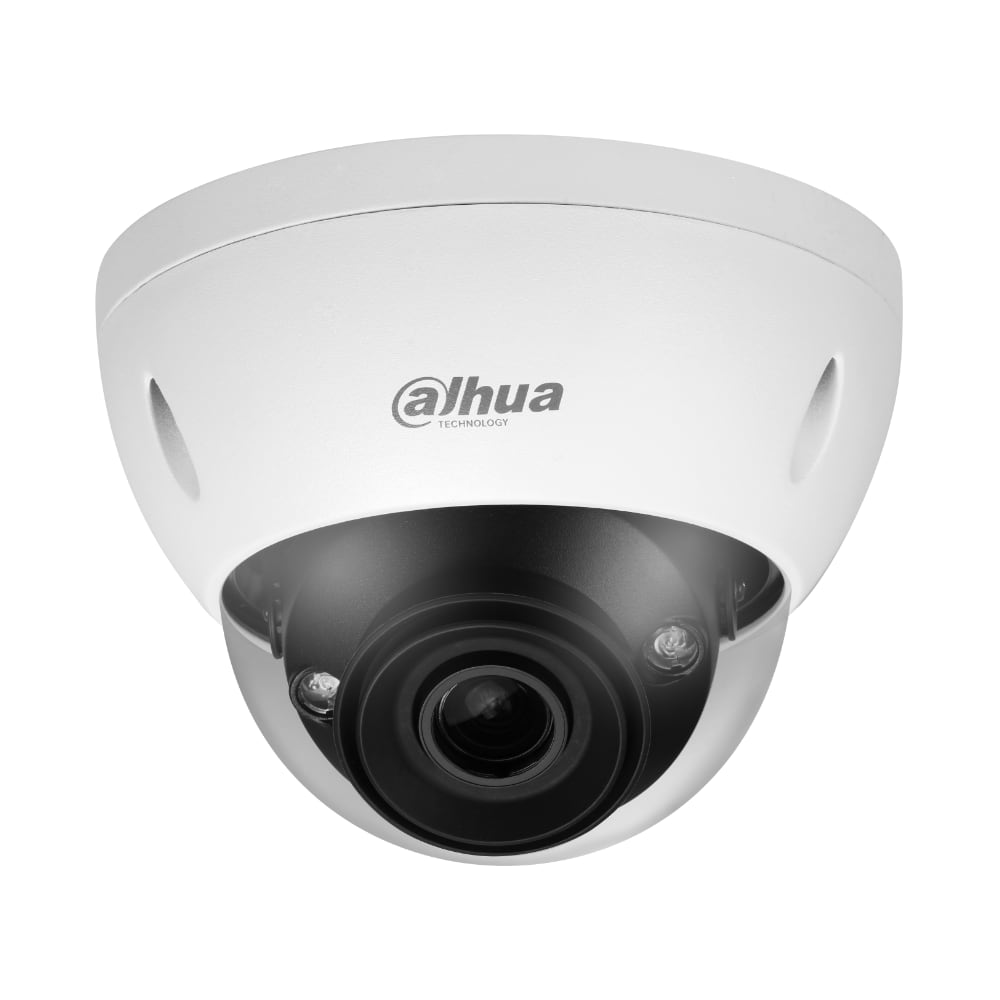

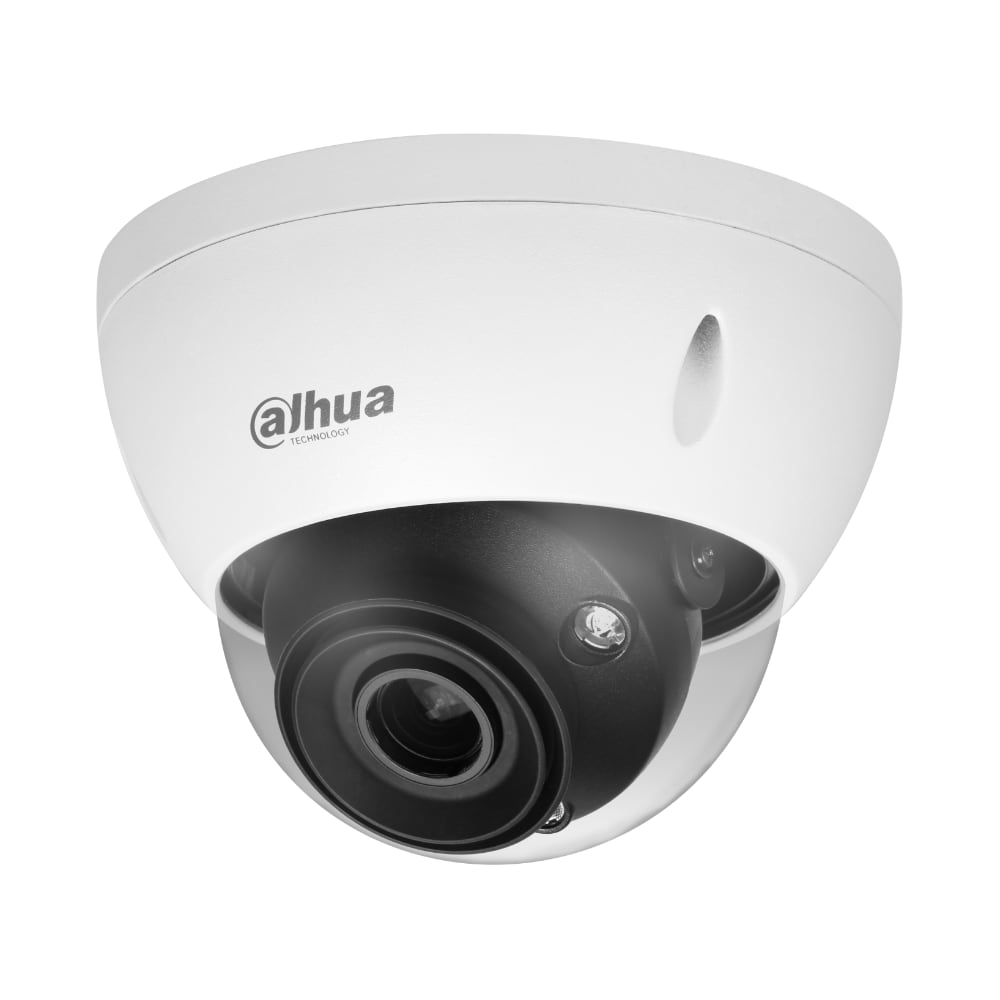

The Dahua DH-IPC-HDBW5441E-ZE-HDMI is a professional-grade vandal-proof 4MP dome IP camera from the WizMind series. Designed for demanding surveillance applications, it features an advanced motorised vari-focal lens (2.7–13.5mm), HDMI output for local display, and AI-based analytics such as face detection, people counting, perimeter protection, heat mapping, and SMD 3.0. Ideal for commercial and industrial applications requiring both intelligence and robust physical protection.
Key Features
- 4MP (2688 × 1520) resolution @ 25/30 fps
- Motorised vari-focal lens: 2.7 mm – 13.5 mm
- Built-in microphone for audio recording
- IR night vision up to 40m
- WizMind AI: Face Detection, People Counting, Perimeter Protection
- Smart H.265+/H.264+ and AI Coding
- HDMI 1.4a output (up to 2560×1440)
- Supports MicroSD storage up to 512 GB
- ONVIF compatible
- IP67 weatherproof and IK10 vandal-proof
Technical Specifications
| Specification |
Details |
| SKU |
DH-IPC-HDBW5441E-ZE-HDMI |
| Image Sensor |
1/2.9" CMOS |
| Max Resolution |
2688 (H) × 1520 (V) |
| Lens |
Motorised vari-focal 2.7–13.5mm, F1.6 |
| IR Range |
Up to 40m |
| Video Compression |
H.265, H.264, Smart H.265+, AI H.264 |
| Audio |
Built-in mic, 1 input / 1 output |
| Alarms |
2 in / 1 out |
| Power Supply |
12V DC / PoE (802.3af) / ePoE |
| Storage |
Supports up to 512 GB MicroSD |
| Operating Temp |
-30°C to +60°C |
| Protection |
IP67, IK10 |
| HDMI Output |
2560 × 1440 @ 30fps |
| Dimensions |
Φ159.1 × 118.1 mm |
| Weight |
Net: 0.92 kg | Gross: 1.22 kg |
