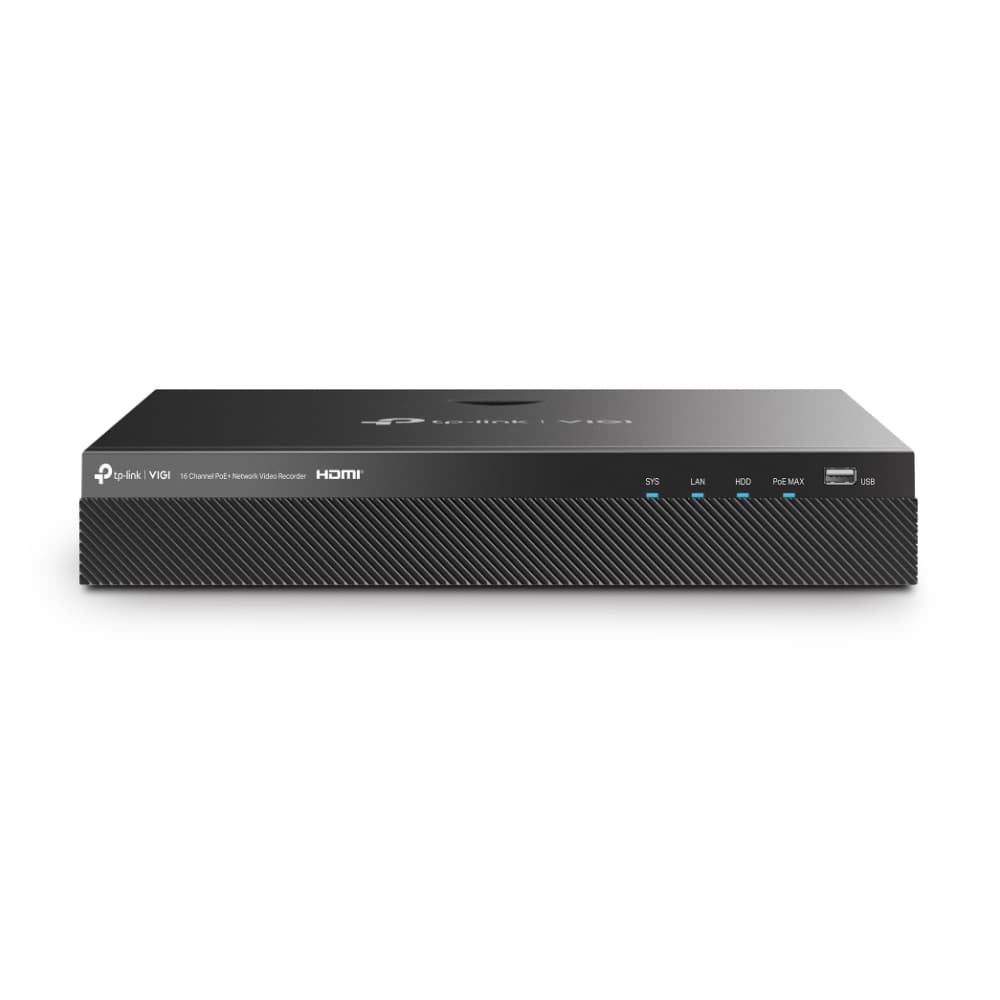

TP-Link VIGI Business CCTV NVR
16 Channel PoE+ Recording for Professional VIGI CCTV Systems
The TP-Link VIGI NVR2016H-16P is a 16 channel PoE+ network video recorder designed for business CCTV, retail stores, warehouses, offices and commercial surveillance projects across Australia. With 16 built-in PoE+ ports, 4K HDMI output, H.265+ compression and remote viewing support, it gives installers and business owners a clean, reliable foundation for a professional security camera system.
Why Choose the VIGI NVR2016H-16P?
Built for the TP-Link VIGI ecosystem, this NVR simplifies CCTV deployment by combining camera recording, PoE power, live view, playback and remote access in one streamlined recorder. It is a strong fit for businesses that need dependable surveillance without overcomplicating the installation.
16 Channel CCTV Recording
Supports up to 16 IP camera channels, making it ideal for small to medium business security systems that need room to grow.

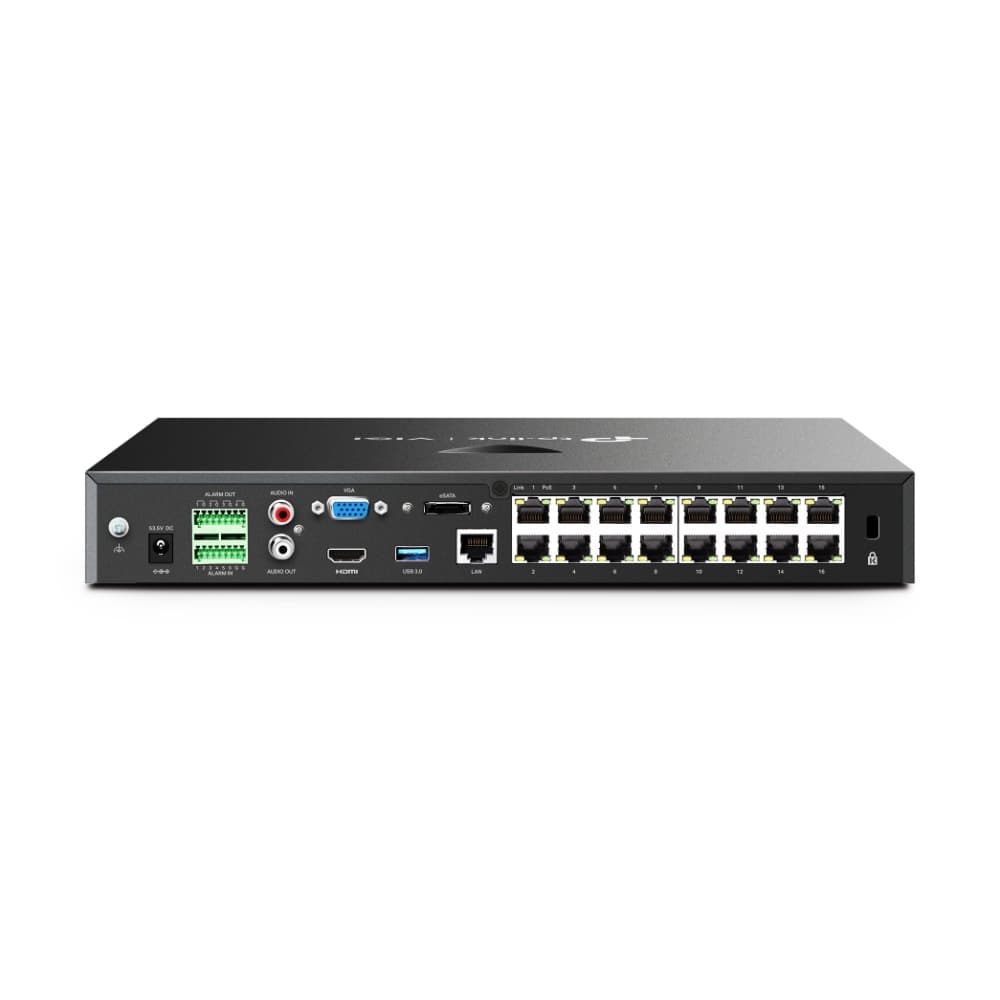

16 Built-In PoE+ Ports
Connect compatible VIGI PoE cameras directly to the NVR with a total PoE budget of 90W and up to 30W per port.
4K HDMI Video Output
View your CCTV cameras on a monitor with HDMI output up to 3840 × 2160 at 30Hz, plus simultaneous VGA output.
160 Mbps Bandwidth
Provides 160 Mbps incoming and outgoing bandwidth for reliable multi-camera recording and playback performance.
Efficient H.265+ Recording
H.265+ video compression helps reduce storage usage while maintaining practical recording quality for business surveillance.
Remote Viewing
View live and recorded footage using supported TP-Link VIGI platforms on mobile or desktop for convenient site monitoring.
Practical Applications
The VIGI NVR2016H-16P is a strong choice for retail shops, offices, warehouses, cafés, restaurants, clinics, workshops, home businesses and commercial sites needing a clean 16 camera CCTV recorder with built-in PoE.
Retail & Hospitality
Monitor entrances, counters, aisles, stock areas and customer-facing spaces with reliable multi-camera recording.
Warehouses & Offices
Cover loading docks, reception, car parks, work areas and storage rooms from one central VIGI recorder.
Installer Friendly Projects
Built-in PoE+ ports reduce the need for separate camera power supplies, helping deliver neater and faster CCTV installations.
Technical Specifications
| Model |
TP-Link VIGI NVR2016H-16P |
| IP Video Input |
16 channels |
| PoE Ports |
16 × RJ45 10/100 Mbps PoE+ ports |
| PoE Standard |
IEEE 802.3af/at compliant |
| PoE Budget |
90W total, 30W maximum per port |
| Incoming / Outgoing Bandwidth |
160 Mbps / 160 Mbps |
| HDMI Output |
Up to 3840 × 2160 at 30Hz |
| VGA Output |
Up to 1920 × 1080 at 60Hz |
| Video Output Mode |
HDMI / VGA simultaneous output |
| Video Compression |
H.265+ / H.265 / H.264+ / H.264 |
| Recording Resolution |
8MP / 5MP / 4MP / 3MP / 1080p / UXGA / 720p / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF |
| Synchronous Playback |
16 channels, subject to total resolution limits |
| Decoding Capability |
25fps: 10-ch @ 1080p. 30fps: 2-ch @ 8MP, 4-ch @ 5MP, 5-ch @ 4MP, 6-ch @ 3MP |
| Hard Drive Bays |
2 × SATA interfaces |
| Storage Capacity |
Up to 16TB per HDD. HDD not included. |
| Network Interface |
1 × RJ45 10/100/1000 Mbps self-adaptive Ethernet interface |
| USB Interface |
1 × front USB 2.0, 1 × rear USB 3.0 |
| Audio Interface |
1-ch RCA input, 1-ch RCA output |
| Alarm In / Out |
6 / 4 |
| Interoperability |
ONVIF Profile S, CGI |
| Mobile Access |
Android, iOS |
| Dimensions |
330 × 285 × 45 mm |
| Working Temperature |
NVR: -10°C to 55°C |
| Package Contents |
VIGI Network Video Recorder, power adapter, power cable, HDD power cables, HDD data cables, mounting accessories, mouse, quick installation guide |
Downloads
Official TP-Link VIGI Videos
How to Set Up People Counting Using VIGI VMS
Official TP-Link tutorial showing how to configure people counting analytics using the VIGI VMS platform for business reporting and surveillance insights.
How to Upgrade VIGI NVR Firmware
Official TP-Link walkthrough covering VIGI NVR firmware upgrades, maintenance updates and best practices for keeping your CCTV recorder current.
Frequently Asked Questions
| Does this NVR power cameras directly? |
Yes. It includes 16 built-in PoE+ ports with a 90W total PoE budget for compatible PoE security cameras. |
| Does the VIGI NVR2016H-16P include a hard drive? |
No. The hard drive is not included. It supports 2 SATA interfaces with up to 16TB capacity for each HDD. |
| Can I view cameras remotely? |
Yes. Remote viewing is supported through TP-Link VIGI platforms on Android, iOS and compatible desktop access methods. |
| Does it work with non-VIGI cameras? |
It supports ONVIF Profile S, which can allow compatible third-party IP cameras to be added. For best results, use TP-Link VIGI cameras. |
| Is this suitable for business CCTV in Australia? |
Yes. It is well suited to retail, office, warehouse, hospitality and commercial CCTV installations that need up to 16 camera channels. |
Build a Professional TP-Link VIGI CCTV System
Pair the VIGI NVR2016H-16P with compatible TP-Link VIGI PoE cameras for a clean, scalable and installer-friendly security system for your business.
