Description

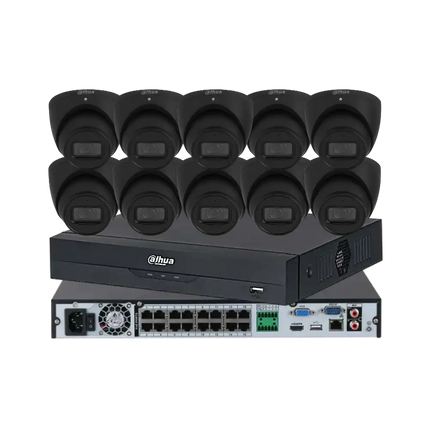

Dahua 6 MP + 16 Channels Kit: 10 x WizSense Fixed Starlight Turret Cameras, AI NVR, 3X66-K61610T-B-6TB
Dahua 3x66 6MP 16ch Kit includes:
DH-IPC-HDW3666EMP-S-AUS-BLK
Dahua Security Camera 6MP WizSense Fixed Starlight Turret, 2.8mm, Perimeter, SMD, SD Card, WDR, IR50m, Built-in Mic, IP67, PoE, black
- 6MP 1/2.7'' CMOS image sensor, excellent low luminance performance and high definition of images.
- Outputs max. 6 MP (3072 x 2048) @25/30 fps.
- H.265 codec, high compression rate, ultra-low bit rate.
- Built-in IR LED, max. IR distance: 50 m.
- ROI, SMART H.264 +/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments.
- Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
- Intelligent detection: Intrusion, tripwire (support the classification and accurate detection of vehicle and human).
- Abnormality detection: Motion detection, privacy masking, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
- Max. 256 G Micro SD card. built-in Mic.
- 12 VDC/PoE power supply, easy for installation.
- IP67 protection.
- SMD 4.0, AI SSA.
DHI-NVR4216-16P-AI/ANZ
Dahua 16ch NVR Record Up to 16MP, 16 Port PoE, HDMI(4K), Smart 2.0, P2P, Support 2 HDD, DHI-NVR4216-16P-AI/ANZ
- Smart H.265+/H.265/Smart H.264+/H.264/MJPEG decoding format.
- Access, storage or forwarding at 256 Mbps (180 Mbps when AI function enabled).
- Max. decoding capability: 16 x 1080p@30 fps. Supports adaptive decoding.
- AI by NVR: 1-channel face detection and recognition; 2-channel perimeter protection; up to 10 face databases and 20,000 face images; 4-channel SMD Plus.
- AI by Camera: Face detection and recognition, perimeter protection; SMD Plus; ANPR; people counting; stereo analysis; heat map.
- Connected to the third-party network cameras.
- Security baseline 2.3.
Extra Requirements
You must purchase a separate HDD Hard Disk Drive / storage device for your NVR recorder. We recommend a 4TB hard drive for 10-14 days of footage and an 8TB drive for 20-30 days, depending on the amount of footage you plan to record. Additionally, you will need to purchase cables for this CCTV kit. These cameras are PoE cameras, so you will only need to use RJ45 Category 6 network cables.
Diagram for CCTV Cameras & NVR Connection
