Description

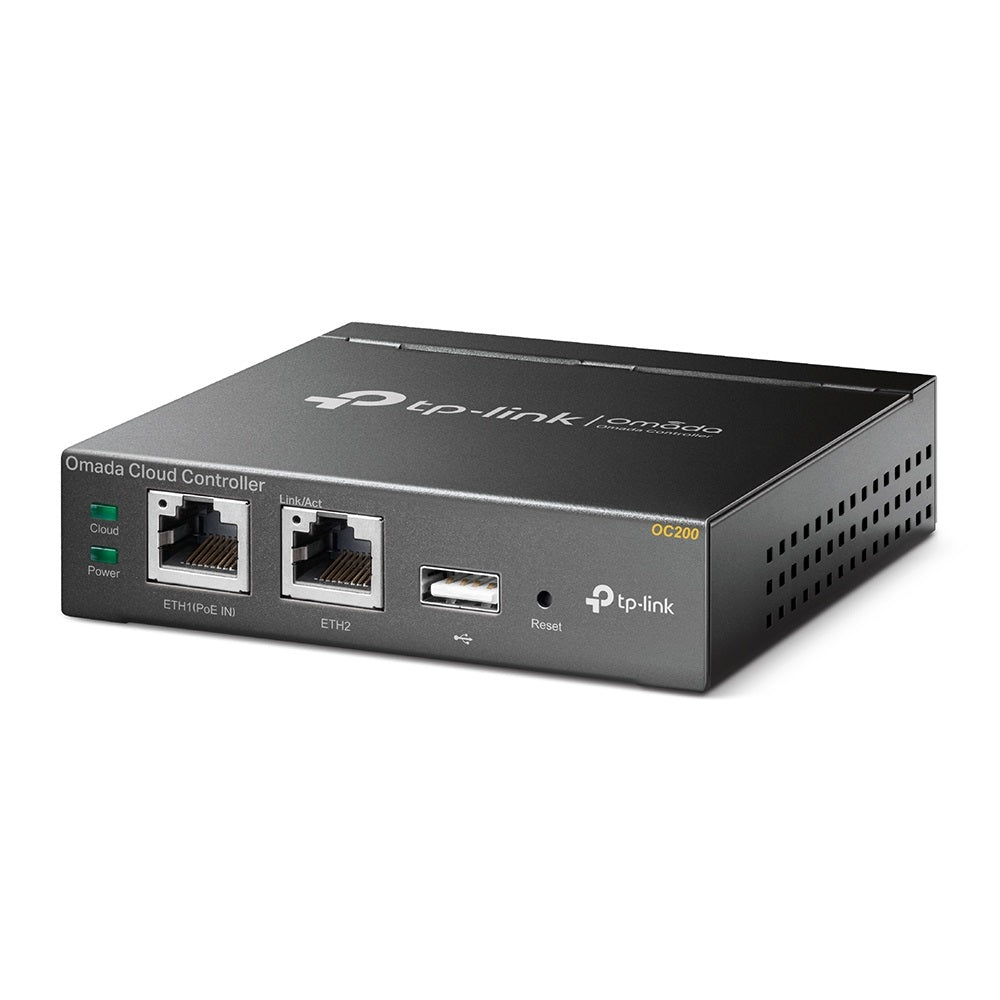

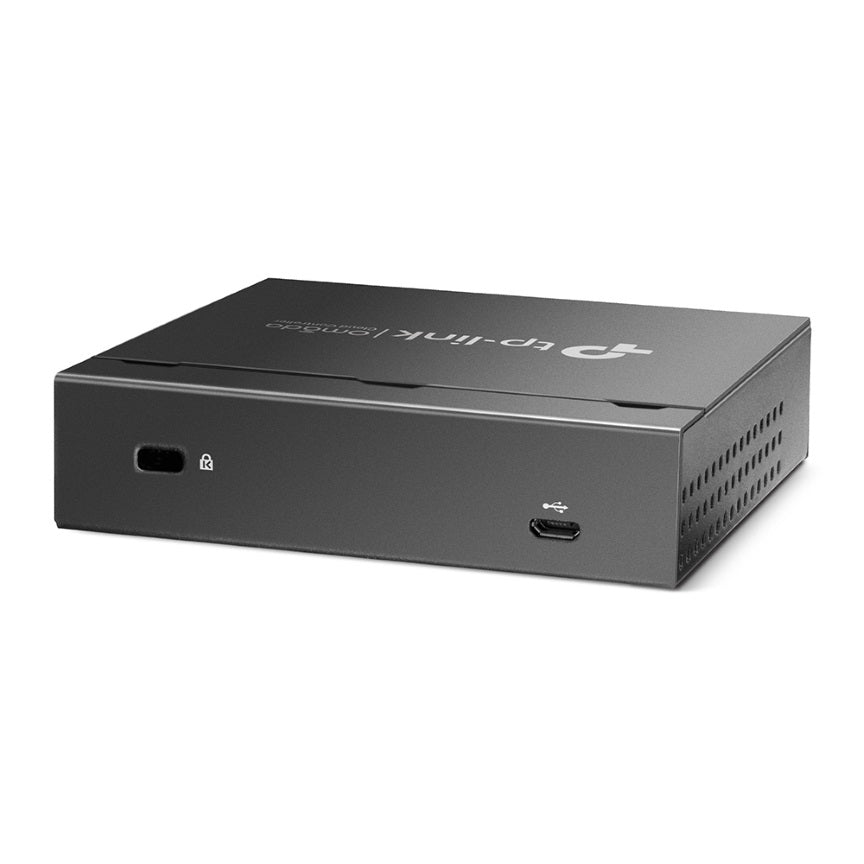

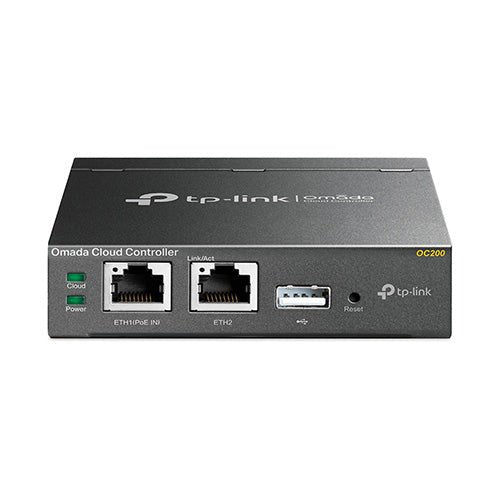

TP-Link OC200 Omada Cloud Controller, Centralised Management - Up to 100 Omada APs, JetStream Switches And SafeStream Routers
Dedicated Network for Centralised Management
The OC200 Omada Cloud Controller provides centralised management of the whole Omada network. Monitor statistics in real-time, view a graphical analysis of network traffic, create a captive portal, upgrade and reboot your system, and effortlessly scale your network to boost your business.
Professional centralised management for Wi-Fi network
Cloud access to manage from anywhere, anytime
PoE (802.3af/802.3at) supported for easy installation
Industry-leading hardware design with a powerful chipset, durable metal casing, and USB port for auto backup
Omada App for a convenient management
Secure guest network with multiple login options(Facebook Wi-Fi, SMS login, Voucher)
HARDWARE FEATURES
Interface 10/100Mbps Ethernet Port*2
USB 2.0 Port*1
Micro USB Port*1
Power Supply 802.3af/at PoE or Micro USB（DC 5V/Minimum 1A）
Dimensions 3.9×3.9×1.0 in (100×98×25 mm)
FEATURES
Wireless Fuction L3 Management
Multi-SSID
Load Balance
Band Steering
Airtime Fariness
Beamforming
Rate Limit
Wireless Schedule
QoS
Wireless Security Captive Portal Authentication
Access Control
Wireless Mac Address Filtering
Wireless Isolation Between Clients
SSID to VLAN Mapping
Rogue AP Detection
AP Management Automatic Discovery
Unified Configuration
Reboot Schedule
Batch Firmware Upgrade
LED ON/OFF
Authentication Captive Porta
MANAGEMENT
Omada App Yes
Centralized Management Up to 100 Omada access points, JetStream switches, and SafeStream routers
Cloud Access Yes
L3 Management Yes
Multi-site Management Yes
