Description

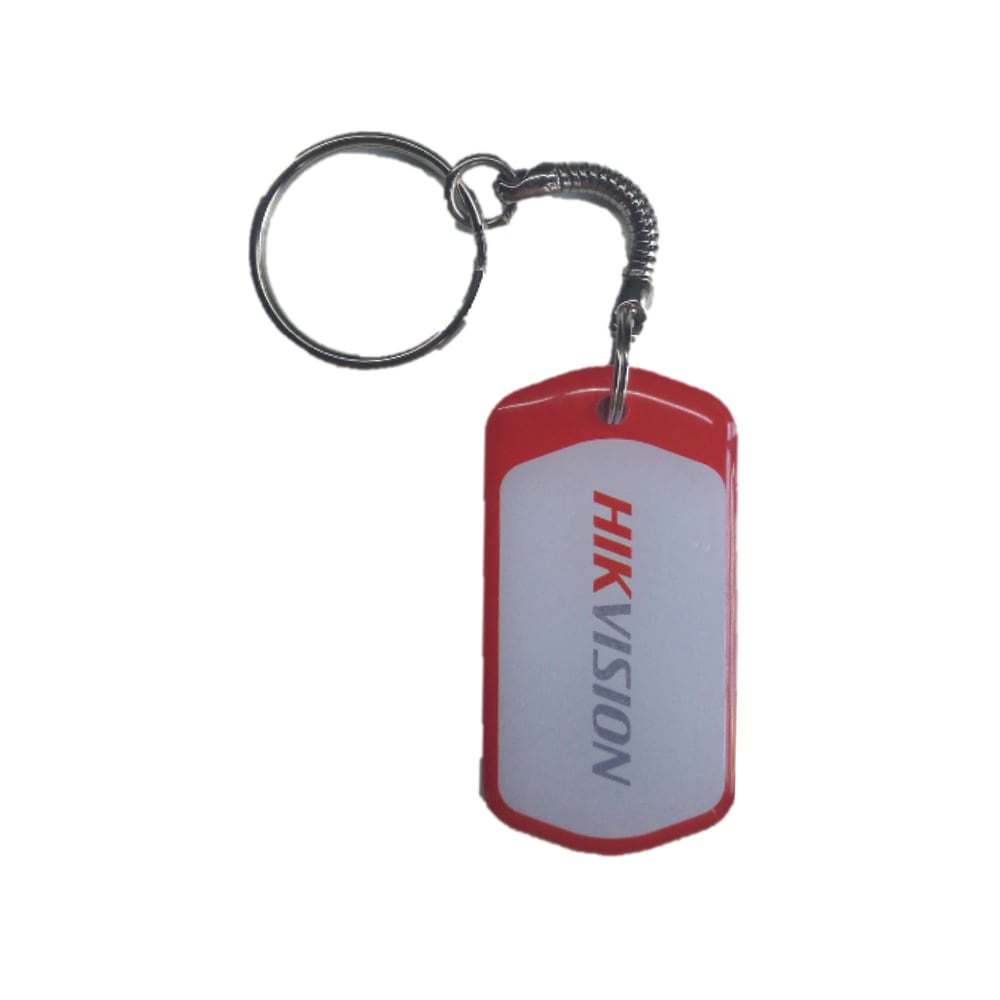

The Hikvision DS‑K7M102‑M is a compact and reliable MIFARE 1 contactless access card/fob designed for secure identity authentication. Encased in durable PVC with AB glue, this stylish credential is compact enough for easy keychain use and supports ISO14443A protocol with a fast 106 kbps data transfer rate.
Featuring 1,024-bit read/write memory structured in 16 sectors, it supports up to 10,000 write cycles and retains data securely for 10 years. With a typical read range of up to 4 cm, this versatile smart credential is perfect for access control systems across offices, retail environments, and enterprise applications.
Key Features
-
Frequency: 13.56 MHz (ISO14443A)
-
Data Transfer Rate: 106 kbps
-
Storage: 1024-bit Read/Write (16 sectors)
-
Durability: PVC + AB glue construction
-
Read Range: 0–4 cm
-
Endurance: 10,000 write cycles
-
Retention: Up to 10 years
-
Operating Temp: –10°C to 50°C
-
Storage Temp: –25°C to 65°C
-
Dimensions: 26 × 50 × 4 mm (1.02″ × 1.97″ × 0.16″)
Technical Specifications
| Specification |
Details |
| Model |
DS‑K7M102‑M |
| Frequency |
13.56 MHz (ISO14443A) |
| Data Transfer |
106 kbps |
| Memory |
1024 bits (16 sectors) |
| Material |
PVC with AB glue |
| Read Range |
0–4 cm |
| Endurance |
10,000 write cycles |
| Retention |
Up to 10 years |
| Operating Temp |
–10°C to 50°C |
| Storage Temp |
–25°C to 65°C |
| Dimensions (L×W×H) |
26 × 50 × 4 mm |
More Information
Hikvision DS-K7M102-M Datasheet
