Description

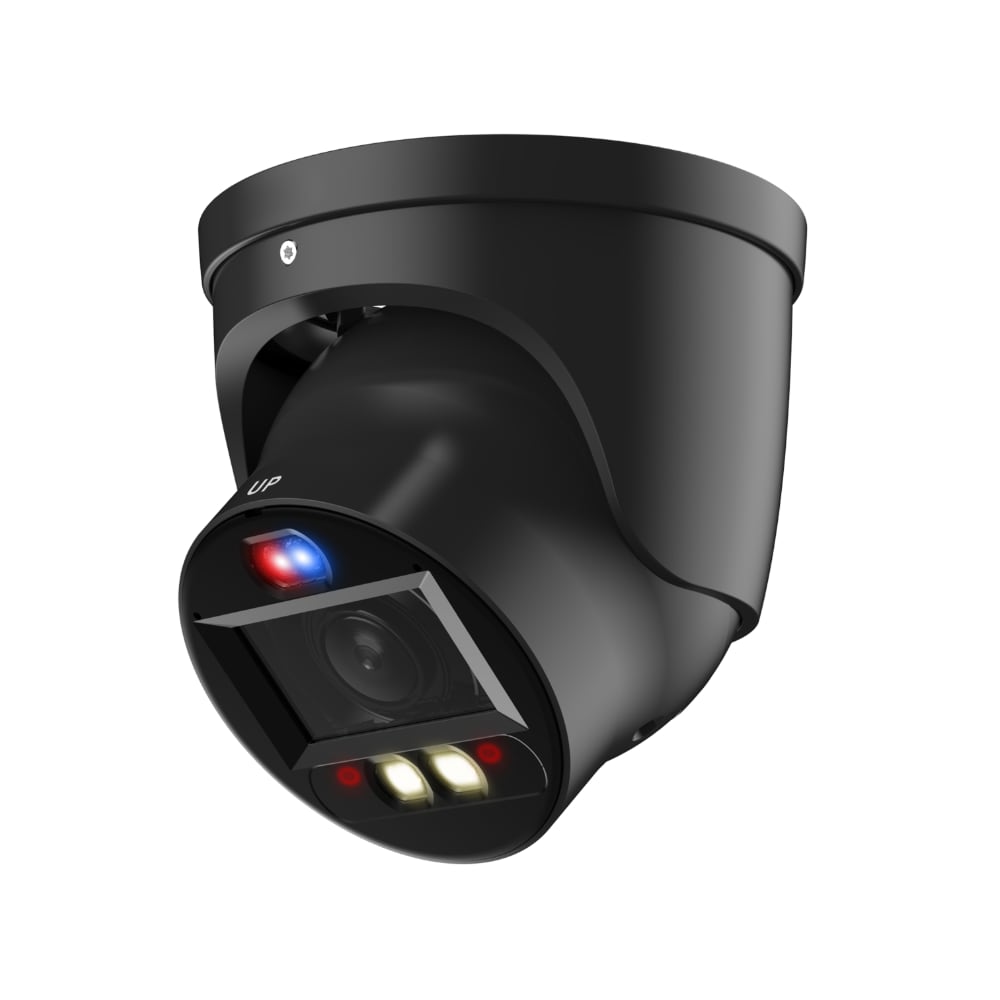

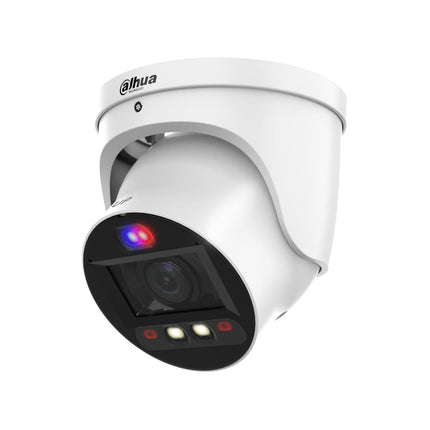

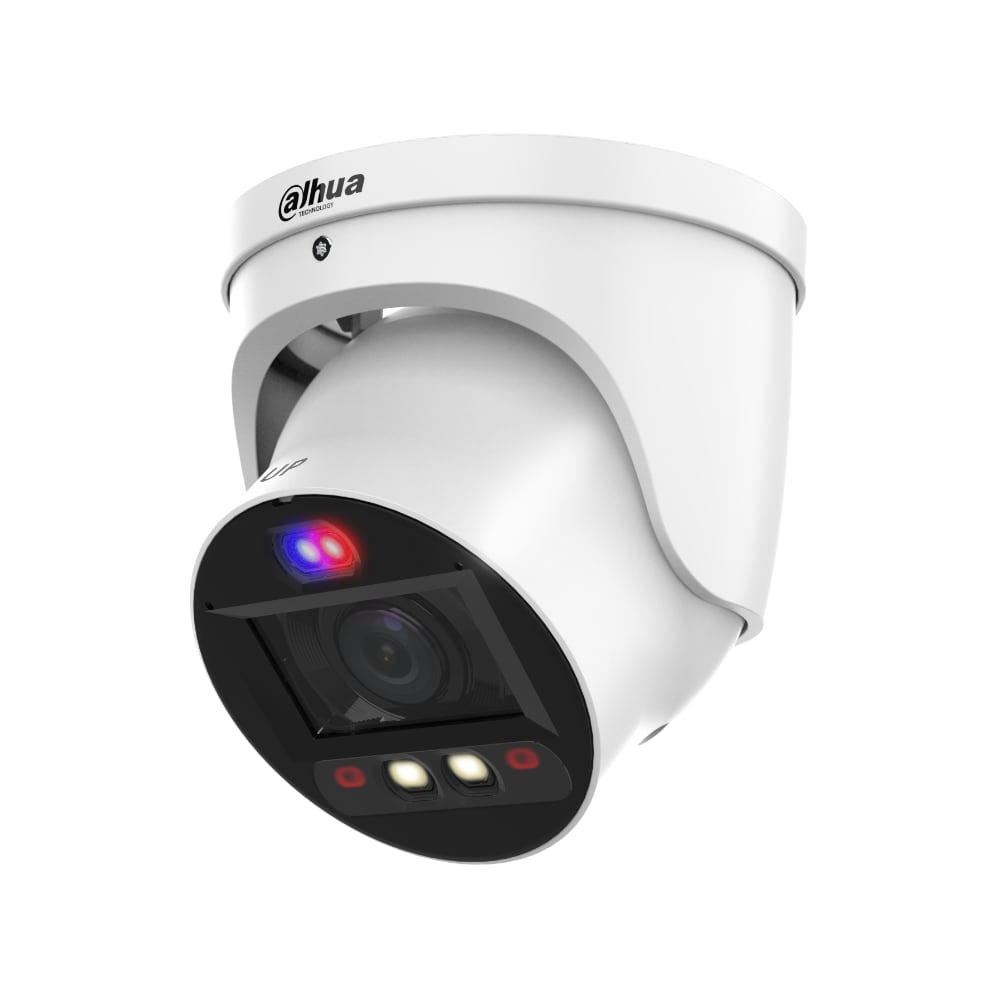

Dahua IPC-HDW3849H-ZAS-PV-ANZ-S2 – 8MP TiOC 3.0 Smart Dual-Light AI Motorised Turret Camera with Active Deterrence, 24/7 Full-colour
The Dahua IPC-HDW3849H-ZAS-PV-ANZ-S2 is an advanced 8MP turret camera from the TiOC 3.0 series, integrating full-colour surveillance, active deterrence, and AI capabilities. Featuring a motorised 2.7–13.5mm vari-focal lens, it delivers ultra-HD 4K resolution and adapts to various monitoring scenarios.
Equipped with Smart Dual-Light technology, the camera intelligently switches between IR and warm white LED illumination based on real-time activity, ensuring clear colour images at night while minimizing light pollution. The AcuPick AI feature enables rapid search of human and vehicle targets from recorded video streams, significantly reducing the time required to locate critical events.
Additional features include SMD 4.0 for accurate motion detection, AI Scene Self-Adaption (AI SSA) for optimal image quality, and active deterrence with red/blue warning lights and customizable voice alerts. With IP67-rated weather resistance, two-way audio, and support for up to 512GB microSD storage, this camera is ideal for both residential and commercial applications.
Features
-
8MP 1/2.8” CMOS sensor delivering 3840 × 2160 resolution at 25/30 fps
-
Motorised 2.7–13.5mm vari-focal lens with 108°–34° horizontal field of view
-
Smart Dual-Light: IR illumination up to 50m; warm light up to 40m
-
AcuPick AI for efficient human/vehicle target search
-
SMD 4.0 for accurate motion detection with reduced false alarms
-
Active deterrence with red/blue lights and customizable voice alerts
-
Two-way audio with built-in dual microphone and speaker
-
AI SSA for automatic scene optimization
-
IP67-rated weatherproof housing for outdoor use
-
Supports up to 512GB microSD card for local storage
-
Power options: 12V DC or PoE (802.3af)
Specifications
| Category |
Details |
| Model |
IPC-HDW3849H-ZAS-PV-ANZ-S2 |
| Image Sensor |
1/2.8” 8MP Progressive CMOS |
| Effective Pixels |
3840 × 2160 (8MP) |
| Frame Rate |
25/30 fps @ 3840 × 2160 |
| Lens |
2.7–13.5mm motorised vari-focal lens |
| Field of View |
H: 108°–34°, V: 56°–19°, D: 130°–39° |
| Illumination |
IR up to 50m; Warm light up to 40m (Smart Dual-Light) |
| Day/Night |
Auto (ICR) / Color / B/W / Smart Dual-Light |
| AI Functions |
AcuPick, SMD 4.0, Perimeter Protection, AI SSA |
| Audio |
Built-in dual microphone & speaker (two-way audio) |
| Compression |
H.265, H.264, Smart H.265+, Smart H.264+ |
| Storage |
Supports microSD card up to 512GB |
| Ingress Protection |
IP67 rated |
| Power Supply |
12V DC ±30% or PoE (802.3af) |
| Operating Temperature |
-30°C to +60°C (-22°F to +140°F) |
| Dimensions |
Φ127.6 × 122.0 mm |
| Weight |
Net: 0.885 kg, Gross: 1.060 kg |
Downloads
IPC-HDW3849H-ZAS-PV-ANZ-S2 Datasheet
Eyeball Network Camera Installation Guide
Dahua Network Camera Web Operation Manual
