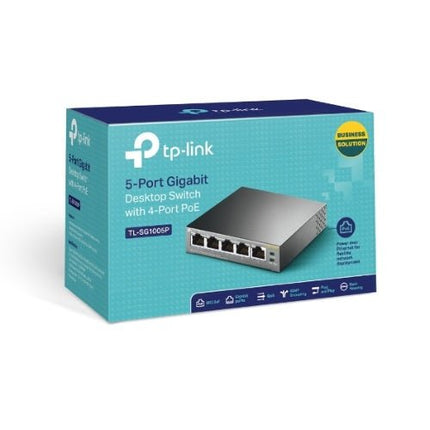

TP-Link TL-SG1005P 5-Port Gigabit Desktop Switch with 4-Port PoE 56W

Description

TP-Link TL-SG1005P 5-Port Gigabit Desktop Switch with 4-Port PoE 56W
  • 5 10/100/1000Mbps RJ45 ports
  • With four PoE ports, transfers data and power on one single cable
  • Working with IEEE 802.3af compliant PDs, expands home and office network
  • 802.1p/DSCP QoS enable smooth latency-sensitive traffic
  • Supports PoE Power up to 15.4W for each PoE port
  • Supports PoE Power up to 56W for all PoE ports
  • Requires no configuration and installation
HARDWARE FEATURES
Interface • 5× 10/100/1000Mbps RJ45 Ports
• AUTO Negotiation
• AUTO MDI/MDIX
Network Media • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
• EIA/TIA-568 100Ω STP (maximum 100m)
• 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
• EIA/TIA-568 100Ω STP (maximum 100m)
• 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
• EIA/TIA-568 100Ω STP (maximum 100m)
Fan Quantity Fanless
External Power Supply External Power Adapter (Output: 53.5 VDC / 1.31 A)
Packet Forwarding Rate 7.44 Mpps
PoE Ports (RJ45) • Standard: 802.3 af/at compliant
• PoE Ports: Ports 1–4
• Power Supply: 65 W
Mac Address Table 2K
Jumbo Frame 16 KB
Switching Capacity 10 Gbps
Dimensions ( W x D x H ) 3.9×3.9×1.0 in (99.8×98×25 mm)
Max Power Consumption • 4.29 W (220/50 Hz. no PD connected)
• 74.24 W (220/50 Hz. with 65 W PD connected)
Max Heat Dissipation • 14.63 BTU/h (no PD connected)
• 253.16 BTU/h (with 65 W PD connected)
SOFTWARE FEATURES
Advanced Features • Compatible With IEEE 802.3af/at Compliant PDs
• Mac Address Auto-Learning And Auto-Aging
• IEEE 802.3x Flow Control
• 802.1p/DSCP QoS
• IGMP Snooping

TP-Link TL-SG1005P 5-Port Gigabit Desktop Switch with 4-Port PoE 56W

Product form

SKU: TL-SG1005P

TP-Link TL-SG1005P 5-Port Gigabit Desktop Switch with 4-Port PoE 56W 5 10/100/1000Mbps RJ45 ports With four PoE ports, transfers data... Read more

$98.90 $62.00 Incl. GST

    • Warranty: 60 months
    • 30 day money back guarantee
    • Australian Stocks & Express Delivery
    • Back-to-base Warranty & Tech Support
      • PayPal
      • Apple Pay
      • Visa
      • Mastercard
      • Zip
      • Klarna
      • Afterpay

      Description

      TP-Link TL-SG1005P 5-Port Gigabit Desktop Switch with 4-Port PoE 56W
      • 5 10/100/1000Mbps RJ45 ports
      • With four PoE ports, transfers data and power on one single cable
      • Working with IEEE 802.3af compliant PDs, expands home and office network
      • 802.1p/DSCP QoS enable smooth latency-sensitive traffic
      • Supports PoE Power up to 15.4W for each PoE port
      • Supports PoE Power up to 56W for all PoE ports
      • Requires no configuration and installation
      HARDWARE FEATURES
      Interface • 5× 10/100/1000Mbps RJ45 Ports
      • AUTO Negotiation
      • AUTO MDI/MDIX
      Network Media • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
      • EIA/TIA-568 100Ω STP (maximum 100m)
      • 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
      • EIA/TIA-568 100Ω STP (maximum 100m)
      • 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
      • EIA/TIA-568 100Ω STP (maximum 100m)
      Fan Quantity Fanless
      External Power Supply External Power Adapter (Output: 53.5 VDC / 1.31 A)
      Packet Forwarding Rate 7.44 Mpps
      PoE Ports (RJ45) • Standard: 802.3 af/at compliant
      • PoE Ports: Ports 1–4
      • Power Supply: 65 W
      Mac Address Table 2K
      Jumbo Frame 16 KB
      Switching Capacity 10 Gbps
      Dimensions ( W x D x H ) 3.9×3.9×1.0 in (99.8×98×25 mm)
      Max Power Consumption • 4.29 W (220/50 Hz. no PD connected)
      • 74.24 W (220/50 Hz. with 65 W PD connected)
      Max Heat Dissipation • 14.63 BTU/h (no PD connected)
      • 253.16 BTU/h (with 65 W PD connected)
      SOFTWARE FEATURES
      Advanced Features • Compatible With IEEE 802.3af/at Compliant PDs
      • Mac Address Auto-Learning And Auto-Aging
      • IEEE 802.3x Flow Control
      • 802.1p/DSCP QoS
      • IGMP Snooping
