Description

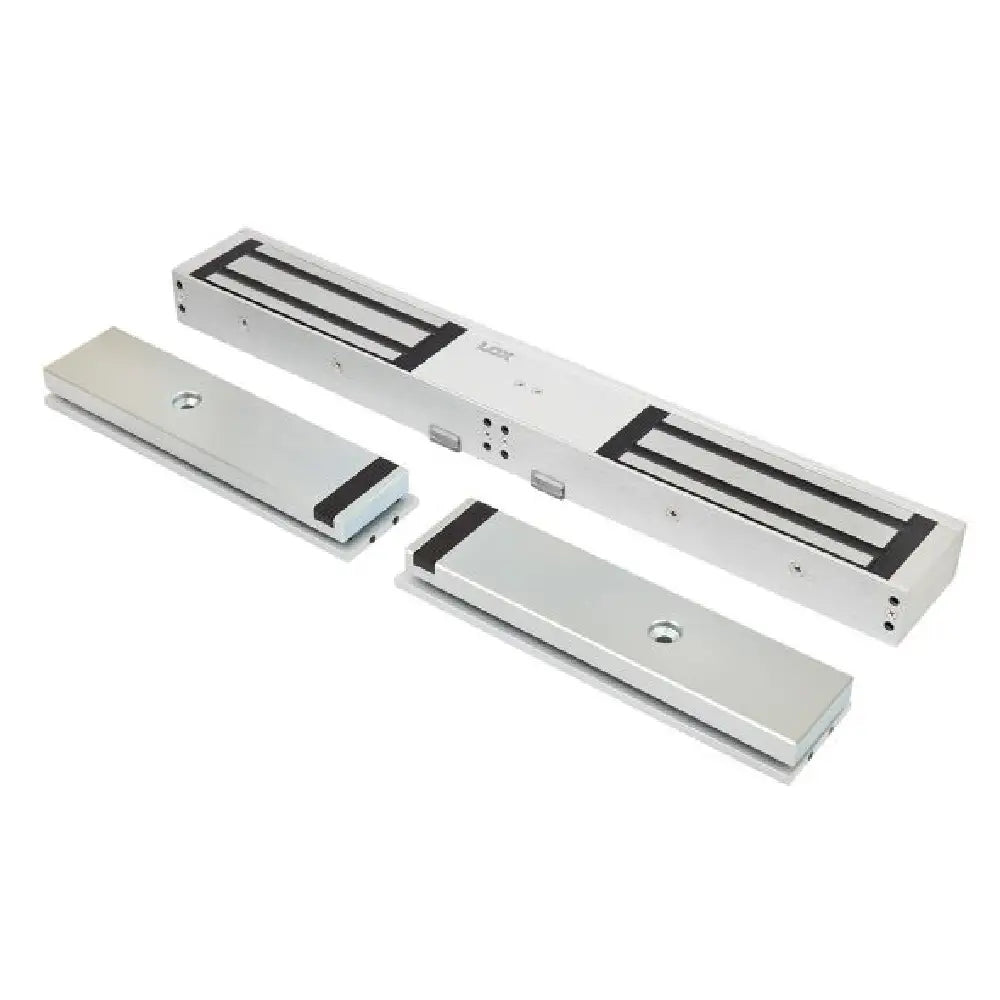

LOX EM5700D Heavy Duty Double Door Magnetic Lock – 1200kg Holding Force
When maximum security is non-negotiable, the LOX EM5700D Series delivers. Engineered for heavy-duty double door applications, this non-monitored electromagnetic lock provides a massive 1200kg total holding force (600kg per door leaf). It is the premier choice for high-traffic, high-security environments across Australia.
Industrial-Grade Security Features
-
Extreme Holding Power: 600kg per magnet (1200kg total) provides superior resistance against forced entry.
-
Lifetime Warranty: Built to last with a manufacturer-backed lifetime warranty for peace of mind.
-
Highest Fire Rating: Certified for up to 4 hours on fire door assemblies (AS Standard), making it compliant for critical exit paths.
-
Anti-Stick Technology: Features a "Zero Residual Magnetism" design, ensuring the doors release immediately during power-off for safety.
-
Voltage Versatility: Intelligent dual-voltage circuitry (12VDC or 24VDC) for easy integration with existing access control systems.
Technical Specifications
| Feature |
Details |
| Model Number |
EM5700D (Non-Monitored) |
| Holding Force |
600kg x 2 (1200kg Total) |
| Input Voltage |
12VDC / 24VDC |
| Current Draw |
500mA x 2 (12V) | 250mA x 2 (24V) |
| Corrosion Resistance |
High-quality Zinc plating |
| Compliance |
CE, RCM (C-Tick), and 4-Hour Fire Rated |
Best Use Cases
The EM5700D is designed for double doors in high-security locations, including:
- Warehouses and distribution centers.
- Government and correctional facilities.
- Commercial office lobbies with heavy double-glass or timber doors.
- Perimeter exit doors requiring fire-certified hardware.
Installer Note: This is a non-monitored model. If your project requires "Lock Status" (LSS) or "Door Status" (DSS) monitoring for remote security alerts, please view the EM5700DM (Monitored) version.
More Information
EM5700_LOX_Manual_Datasheet
Lox_EM5700D_Datasheet
Accessories_LOX_FINAL_V.07.2023_FINAL_PAGES_SM.pdf
