Description

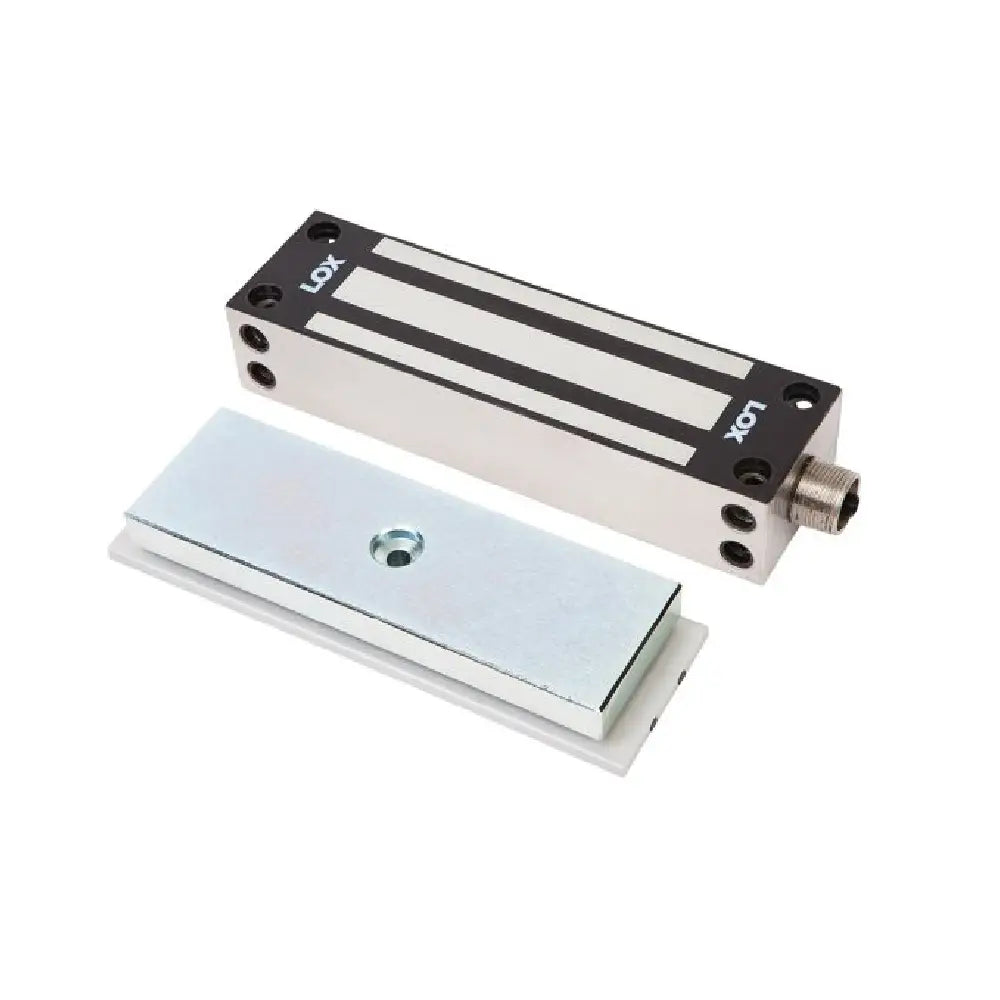

High-Security Perimeter Protection: LOX EM5000 630kg Magnetic Gate Lock
The LOX EM5000 is the most powerful weather-resistant electromagnetic lock in the LOX range. Specifically designed for high-security commercial and industrial perimeter gates, it offers a massive 630kg holding force. Constructed with a fully sealed 304-grade stainless steel body, it is built to withstand the most extreme environmental conditions without compromising security.
Key Industrial Features
-
Maximum Security: 630kg (approx. 1380lbs) holding force for heavy-duty gate applications.
-
IP67 Waterproof Rating: Fully encapsulated electronics for reliable operation in tropical rain, dust storms, or coastal salt air.
-
Monitoring as Standard: Built-in Hall Effect Sensor (LSS) provides remote lock status monitoring for integration with access control systems.
-
304 Grade Stainless Steel: Superior corrosion resistance compared to standard zinc-plated locks.
-
Fail-Safe Operation: Automatically unlocks during power loss for emergency egress compliance.
Technical Specifications
| Model |
EM5000 (Monitored) |
| Holding Force |
Up to 630kg |
| Environmental Rating |
IP67 (Fully Weatherproof) |
| Voltage |
12VDC / 24VDC (Dual Voltage) |
| Current Draw |
460mA @ 12V / 230mA @ 24V |
| Body Material |
304 Grade Stainless Steel |
| Anti-Residual Magnetism |
Yes (Instant Release) |
Installation Guidance
Due to its high holding force, the EM5000 requires a rigid mounting surface. It features a dual-fixing arrangement (front and header). For swinging gates, ensure you use the compatible LOX L & Z Brackets to maintain the 630kg integrity of the lock.
More Information
LOX_EM5000_Manual_Datasheet
Lox_EM5000_Datasheet
Accessories_LOX_FINAL_V.07.2023_FINAL_PAGES_SM.pdf
