Description

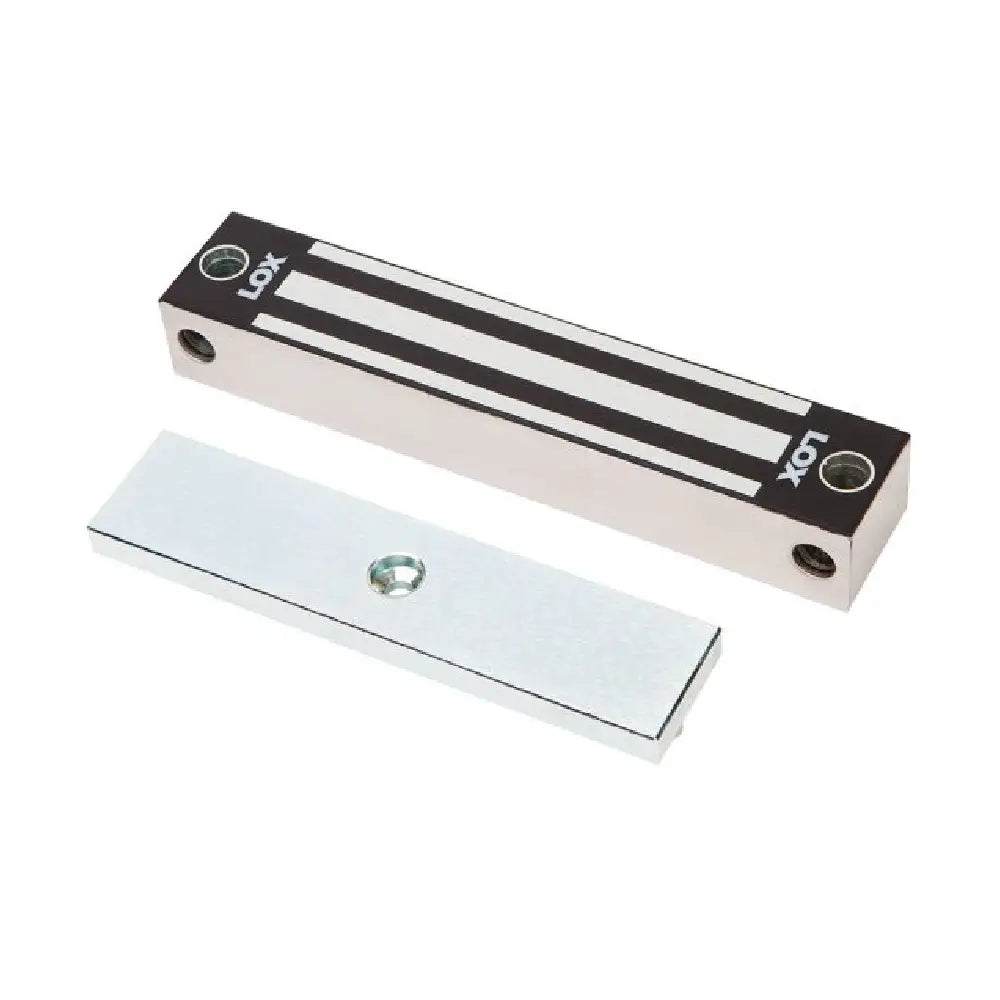

Premium Weatherproof Security: LOX EM4500 Magnetic Gate Lock
The LOX EM4500 is a high-performance, mini weather-resistant electromagnetic lock specifically engineered for harsh outdoor environments. Enclosed in a robust 304-grade stainless steel housing, it provides a reliable locking solution for gates and doors exposed to Australia’s toughest wind and rain conditions.
Key Features & Benefits
-
IP67 Rated Protection: Fully sealed against dust and water, making it perfect for external perimeter gates.
-
200kg Holding Force: Strong, reliable security in a compact "mini" form factor.
-
Monitored Security: Includes a built-in Reed Switch (Door Status Sensor) to monitor if the gate is open or closed.
-
Zero Maintenance: No residual magnetism ensures the gate releases instantly every time.
-
Flexible Installation: Unique dual-fixing arrangement allows for both front and header mounting.
Technical Specifications
| Model |
EM4500 (Monitored) |
| Material |
304 Grade Stainless Steel |
| Holding Force |
Up to 200kg |
| Voltage |
Dual Voltage (12VDC / 24VDC) |
| Current Draw |
360mA @ 12V / 180mA @ 24V |
| Operating Temp |
-20°C to +60°C |
| Warranty |
Lifetime Manufacturer Warranty |
Frequently Asked Questions
Is the EM4500 suitable for coastal areas?
Yes. The 304-grade stainless steel housing and IP67 rating make it highly resistant to corrosion and salt spray commonly found in coastal environments.
Does it require a specific bracket?
While it supports dual mounting, many inward-opening gates require the AMZB3 L & Z Bracket for a secure fit.
