Description

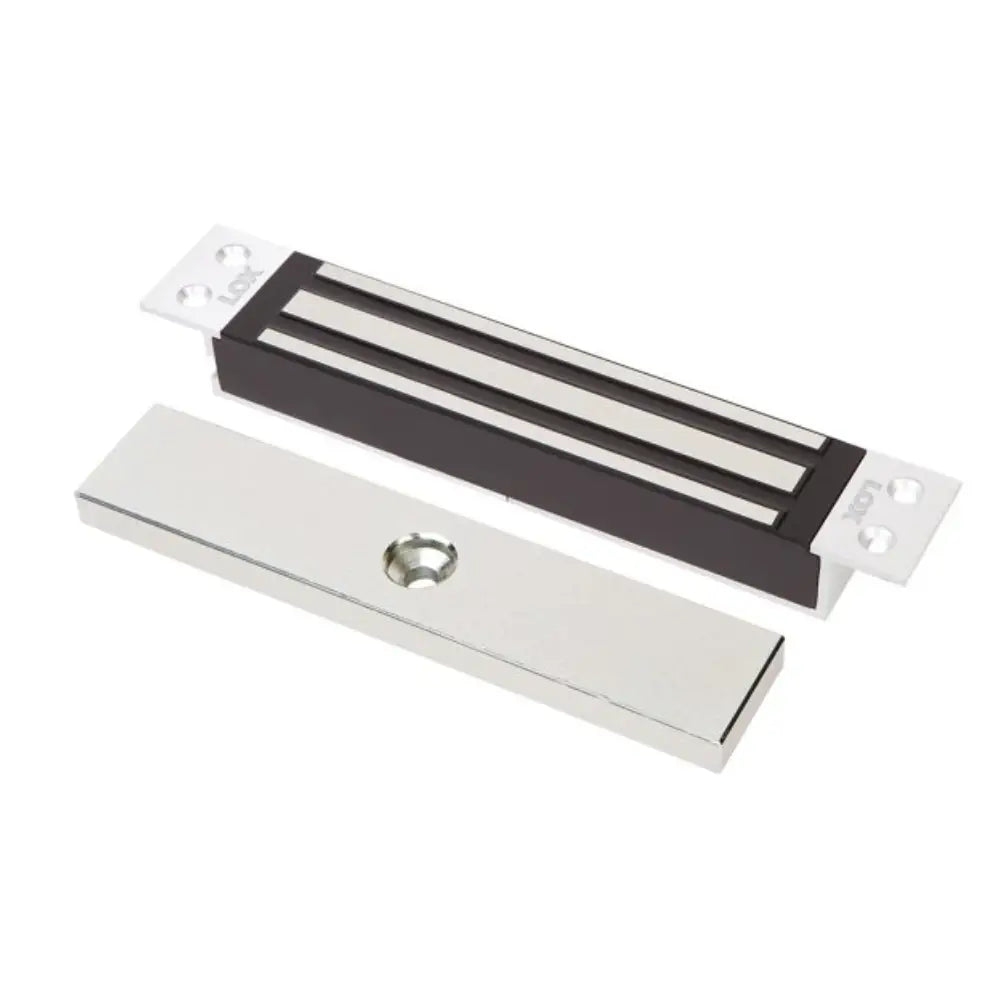

Concealed High-Security Flush Mount Magnetic Lock
The LOX EM3500FM is a high-performance, flush-mount electromagnetic lock designed for architectural applications where a clean, concealed finish is required. By recessing the lock into the door frame, it provides a discrete security solution without compromising on the 280kg holding force LOX is known for.
Advanced Dual Monitoring
Safety and status tracking are built-in. The EM3500FM features integrated sensors to keep your access control system fully informed:
-
LSS (Lock Status Sensor): Monitors the internal magnetic bond (Locked/Unlocked).
-
DSS (Door Status Sensor): Uses a built-in reed switch to track the physical position of the door (Open/Closed).
Key Features:
-
Flush Mount Design: Recessed installation for a seamless, aesthetic look on timber or metal frames.
-
Fire Rated: Fully tested for up to a 4-hour fire rating in accordance with AS standards.
-
Dual Voltage: Site-selectable 12VDC or 24VDC operation.
-
Anti-Tamper Technology: Equipped with an anti-tamper plate to protect the armature bolt.
-
No Moving Parts: Designed for high-traffic areas with a 1-million cycle test rating.
-
Lifetime Warranty: Guaranteed reliability with the LOX Locking lifetime replacement warranty.
Technical Specifications:
| Holding Force |
280kg (approx. 600lbs) |
| Input Voltage |
12VDC (530mA) / 24VDC (260mA) |
| Monitoring |
Dual Monitoring (LSS & DSS) |
| Mounting Type |
Flush / Recessed Mount |
| Compliance |
CE, RCM, 4-Hour Fire Rated |
Installation Tip: This flush-mount model is ideal for sliding doors or swinging doors where the lock body needs to be hidden within the header.
