Description

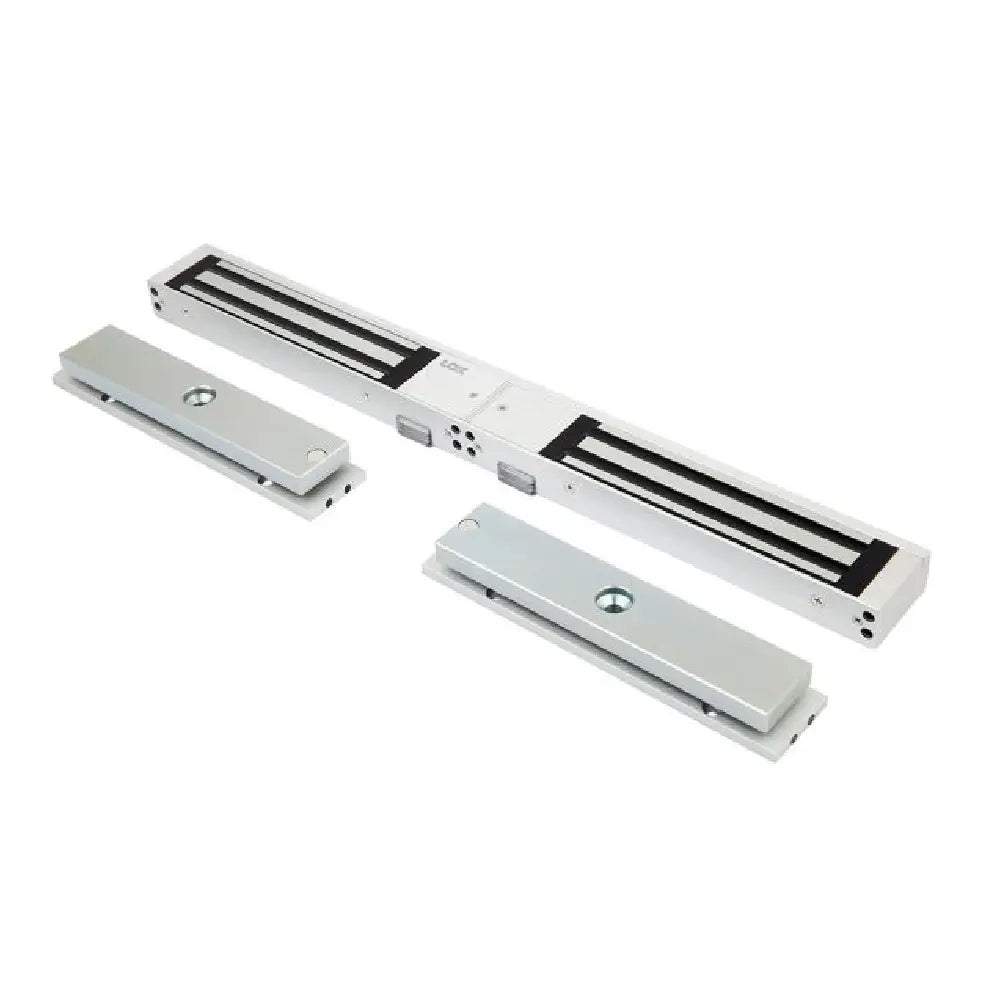

Premium Double Door Security: LOX EM3500D Electromagnetic Lock
The LOX EM3500D Series is a benchmark for reliability in the Australian access control market. Designed specifically for double-door configurations, this non-monitored electromagnetic lock provides a powerful 560kg total holding force (280kg per magnet), making it the ideal choice for commercial, industrial, and institutional facilities.
Key Features & Benefits
-
Dual Holding Force: 280kg per magnet ensures robust security for both leaves of a double door.
-
High Durability: Rigorously tested to over 1 million cycles for long-term operational life.
-
Fire Safety Certified: Fire rated up to 4 hours to Australian Standards (AS), suitable for high-compliance exit routes.
-
Zero Residual Magnetism: Ensures the door releases instantly when power is removed, preventing sticking.
-
Built-in Protection: Integrated varistor (MOV) prevents damage from power surges and spikes.
Technical Specifications
| Feature |
Specification |
| Model |
EM3500D (Non-Monitored) |
| Holding Force |
280kg x 2 (560kg Total) |
| Voltage |
Dual Voltage 12VDC / 24VDC |
| Current Draw |
530mA x 2 (12V) | 260mA x 2 (24V) |
| Operating Temp |
-20°C to +60°C |
| Certifications |
CE & C-Tick (RCM) |
Applications
The EM3500D is versatile and compatible with a variety of door types. It is commonly used in:
- Main building entrances with double doors.
- Hospitals, schools, and retail shopping centers.
- Emergency exit routes requiring fire-rated hardware.
- Glass doors (when used with LOX glass door brackets/armature holders).
Note: For applications requiring Lock Status (LSS) or Door Status (DSS) monitoring and LED indicators, please refer to the EM3500DM (Monitored) version.
