Description

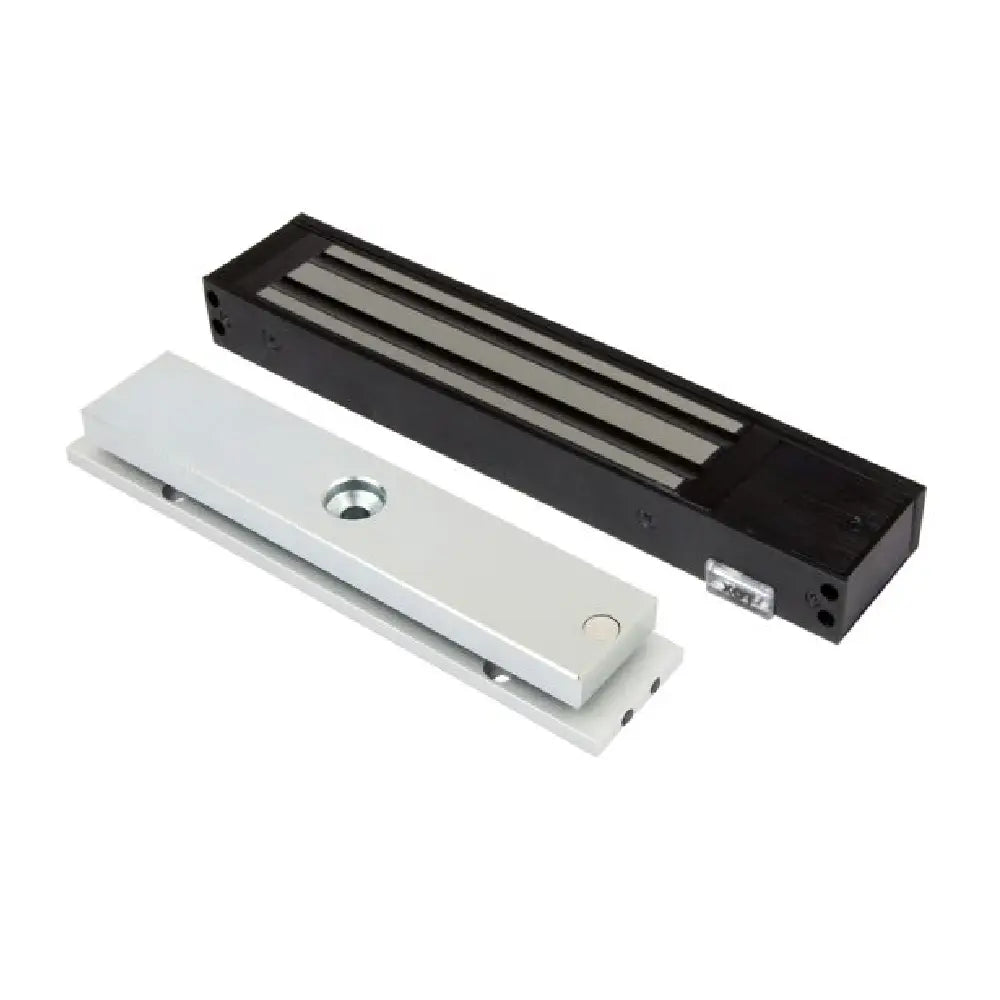

High-Security Black Anodised Monitored Magnetic Lock
The LOX EM3500BLK is a premium, black anodised single-door electromagnetic lock designed for high-end commercial and residential architectural finishes. Part of the renowned LOX Black Series, it offers a robust 280kg holding force and has been tested to 1 million cycles, making it one of the most reliable maglocks on the Australian market.
Integrated Monitoring & Safety
This monitored version (EM3500BLK) provides total peace of mind with dual-layer status tracking:
-
LSS (Lock Status Sensor): Built-in Hall Effect sensor to monitor if the device is locked or unlocked.
-
DSS (Door Status Sensor): Integrated reed switch to monitor the open/closed position of the door.
-
LED Indicator: Highly visible red/green LED panel for instant visual status updates.
Key Features:
-
Slimline Black Design: Anodised black finish perfect for modern aesthetics and dark door frames.
-
Fire Rated: Up to 4-hour fire rating (tested to AS Standard).
-
Anti-Tamper: Includes an Anti-Tamper Fixing Plate to prevent hostile attacks on the armature bolt.
-
Dual Voltage: Operates on either 12VDC or 24VDC for installation flexibility.
-
No Residual Magnetism: Ensures the door releases instantly when power is cut.
-
Lifetime Warranty: Built to last with a manufacturer-backed lifetime guarantee.
Technical Specifications:
| Holding Force |
Up to 280kg |
| Voltage/Current |
12VDC (530mA) / 24VDC (260mA) |
| Monitoring |
LSS (Lock Status) & DSS (Door Status) |
| Finish |
Black Anodised Body |
| Approvals |
CE, RCM, C-Tick, 4-Hour Fire Rated |
| Operating Temp |
-20°C to 60°C |
Note: Suitable for use with LOX L & Z brackets (AMZB4-BLK) and U-brackets for glass door applications.
